Description

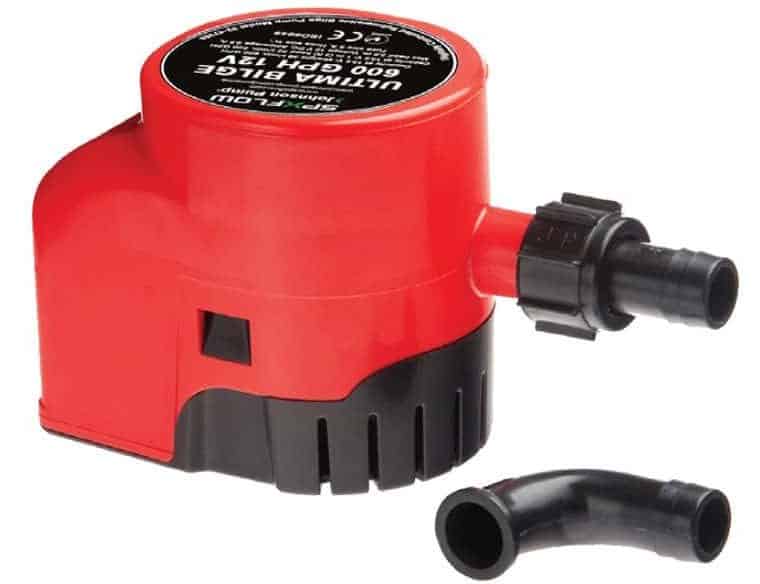

SPX Johnson Ultima Bilge Pump 600 GPH 12 Volt 32-47258
Sleek, reliable and compact unit with integrated switch (Ultima Switch™) ready to install and run for years of unerring service.
Available in 600, 800, 1000, and 1250 Gallons Per Hour versions. Voltage: 12 Volt DC.
All UltimaBilge™ pumps feature easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps.
Where applicable, the pumps are delivered including both a straight and a 90° smooth elbow Dura-Port and a removable check valve. Prewired for easy installation.
Specifications
- Capacity at 0.9 metre head (13.6 Volt): 32 litres per minute – 500 Gallons Per Hour
- Capacity straight (13.6 Volt): 38 litres per minute – 600 Gallons Per Hour
- Current Draw: 2.5 Amp
- Fuse Size: 5 Amp
- Weight: 0.66 kilogram
- Height: 105 millimetres
- Length: 142 millimetres
- Width: 82 millimetres
- Connection Size: 3/4 inch
Warranty: 3 years
Condition: New
UPC: 9319786412282
| SKU | Model | Capacity L/m | Capacity gph | Capacity @ 1 metre Head LPM | Capacity @ 1 metre Head GPH | Power (V) | Power (A) | Fuse Size (amps) | Height (mm) | Width (mm) | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 131830 | 600GPH Ultima | 38 | 600 | 32 | 500 | 12 | 2.5 | 5 | 105 | 82 | 19 |
| 131832 | 800GPH Ultima | 51 | 800 | 38 | 600 | 12 | 3 | 5 | 105 | 82 | 19 |
| 131834 | 1000GPH Ultima | 64 | 1000 | 44 | 700 | 12 | 3.2 | 5 | 105 | 82 | 19 |
| 131836 | 1250GPH Ultima | 79 | 1250 | 51 | 800 | 12 | 3 | 3 | 117 | 82 | 28 and 32 |
| 131837 | 1250GPH Ultima | 79 | 1250 | 51 | 800 | 24 | 2 | 5 | 117 | 82 | 28 and 32 |
Ultima Automatic Bilge Pump Installation Guide
Please refer to the included installation guide for detailed instructions to ensure optimal performance and longevity of your bilge pump.
Warning: Always ensure the fuse rating is correct and wiring is done according to the installation guide to prevent electrical hazards.
Boat Hut Insight
While the pump’s compact size and integrated switch make installation straightforward, consider the pump’s placement carefully. Installing it where water naturally collects and ensuring easy access for maintenance can save you from unexpected headaches. Also, pairing the pump with quality hose clamps and checking hose fit regularly can prevent leaks and extend the life of your system. And remember, a bilge pump is your boat’s unsung hero—quietly working away so you don’t have to worry. Investing a little time upfront in installation and maintenance pays off big in peace of mind on the water.
