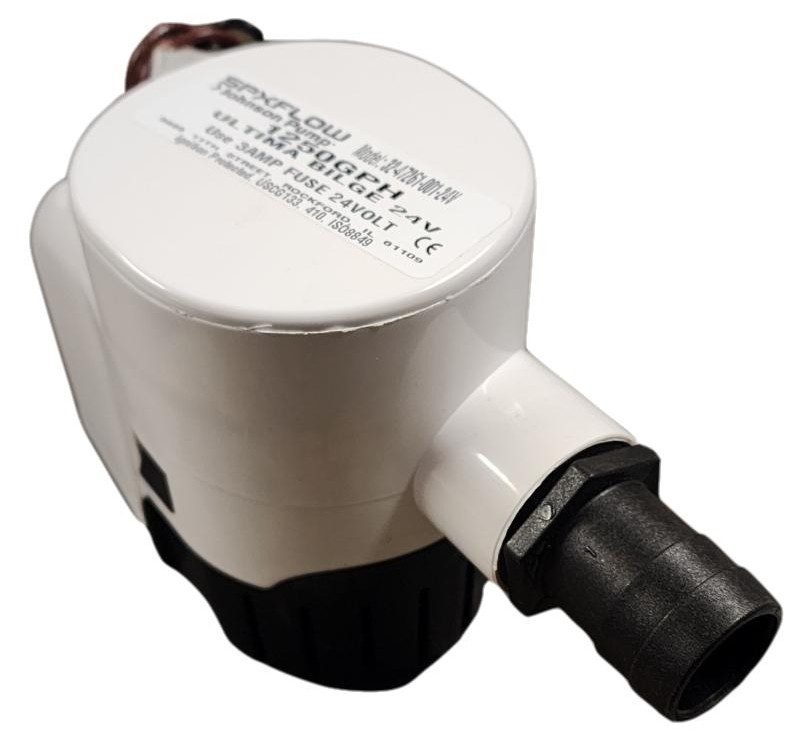

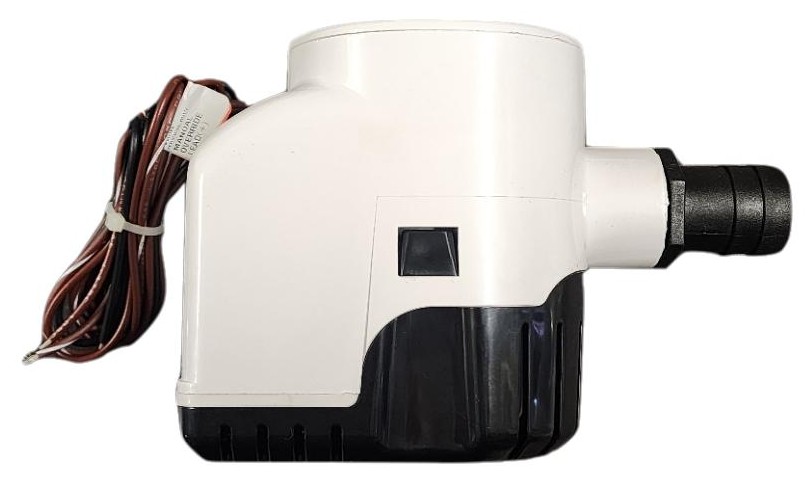

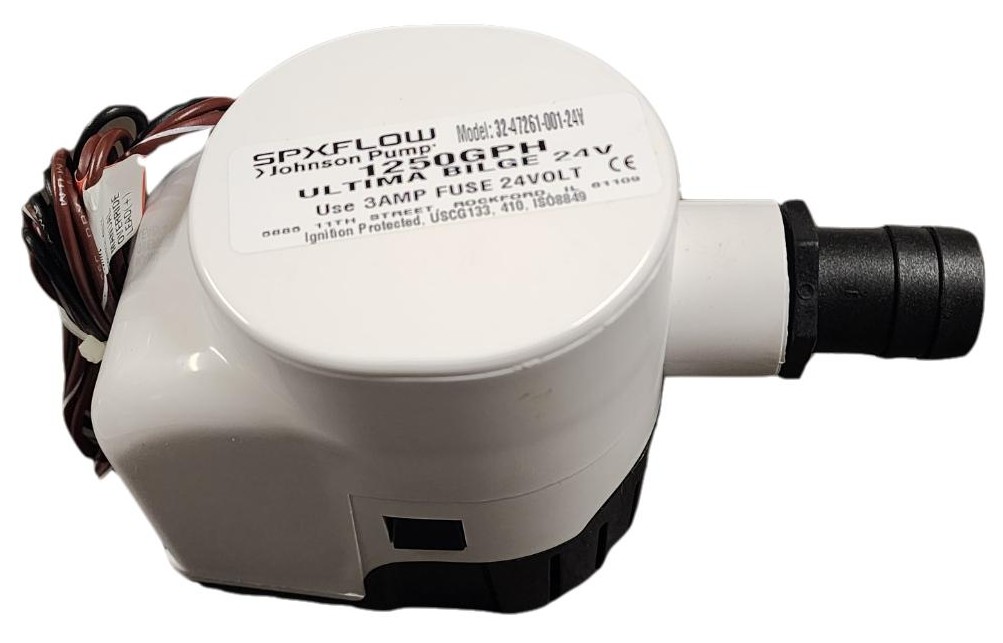

SPX Johnson Ultima Bilge Pump 1250 GPH 24 Volt 32-47261-001-24V – Automatic Bilge Pump OEM Version
OEM Version – does not have any retail packaging and is coloured white. Sleek, reliable and compact unit with integrated switch (Ultima Switch™) ready to install and run for years of unerring service. Voltage 24V DC. All UltimaBilge™ pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps.
Specifications
- Ultima Bilge 1250 GPH, 24V
- Capacity 0.9m head (24V): 51 l/min – 800 GPH
- Capacity straight (24V): 79 l/min – 1250 GPH
- Amps: 2A
- Fuse size: 5A
- Weight: 0.66kg
- Height: 117mm
- Length: 142mm
- Width: 82mm
- Connection: Threaded 1 1/4″ (32mm) & 1 1/8″ (28mm) discharge ports included
- Discharge port and 1 1/4″ 32mm Threaded Removable Check valve included
- Patented Field effect digital sensor – mercury free
- Warranty: 3 years
- Condition: New
This will be shipped in a plastic bag and bubblewrapped.
| SKU | Model | Capacity L/m | Capacity gph | Capacity @ 1 metre Head LPM | Capacity @ 1 metre Head GPH | Power (V) | Power (A) | Fuse Size (amps) | Height (mm) | Width (mm) | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 131830 | 600GPH Ultima | 38 | 600 | 32 | 500 | 12 | 2.5 | 5 | 105 | 82 | 19 |
| 131832 | 800GPH Ultima | 51 | 800 | 38 | 600 | 12 | 3 | 5 | 105 | 82 | 19 |
| 131834 | 1000GPH Ultima | 64 | 1000 | 44 | 700 | 12 | 3.2 | 5 | 105 | 82 | 19 |
| 131836 | 1250GPH Ultima | 79 | 1250 | 51 | 800 | 12 | 3 | 3 | 117 | 82 | 28 and 32 |
| 131837 | 1250GPH Ultima | 79 | 1250 | 51 | 800 | 24 | 2 | 5 | 117 | 82 | 28 and 32 |
