Viper “S” Series 1000 Micro Winch Bundle – 6mm X 60M Double Braid 30038-6S

Viper “S” Series 1000 Micro Winch Bundle – 6mm X 60 Metres Double Braid 30038-6S

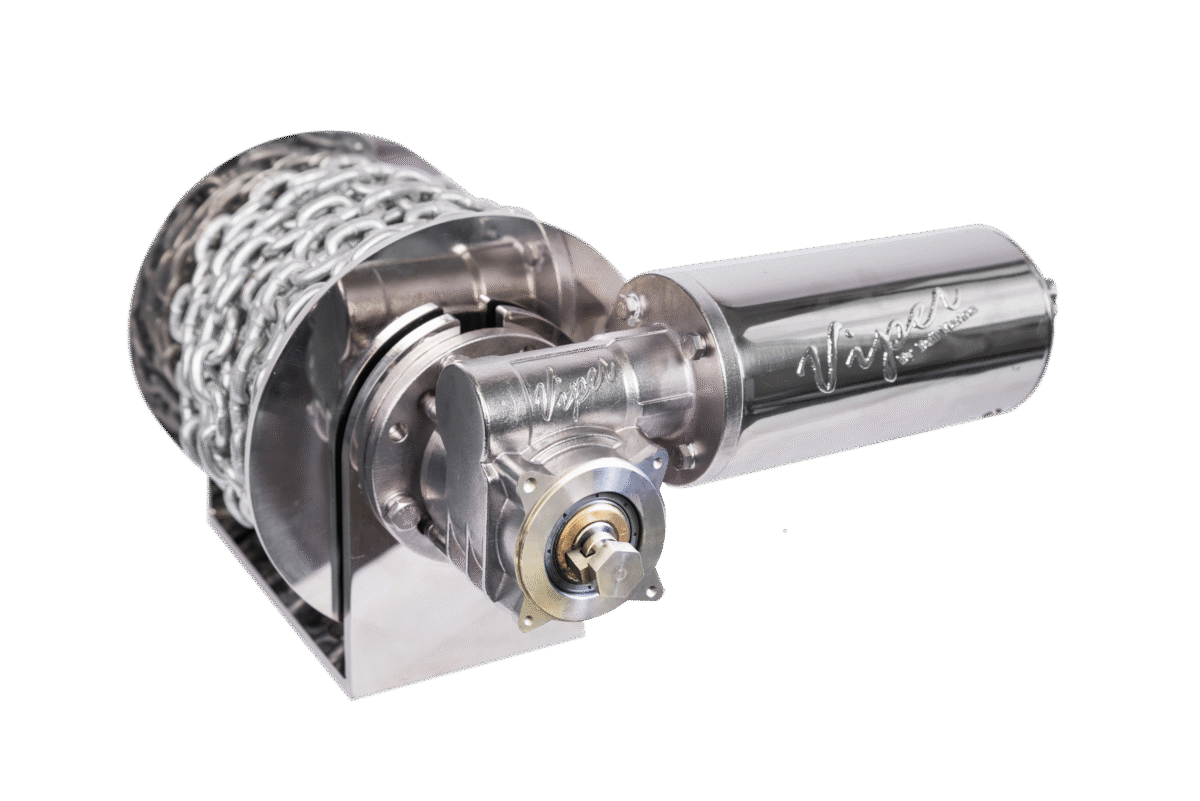

THE ALL NEW, ALL STAINLESS STEEL “S” SERIES 1000 MICRO VIPER WINCH IS SHIPPING! “The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia” Don’t be fooled by the name “MICRO” or by its size, this is one of the most powerful electric drum winches for its size and was designed to fit into bow riders, tinnies, walk-around’s, bass boats and any boat with restricted anchor well space or even none at all.

When it comes to speed, the Viper Micro is no sloth. It still houses the famous Viper 1000 Watt electric motor (hand polished 316 stainless steel) and rotates its drum at speeds of up to 45 metres per minute (fall rate), ensuring you get onto your GPS mark each and every time!

Now includes an Emergency Manual Release Safety Feature. This feature enables you to deploy your anchor if your boat has lost all power and is heading for a cliff, sand bank or a bar crossing.

You can lower your anchor without power, making sure you can safely anchor your boat and avoid dangerous drifting into a hazardous location. The winch will allow the anchor to release to the seabed.

Once the anchor is on the bottom, tie your rope to a bollard to be safely anchored. Then you can call the coast guard or your local emergency marine service.

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a one-piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.

Constructed from 8 mm plate 316 marine grade stainless steel (hand polished to a mirror finish) and comes standard with a bulletproof 5 YEAR Viper performance warranty, you can’t go past a Viper.

Now supplied with everything you need to install it, including a 5 mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and swivel are included.

Bundled with 60 metres of 6 mm double braid rope and pre-spliced to 6 metres of galvanised 6 mm short link chain ready to use! (Total 66 metres Rope/Chain)

Suits vessels from 4 metres right up to 8 metres and has no problem raising anchor sizes over 30 pounds or 15 kilograms with ease all day long!

All you have to add is your own cabling or one of our factory made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!

Please note: 3 B and S cables are already attached to our motor and leak tested to an IP68 Rating.

INSIST ON A NEW “S” SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!

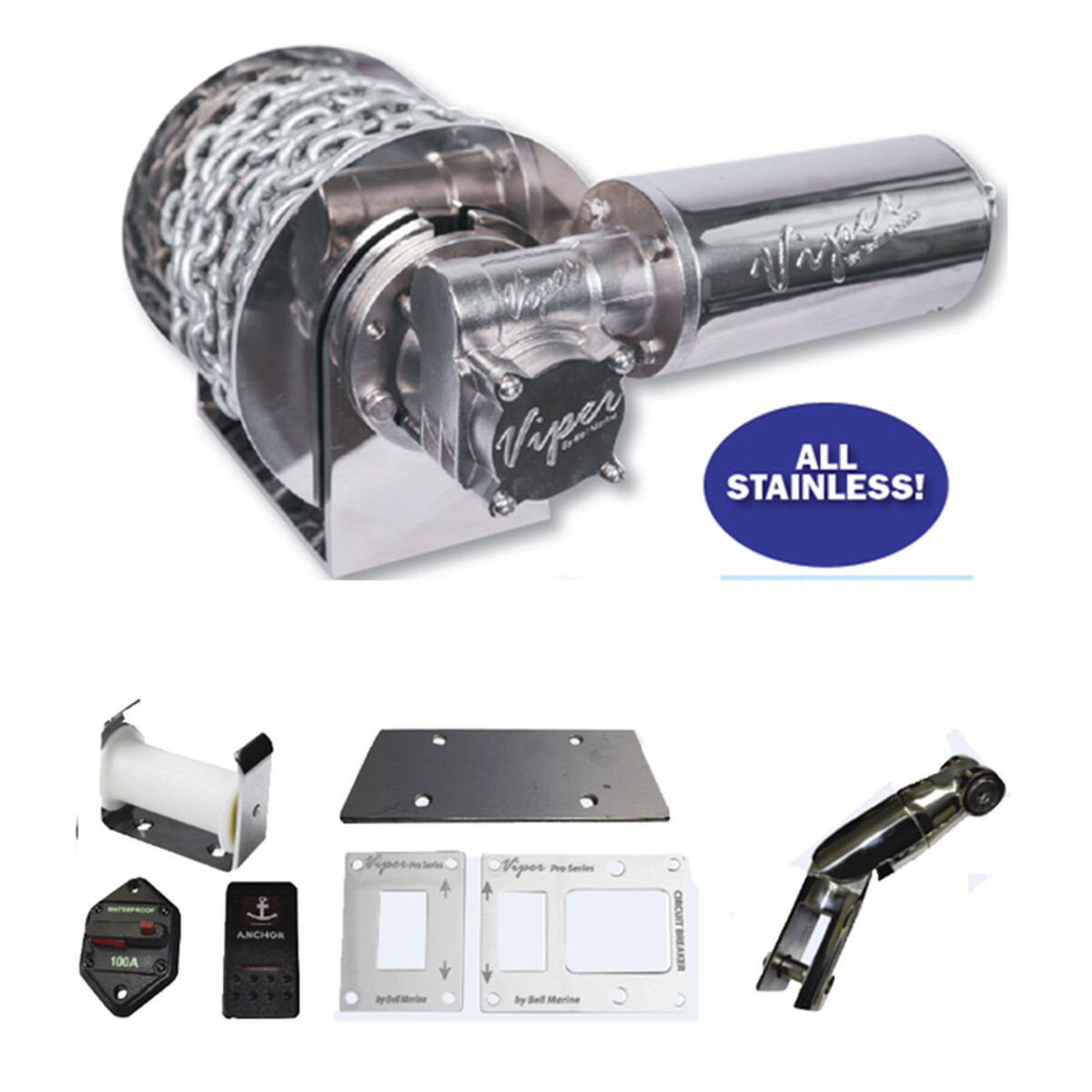

Specifications:

• VIPER S 1000 “MICRO” SUBMERSIBLE ELECTRIC DRUM ANCHOR WINCH
• VIPER S SERIES STAINLESS STEEL WORM DRIVE MARINE GEARBOX
• Supplied with 1 metre of 3 B&S power leads & joining connectors, pressure tested & sealed
• 30038-S 60 metres of 6 mm double braid premium rope
• 30045 Spliced to 6 metres of 6 mm galvanised short link anchor chain
• VIPER PRO SERIES ANCHOR SWIVEL SMALL 30001
• VIPER DELUXE ANCHOR ROLLER SMALL 30009
• 200 AMP REVERSING SOLENOID 30020
• LED ILLUMINATED MARINE ROCKER SWITCH 90021
• VIPER LASER ETCHED LED ILLUMINATED SWITCH COVER 90046
• 100 AMP FLUSH MOUNT CIRCUIT BREAKER WITH RUBBER SEAL 30046
• SINGLE LED SWITCH STAINLESS STEEL FACE PLATE 30051
• COMBO LED SWITCH & CIRCUIT BREAKER S/S FACE PLATE 30052
• 5 mm STAINLESS STEEL SANDWICH PLATE
• All fixing hardware + installation notes & wiring diagram

Performance:

• Max fall rate: 45 metres per minute
• Max retrieval rate: 40 metres per minute
• Suitable vessel length: 4 metres and above
• Weight: 15 kilograms

Packaging:

• Winch box: 43 x 42 x 31 cm, 20 kg
• Rope kit: 23 x 23 x 21 cm, 6 kg

Warning: Always ensure proper installation following the supplied wiring diagram and installation notes to maintain the warranty and safe operation.
