Description

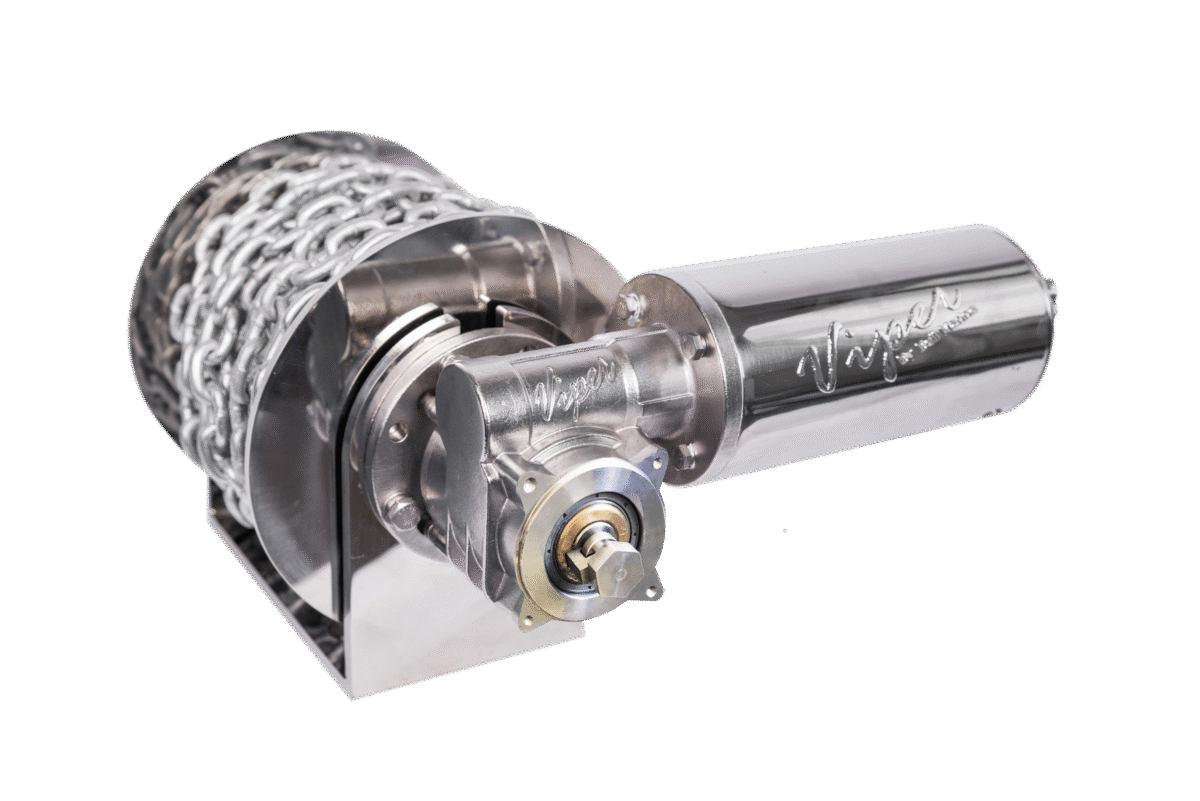

Viper Pro Series 1000 Micro Winch Bundle 4mm 100M Uhmwpe Rope 30038-4S
THE ALL NEW, ALL STAINLESS STEEL PRO SERIES VIPER WINCH IS SHIPPING!
“The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia”
Don’t be fooled by the name “MICRO” or by its size, this is one of the most powerful electric drum winch for its size and was designed to fit into bow riders, tinnies, walk-around’s, bass boats and any boat with restricted anchor well space or even none at all. When it comes to speed the Viper Micro is no sloth, it still houses the famous Viper 1000W electric motor (hand polished 316 stainless steel) and rotates its drum at speeds of up to 45mtrs per minute (fall rate) ensuring you get onto your GPS mark each and every time!
Now includes an Emergency Manual Release Safety Feature. This feature enables you to deploy your anchor if your boat has lost all power and is heading for a cliff, sand bank or a bar crossing, you can lower your anchor without power. Making sure you can safely anchor your boat avoiding dangerous drifting into a hazardous location. The winch will allow the anchor to release to the seabed. Once the anchor is on the bottom, tie your rope to a bollard to be safely anchored. Then you can call the coast guard or your local emergency marine service.
With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 1 piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) & comes std with a bullet proof 5 YEAR Viper performance warranty, you can’t go past a Viper.
Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.
Bundled with 100mtrs of 4mm HiSpec UHMWPE rope (1550kg braking strain) pre-spliced to a 10mtr 8mm 3 strand shock cord attached to the 6mtrs of 6mm chain with a stainless steel shackle ready to use! (Total of 116m of rope/chain & shock cord)
Suits vessels from 4mtr right up to 8mtr and has no problem raising anchor sizes over 30lb or 15kgs with ease all day long!
All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!
Please note: 3B&S cables are already attached to our motor and leak tested to a IP68 waterproof rating
Packaging:
- Winch box: 43 x 42 x 31 cm, 20 kg
- Rope kit: 23 x 23 x 21 cm, 6 kg
INSIST ON A NEW “S” SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!
What’s included:
30038-S Viper Pro 1000 “Micro” Submersible Electric Drum Anchor Winch
30056 100m of 4mm UHMWPE rope spliced to 6m of 6mm chain
30001 Small Viper Pro Series Anchor Swivel
30009 Small Viper Deluxe Anchor Roller
30020 200amp reversing solenoid
90021 LED illuminated marine rocker switch
90046 Viper laser etched LED illuminated switch cover
30046 100amp flush mount circuit breaker with rubber seal
30051 Single LED switch S/S face place
30052 Combo LED switch and circuit breaker S/S face plate
Product Dimensions 430 X 420 X 310 mm
