Description
VETUS Hydraulic Dampened Engine Mount – Type MITSTEUN (Max Load 67kg) / MITSTEUN
This flexible engine mounts is for marine diesel engines from 18 up to 26 kW (25-35 hp).
This hydro-damper is a combination of a conventional rubber-metal damper and a hydraulic shock absorber.
Its reduction of vibration and noise is truly amazing.
The maximum static load per support is 60 kg and the maximum thrust 50 kg.
(See complete specifications on the table below.)
| TYPE | STIFFNESS RATIO – VERTICAL | STIFFNESS RATIO – ATHWART SHIPS | STIFFNESS RATIO – FORE AND AFT | MINIMUM LOAD (KG) – STATIC | MINIMUM COMPRESSION (mm) – STATIC | MAXIMUM LOAD (KG) – STATIC + DYNAMIC | MAXIMUM COMPRESSION (mm) – STATIC + DYNAMIC | HARDNESS IN ° SHORE |
| MITSTEUN | 1 | 1 | 1 | 25 | 1.3 | 67 | 4.5 | 45° |
The torque of an engine is one of the deciding factors for determination of the load applied to the engine mounts. When more powerful engines are installed, it is important to use the following formula to define the load per support in kilograms (4 supporting points).
| engine weight in kg | + | kW x 487 x reduction of gearbox | = | max. load per support in kg |
| number of supports | engine revs/min. x centre to centre spacing in metres of the longitudinal engine bearers |

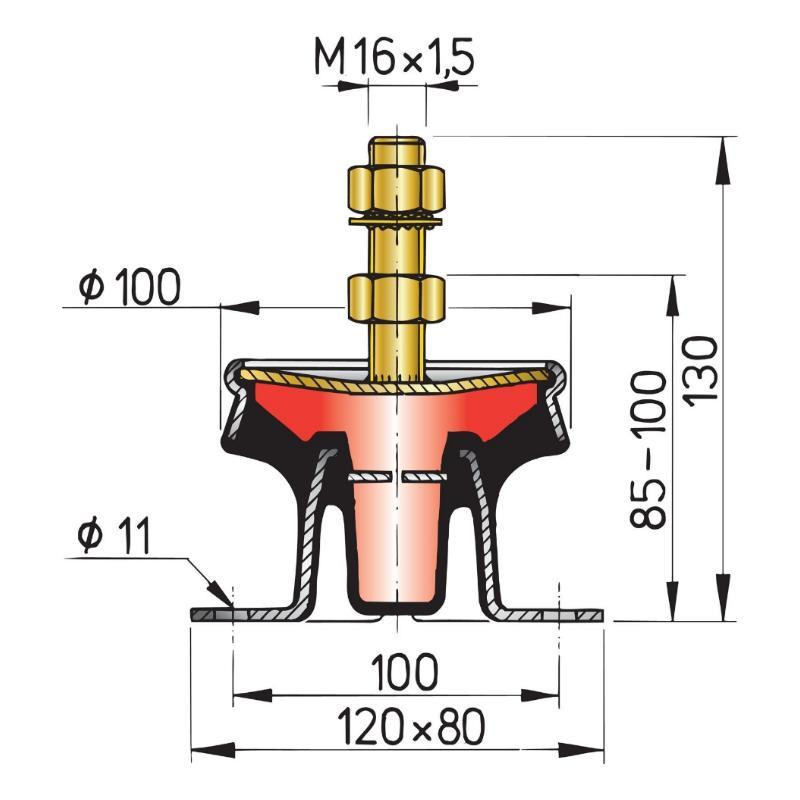

OVERALL PRODUCT SIZE (L/W/H): 103mm x 102mm x 135mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Vetus hydraulic engine mounting 135x102x103
