Description

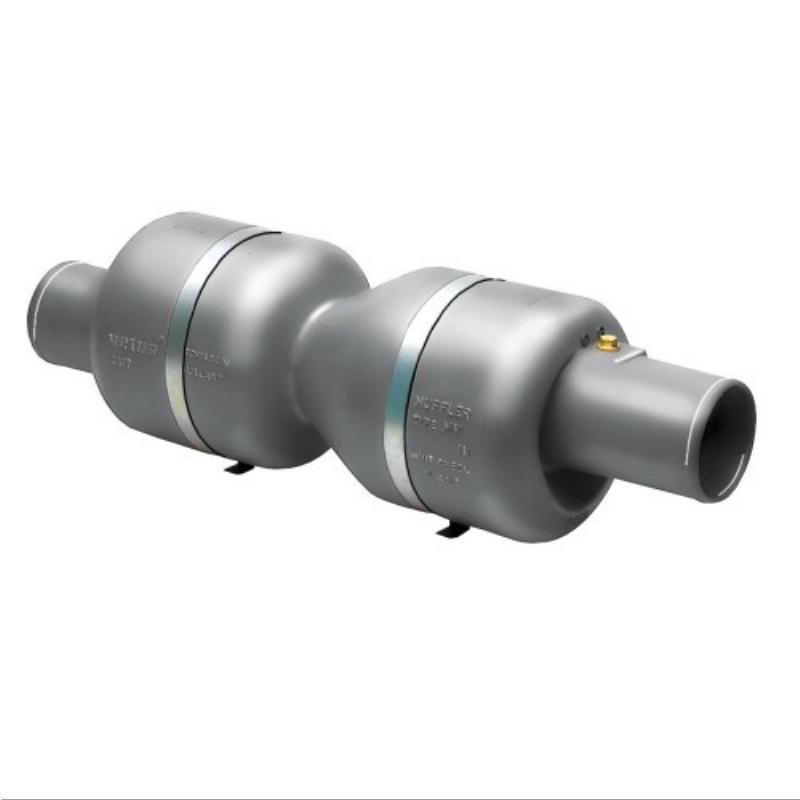

VETUS Exhaust Muffler – Type MV / MV090
- For hose diameters Ø 90, 100, 125 and 150 mm.
- Comes with stainless steel (AISI 316) mounting brackets.
- Temperature sensor (XHSM) for a raw water alarm is optional (recommended). (It should be installed exclusively in combination with an approved reinforced rubber exhaust hose.)
By using one of these compact mufflers, you have tremendous reduction of exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion free and light weight.
The transom connections for this system are available in stainless steel (AISI 316) or reinforced black plastic. Waterlock type MV and the transom connection are provided with a check valve which prevents the seawater from flowing into the engine.
SPECIFICATIONS
(See complete specifications on the table below.)

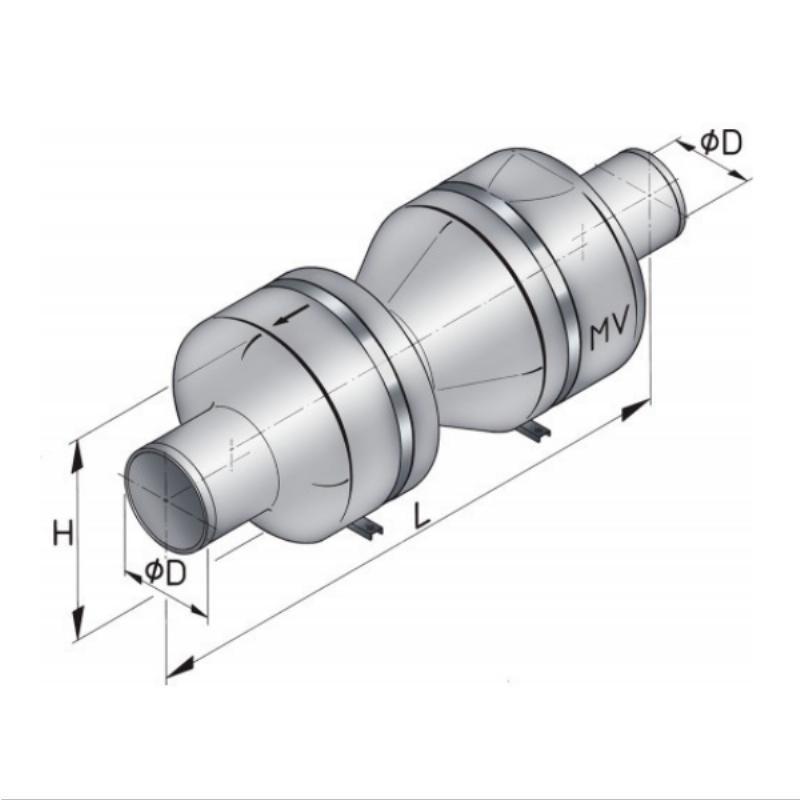

| PART NUMBER | CAPACITY | Ø D | Ø H | LENGTH |
| MV090 | 11.5 Litres | 90mm | 210mm | 702mm |
| MV090 | 11.5 Litres | 90mm | 210mm | 702mm |
| MV100 | 11.5 Litres | 100mm | 210mm | 702mm |
| MV125 | 37 Litres | 125mm | 320mm | 910mm |
| MV150 | 37 Litres | 150mm | 320mm | 910mm |
OVERALL PRODUCT SIZE (L/W/H): 103mm x 102mm x 135mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
VETUS plastic muffler type MV90 260x274x728
