Description

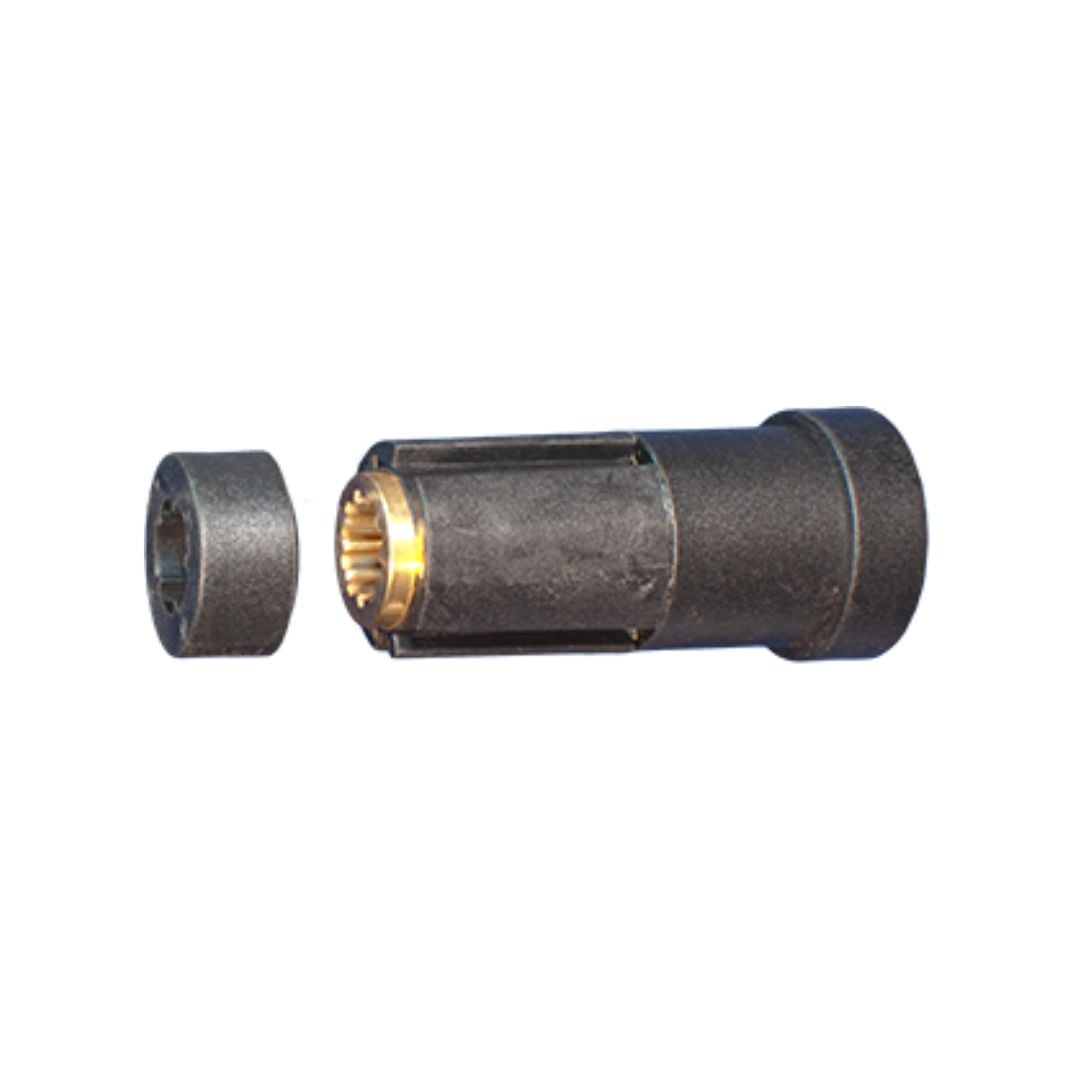

TURNING POINT Masterguard Propeller Hub – 26 Kit, Evinrude/Johnson, Suzuki, 9.9-35HP with a 3″ Gearcase
These Turning Point’s Masterguard 26 Propeller Hub Kits are suitable for 9.9-35 HP Engines with a 3″ Gearcase.
The hub system enables the end-user to economically carry a spare or different diameter/pitch propeller to suit the days skiing, fishing or cruising activities.
20 SERIES INSTALLATION KITS FEATURES
- Premium corrosion resistant brass splines.
- Eliminate hub system vibration & chatter.
- Reduce gear shock & engine/drive damage.
- Reduce prop replacement cost by up to 50%.
HUB KIT SPECIFICATIONS
| ENGINE BRAND | SPLINES | SUITS MODEL | KIT | SUIT ENGINES | PART NUMBER |
| EVINRUDE/JOHNSON | 10 SPLINE | 4 STROKE: 25HP, 30HP | 26 | 9.9-35 HP Engines with a 3″ Gearcase | 203026 |
| SUZUKI | 10 SPLINE | DT 2 STROKE (’87+): 20, 25, 25C, 30, 30C DF 4 STROKE: 25HP, 30HP | 26 | 9.9-35 HP Engines with a 3″ Gearcase | 203026 |
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER HUB KIT & PROPELLER
To find the correct Installation Kit: locate the HP, gearcase size, and prop shaft spline count of the outboard or sterndrive.
- STEP 1: Find the installation kit suitable to your engine drive shaft type listed in the table above. If the type is not listed, kindly check other turning point hub kits.
- STEP 2: Find and purchase the chosen propeller suitable to the installation kit (see listed propellers below). (NOTE: Propellers must be purchased seperately.)
The following are the suitable propellers to this installation kit:
- Turning Point Hustler Aluminium 3 Blade Propeller R3 Models for 9.9-35HP
- 202136 R3-1011, 10.5 Dia. x 11 Pitch
- 202140 R3-1013, 10.125 Dia. x 13 Pitch
ABOUT TP’S MASTERGUARD HUBS
- The hubs are engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use.
- It is also designed as a innovative one-piece glass with reinforced high-tech, shock absorbing, polymer cushion that increases flexibility and eliminates failures commonly seen in multi-part hub “sleeve and spline” designs, and pressed-in rubber hub systems.
- The high-flow through barrel exhaust system maximises exhaust flow increasing horsepower and top end speed.
- When buying a replacement propeller housing, boaters can save in costing as Turning Point offers an inventory reducing installation kits and prop housings system made to be in full line of propeller applications.
- With clear and easy to understand directions to make installation easy and convenient.
- The splines are made of premium corrosion resistant brass material.
- The hubs are suitable to upgrade and replace Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
