Description

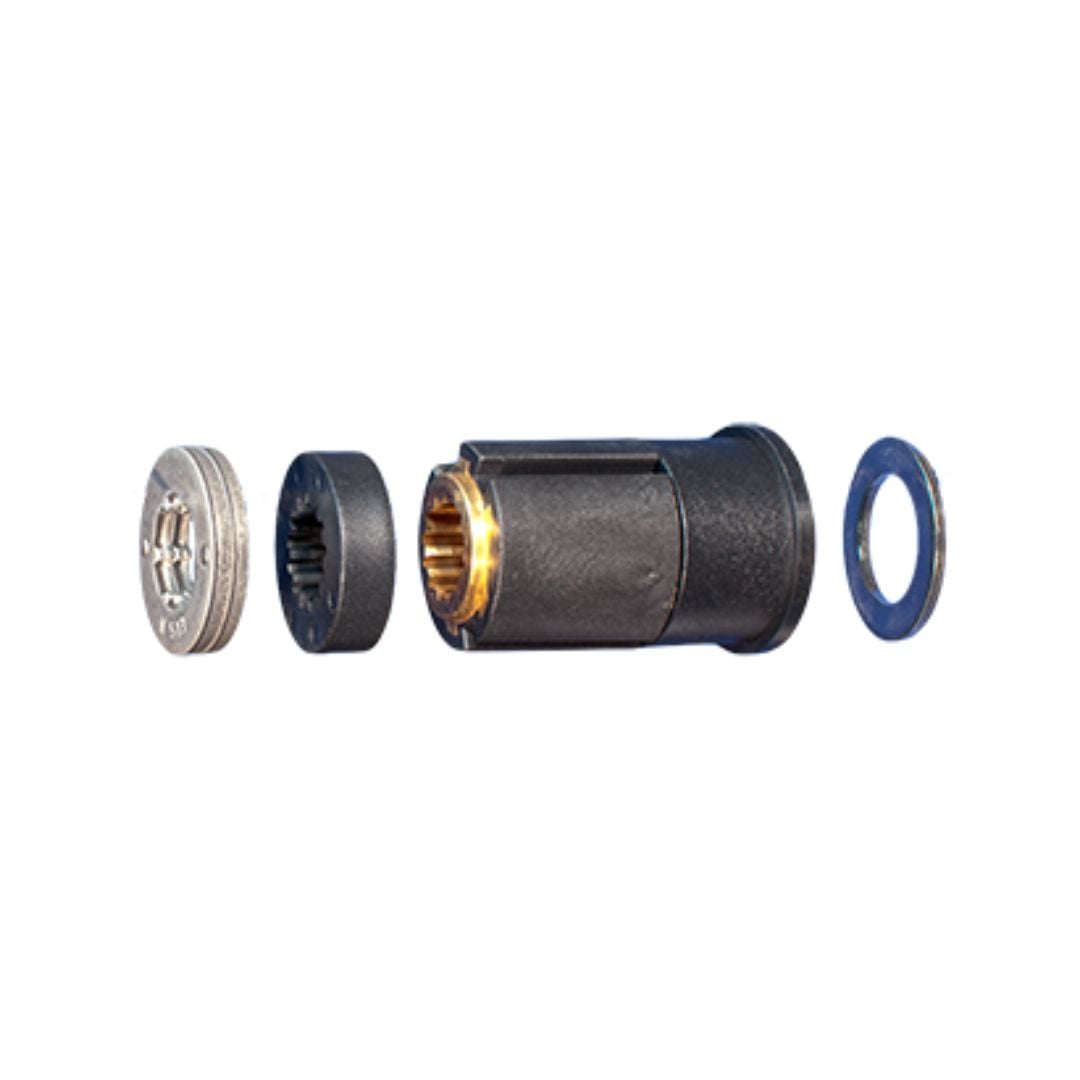

TURNING POINT Masterguard Propeller Hub – 13 Kit, Nissan/Tohatsu, 25-75HP with a 3.5″ Gearcase
This Turning Point’s Masterguard 13 Propeller Hub Kit is suitable for 25-75 HP Engines with a 3.5″ Gearcase.
The hub system enables the end-user to economically carry a spare or different diameter/pitch propeller to suit the days skiing, fishing or cruising activities.
10 SERIES INSTALLATION KITS FEATURES
- Premium corrosion resistant brass splines.
- Eliminate hub system vibration & chatter.
- Reduce gear shock & engine/drive damage.
- Reduce prop replacement cost by up to 50%.
HUB KIT SPECIFICATIONS
| ENGINE BRAND | SPLINES | SUITS MODEL | KIT | PART NUMBER | SUITS ENGINE |
| NISSAN & TOHATSU | 13 SPLINE | NOTE: Do not use H1-1208 or H1-1210 propellers. 40C, 40D, 50D, 50C, 60A, 70A2, 60B, 70B HP | 13 | 203013 | 25-75 HP Engines with a 3.5″ Gearcase |
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER HUB KIT & PROPELLER
To find the correct Installation Kit: locate the HP, gearcase size, and prop shaft spline count of the outboard or sterndrive.
- STEP 1: Find the installation kit suitable to your engine drive shaft type listed in the table above. If the type is not listed, kindly check other turning point hub kits.
- STEP 2: Find and purchase the chosen propeller suitable to the installation kit (see listed propellers below). (NOTE: Propellers must be purchased seperately.)
The following are the suitable propellers to this installation kit:
- Turning Point Hustler Aluminium 3 Blade Hustler Propeller H1 Models for 25-75HP
- 202220 H1-1011, 10.875 Dia. x 11 Pitch
- 202224 H1-1012, 10.75 Dia. x 12 Pitch
- 202228 H1-1013, 10.5 Dia. x 13 Pitch
- 202232 H1-1014, 10.375 Dia. x 14 Pitch
- 202236 H1-1015, 10.125 Dia. x 15 Pitch
ABOUT TP’S MASTERGUARD HUBS
- The hubs are engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use.
- It is also designed as a innovative one-piece glass with reinforced high-tech, shock absorbing, polymer cushion that increases flexibility and eliminates failures commonly seen in multi-part hub “sleeve and spline” designs, and pressed-in rubber hub systems.
- The high-flow through barrel exhaust system maximises exhaust flow increasing horsepower and top end speed.
- When buying a replacement propeller housing, boaters can save in costing as Turning Point offers an inventory reducing installation kits and prop housings system made to be in full line of propeller applications.
- With clear and easy to understand directions to make installation easy and convenient.
- The splines are made of premium corrosion resistant brass material.
- The hubs are suitable to upgrade and replace Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
