Description

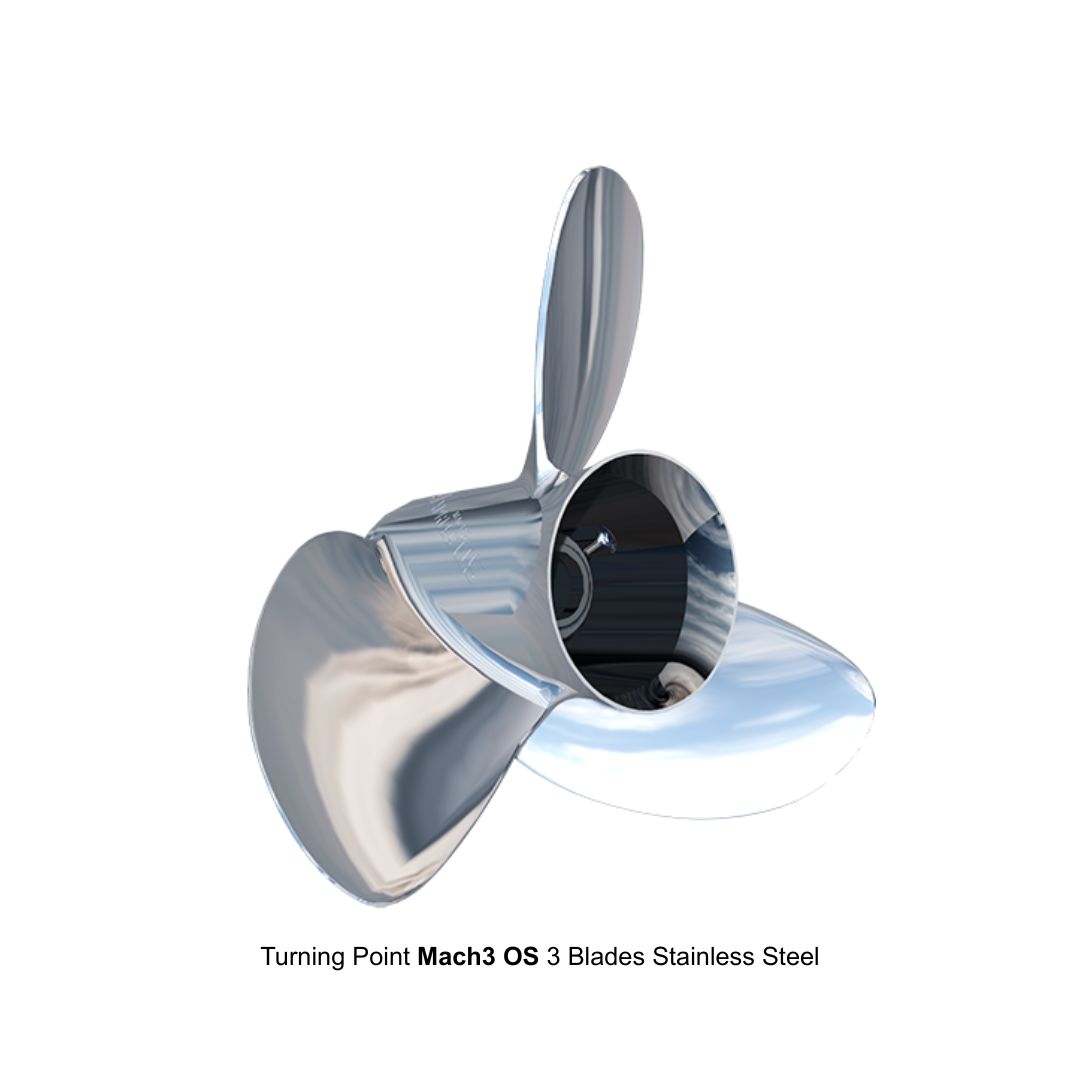

TURNING POINT Mach3 EXPRESS Propeller Stainless Steel 3 Blades, OS Models
These are propellers ONLY.
Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller.
These propellers are suitable with 90-300+HP Outboard Engines with a 4.75″ Gearcase and 500 & 700 Series Installation Kits.
(NOTE: Not applicable with Turning Point’s 10, 20 and 200 Hub Kit series).

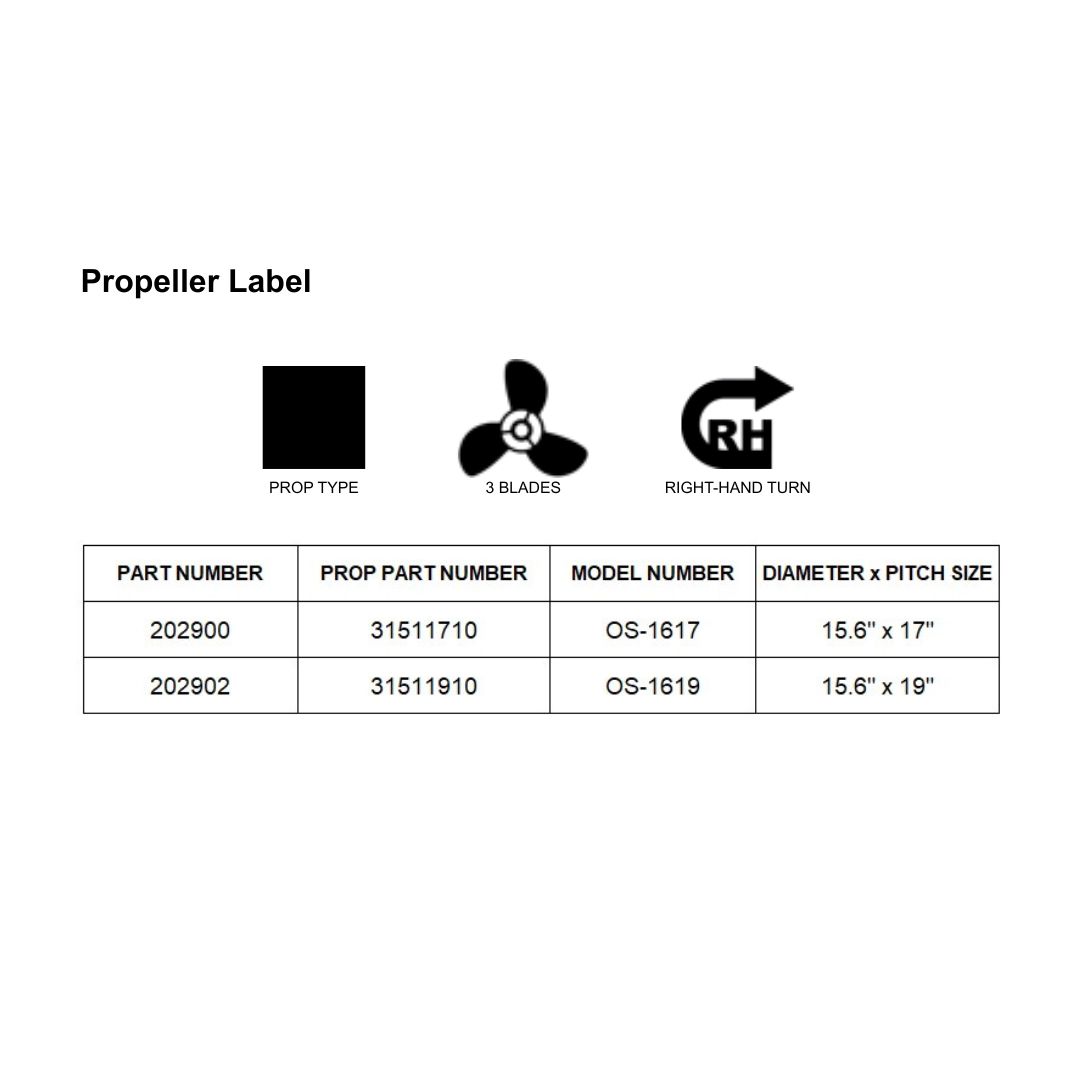

PROPELLERS PRODUCT SPECIFICATIONS
| BLA PART NUMBER | PROP PART NUMBER | MODEL NUMBER | DIAMETER x PITCH SIZE | NUMBER OF BLADES | ROTATION | PROP BRAND | PROP MATERIAL | SUITABLE INSTALLATION KIT HUB | PROP TYPE |
| 202900 | 31511710 | OS-1617 | 15.6″ x 17″ | 3 | RIGHT | EXPRESS MACH 3 OS | STAINLESS STEEL | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+HP Outboard Engines with a 4.75″ Gearcase |
| 202902 | 31511910 | OS-1619 | 15.6″ x 19″ | 3 | RIGHT | EXPRESS MACH 3 OS | STAINLESS STEEL | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+HP Outboard Engines with a 4.75″ Gearcase |
THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE
| MOTOR ENGINE | SPLINE PROP SHAFT | HORSEPOWER | SUITABLE HUB KIT SELECTION (HUB KIT PART NUMBER) | MODEL NUMBER |
| EVINRUDE & JOHNSON | 15 | V4 with V6 Large Gearcase: 100HP commercial, 120HP (’85), 130HP (’95-’96), 140HP (’85) Pleasure (’95+): 115HP, 130HP H.O. (includes E-TEC H.O.): (25″ Shaft) 90, 115, 135, 150, 200, 225, 250HP E-TEC (includes pontoon series – not for E-TEC G2): (25″ shaft) 90HP, 115HP, 130HP (’09-’10), 135HP to 300HP V6: 135HP to 250HP V8: 250HP to 300HP | 502 (11500200) | 203502 |
| EVINRUDE | 15 | E-TEC G2: G2 Series Only: 150 to 300HP | 511 (11501100) | 203511 (11501100) |
| HONDA | 15 | BF115D, BF135, BF150, BF200 (’02-’12), BF225 HP (’02-’12) (NOTE: Use 707 Super Duty Kit for 200+hp Engines.) | 507 (11500700) 707* | 203507 203707* |
| HONDA | 15 | BF200A (’13+), BF225A (’13+), BF250A (’12+) HP (NOTE: Use 708 Super Duty Kit for 200+ HP Engines.) | 708* (11700800) | 203708* |
| JOHNSON (use Express Mach3 OS series props only) | 15 | 4 Stroke: 200 HP, 225 HP | 707* | 203707* |
| MERCURY & MARINER | 15 | NOTE 1: Use 701 Super Duty Kit for 200+ HP Engines. NOTE 2: 115 HP ProXS CT Only; For ProXS & Verado with 1.25” Propeller Shaft, use Mercury Solid Hub Kit with the Turning Point Propeller. EFI CT/SeaPro: 90 to 150 HP V6 & I6: 135 to 300 HP Verado: 135 to 300 HP (not HD) OptiMax: 150, 200, 250 HP | 501 (11500100) 701* | 203501 203701* |
| MERCRUISER | 15 | NOTE 1: Use 701 Super Duty Kit for 200+hp Engines. NOTE 2: If propeller strikes trim tab, replace with Mercury, PART #822777A1 Alpha One and Bravo One (’83+) | 501 (11500100) 701* | 203501 203701* |
| OMC | 15 | COBRA 800: 3.0 to 7.5L KING COBRA: 454, 502 HP SEA DRIVE: 2.0 to 4.0L | 502 (11500200) | 203502 |
| SUZUKI | 15 | DT 2-Stroke: 150 to 225HP (NOTE: Use 707 Super Duty Kit for 200+ HP Engines) | 507 (11500700) 707* | 203507 203707* |
| SUZUKI | 15 | DF 4 stroke: 150 to 300HP (NOTE: Use 707 Super Duty Kit for 200+ HP Engines. (use Express Mach3 OS series props only) | 507 (11500700) 707* | 203507 203707* |
| TOHATSU | 15 | BFT115, BFT150, BFT200, BFT225, BFT250HP (NOTE: Use 708 Super Duty Kit for 200+ HP Engines) | 508 (11500800) 708* (11700800) | 203508 203708* |
| VOLVO | 19 | Penta SX & OMC SX Cobra: (19 spline) (’94+): 3.0 to 8.2L. Not available for Volvo DuoProp or Aquamatic Drives | 504 (11500400) | 203504 |
| VOLVO | 17 | Penta AQ: (17 spline) (use 4 blade props only) 200, 250, 270, 280, 290 HP | 510 (11501000) | 203504 |
| YAMAHA | 15 | NOTE 1: Use 705 Super Duty Kit for 200+hp Engines. NOTE 2: If Express Mach3 OS Prop strikes trim tab, replace with part #6E5-45371-10-00. | 505 (11500500) | 203505 |
| YAMAHA | 15 | 2 and 4 Stroke: 150 to 250HP F300 (V6 only ‘09+) / Sterndrives 3.0 to 7.4L | 705* | 203705* |
| YAMAHA | 15 | F350 HP | 715* | 203715* |
The following hub systems are compatible with the propellers cited above. (If you own one of these hub systems and it is still in good working condition, there is no need to purchase a hub kit).
- – Turning Point Propellers #501, 502, 504, 505, 507, 508, 510, 511
– Mercury Flo-Torq II
– Michigan Wheel XHS
– Solas Rubex RBX
*Motors 200HP and above must use series 700 Hub Kits. Failure to use will void warranty.
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER
NOTE: To find the correct Installation Kit locate the HP, gearcase size, and prop shaft spline count of your outboard or sterndrive.
- STEP 1: Find the motor engine suitable to your propeller listed below. If motor engine is not listed, kindly check other propellers.
- STEP 2: Find and purchase the designated installation kit suitable to the propeller.
ABOUT MACH 3 EXPRESS OS STAINLESS STEEL PROPELLERS
- The Express Mach3 OS Series of Stainless Steel Propellers are the next step in the evolution of TP’s very popular larger diameter VO series.
- The Engineers and Propeller Experts made improvements to the cup, leading and trailing edges, and the aggressive progressive rake and blade geometry that are Turning Point hallmarks.
- These modifications have produced a propeller with excellent hole shot, impressive bow lift, and class leading cornering.
- Perfectly matched to large horsepower bay boats, offshore center consoles, and high horsepower pontoons/tri-toons. It will fit all 90HP and larger 4.75” gearcase outboards from all engine manufacturers, and Mercury Alpha One and Bravo One, and Volvo Penta SX sterndrives.
- Large diameter three blade propellers offer great mid-range fuel economy in many applications.
- Whether you are looking to maximise your time on the water, extend your cruise range, or just stretch your fuel dollars, the Express Mach3 OS is a great choice to get the most out of your boat.
EXPRESS PROPELLER FEATURES
- PROPRIETARY STAINLESS STEEL, TP17
- This is formulated to meet the exacting requirements of the New Express Mach3 and Mach4 designs.
- 20% higher chromium content than the competition – more shine, better corrosion resistance.
- Almost 250% Stronger and 5X more durable than run-of-the-mill stainless steel.
- This new material allows Turning Point’s Engineers and Designers the freedom to produce radical new designs that will help you wring the most performance out of your boat.
- Gives your boat a smoother running ride, higher top end speed, and increases fuel economy.
This process is standard on every prop and is only offered as a costly option from other manufacturers. (Exclusive on all Mach3 and Mach4 Propellers)
- Recent tests reveal that new Express Mach Series Propellers have up to 46% more reverse thrust over competitive propeller designs.
- Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” through 16” diameter 15+ Pitch).
- Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance.
- Maximising exhaust flow increases horsepower and top end
speed. - Accelerating and channeling water to minimise slip increases performance and fuel economy.
MAXSPEED DYNO BALANCE PROCESSES
BEST “IN-CLASS” REVERSIBILITY
TUNED VENTS FOR FAST HOLE SHOT
PERFORMANCE TUNED RAKE ANGLES
HIGH FLOW-THROUGH BARREL EXHAUST SYSTEM
TUNED PROGRESSIVE PITCH ANGLES
ABOUT MASTERGUARD HUB SYSTEM
- Exclusive Lifetime Warranty Hubs
- Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300+HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point.
- Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems.
- Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending.
- Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat.
- Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems.
- The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures.
- Made of premium corrosion resistant durable marine bronze splines.
- Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection.
- Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy.
- Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
Increases Performance and Horsepower
Eliminate Hub System Vibration and Chatter
Eliminate Hub Cracking and Failure
Corrosion Resistant Materials
Reduce Gear Shock and Engine/Drive Damage
Easy to install
Interchangeable with other manufacturer’s props
MASTERGUARD (500) VS. SUPER DUTY MASTERGUARD (700)
| TYPE | SERIES | LIFETIME WARRANTY FOR ENGINES |
| MASTERGUARD | 500 | Under 200 HP |
| SUPER DUTY MASTERGUARD | 700 | More than 200 HP |
WARNINGS
- MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov.
- Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov.
For installation guides see the following:
- Turning Point Hub Kit, Installation Instructions for Model #502 (11500200)
- Turning Point Hub Kit, Installation Instructions for Model #504 (11500400)
- Turning Point Hub Kit, Installation Instructions for Model #505 (11500500)
- Turning Point Hub Kit, Installation Instructions for Model #507 (11500700)
- Turning Point Hub Kit, Installation Instructions for Model #508 (11500800)
- Turning Point Hub Kit, Installation Instructions for Model #511 (11501100)
- Turning Point Hub Kit, Installation Instructions for Model #708 (11700800)
- Models 501 (11500100), 510 (11501000) – N/A
- Models #701, 705, 707, 715 – N/A
