Description
TURNING POINT Mach3 EXPRESS Propeller Stainless Steel 3 Blades, E1 Models
These are propellers ONLY.
Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller.
These propellers are suitable with 25-75HP Outboard Engines with a 3.5″ Gearcase and 10 Series Installation Kits.

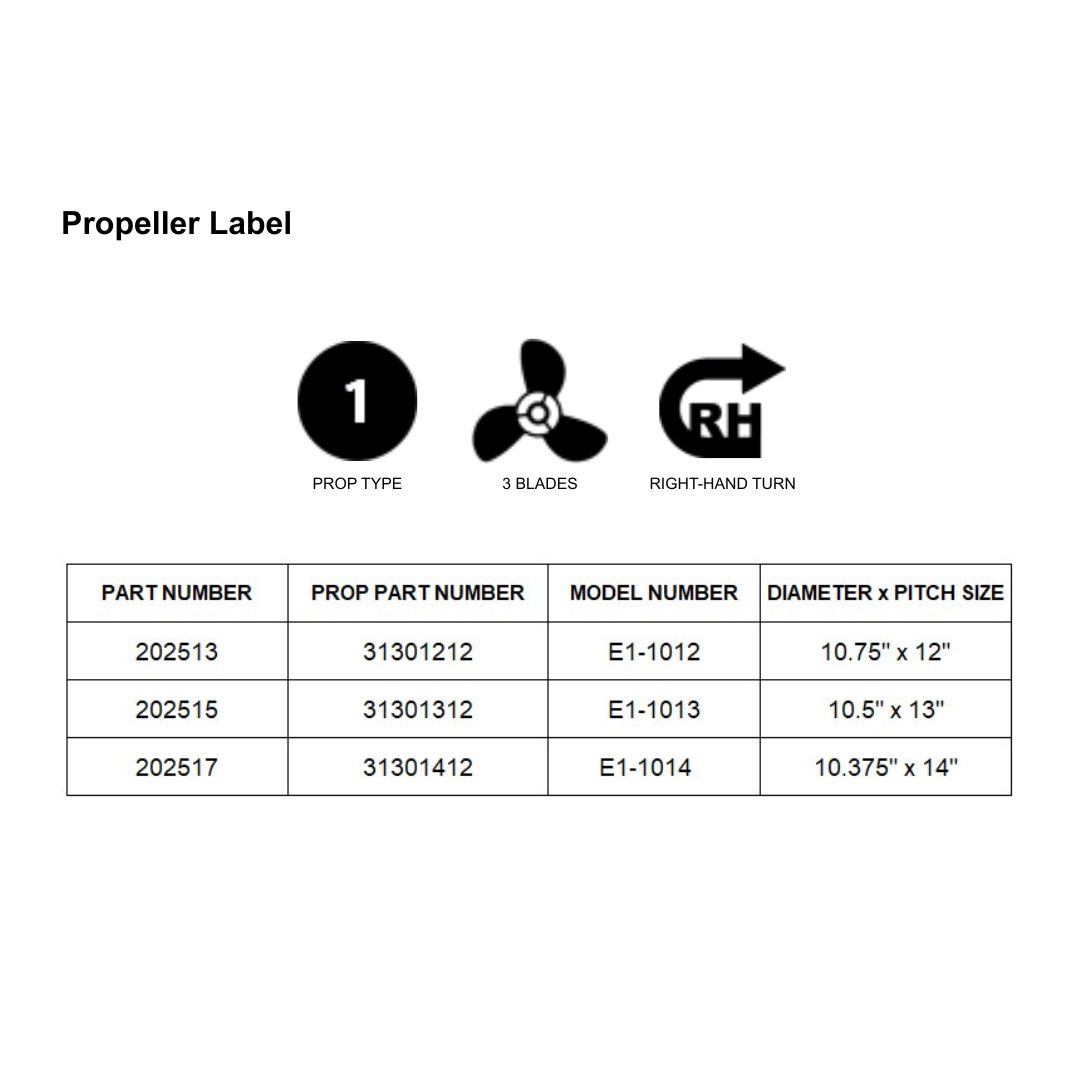

PROPELLERS PRODUCT SPECIFICATIONS
| BLA PART NUMBER | PROP PART NUMBER | MODEL NUMBER | DIAMETER x PITCH SIZE | NUMBER OF BLADES | ROTATION | PROP BRAND | PROP MATERIAL | SUITABLE INSTALLATION KIT HUB | PROP TYPE |
| 202513 | 31301212 | E1-1012 | 10.75″ x 12″ | 3 | RIGHT | EXPRESS MACH3 | STAINLESS STEEL | 10 Series (See suitable engine and compatible hub kit below) | 25-75HP Outboard Engines with a 3.5″ Gearcase |
| 202515 | 31301312 | E1-1013 | 10.5″ x 13″ | 3 | RIGHT | EXPRESS MACH3 | STAINLESS STEEL | 10 Series (See suitable engine and compatible hub kit below) | 25-75HP Outboard Engines with a 3.5″ Gearcase |
| 202517 | 31301412 | E1-1014 | 10.375″ x 14″ | 3 | RIGHT | EXPRESS MACH3 | STAINLESS STEEL | 10 Series (See suitable engine and compatible hub kit below) | 25-75HP Outboard Engines with a 3.5″ Gearcase |
THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE
| MOTOR ENGINE | SPLINE PROP SHAFT | HORSEPOWER | HUB KIT SELECTION | MODEL NUMBER |
| EVINRUDE & JOHNSON | 13 | 4 STROKE: 40HP, 50HP | 11 (11300101) | 203011 |
| FORCE | 13 | 40HP (’95-’98), 50HP (’95-’98), 70HP (’91-’95), 75HP (’96-’98) | 11 (11300101) | 203011 |
| HONDA | 13 | BF 4 STROKE: 35, 40, 45, 50, 60HP, (not P60) | 12 (11300200) | 203012 |
| MERCURY AND MARINER | 13 | 2 STROKE: 30HP (’94+) / 35, 45, 55 / 40, 50, 60 (’77+) / 70HP (’77-’83) 4 STROKE: 25HP, 30HP Bigfoot / 30HP (’94-’05) / 40HP (*not Bigfoot, CT, or SeaPro 4 cylinder), 45HP, 48HP (Mariner), 50HP (*not bigfoot or CT), 55HP (SeaPro), 60HP (*not Bigfoot, CT, or SeaPro) *NOTE: see 4.25″ Gearcase | 11 (11300101) | 203011 |
| NISSAN AND TOHATSU | 13 | NOTE: Do not use H1-1208 or H1-1210 propellers. 40C, 40D, 50D, 50C, 60A, 70A2, 60B, 70B | 11 (11300101) | 203013 |
| PARSUN | 13 | T30, T35, T36, T40 HP | 12 (11300200) | 203012 |
| SUZUKI | 13 | DT 2 STROKE (’89+): 35C, 40, 50, 50M, 55, 60, 65 HP DT 4 STROKE: 40, 50HP / (’10+): 40A, 50A, 60A | 11 (11300101) | 203011 |
| YAMAHA | 13 | 2 STROKE: 40-55 HP 4 STROKE: FT25 High Thrust, 30 to 60HP | 12 (11300200) | 203012 |
*If you own any of the stated hub kit in the selection above and it is still in good working condition, there is no need to purchase a hub kit.
EXPRESS PROPELLER FEATURES
- PROPRIETARY STAINLESS STEEL, TP17
- This is formulated to meet the exacting requirements of the New Express Mach3 and Mach4 designs.
- 20% higher chromium content than the competition – more shine, better corrosion resistance.
- Almost 250% Stronger and 5X more durable than run-of-the-mill stainless steel.
- This new material allows Turning Point’s Engineers and Designers the freedom to produce radical new designs that will help you wring the most performance out of your boat.
- Gives your boat a smoother running ride, higher top end speed, and increases fuel economy.
This process is standard on every prop and is only offered as a costly option from other manufacturers. (Exclusive on all Mach3 and Mach4 Propellers)
- Recent tests reveal that new Express Mach Series Propellers have up to 46% more reverse thrust over competitive propeller designs.
- Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” through 16” diameter 15+ Pitch).
- Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance.
- Maximising exhaust flow increases horsepower and top end
speed. - Accelerating and channeling water to minimise slip increases performance and fuel economy.
MAXSPEED DYNO BALANCE PROCESSES
BEST “IN-CLASS” REVERSIBILITY
TUNED VENTS FOR FAST HOLE SHOT
PERFORMANCE TUNED RAKE ANGLES
HIGH FLOW-THROUGH BARREL EXHAUST SYSTEM
TUNED PROGRESSIVE PITCH ANGLES
ABOUT MACH 3 EXPRESS STAINLESS STEEL PROPELLERS
- Utilizing almost 40 years of race boat and high performance prop design expertise, the Express Mach3 series of props captures all the best techniques and technologies available to get the most out of the boat.
- Aggressive pitch angles, radical designs, sharp cup profiles. These three blade propellers excel at achieving maximum speed, while delivering Best-in-Class handling and acceleration.
- Hole Shot? Got it, and hang on! Cornering? it got that, too! Top Speed? “No Faster Prop on the Water” for a reason!
- Upgrading your current propeller from aluminum to stainless steel, or from an old generation design to the latest technology, Express Mach3 Propeller is the best investment in boat improvement you can make.
- Today’s New Designs will run circles around the competition, and can make dramatic improvements in boat performance. The gain in fuel economy can often pay for the cost of a new propeller in one or two seasons, making it a sound investment in your time on the water.
ABOUT MASTERGUARD HUB SYSTEM
- Exclusive Lifetime Warranty Hubs
- Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300+HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point.
- Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems.
- Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending.
- Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat.
- Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems.
- The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures.
- Made of premium corrosion resistant durable marine bronze splines.
- Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection.
- Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy.
- Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
Increases Performance and Horsepower
Eliminate Hub System Vibration and Chatter
Eliminate Hub Cracking and Failure
Corrosion Resistant Materials
Reduce Gear Shock and Engine/Drive Damage
Easy to install
Interchangeable with other manufacturer’s props
WARNINGS
- MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov.
- Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov.
For installation guides see the following:
