Description

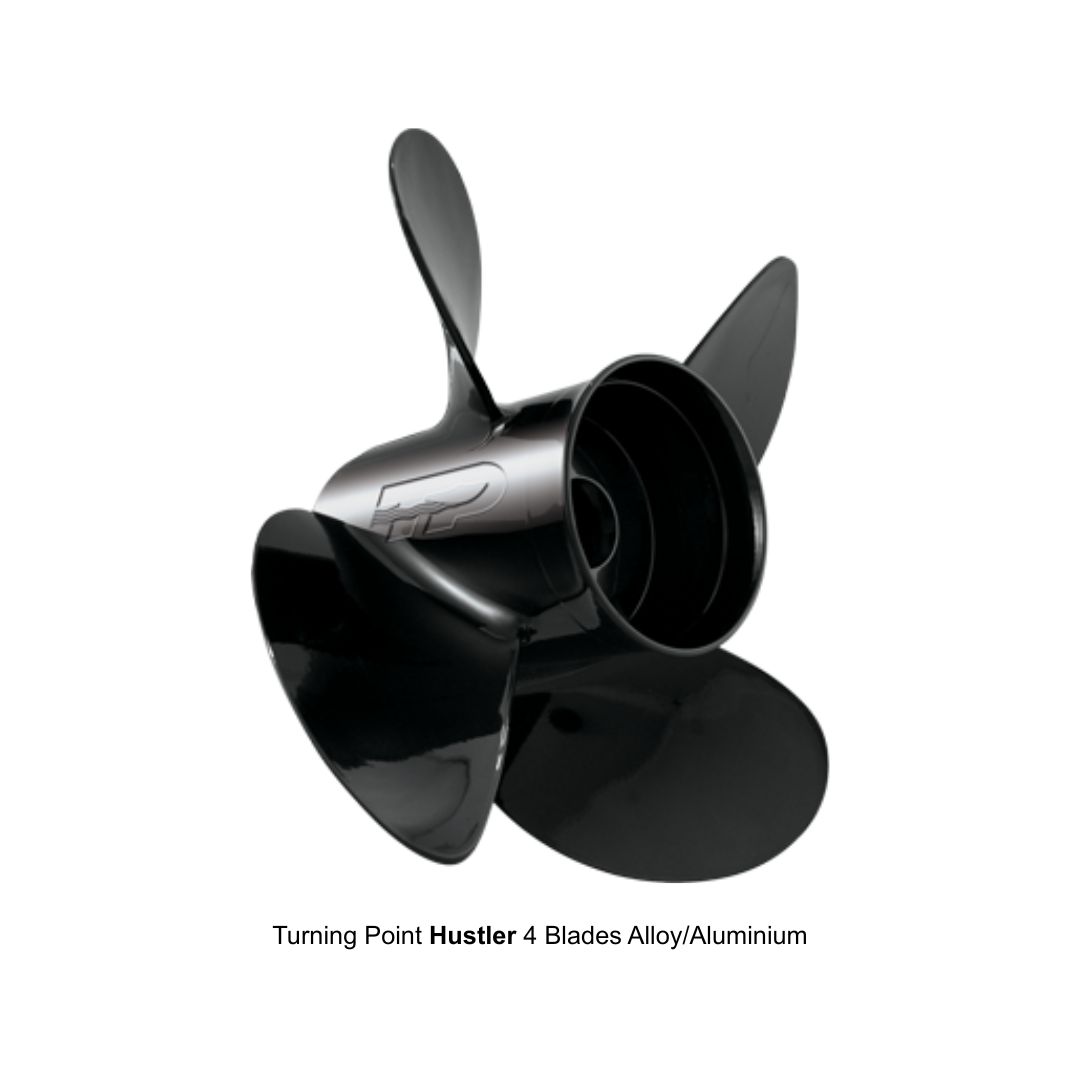

TURNING POINT Hustler Propeller Aluminium 4 Blades, LE Models, Dual Geometry Series
These are propellers ONLY.
Propeller Hub Kit is required and must be purchased seperately.
These propellers are suitable with 90-300+HP Outboard Engines with a 4.75″ Gearcases and 500 & 700 Series Installation Kits.
NOTE: Not applicable with Turning Point’s 10, 20 and 200 Hub Kit series.

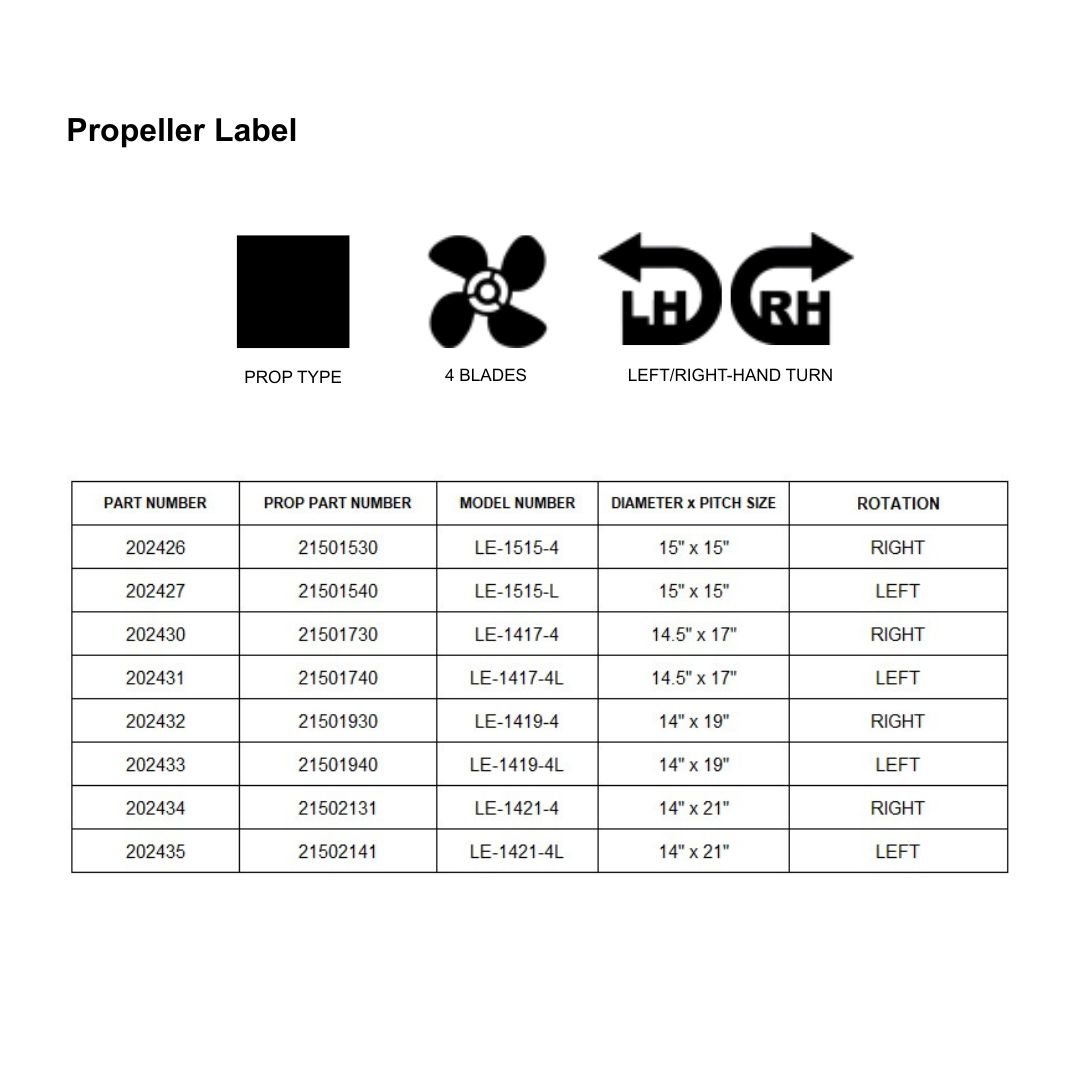

PRODUCT SPECIFICATIONS
| BLA PART NUMBER | PROP PART NUMBER | MODEL NUMBER | DIAMETER x PITCH SIZE | NUMBER OF BLADES | ROTATION | PROP BRAND | PROP MATERIAL | SUITABLE INSTALLATION KIT HUB | PROP TYPE |
| 202426 | 21501530 | LE-1515-4 | 15″ x 15″ | 4 | RIGHT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202427 | 21501540 | LE-1515-4L | 15″ x 15″ | 4 | LEFT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202430 | 21501730 | LE-1417-4 | 14.5″ x 17″ | 4 | RIGHT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202431 | 21501740 | LE-1417-4 | 14.5″ x 17″ | 4 | LEFT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202432 | 21501930 | LE-1419-4 | 14″ x 19″ | 4 | RIGHT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202433 | 21501940 | LE-1419-4 | 14″ x 19″ | 4 | LEFT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202434 | 21502131 | LE-1421-4 | 14″ x 21″ | 4 | RIGHT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
| 202435 | 21502141 | LE-1421-4L | 14″ x 21″ | 4 | LEFT | HUSTLER | ALUMINIUM | 500 & 700 Series (See suitable engine and compatible hub kit below) | 90-300+ HP Engines with a 4.75″ Gearcase |
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER
NOTE: To find the correct Installation Kit locate the HP, gearcase size, and prop shaft spline count of your outboard or sterndrive.
- STEP 1: Find the motor engine suitable to your propeller listed below. If motor engine is not listed, kindly check other propellers.
- STEP 2: Find and purchase the designated installation kit suitable to the propeller.
THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE
| MOTOR ENGINE | SPLINE PROP SHAFT | HORSEPOWER | HUB KIT SELECTION | MODEL NUMBER |
| EVINRUDE & JOHNSON | 15 | V4 with V6 Large Gearcase: 100HP commercial, 120HP (’85), 130HP (’95-’96), 140HP (’85) Pleasure (’95+): 115HP, 130HP H.O. (includes E-TEC H.O.): (25″ Shaft) 90, 115, 135, 150, 200, 225, 250HP E-TEC (includes pontoon series – not for E-TEC G2): (25″ shaft) 90HP, 115HP, 130HP (’09-’10), 135HP to 300HP V6: 135HP to 250HP V8: 250HP to 300HP | 502 | 203502 |
| EVINRUDE | 15 | E-TEC G2: G2 Series Only: 150 to 300HP | 511 | 203511 |
| HONDA | 15 | BF115D, BF135, BF150, BF200 (’02-’12), BF225 HP (’02-’12) (NOTE: Use 707 Super Duty Kit for 200+hp Engines.) | 507 707* | 203507 203707* |
| HONDA | 15 | BF200A (’13+), BF225A (’13+), BF250A (’12+) HP (NOTE: Use 708 Super Duty Kit for 200+ HP Engines.) | 708 | 203708 |
| JOHNSON (use Express Mach3 OS series props only) | 15 | 4 Stroke: 200 HP, 225 HP | 707 | 203707 |
| MERCURY & MARINER | 15 | NOTE 1: Use 701 Super Duty Kit for 200+ HP Engines. NOTE 2: 115 HP ProXS CT Only; For ProXS & Verado with 1.25” Propeller Shaft, use Mercury Solid Hub Kit with the Turning Point Propeller. EFI CT/SeaPro: 90 to 150 HP V6 & I6: 135 to 300 HP Verado: 135 to 300 HP (not HD) OptiMax: 150, 200, 250 HP | 501 701* | 203501 203701* |
| MERCRUISER | 15 | NOTE 1: Use 701 Super Duty Kit for 200+hp Engines. NOTE 2: If propeller strikes trim tab, replace with Mercury, PART #822777A1 Alpha One and Bravo One (’83+) | 501 701* | 203501 203701* |
| OMC | 15 | COBRA 800: 3.0 to 7.5L KING COBRA: 454, 502 HP SEA DRIVE: 2.0 to 4.0L | 502 | 203502 |
| SUZUKI | 15 | DT 2-Stroke: 150 to 225HP (NOTE: Use 707 Super Duty Kit for 200+ HP Engines) | 507 707* | 203507 203707 |
| SUZUKI | 15 | DF 4 stroke: 150 to 300HP (NOTE: Use 707 Super Duty Kit for 200+ HP Engines. (use Express Mach3 OS series props only) | 507 707* | 203507 203707 |
| TOHATSU | 15 | BFT115, BFT150, BFT200, BFT225, BFT250 HP (NOTE: Use 708 Super Duty Kit for 200+ HP Engines) | 508 708* | 203508 203708 |
| VOLVO | 15 | Penta SX & OMC SX Cobra: (19 spline) (’94+): 3.0 to 8.2L. Not available for Volvo DuoProp or Aquamatic Drives | 504 | 203504 |
| VOLVO | 15 | Penta AQ: (17 spline) (use 4 blade props only) 200, 250, 270, 280, 290 HP | 510 | 203504 |
| YAMAHA | 15 | NOTE 1: Use 705 Super Duty Kit for 200+hp Engines. NOTE 2: If Express Mach3 OS Prop strikes trim tab, replace with part #6E5-45371-10-00. | 505 | 203505 |
| YAMAHA | 15 | 2 and 4 Stroke: 150 to 250HP F300 (V6 only ‘09+) / Sterndrives 3.0 to 7.4L | 705* | 203705* |
| YAMAHA | 15 | F350 HP | 715* | 203715* |
Motors 200HP and above must use series 700 Hub Kits. Failure to use will void warranty.
*If you own any of the stated hub kit in the selection above and it is still in good working condition, there is no need to purchase a hub kit.
ABOUT TURNING POINT HUSTLER 4 BLADE PROPELLERS
- Turning Point’s Four Blade Hustler revolutionized the aluminum propeller market when introduced over 6 years ago. No one had ever produced an aluminum propeller with two different blade shapes (Dual Geometry) for 90-300+hp applications.
- This prop is uniquely engineered with two blade geometries: two blades to utilize the Hustler high performance variable rake and aggressive pitch design for hole shot and cornering, and another two blades to utilize an offshore style design for high speed and maximum stern lift.
- These props re-wrote the rules, proving to run a four blade that has unprecedented hole shot, handling, and rough water stability without the top-end speed loss you experience with other manufacturers’ propellers.
- The Hustler 4 blade series is perfect for any application that demands enhanced acceleration, cornering, and load carrying capabilities.
- This prop series is ideally suited for watersports, sterndrive boats, tri-toons, bay boats, and any vessel that can use stern lift.
- It is the best upgrade of older aluminum designs from the 70’s, 80’s, 90’s, and ’00’s, and will outrun most newer props, including the five blade ski props.
HUSTLER PROPELLER FEATURES
- Made of Squeeze Cast for Added Strength
- Stainless steel performance is built into the Hustler Aluminum prop line.
- This is achieved through unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting.
- This process generates the highest mechanical properties attainable in a cast aluminum propeller resulting from high density tighter grain structure. Stiffer blades means less flex and a faster prop.
- Most competitor’s aluminum propellers are manufactured via the old die-cast process that produces props with air bubble, voids, and granularity. Making props weak, stiff, inefficient, and difficult to repair.
- Exclusive to Turning Point, the Ultracoat powder coat rivals a fine automotive finish, and is more durable than paint.
- Utilising a state-of-the-art five step process, the ultracoat gives the propeller a shiny, uniform appearance that enhances any boat’s good looks.
- This is the Gold Standard in Aluminum Corrosion Protection. As compared to competitors’ paint and coating usual processes, leading to less abrasion and corrosion resistance.
- Turning Point’s Propeller Housings have massive exhaust flow pathways. Maximising exhaust flow increases horsepower and top end speed.
- Offers 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure, generates more horsepower. Like headers for the boat.
- Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” & 14” diameter 15+ Pitch).
- Recent tests reveal that new Hustler Aluminium Propellers have up to 46% more reverse thrust over competitive propeller designs.
- Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance.
- Accelerating and channeling water to minimise slip increases performance and fuel economy.
With Lasting Ultracoat Powder Coated Finish
With Large and High Flow-Through Barrel Exhaust System
Tuned Vents for Fast Hole Shot
Best “In-Class” Reversibility
Performance Tuned Rake Angles
Tuned Progressive Pitch Angles
ABOUT MASTERGUARD HUB SYSTEM
- Exclusive Lifetime Warranty Hubs
- Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300+HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point.
- Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems.
- Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending.
- Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat.
- Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems.
- The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures.
- Made of premium corrosion resistant durable marine bronze splines.
- Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection.
- Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy.
- Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
Increases Performance and Horsepower
Eliminate Hub System Vibration and Chatter
Eliminate Hub Cracking and Failure
Corrosion Resistant Materials
Reduce Gear Shock and Engine/Drive Damage
Easy to install
Interchangeable with other manufacturer’s props
WARNINGS
- MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov.
- Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov.
For installation guides see the following:
- Turning Point Hub Kit, Installation Instructions for Model #502 (11500200)
- Turning Point Hub Kit, Installation Instructions for Model #504 (11500400)
- Turning Point Hub Kit, Installation Instructions for Model #505 (11500500)
- Turning Point Hub Kit, Installation Instructions for Model #507 (11500700)
- Turning Point Hub Kit, Installation Instructions for Model #508 (11500800)
- Turning Point Hub Kit, Installation Instructions for Model #511 (11501100)
- Turning Point Hub Kit, Installation Instructions for Model #708 (11700800)
- Models 501 (11500100), 510 (11501000) – N/A
- Models #701, 705, 707, 715 – N/A
