Description
TURNING POINT Hustler Propeller Aluminium 3 Blades, R2 Models
These are propellers ONLY.
Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller.
These propellers are suitable with 9.9-35HP Outboard Engines with a 3″ Gearcase and 20 Series Installation Kits.
PROPELLERS PRODUCT SPECIFICATIONS

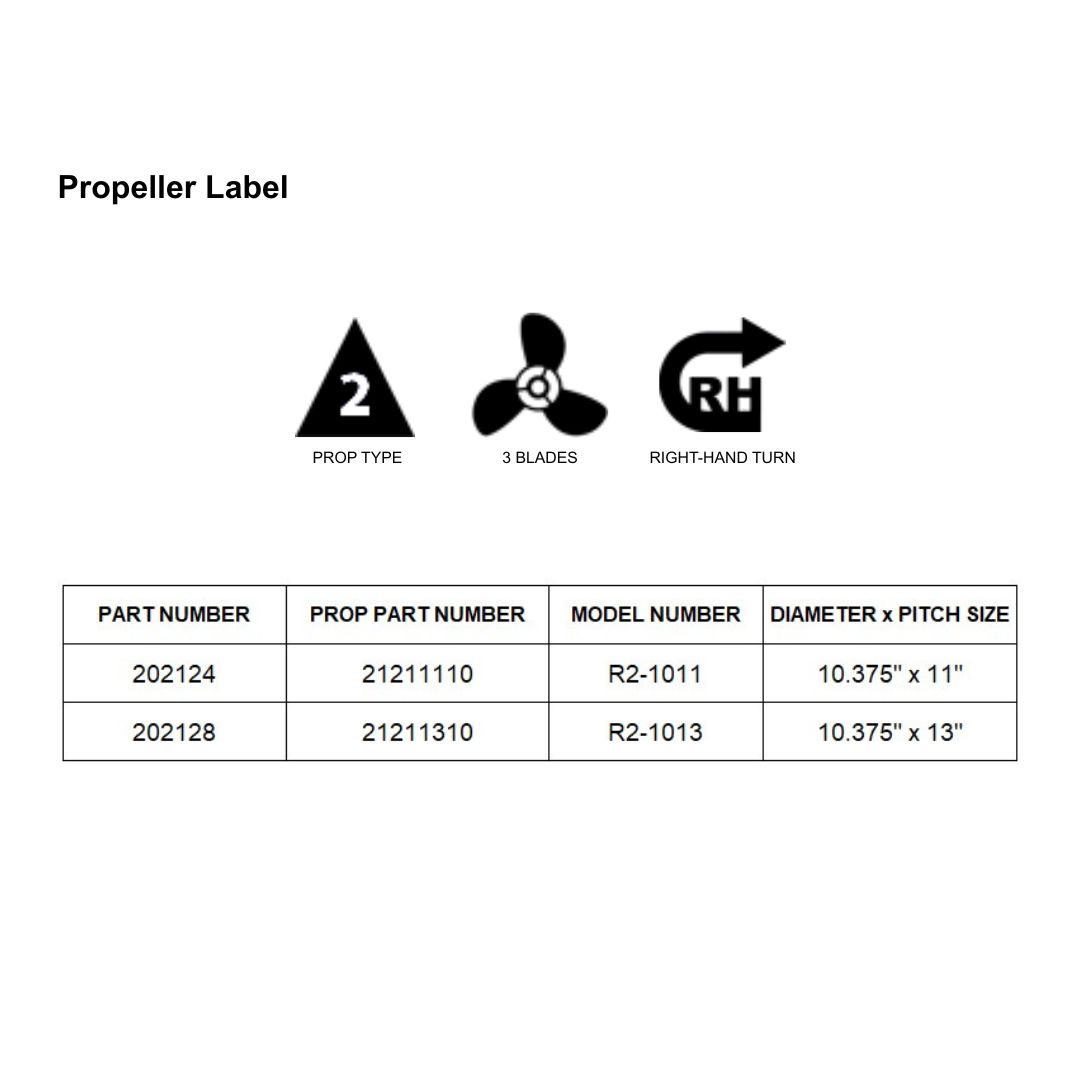

| BLA PART NUMBER | PROP PART NUMBER | MODEL NUMBER | DIAMETER x PITCH SIZE | NUMBER OF BLADES | ROTATION | PROP BRAND | PROP MATERIAL | SUITABLE INSTALLATION KIT HUB | PROP TYPE |
| 202124 | 21211110 | R2-1011 | 10.375″ x 11″ | 3 | RIGHT | HUSTLER | ALUMINIUM | 20 Series (See suitable engine and compatible hub kit below) | 9.9-35HP Engines with a 3″ Gearcase |
| 202128 | 21211310 | R2-1013 | 10.375″ x 13″ | 3 | RIGHT | HUSTLER | ALUMINIUM | 20 Series (See suitable engine and compatible hub kit below) | 9.9-35HP Engines with a 3″ Gearcase |
THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE
| MOTOR ENGINE | SPLINE PROP SHAFT | HORSEPOWER | HUB KIT SELECTION | MODEL NUMBER |
| HONDA | 10 | BF25, BF30 HP | 28 (11200800) | 203028 |
| MERCURY AND MARINER | 10 | 4 STROKE (’06 & newer, Cotter Pin Shaft): 25HP, 30HP | 28 (11200800) | 203028 |
| PARSUN | 10 | 20HP, 25HP | 25 (11200500) | 203025 |
| NISSAN AND TOHATSU | 10 | 2 and 4 Stroke: 25HP, 30HP | 28 (11200800) | 203028 |
| YAMAHA | 10 | 2 Stroke: 20HP, 25HP, 30HP 4 Stroke: 25HP | 25 (11200500) | 203025 |
*If you own any of the stated hub kit in the selection above and it is still good working condition, there is no need to purchase a hub kit.
HUSTLER PROPELLER FEATURES
- Made of Squeeze Cast for Added Strength
- Stainless steel performance is built into the Hustler Aluminum prop line.
- This is achieved through unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting.
- This process generates the highest mechanical properties attainable in a cast aluminum propeller resulting from high density tighter grain structure. Stiffer blades means less flex and a faster prop.
- Most competitor’s aluminum propellers are manufactured via the old die-cast process that produces props with air bubble, voids, and granularity. Making props weak, stiff, inefficient, and difficult to repair.
- Exclusive to Turning Point, the Ultracoat powder coat rivals a fine automotive finish, and is more durable than paint.
- Utilising a state-of-the-art five step process, the ultracoat gives the propeller a shiny, uniform appearance that enhances any boat’s good looks.
- This is the Gold Standard in Aluminum Corrosion Protection. As compared to competitors’ paint and coating usual processes, leading to less abrasion and corrosion resistance.
- Turning Point’s Propeller Housings have massive exhaust flow pathways. Maximising exhaust flow increases horsepower and top end speed.
- Offers 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure, generates more horsepower. Like headers for the boat.
- Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” & 14” diameter 15+ Pitch).
- Recent tests reveal that new Hustler Aluminium Propellers have up to 46% more reverse thrust over competitive propeller designs.
- Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance.
- Accelerating and channeling water to minimise slip increases performance and fuel economy.
With Lasting Ultracoat Powder Coated Finish
With Large and High Flow-Through Barrel Exhaust System
Tuned Vents for Fast Hole Shot
Best “In-Class” Reversibility
Performance Tuned Rake Angles
Tuned Progressive Pitch Angles
ABOUT TURNING POINT HUSTLER 3 BLADE PROPELLERS
- Turning Point has built their reputation on a relentless focus on engineering the best performing aluminium propellers in the World.
- Hustler 3 Blade Propellers run as fast as some Stainless Steel Props (and sometimes faster) due to unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting.
- The propeller is made of super stiff metallurgy, unique blade geometry, aggressive pitch, rake, and cup to deliver a stainless performance at aluminium prices.
- Hustler propellers are the only aluminium propeller manufactured with performance enhancing vent holes (selected models only 13” & 14” diameter 15 + Pitch).
- Great for boaters looking to get the most top end out of their boat, and offer excellent bow lifting capabilities and make the most of the boat and engine combination.
- Designed to be compatible on mid-range horsepower pontoons, fishing, ribs, and tiller boats.
- The 3-Blade Prop is made to work on tri-toons (recent testing has shown that pontoons and tri-toons run better with larger blade diameters than runabout or bass boat hulls).
ABOUT MASTERGUARD HUB SYSTEM
- Exclusive Lifetime Warranty Hubs
- Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300+HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point.
- Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems.
- Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending.
- Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat.
- Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems.
- The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures.
- Made of premium corrosion resistant durable marine bronze splines.
- Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection.
- Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy.
- Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
Increases Performance and Horsepower
Eliminate Hub System Vibration and Chatter
Eliminate Hub Cracking and Failure
Corrosion Resistant Materials
Reduce Gear Shock and Engine/Drive Damage
Easy to install
Interchangeable with other manufacturer’s props
WARNINGS
- MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov.
- Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov.
For installation guides see the following:
