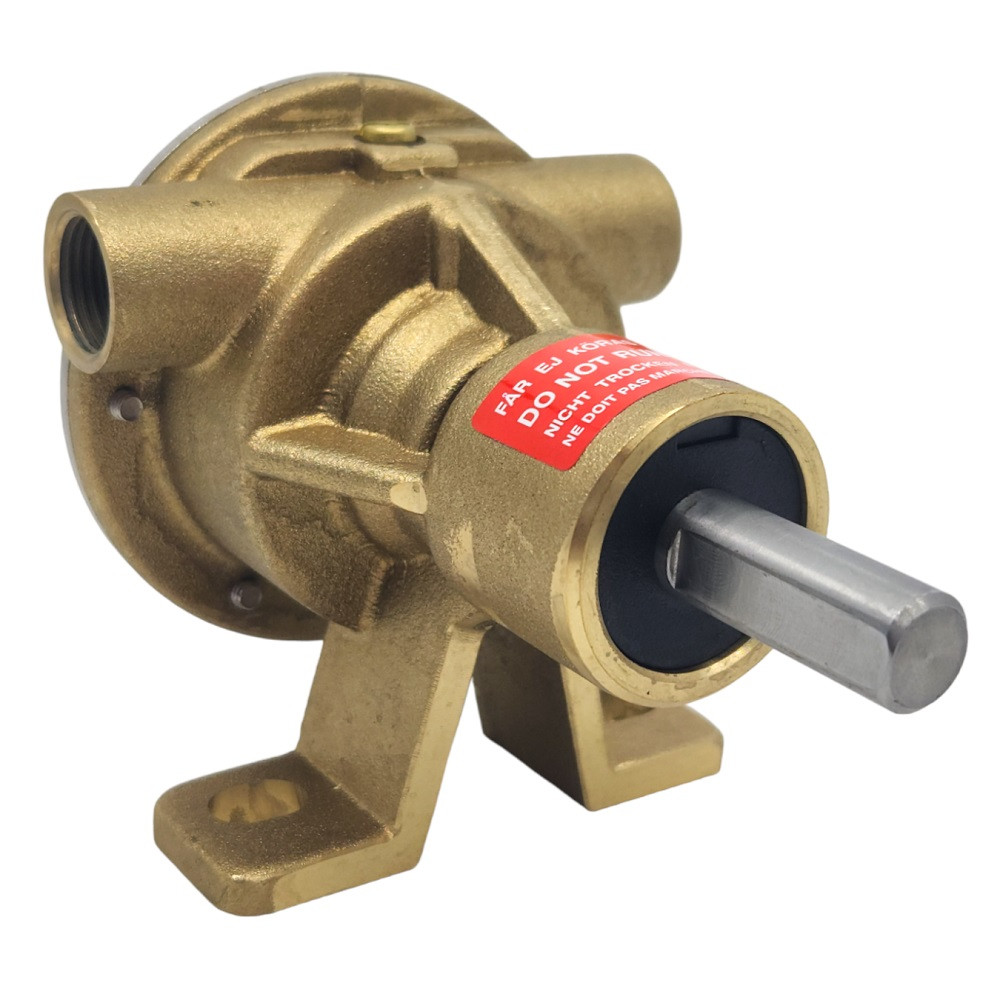

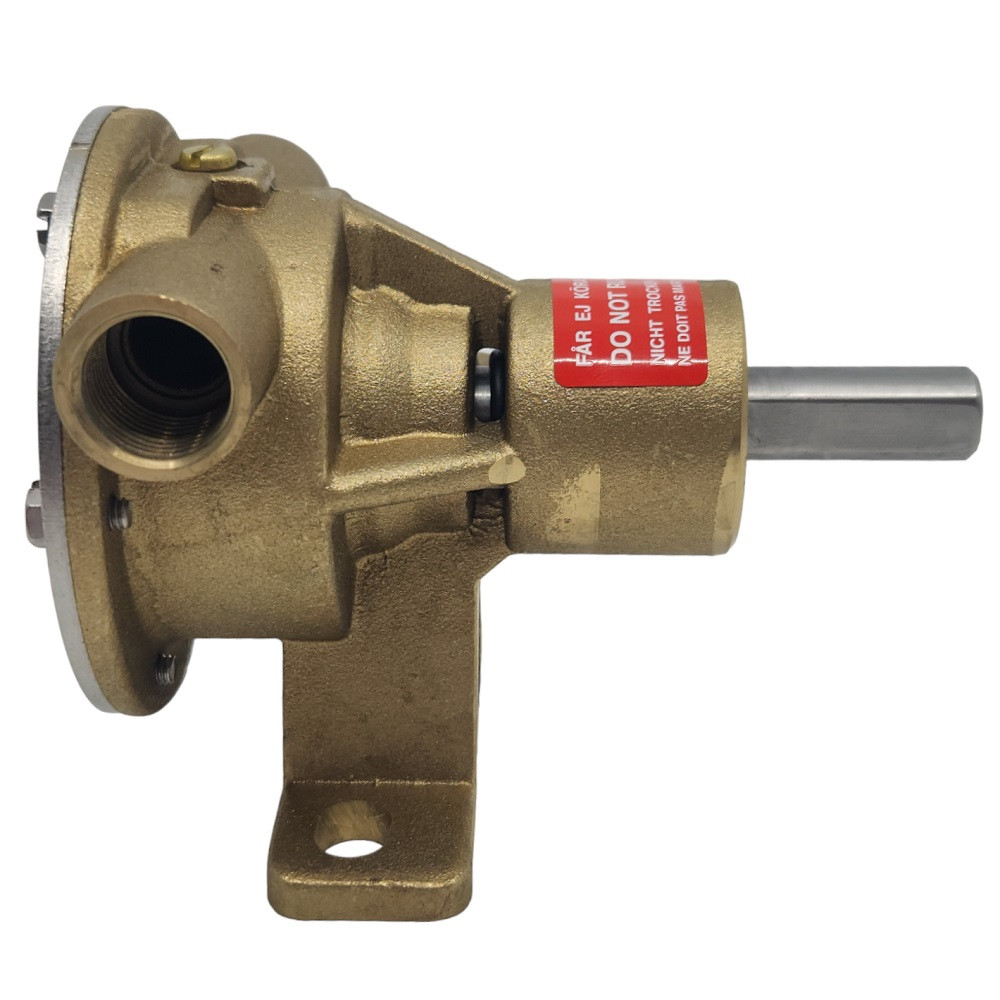

SPX Johnson Heavy Duty Impeller Pump 3/8″ BSP F4B-8 10-24570-01

$475.15 inc GST

or 4 payments of $118.79 with Wizit learn more

SPX Johnson Heavy Duty Impeller Pump F4B-8

Pay by  Add to cart.

In stock

Select delivery location

SKU: 132700 Category:


Condition:  New

In stock

Please check availability before ordering.




SPX Johnson Heavy Duty Impeller Pump F4B-8 10-24570-1

A range of multi-purpose bronze pumps. Compact design, raw water resistant pumps at an attractive price – with the renowned SPX’s Johnson Pump marine brand quality. These pumps are designed for a number of applications on board. With excellent self-priming capability, these pumps are ideal as cooling water pumps for marine engines, bilge pumps, deckwash pumps, freshwater pumps, fuel transfer pumps and other applications. Also ideally suited on shore to empty septic tanks, to flush clean and to fill water tanks. Available in sizes from 3/8″ to 1½” (4 L/min to 279 L/min).

• Pump body: Bronze
• Shaft: Stainless steel. The shaft is mounted with permanently lubricated double ball bearings
• Seal: Mechanical seal
• Cam: Full or reduced
• Connection: BSP or NPTF

• 12mm Shaft

Impeller 09-810B-1 Neoprene (09-810B-9 Nitrile)

Connection 3/8″ BSP

Total Length 110.5mm

Total Width 80 mm

Height to Shaft 50mm

Weigth .8kg – 1.8lbs


Impeller: 09-810B-1 Connection: 3/8" BSP Length: 111mm Width: 80mm Height: 50mm Weight: 0.8kg Drive Shaft: 3/8"
