Shockwave Suspension S5-AL Sentinel White Aluminium SW-07823-W

Original price was: $2,859.00.Current price is: $2,400.00. inc GST

SKU: 183049

Shockwave Suspension S5 Sentinel White Aluminium SW-07823-W





















In stock

ENQUIRY!
Add to wishlist
Compare
SKU: 183049 Categories: ,

UPC: 646565021779

Condition:  New

In stock

Description

Description

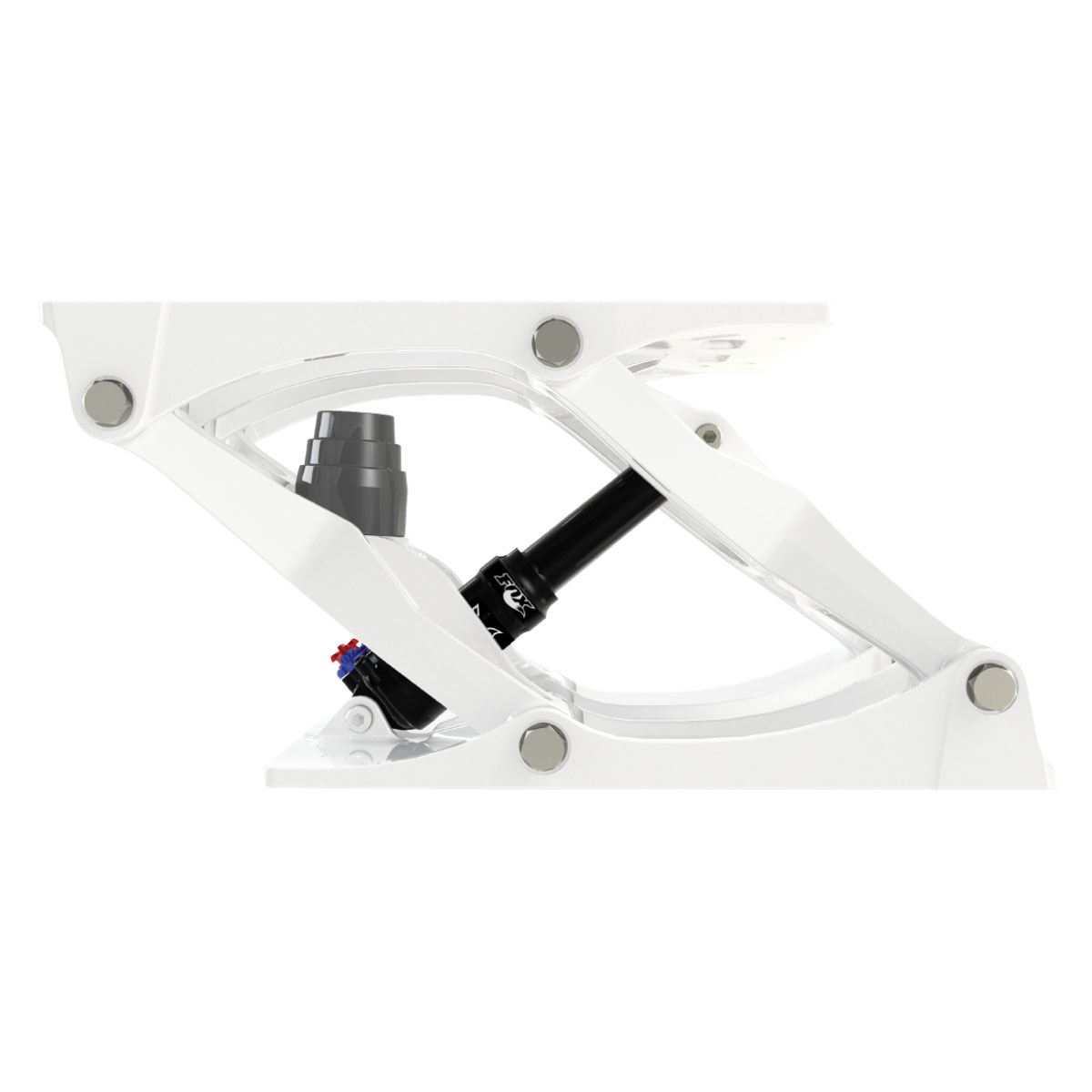

Shockwave Suspension S5-AL Sentinel White Aluminium SW-07823-W

The Shockwave S5 Sentinel provides comfort and safety to boaters, offering them an experience they’ve never had before. It offers a smoother, safer and more comfortable ride, protecting occupants from the shock of wave impact.
Recreational boaters can stay out longer and travel farther with less fatigue.

Features

  • Easy to install
  • Can be paired with almost any seat
  • Performance tuned 4-link design for a smooth ride
  • Purpose built fully adjustable marine float shock absorber by Fox Racing for all payloads and sea conditions
  • Surge protection: suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
  • Adjustable compression and rebound rate
  • Same footprint as S5 with updated mounting fastener dimensions
  • Marine grade aluminium die cast construction with tri-valent chromate primer and military grade powder coat
  • High life cycle IGUS bushings
  • 316 stainless steel hardware
  • Easy to mount and adapt to current seating
  • Spring and Shock – FOX Rhythm air spring shock with adjustable rebound
  • Construction – Anodised A360 cast aluminum, 316 SS hardware, powder coated
  • Suspension Design – 4-Link forward action
  • Overall Performance – Better in moderate to heavy seas
  • Warranty – Two year – limited warranty
  • The SHOCKWAVE Shock Pump is included for set up of the shock absorber.
  • Weight Capacity – Up to 136.1 kg



Download Pedestal Base Installation Pattern

Shockwave Sentinal S5 SW-07823 AdjustmentSuspension Settings

1. Soft Mode

For operating in flat water and light chop where the likelihood of experiencing a slam is low. Mostly inshore use. Gives a soft ride.

2. Medium Mode

For operating in moderate to rough conditions where some slamming could occur. Gives a medium ride.

3. Firm Mode

For operating in big seas and at higher speeds where regular slamming will occur. Gives a firm ride.

Other Options

Faster Rebound

In high frequency and small wave activity.

Slower Rebound

In low frequency and large wave activity.



SKU Colour
183048 Black
183049 White
SKU Accessory
183052 Pump suit S5 Sentinel
183433 S5 Sentinel Shock Extension Kit
