Description

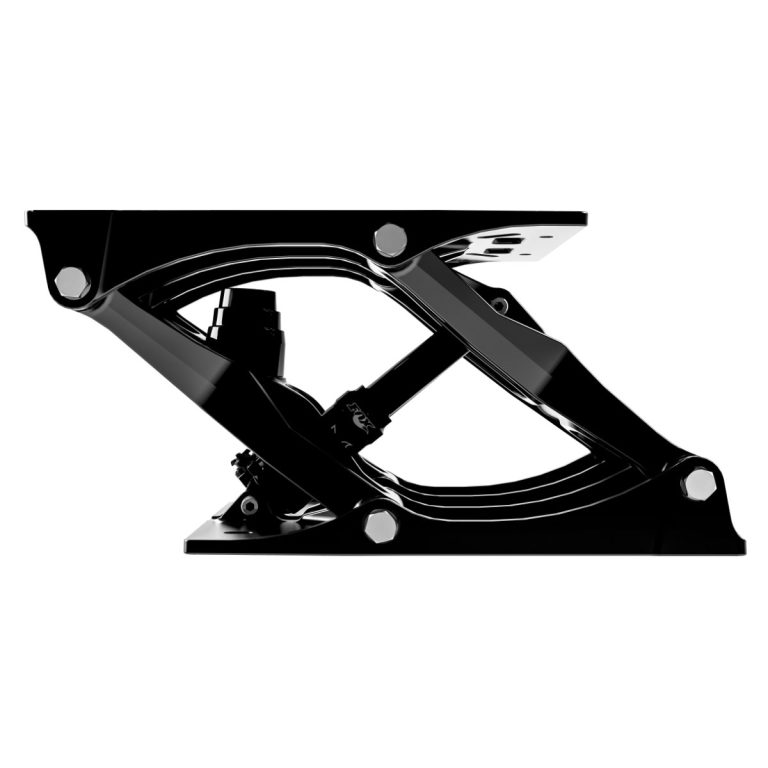

Shockwave Suspension S5-AL Sentinel Black Aluminium SW-07823-B
The Shockwave S5 Sentinel provides comfort and safety to boaters, offering them an experience they’ve never had before. It offers a smoother, safer and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue.
Features
- Easy to install
- Can be paired with almost any seat
- Performance tuned 4-link design for a smooth ride
- Purpose built fully adjustable marine float shock absorber by Fox Racing for all payloads and sea conditions
- Surge protection: suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
- Adjustable compression and rebound rate
- Same footprint as S5 with updated mounting fastener dimensions
- Marine grade aluminium die cast construction with tri-valent chromate primer and military grade powder coat
- High life cycle IGUS bushings
- 316 stainless steel hardware
- Easy to mount and adapt to current seating
- Spring and Shock – FOX Rhythm air spring shock with adjustable rebound
- Construction – Anodised A360 cast aluminum, 316 SS hardware, powder coated
- Suspension Design – 4-Link forward action
- Overall Performance – Better in moderate to heavy seas
- Warranty – Two year – limited warranty
- The SHOCKWAVE Shock Pump is included for set up of the shock absorber.
- Weight Capacity – Up to 136.1 kg
Download Pedestal Base Installation Pattern

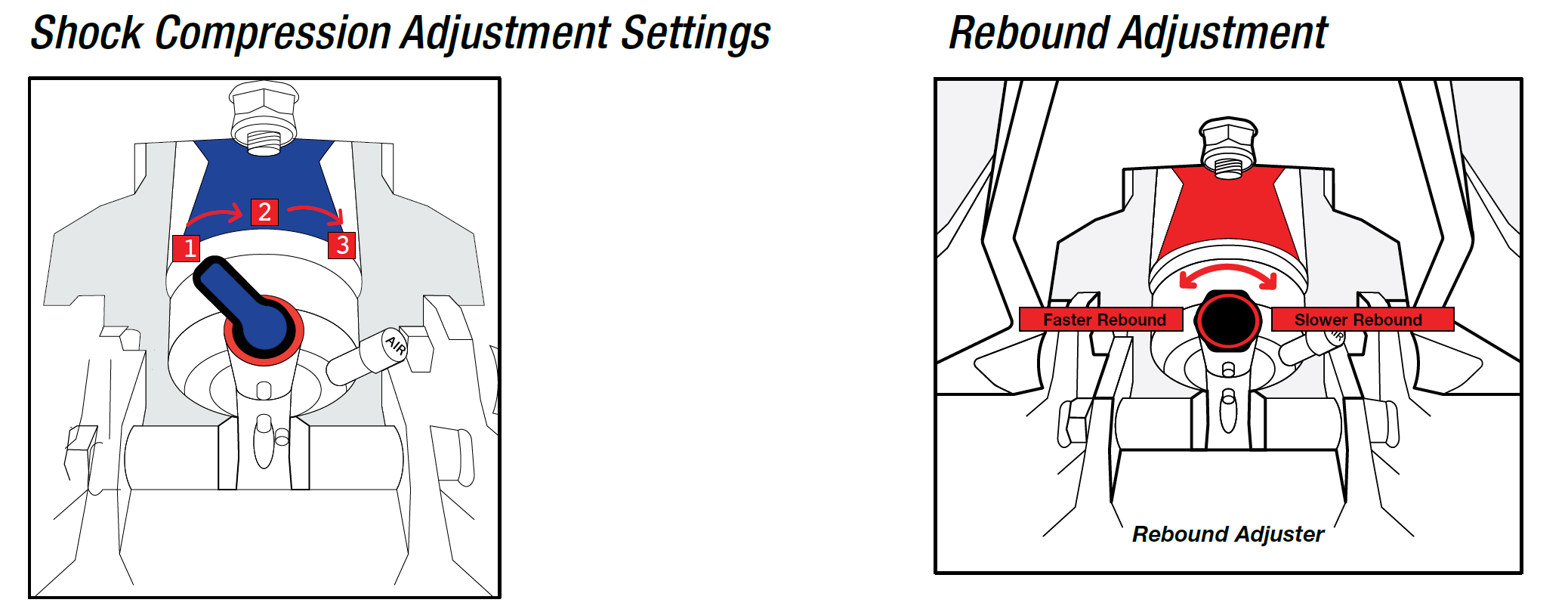

Suspension Settings
1. Soft Mode
For operating in flat water and light chop where the likelihood of experiencing a slam is low. Mostly inshore use. Gives a soft ride.
2. Medium Mode
For operating in moderate to rough conditions where some slamming could occur. Gives a medium ride.
3. Firm Mode
For operating in big seas and at higher speeds where regular slamming will occur. Gives a firm ride.
Other Options
Faster Rebound
In high frequency and small wave activity.
Slower Rebound
In low frequency and large wave activity.

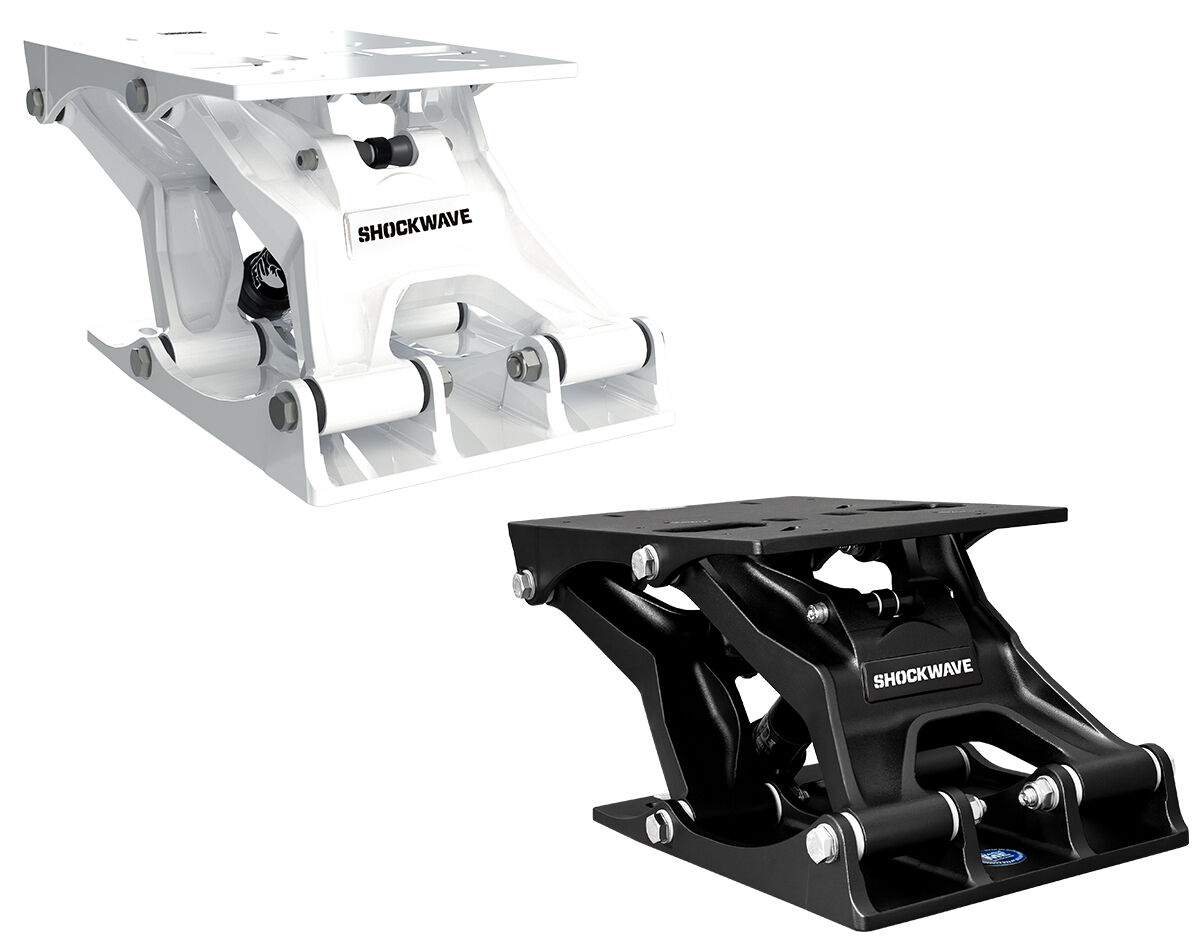

Available Colours
| SKU | Colour |
|---|---|
| 183048 | Black |

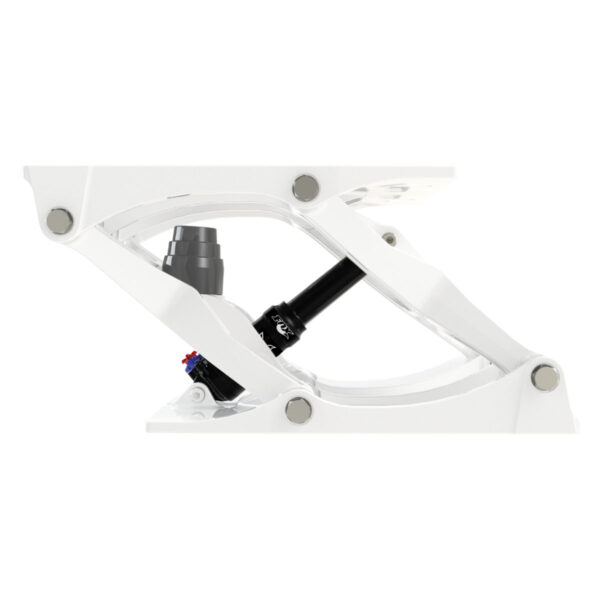

| 183049 | White |
Accessories
| SKU | Accessory |
|---|---|
| 183052 | Pump suit S5 Sentinel |
| 183433 | S5 Sentinel Shock Extension Kit |
Boat Hut Insight
Before ordering, check the seat base, mounting pattern and available clearance around the helm. A suspension seat can make a significant difference to comfort, but it still needs enough room to move freely without contacting consoles, steering wheels or deck fittings. Also allow for the combined height of the suspension unit and seat, as a small increase in seating position can affect helm visibility and driving posture.
For the best result, set the suspension for the boat’s usual load and operating conditions, then fine-tune it after a trial on the water. The right setting should reduce harsh impacts without allowing excessive movement.
