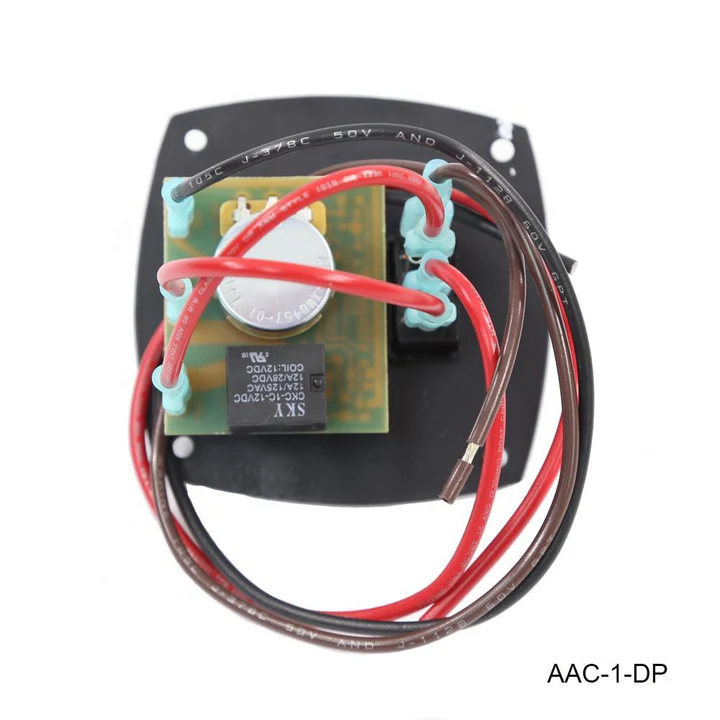

TH Marine Live-well Aerator Control Panel
Description
This unit features a solid state timer with adjustable cyclic run times. Keeps your Bait or Catch Alive & Healthy
Run time is approximately 45 seconds, off time is variable from 1–10 minutes.
Three way toggle switch; off/ manual/auto.
Suitable for all livewell pumps to 10 amps.
Black moulded plastic face with white raised lettering.
This aerator control provides a source of oxygen-rich water to your live well automatically.
This unit features a solid-state timer with adjustable off times to adjust to varying conditions.
Easily adaptable to existing systems.
Simply connect wiring according to instructions provided
Specifications
- Turns Pumps On & Off Automatically
- Face Size: 85x85mm
- Requires a 3″ (75mm) Round or 2-1/2″ (63mm) Square Hole
- Intrusion: 55mm (requires 75mm clearance)
- Mount Screws: 4mm c/s
- Solid State Aerator Timer
- Fully Adjustable Timer
- 10 Amp Fully Waterproof Circuitry
- Handles High Capacity Pump Current Draw
- Auto Spray (On) Time – Approximately 45 Seconds
- Auto Delay (Off) Time – 1 Minute to Approximately 10 Minutes (Max)
Condition New
UPCÂ 9319786099681
Face Size: 85x85mmCut Out: 60x52mmIntrusion: 55mmMount Screws: 4mm c/s
