Lenco Standard Mount Trim Tab – 12 Gauge Blades / 12-Volt Actuators
Lenco Electric Standard Mount Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small runabout or a large motor cruisers.
The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.
Lenco fast response electric actuators are fully submersible with all plug and play waterproof Deutsch connections.
Trim Tab blades are 12 Gauge – 304 grade stainless steel with a 5/8″ flared trailing edge and 1/8″ diameter hinge pin. Kits include standard actuators with 5/16″ SS bolts. Available in standard matt finish or electro polished.
• Blades: 12 Gauge stainless steel
• Finish: Smooth
• Switch Kit: Sold separately
• Made in: Stuart, Florida U.S.A.
• 2x 6.1m Actuator extension harness
• 2x Actuators with 1.8m harness
• 2x SS Blades with upper and lower mounting brackets
• 3 Year warranty

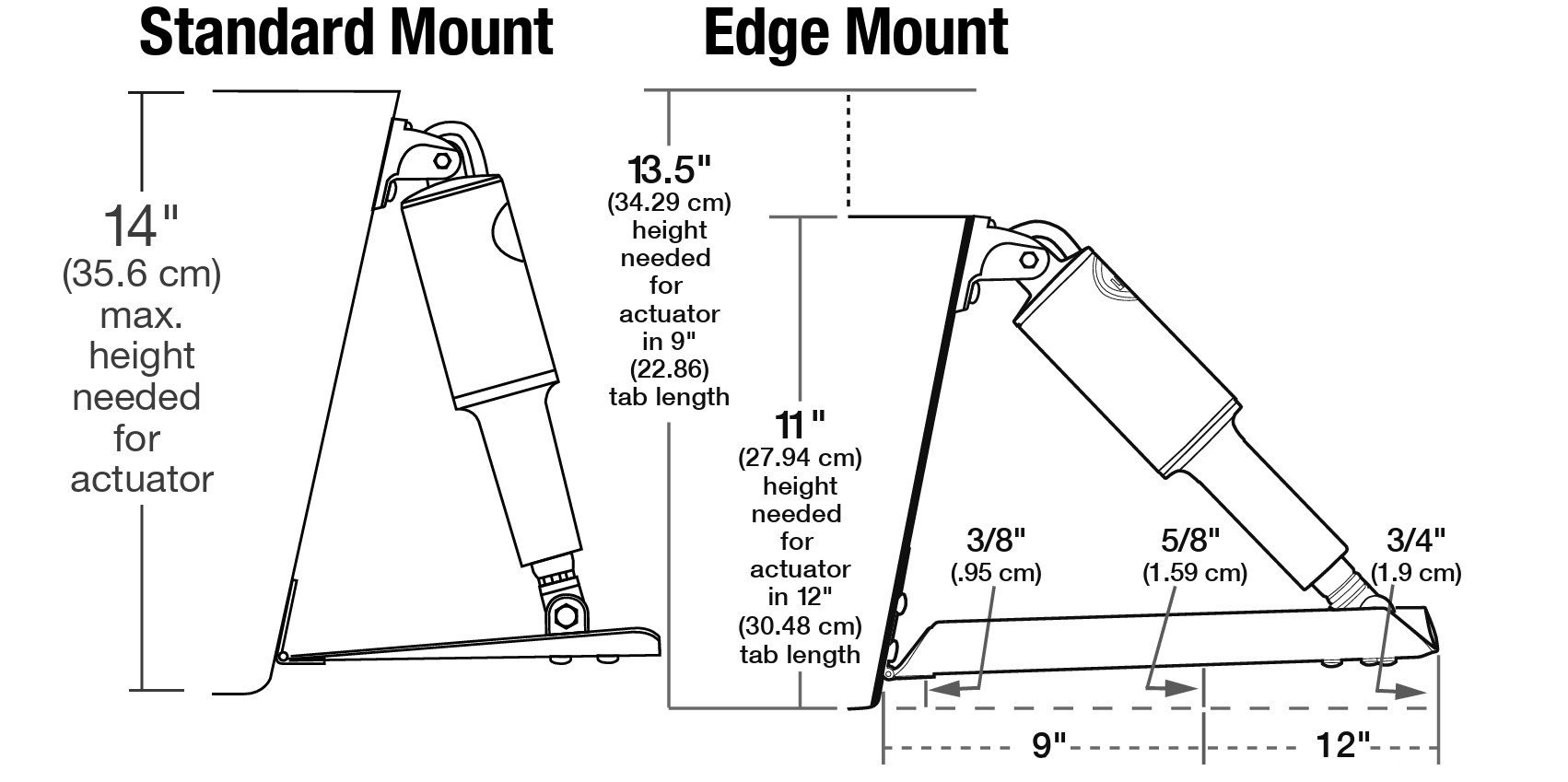

Hinge Height: 51mm
Min Transom Height: 356mm
|BLA Code||Blade Size
L x W in
Boat Length metres
|Finish||Lenco Model Number|
|312431||9 x 9||4.2 – 5.4||Standard||15000-101|
|312433||9 x 12||4.8 – 7.6||Standard||15001-101|
|312446||9 x 12||4.8 – 7.6||Polished||15113-101|
|312441||12 x 12||5.1 – 9.1||Standard||15007-101|
|312447||12 x 12||5.1 – 9.1||Polished||15113-101|
|312435||9 x 18||6.7 – 9.1||Standard||15002-101|
|312437||9 x 24||7.9 – 12.1||Standard||15003-101|
|312443||12 x 18||7.9 – 10.9||Standard||15008-101|
|312445||12 x 24||9.1 – 13.4||Standard||15009-101|
