KUS Oil Temperature Senders, Single/Double Plate

Name: KUS Oil Temperature Senders, Single/Double Plate
SKU: SAW-40003V
Availability: InStock
Rating: 5 (1 reviews)

Price range: $28.70 through $45.57 inc GST

SKU: SAW-40003V

ENQUIRY!

Add to wishlist

Compare

Size	SKU	Price	Cart	Stock
TYPE: M16 X 1.5	SAW-40003	Original price was: $44.35.Current price is: $32.13. inc GST	Add to cart	In stock
TYPE: 1/4"-18NPT	SAW-40004	Original price was: $42.00.Current price is: $30.41. inc GST	Add to cart	In stock
TYPE: 1/8"-27NPT	SAW-40005	Original price was: $39.60.Current price is: $28.70. inc GST	Add to cart	In stock
TYPE: 3/8"-18NPT	SAW-40006	Original price was: $44.35.Current price is: $32.13. inc GST	Add to cart	In stock
TYPE: 3/8"-18NPT	SAW-40007	Original price was: $62.90.Current price is: $45.57. inc GST	Add to cart	In stock
TYPE: 1/2"-14NPT	SAW-40008	Original price was: $62.90.Current price is: $45.57. inc GST	Add to cart	In stock

SKU: SAW-40003V

UPC:

Condition: New

In stock

Description
Additional information
Shipping & Delivery

Description

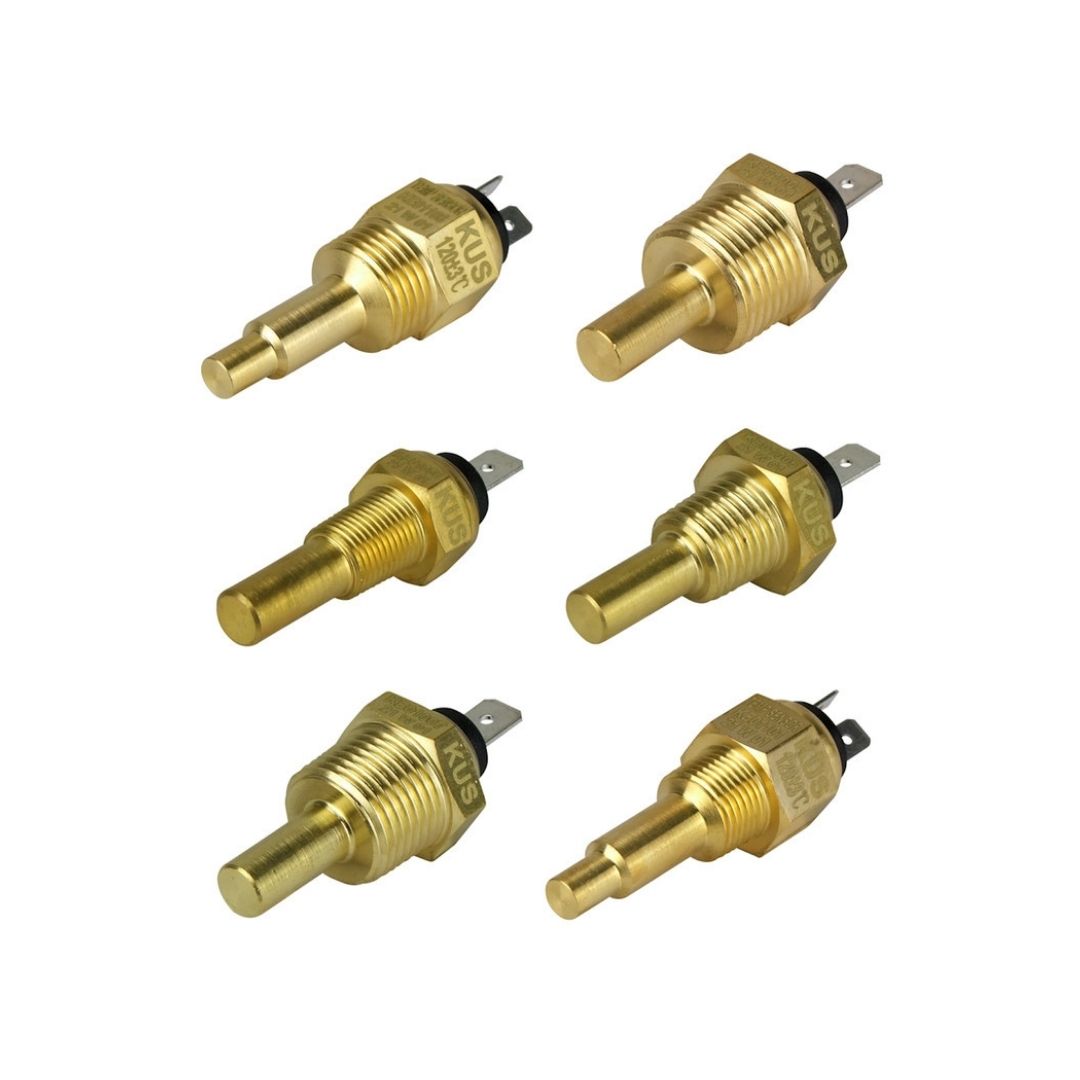

KUS Oil Temperature Senders, Single/Double Plate

These are temperature senders suitable for most temperature gauges available in the market. These can operate up to a maximum 150⁰C temperature.

SPECIFICATIONS

MATERIAL: Brass (Main Body)
RATED VOLTAGE: 6V~24V
TEMPERATURE RESPONSE TIME: Minimum 3 minutes after power supply electrified
PROTECTION RATING: IP67
ALARM SWITCH RATED POWER: 1.2W~3W
TEMPERATURE ALARM TOLERANCE: ±3C
VOLTS: 6-24V
MAXIMUM TEMPERATURE: 150⁰C

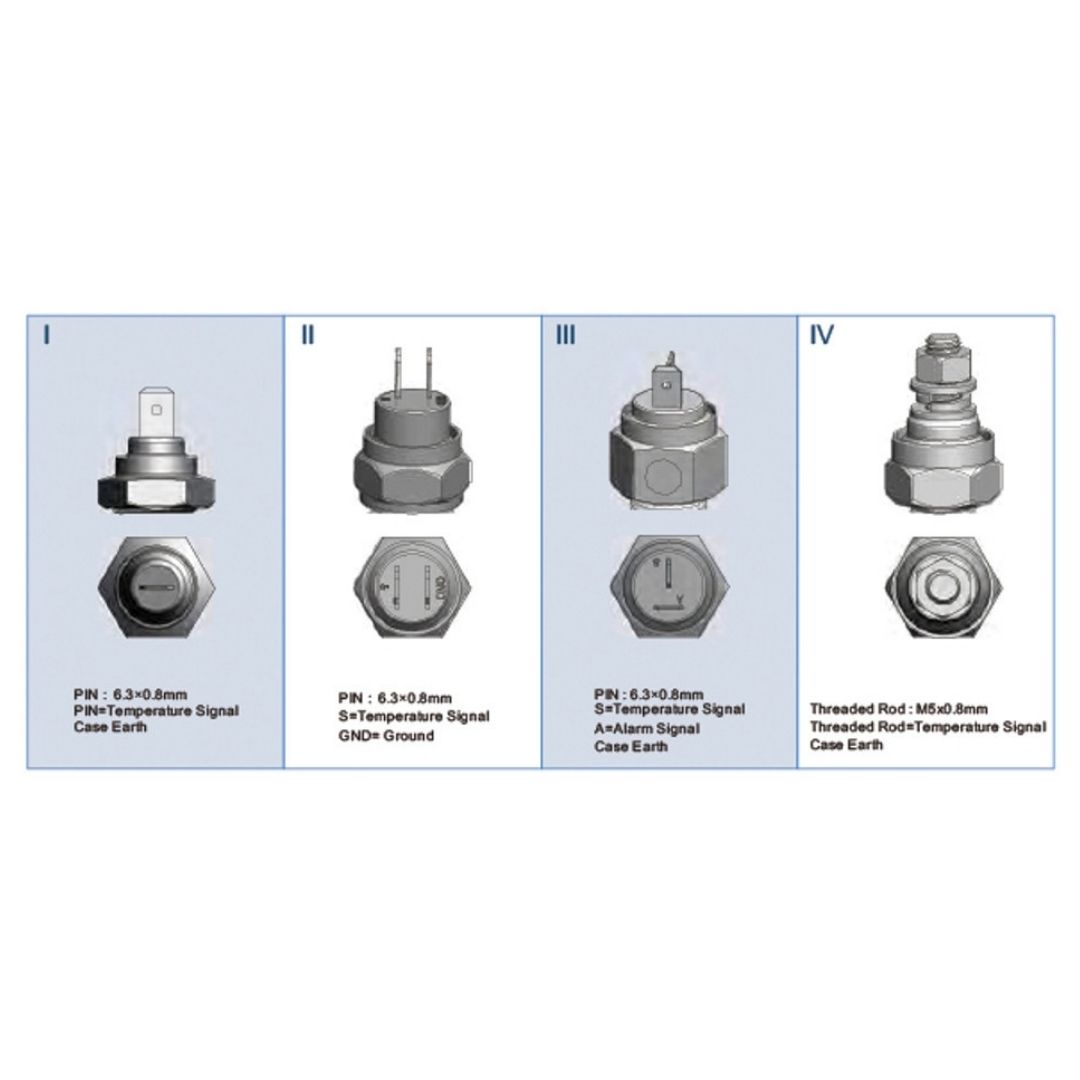

See image gallery for sizing guide.

PART NUMBER	TYPE	CONNECTOR TYPE	ALARM	DIMENSIONS (DIAMETER x LENGTH 1 x LENGTH 2)	THREAD

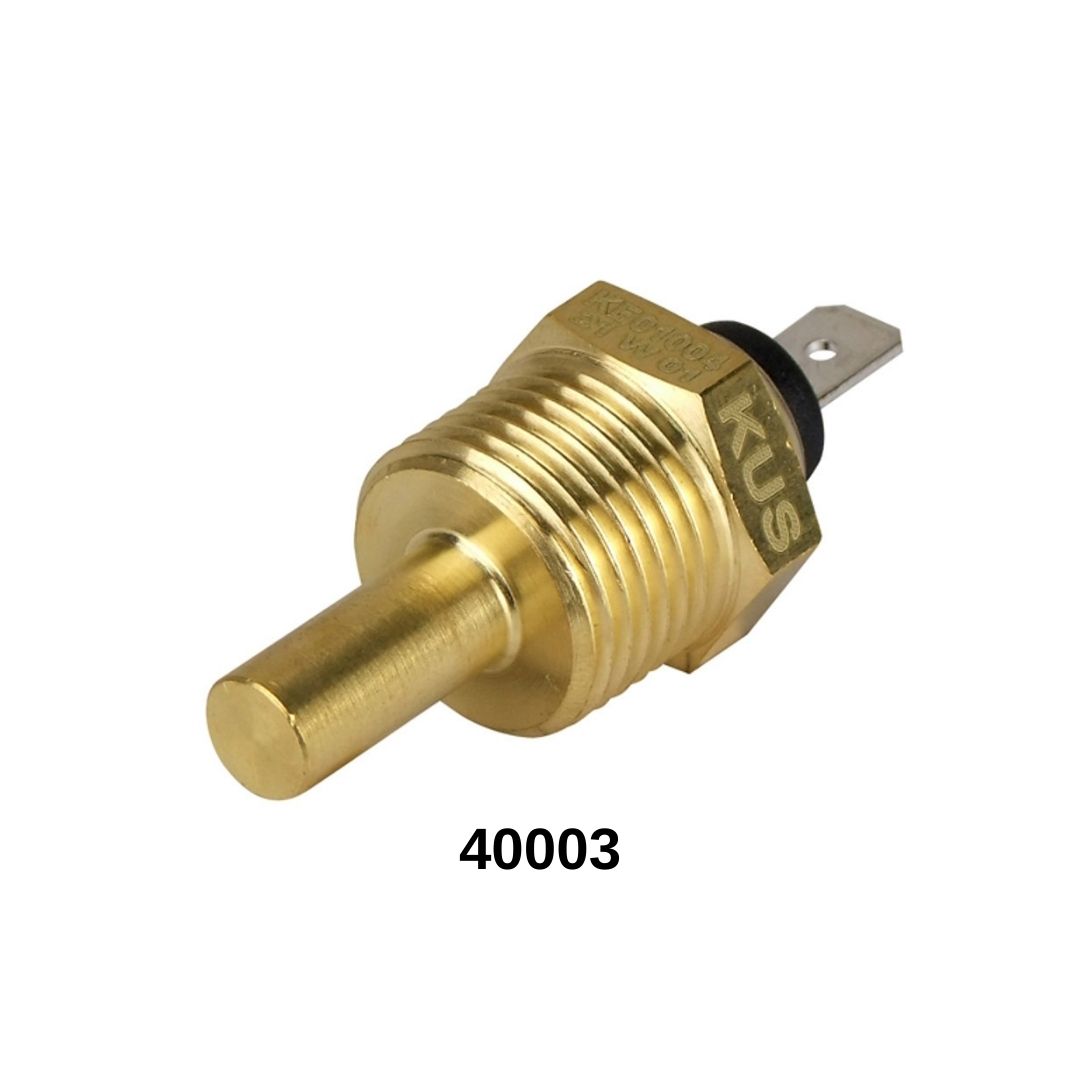

SAW-40003	OIL	SINGLE PLATE	—	7mm x 28.5mm x 51mm	M16 x 1.5

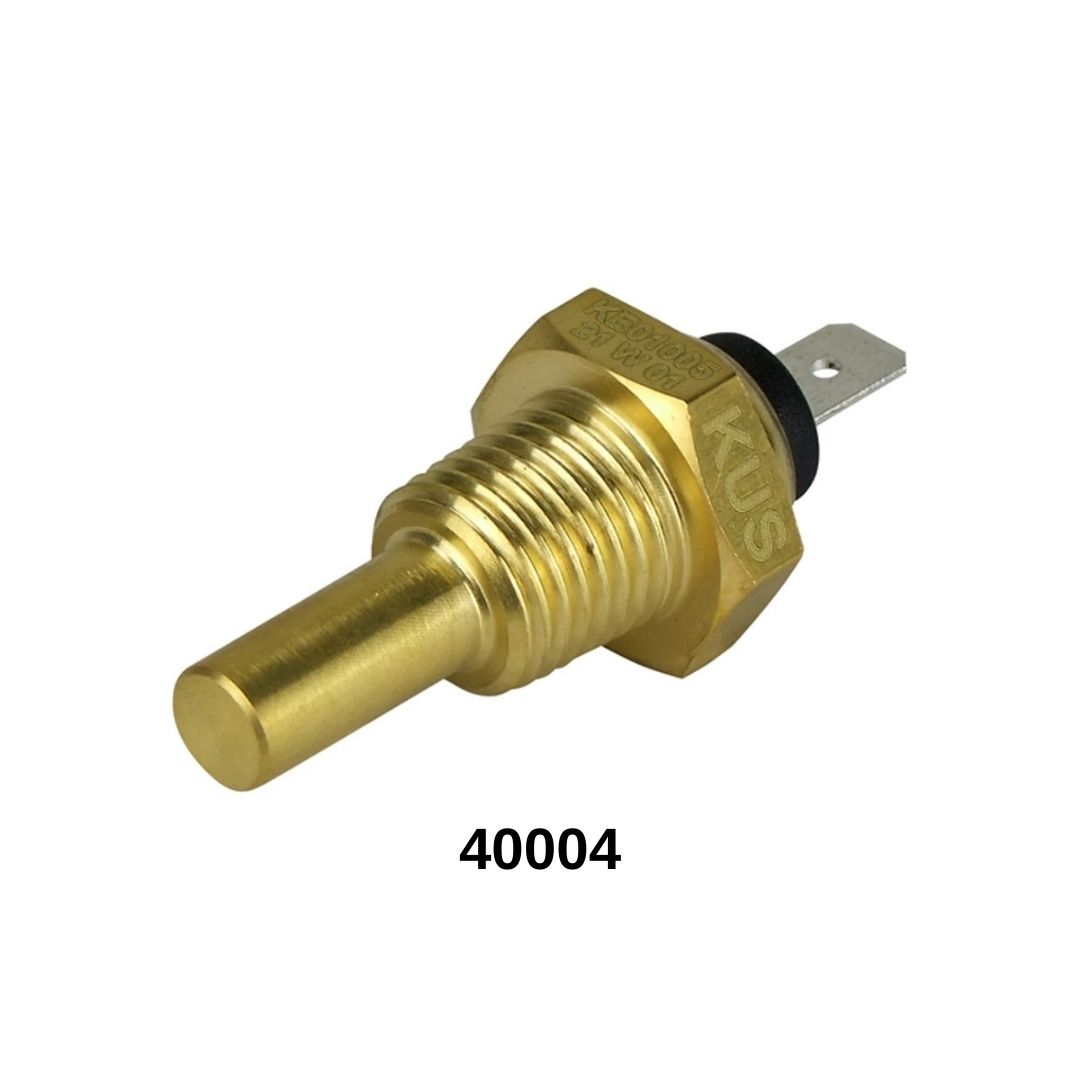

SAW-40004	OIL	SINGLE PLATE	—	8mm x 28.5mm x 51mm	1/4″-18NPT

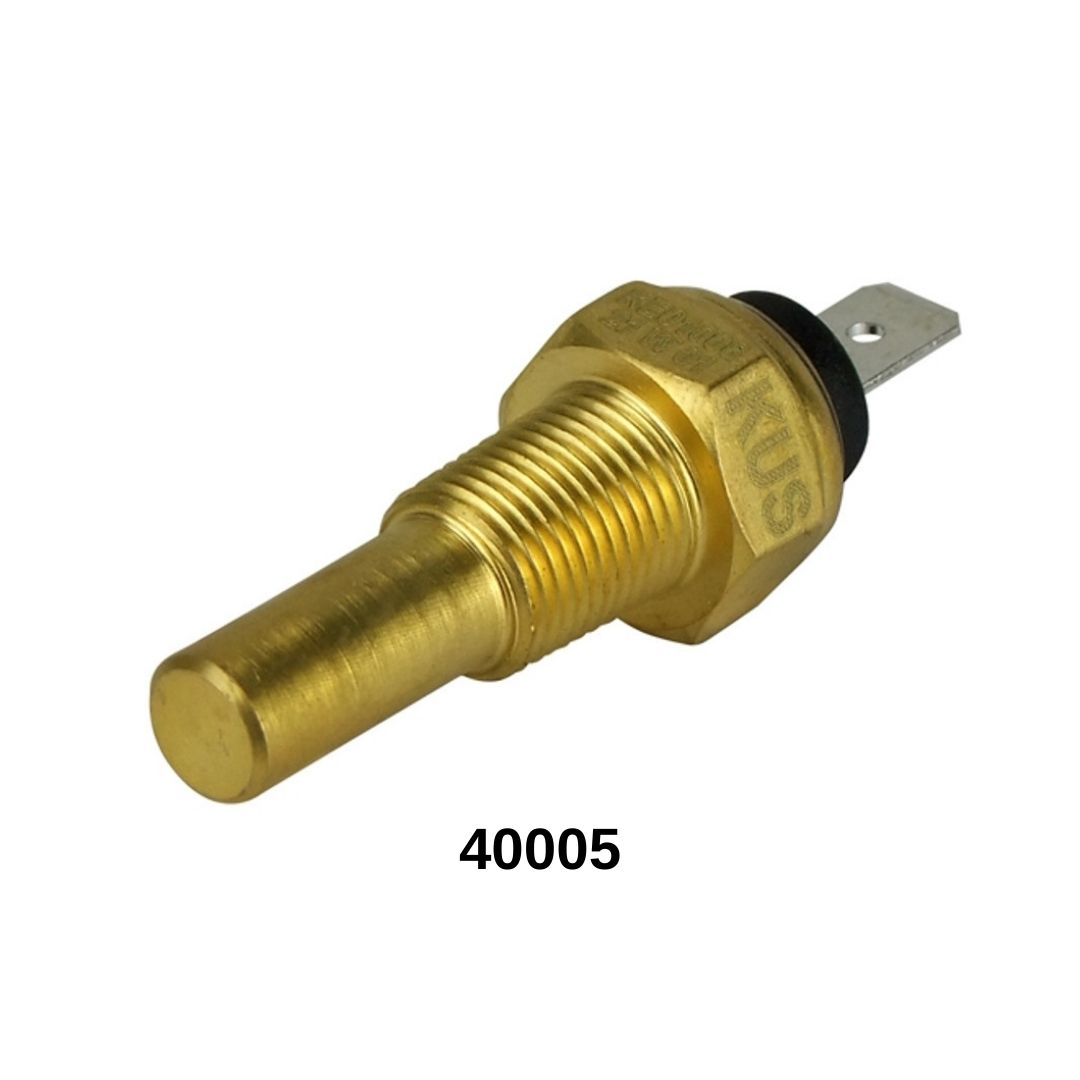

SAW-40005	OIL	SINGLE PLATE	—	8mm x 28.5mm x 51mm	1/8″-27NPT

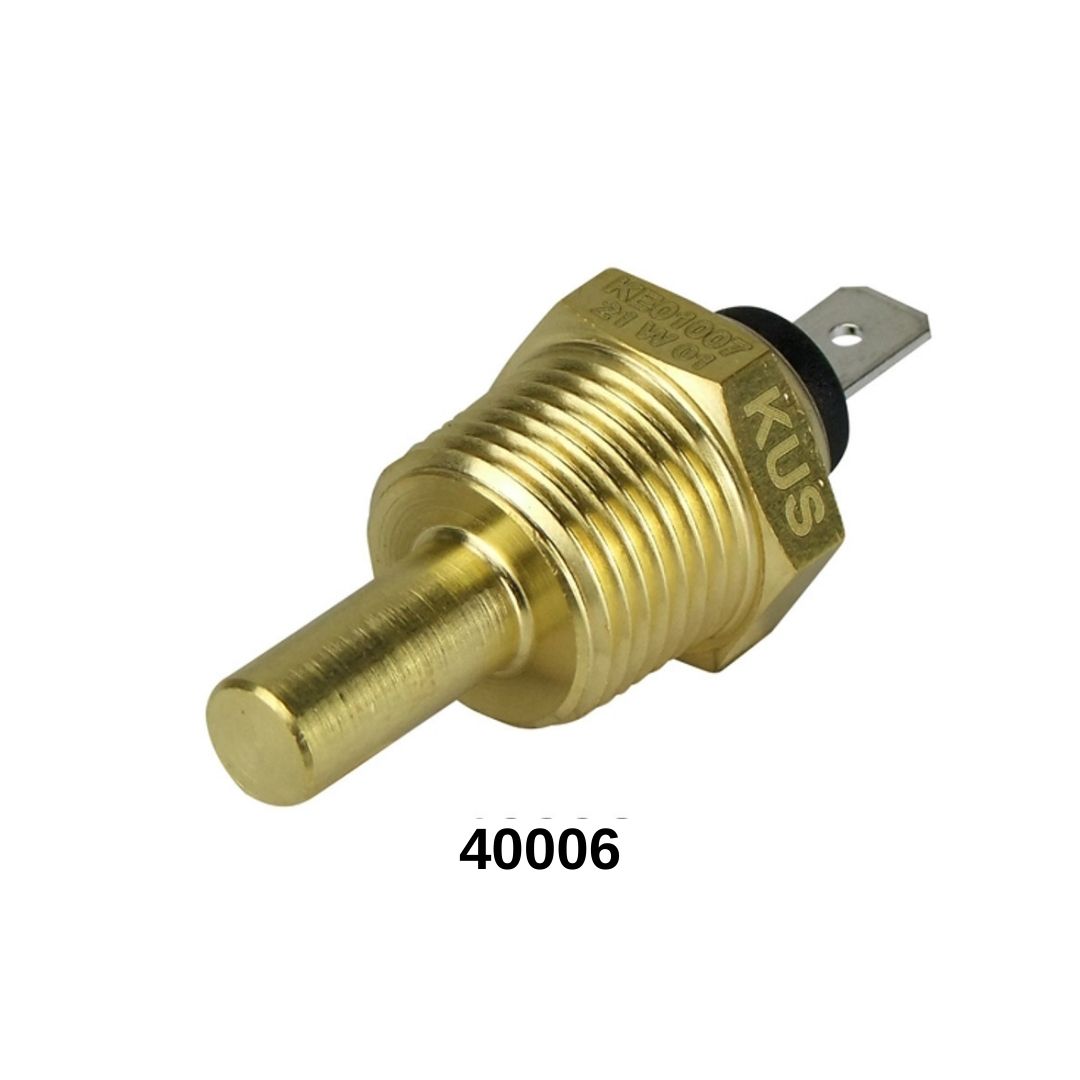

SAW-40006	OIL	DOUBLE PLATE	—	8mm x 28.5mm x 51mm	3/8″-18NPT

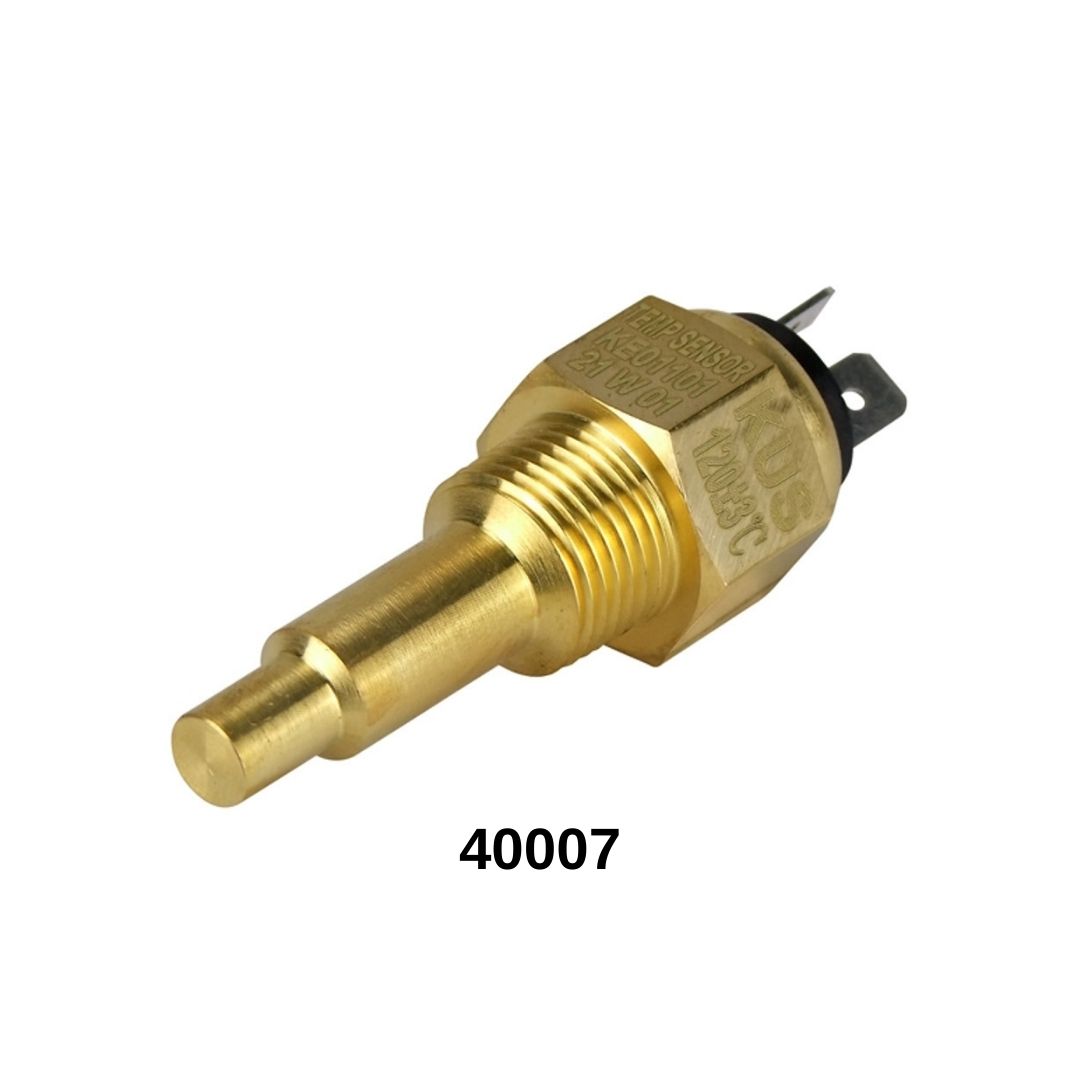

SAW-40007	OIL SWITCH	DOUBLE PLATE	120⁰C	8-11mm x 41mm x 71.5mm	3/8″-18NPT

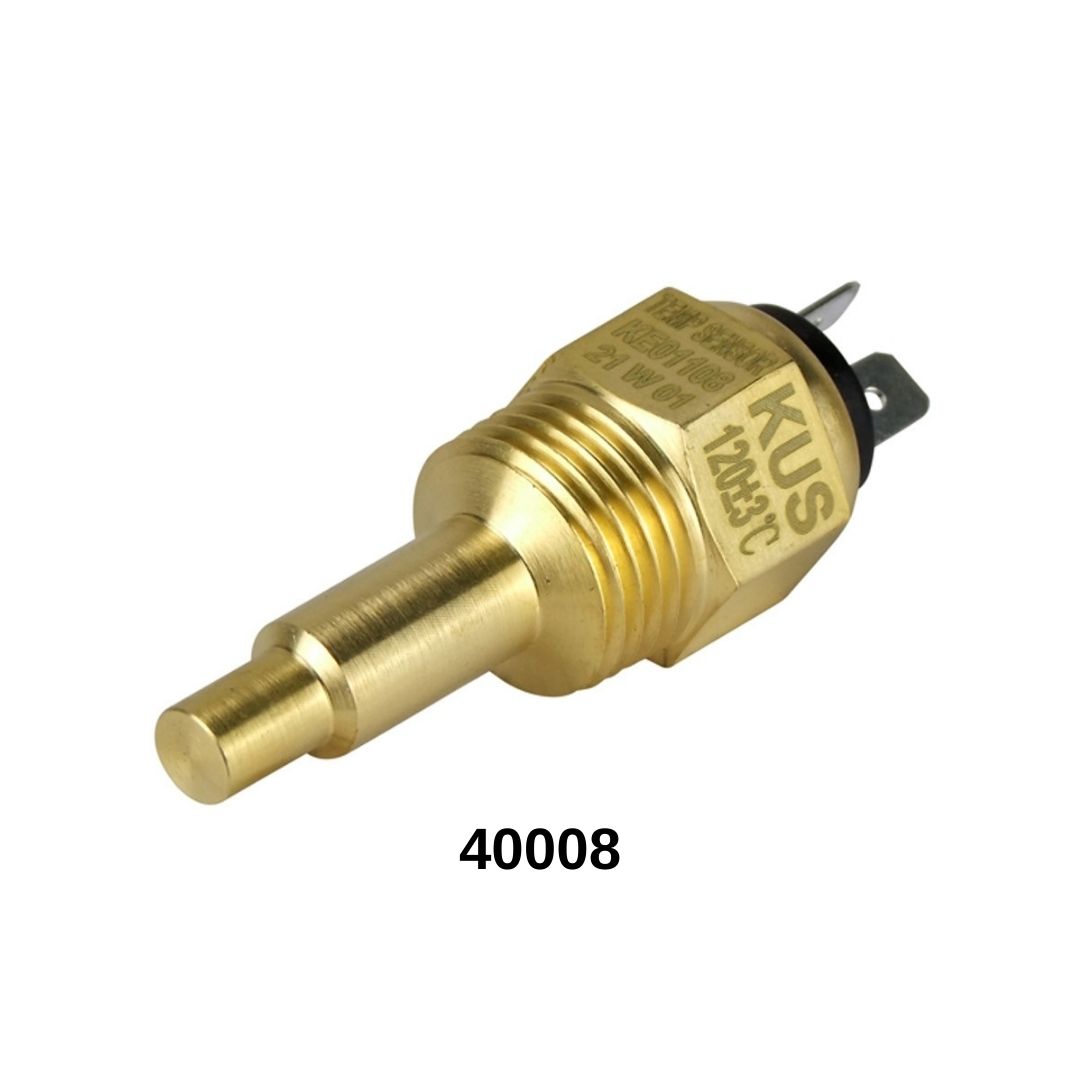

SAW-40008	OIL SWITCH	SINGLE PLATE	120⁰C	8-11mm x 41mm x 71.5mm	1/2″-14NPT

Additional information

Brand	KUS
Colour	Stainless Steel
Size	TYPE: 1/2"-14NPT, TYPE: 1/4"-18NPT, TYPE: 1/8"-27NPT, TYPE: 3/8"-18NPT, TYPE: M16 x 1.5
Condition	New
