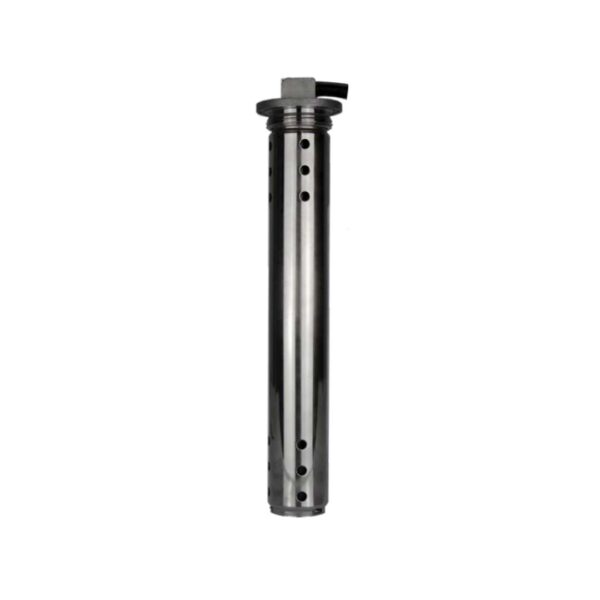

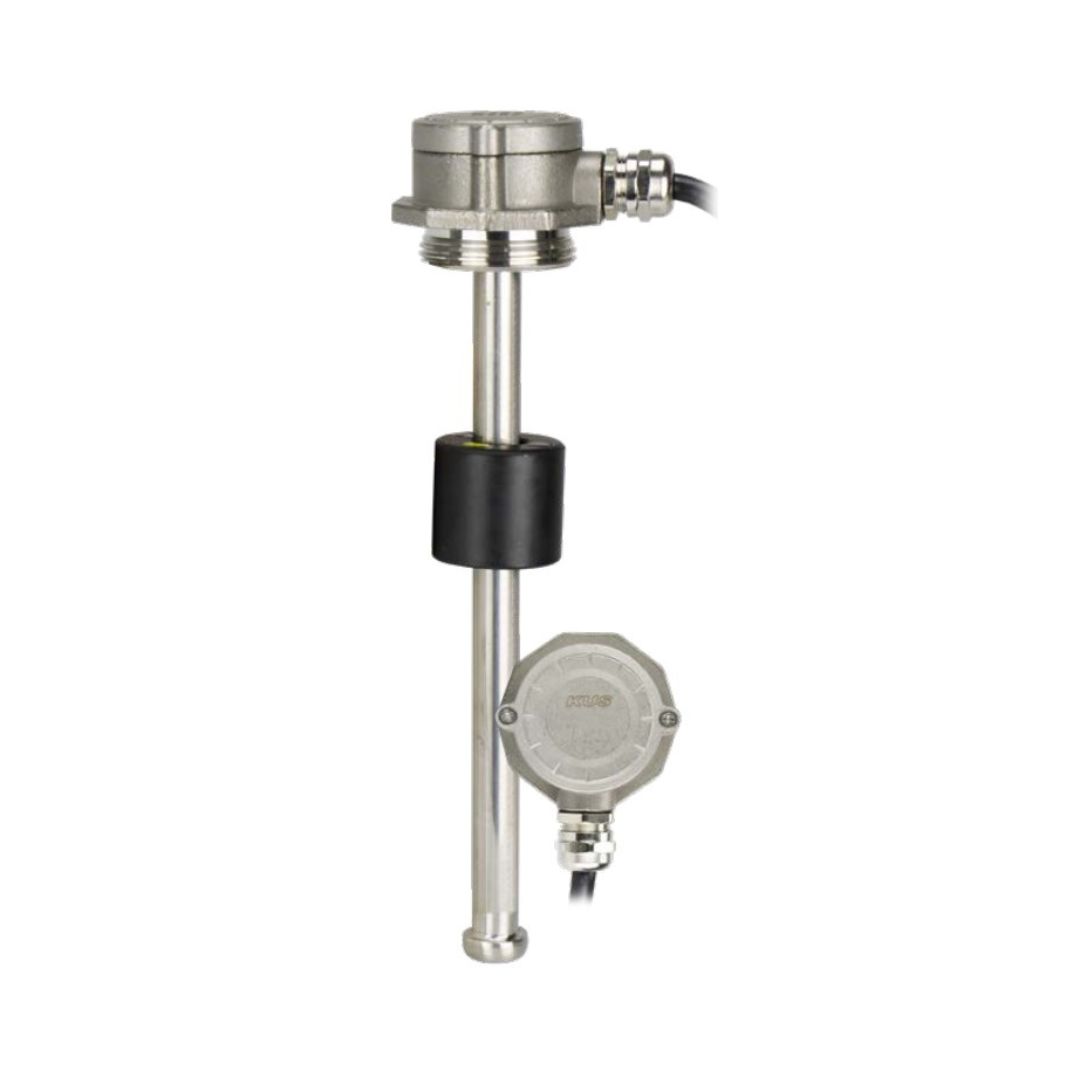

KUS 1-1/4″ BSP Senders, NMEA 2000, Stainless Steel
Utilising magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration.
These are stainless steel senders with NMEA 2000 Network Messages output signal.
INCLUDED: Rubber Gasket, Stainless Steel Screws
NOTES: The ‘screw in’ senders are often purchased with (SAW-40128) tank adapter (Nylon 5 Hole to 1-1/4″ BSP Adapter Kit), or the stainless steel flange (SAW-40126) for welding into the tank.
SPECIFICATIONS
- OUTPUT SIGNAL: NMEA 2000 Network Messages
- MOUNT STYLE: 1-1/4″ BSP, 38mm x 2.6mm O-ring / 43mm x 3.5mm O-ring
- SAE Standard 5 Mounting Holes and BSP
- OPERATING TEMPERATURE: 30°C ~ +80°C
- CONNECTOR: Male “Micro -C” Pin Out
- FPM GASKET THICK: 2mm
- NETWORK CABLE LENGTH: 1M
- INCLUDES: Stainless Steel Screws
- FLOAT DIAMETER: 33mm
- CE Certified
NOTE: Length is measured from underside of the flange to the base of the shaft.
See image gallery for sizing guide.
| PRODUCT CODE | LENGTH |
| SAW-40152 | 150mm |
| SAW-40182 | 180mm |
| SAW-40202 | 200mm |
| SAW-40227 | 225mm |
| SAW-40237 | 235mm |
| SAW-40277 | 275mm |
| SAW-40302 | 300mm |
| SAW-40377 | 375mm |
| SAW-40452 | 450mm |
| SAW-40502 | 500mm |
