Dometic Seastar Hydraulic Helm Pump Front Mount 1.7 HH5271-3

$730.00 inc GST

or 4 payments of $182.50 with Wizit learn more

Front Mount Helms – 1.7 – front mount HH5271-3

Pay by  Add to cart.

In stock

UPC: 731957918192

Condition:  New

In stock



Dometic Seastar Front Mount Hydraulic Helm Pump- 1.7 cu in – front mount HH5271-3

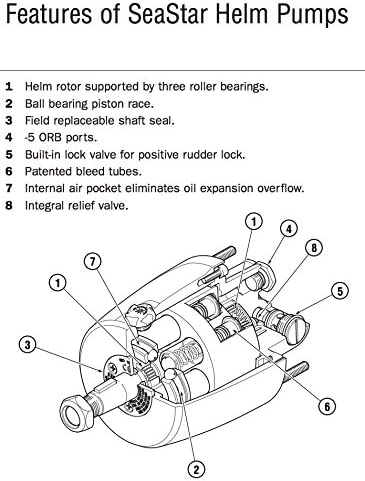

Nothing gets you closer to power steering. The SeaStar Helm Pump is an axial piston pump specifically designed for manual steering.

Every load bearing point within the helm pump runs on either a roller or ball bearing race for super low friction smooth positive steering.

It has a built in lock valve to prevent the steering load from feeding back to the driver.

The lock valve will not allow the rudder or drive unit to move until you apply load by turning the steering wheel.

The lock valve section of the helm also includes a relief valve.

This relief valve provides over pressure protection for mechanical components hydraulic hoses and fittings.

This is the go to helm in the Seastar range – this the helm pump included in nearly every premade kit brought out by Dometic Seastar


  • Satin black baked enamel finish over anodising
  • Maximum steering wheel diameter is 660mm
  • Can be retro fitted into old SeaStar 115mm hole cut out use (291908 mounting kit)
  • Small 76mm hole cut out in dash
  • Available in three capacities
  • Convenient front of dash fill

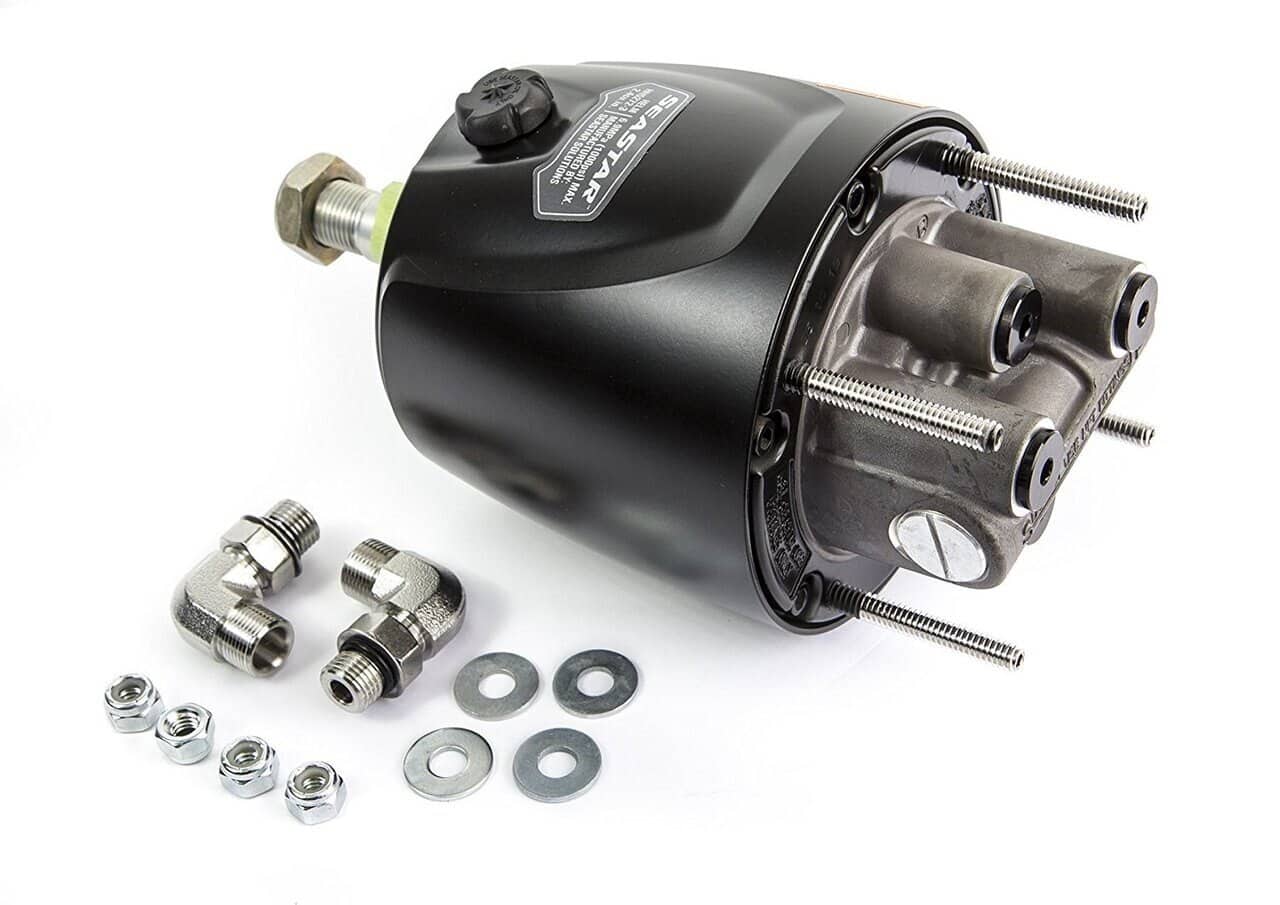

  • Complete with 2 elbow fittings 2 nuts and olives
  • 3/4″ tapered shaft

Relief valve setting 70 BAR 1000 PSI


This is a genuine Dometic Seastar product with an Australian warranty. This is not a copy or an imported version.

This is the latest generation and is backwards compatible with the original version of the HH5271.

This is the Seastar Dometic Helm pump that is supplied in most packaged kits. This will work with all Seastar cylinders – except the pro series 1000 PSI

Displacement: 27.8cc / 1.7cu in Relief Valve Setting: 70bar / 1000psi
