Description
Hansen Tank Level Alert Indicator / LEVELALERT
FEATURES AND BENEFITS
- Monitors water levels.
- Prevent pump burnout caused by Dry Tank Syndrome.
- See at a glance your tank water level.
- Suitable for any type or size tank.
- Essential part of your water management.
- Fully adjustable UniTri mounting base.
- UniTri mount will adapt to a range of tank roof angles (max 35° angle).
- Suitable for plastic, concrete and steel tanks.
- Manufactured from UV resistant durable, glass fibre reinforced nylon with stainless steel tubes (16mm diameter) and stainless steel fastenings.
- Complete with all mounting fastenings for all applications.
- Optional stainless steel extension tubes available (669mm).
- Supplied with 3 lengths of 669mm Heavy Duty Stainless Steel Tube (16mm diameter), Stainless Steel Fastenings, 115mm Threaded HiViz Float, 230mm Long Threaded Blue Float, UniTri Mounting base.
SPECIFICATIONS
- PRODUCT CODE: LEVELALERT

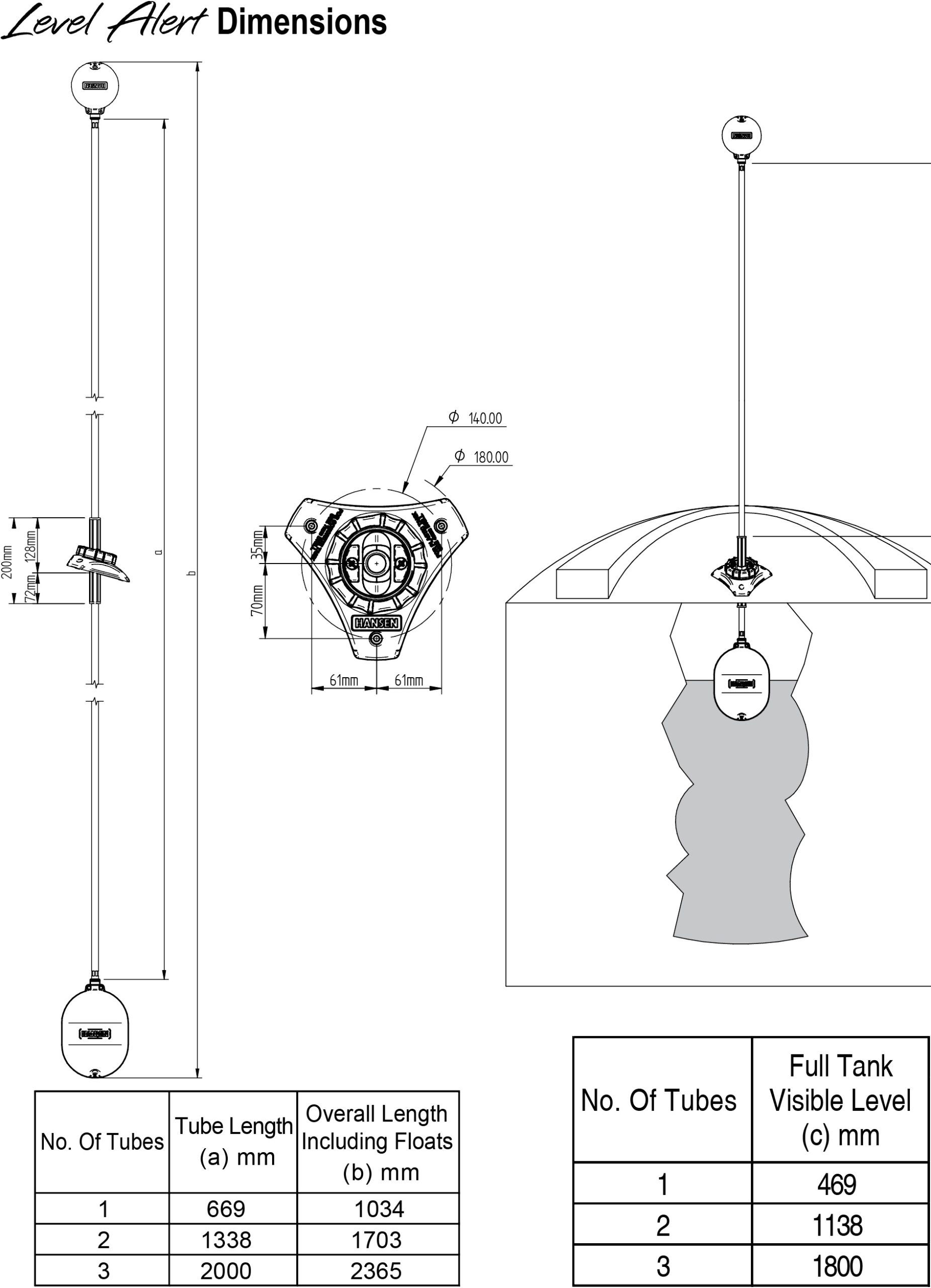

- DIMENSIONS OF LEVEL ALERT
- Please refer to “Level Alert Dimensions Chart” in image gallery for visual details.
- CHEMICAL RESISTANCE OF LEVEL ALERT
- Please refer to “Level Alert Chemical Resistance Chart” in image gallery for details.
- ASSEMBLY OF LEVEL ALERT
- Please refer to “Level Alert Assembly Chart” in image gallery for visual details.
- HANSEN LEVEL ALERT TANK LEVEL INDICATOR MATERIALS
- BASE: High Quality Glass Fibre Reinforced Nylon
- TUBE: Stainless Steel
- FASTENINGS: Stainless Steel
- FLOATS: High Density Polyethylene
SPARE PARTS (Available as seperate purchase)
- HLASSTUBE Level Alert 669mm Stainless Steel Tube
- HLANUTB Level Alert Black Cap Nut
- HLAGUIDE Level Alert Guide Tube Assembly
- HLALSCREW Level Alert Security Lock Screw
- HLAMSCREW Level Alert UniTri Mount Screws
- HLAUNIMOUNT Level Alert Uni Tri Mount
- HLAPLUGS Level Alert Wall Plugs
- HLANUTS Level Alert Plastic Wing Nuts
- HDUALFLOATA Dual Float Adaptor
- HFLOAT230L 155mm x 230mm Long Threaded Float Blue
- HFLOAT115HI 115mm Threaded Float HiViz
INSTALLATION INSTRUCTIONS (See visual instructions in image gallery)
- STEP ONE: Choose a mounting position close to an inspection cover/ hatch. Mark then drill a hole or
series of holes larger than the Guide Tube (refer to Step 3 for correct drill selection). - STEP TWO: Place the assembled UniTri Mount in the hole, loosen the Cap Nut, lift and rotate the Guide Tube to achieve vertical position then lightly tighten the Cap Nut.
- STEP THREE: Select the correct drill for either a plastic or concrete tank. Using the UniTri Mount as a template mark and then drill three holes in the tank to match the UniTri Mount.
- STEP FOUR: For Concrete tanks, insert the Plastic Plugs into the holes before winding in the screw. For Plastic tanks, hold the Wing Nut in place inside the tank while winding in the screw from the outside.
- STEP FIVE: Screw the HiViz Float on one end of the Male/Male threaded Stainless Steel Tube. Screw additional Stainless Steel Tubes as required onto the first Tube then tighten all Tube joints with a suitable spanner.
- STEP SIX: Slide the Stainless Steel Tube assembly through the mounted Guide Tube, reach inside the tank and attach the Blue Float to the other end of the Stainless Steel Tube.
- STEP SEVEN: With a Spirit Level ensure the Stainless Steel Tube is plumb/vertical then firmly hand tighten Cap Nut.
- STEP EIGHT: Drill a 4mm hole in each of the security housing locations, insert the security screws and tighten.
LEVEL ALERT PARTS LIST (OR PACK INCLUSIONS) (See visual instructions in image gallery)
| NO. | PRODUCT CODE | ITEM NAME | QUANTITY |
| 1 | HFLOAT115HI | 115mm HiViz Threaded Float | 1 |
| 2 | HLASSTUBE | 669mm Stainless Steel Tube (16mm Diamter) | 3 |
| 3 | HLANUTB | Black Cap Nut | 1 |
| 4 | HLAGUIDE | Guide Tube Assembly | 1 |
| 5 | HLALSCREW | Security Lock Screw | 1 |
| 6 | HLAMSCREW | UniTri Mount Screws | 3 |
| 7 | HLAUNIMOUNT | UniTri Mount | 1 |
| 8a | HLAPLUGS | Wall Plugs | 3 |
| 8b | HLANUTS | Plastic Wing Nuts | 3 |
| 9 | HFLOAT230L | 155mm x 230mm Long Float Blue | 1 |
HANSEN LEVEL ALERT BROCHURE AND CHEAT SHEETS
- For HANSEN Level Alert Brochure and Cheat Sheets, refer to Hansen Australia Website.
HANSEN LEVEL ALERT VIDEO GUIDES & COMMERCIALS
- For HANSEN Level Alert Video Guides and Commercials, refer to Hansen Australia Website.
FREQUENTLY ASKED QUESTIONS
- QUESTION: I have a number of ropes and pulleys, shafts and mounts lying around that have cost me money over the years, why would I purchase another product when I’m resigned to spending time climbing a ladder?
- ANSWER: Hansen understands the value of your time and with the Hansen Level Alert there are no ropes and pulleys, tubes or smoke and mirrors, only time tested strength of glass fibre reinforced nylon and the proven ability of Hansen’s Innovative simple effective design.
- QUESTION: I have a number of steel, plastic and concrete tanks on my property. Will the Hansen Level Alert mount on all three types?
- ANSWER: Yes, the Hansen Level Alert comes with stainless steel fasteners for installation on steel, plastic and concrete tanks.
- QUESTION: My existing tank level indicator will stick in a position after windy days and I’ve had to replace it a number of times. Will the Hansen Level Alert reduce this problem?
- ANSWER: Yes, we have covered this issue in two ways, firstly by incorporating a HiViz UV Stabilised low wind resistant float and secondly our glass reinforced nylon guide tube and larger diameter stainless steel tube (16mm diameter) reduces the chance of it bending reducing this problem.
- QUESTION: My tank has a very steep roof angle and I cannot fit a level indicator that will attach vertically, will the Hansen Level Alert fit my tank?
- ANSWER: Yes, our fully adjustable UniTri mounting base will adapt to most tank roof angles, the adjustment is a full 35 degrees each way, so once installed you never need to adjust.
