Hansen 6mm (1/8″) Hex Screw Plug / HSP06
This is a hex screw plug only used for plugging off Female threads. BSPT.
SPECIFICATIONS
- PRODUCT CODE: HSP06
- CODE MEANING: HANSEN SCREW PLUG

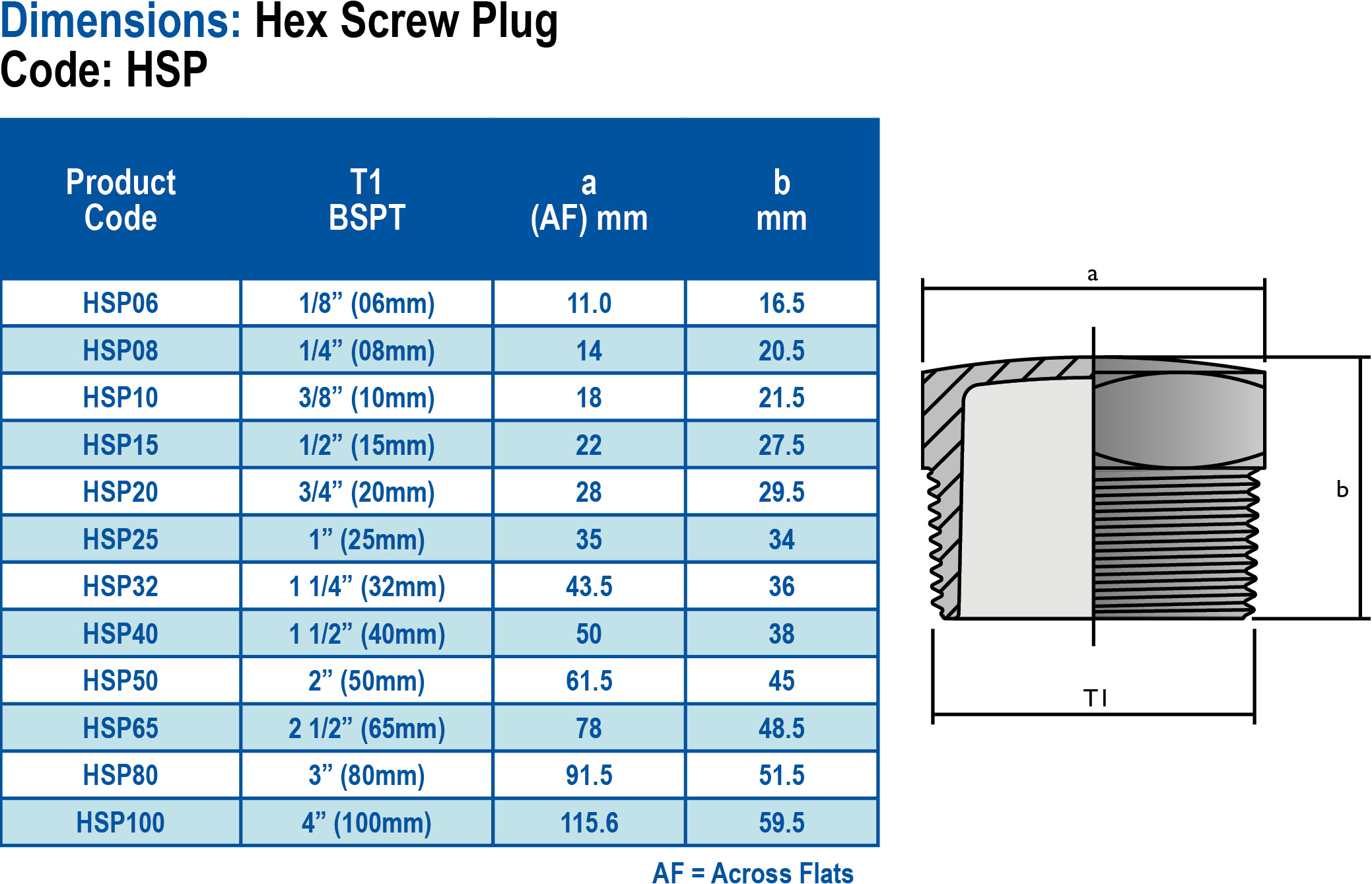

- DIMENSIONS (For visual dimension chart, refer to “Hex Screw Plug Dimensions” in image gallery)
- T1 BSPT: 1/8″ (6mm)
- SIZE A (Across Flats): 11.0mm
- SIZE B: 16.5mm
- HSP08– 1/4″ (8mm) Hex Screw Plug
- HSP10– 3/8″ (10mm) Hex Screw Plug
- HSP15– 1/2″ (15mm) Hex Screw Plug
- HSP20– 3/4″ (20mm) Hex Screw Plug
- HSP25– 1″ (25mm) Hex Screw Plug
- HSP32– 1 1/4″ (32mm) Hex Screw Plug
- HSP40– 1 1/2″ (40mm) Hex Screw Plug
- HSP50– 2″ (50mm) Hex Screw Plug
- HSP65– 2 1/2″ (65mm) Hex Screw Plug
- HSP80– 3″ (80mm) Hex Screw Plug
- HSP100– 4″ (100mm) Hex Screw Plug
Also available in different sizes, see options listed below. (Available as seperate purchase)
- PRODUCT CODE – SIZE
HEX SCREW PLUG (See sizing chart in image gallery)
| PRODUCT CODE | T1 BSPT/NPT | SIZE A (ACROSS FLATS = AF) | SIZE B |
| HSP06 | 6mm (1/8”) | 11.0mm (0.4”) | 16.5mm (0.65”) |
| HSP08 | 8mm (1/4”) | 14mm (0.55”) | 20.5mm (0.8”) |
| HSP10 | 10mm (3/8”) | 18mm (0.7”) | 21.5mm (0.8”) |
| HSP15 | 15mm (1/2″) | 22mm (0.9″) | 27.5mm (1.08″) |
| HSP20 | 20mm (3/4″) | 28mm (1.1″) | 29.5mm (1.16″) |
| HSP25 | 25mm (1″) | 35mm (1.4″) | 34mm (1.34″) |
| HSP32 | 32mm (1 1/4″) | 43.5mm (1.7″) | 36mm (1.4″) |
| HSP40 | 40mm (1 1/2”) | 50mm (1.97”) | 38mm (1.5”) |
| HSP50 | 50mm (2”) | 61.5mm (2.4”) | 45mm (1.77”) |
| HSP65 | 65mm (2 1/2”) | 78mm (3.07”) | 48.5mm (1.9”) |
| HSP80 | 80mm (3”) | 91.5mm (3.6”) | 51.5mm (2.03”) |
| HSP100 | 100mm (4”) | 115.6mm (4.6”) | 59.5mm (2.3”) |
- FITTING SIZE: 6mm to 50mm
- MAXIMUM PRESSURE @ 20 DEGREE CELCIUS: 16 Bar (1600 kPa, 235 PSI)
(Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). It is not recommended to use these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increase. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by limited lifetime warranty.)
- CHEMICAL RESISTANCE
- Please refer to “True Fit Threaded Fittings Chemical Resistance Chart” in image gallery for specifications and chemical resistance details.
FEATURES AND BENEFITS
- Largest range of durable, high strength, commercial quality threaded pipe fittings in the Southern Hemisphere.
- Precision, heavy duty, tapered threads give a strong reliable seal.
- Manufactured from a raw material approved for use with potable (drinkable) water.
- Manufactured from high quality glass fibre, reinforced nylon, giving a weather, termite, fungi and bacteria resistant.
- Common applications includes horticultural, agricultural, irrigation, marine & plumbing.
- Material strong enough to minimise potential cross threading.
- Suitable for use above or below ground in varying operating pressures and temperatures.
- Strong, lightweight and compact.
- Available in a variety of thread combinations and connections.
- Made in New Zealand.
TRUE FIT TANK FITTINGS INSTALLATION (See visual guide in image gallery)
- All pipe work must be adequately supported.
- Use a thread sealant on all threaded connections. Loctite 5331 is recommended.
- If you are using chemicals or have any special requirements that you wish to use your Tank Fittings in, check the Tank Fitting Chemical Resistance attached in the image gallery.
- For Minimum Recommended Hole Sizes, kindly check the whole chart in the image gallery.
- Fittings should be installed as per applicable standards and approvals for pipe and fittings. Failure to complete installation in accordance with applicable standards and approvals may void warranties given by Hanzen Products Limited in respect to the fitting. It is recommended to follow pipe manufacturer’s guidelines.
- STEP 1: (a) Use a thread paste sealant or (b) a teflon tape sealant. The right sealant for threaded joints is non-hardening, compatible with plastic and doesn’t add slipperiness to encourage over-torquing.
STEP 2: Screw pipe into fitting. Do not over tighten. The recommended way to assemble a Threaded Pipe Fitting is hand tight. Tighten until firm with spanner or pipe grip. One to two turns should be all that is required.
FITTINGS BROCHURE AND CHEAT SHEETS
- For True Fit Threaded Fittings Brochure, see here.
- For True Fit Threaded Fittings Cheat Sheet Guide, see here.
FREQUENTLY ASKED QUESTIONS
- Q: Can I use Hansen True Fit Fittings under driveways, paths, and foundations?
- A:Hansen does not recommend the use of any Hansen True Fit Fittings under any driveways, paths or foundations.
- Q: Can I use my Hansen fittings with my swimming pool/spa pool set up?
- A: No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by the Hansen Warranty.
- Q: Can I use these fittings with metal fittings?
- A:Yes. Please see installation instruction above.
- Q: Do I need to support my fittings?
- A: Yes, all pipe work must be adequately supported.
- Q: Does this fitting carry the Hansen Warranty?
- A: Yes, all Hansen manufactured products carries Hansen Warranty.
- Q: How tight should I tighten my Hansen threaded fittings?
- A: Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns – no more! Please see installation instruction above.
- Q: What temperature can I use Hansen fittings at?
- A: Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). It is not recommended to use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by the Hansen Warranty.
- Q: What type of thread sealant should I use?
- A: Use a thread sealant on all threaded connections. It is recommended to use Loctite 5331.
