Hansen 25mm (1″) Fastflo Female BSPT Valve Body / HFFBODY
This is a spare or replacement part for Hansen Fastflo Valve.
SPECIFICATIONS
- PRODUCT CODE: HFFBODY
- CODE MEANING: HANSEN FAST FLO – BODY
- FASTFLO VALVE BODY: Acetal
- MAXIMUM RECOMMENDED WORKING PRESSURE @ 20ºC/68ºF: 174 psi, 12 bar

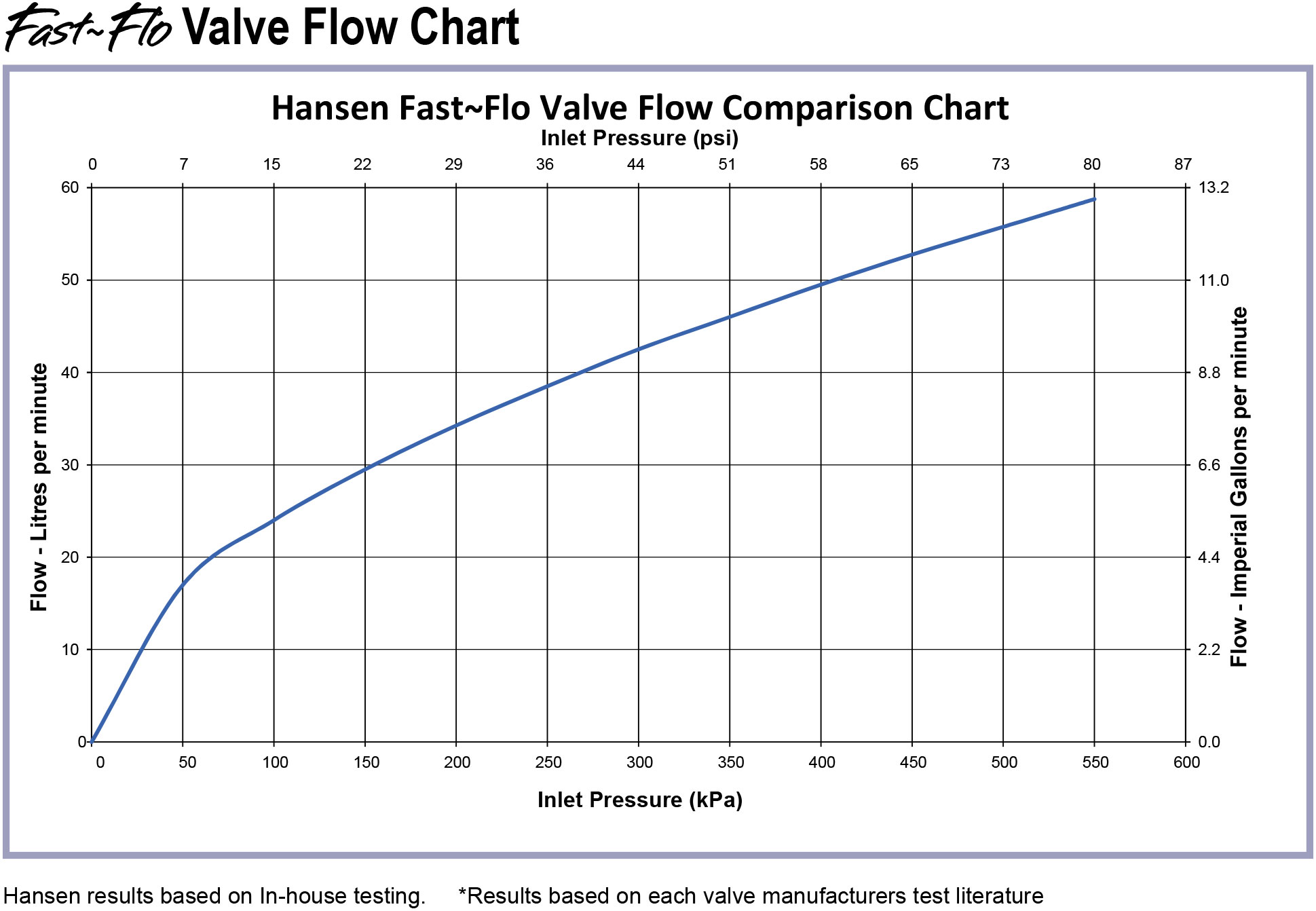

- See FASTFLO VALVE FLOW CHART in image gallery for preview of Hansen Fastflo Valve Flow Comparison chart.

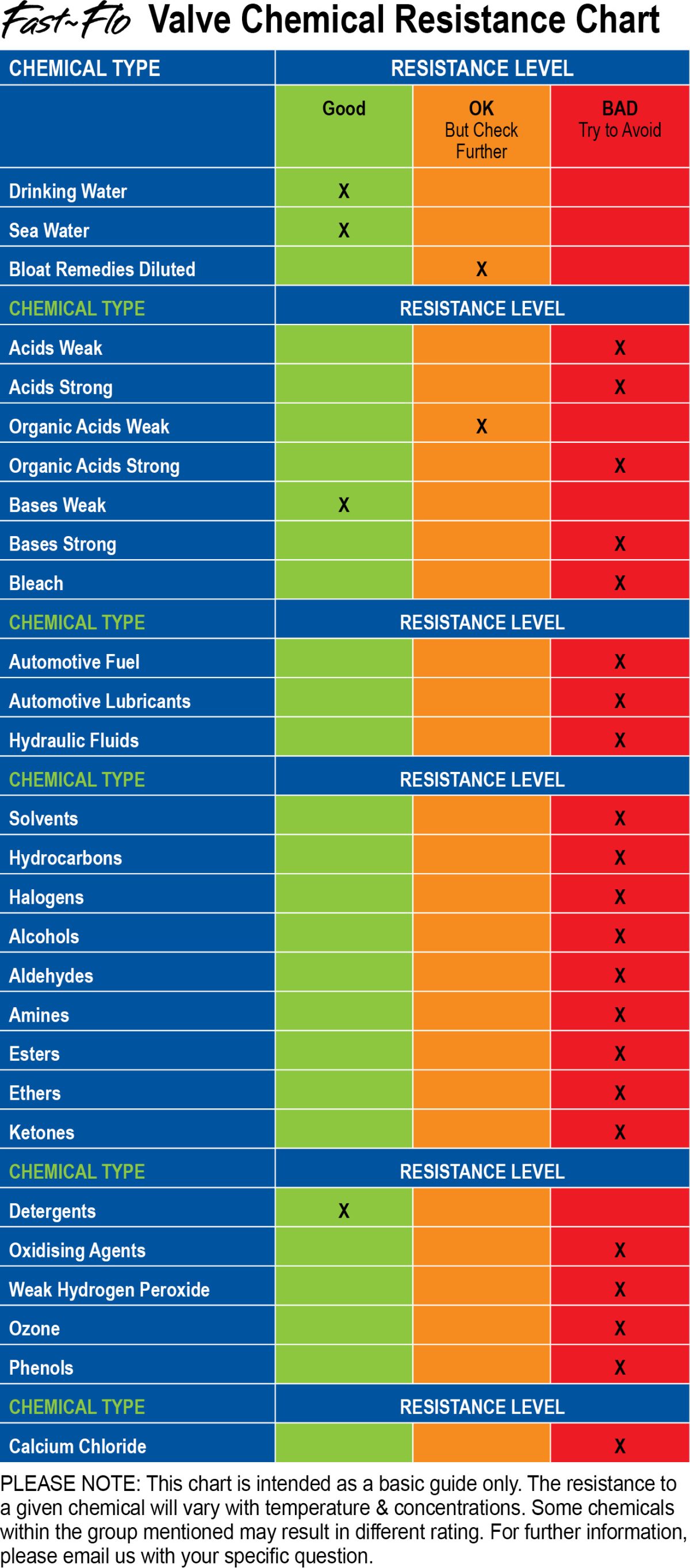

- FASTFLO VALVE CHEMICAL RESISTANCE CHART: Please refer to the attached images for full chart of chemical resistance.
- Fastflo Valve is AWQC 4020:2018 and WRAS Approved Product, see certificate at Hansen Australia Website.
FASTFLO INSTALLATION GUIDE (See sizing guide in image gallery)
- TROUGH/TANK INSTALLATION
- Flush pipe lines into water tank or troughs before installing Fast-Flo Valve into new system.
- Isolate the water going to the trough or tank to replace valve in an existing system.
- Thread O-Ring end of correct size Long Tail Adaptor into Fast-Flo Valve Body and tigthen firmly enough that the O-Ring creates a seal against the Fast-Flo Valve Body face. Do not over tighten.
- FASTFLO SIDE ENTRY
- SIDE ENTRY TROUGH/TANK (See visual guide in image gallery)
- Place the rubber washer on the long tail adaptor with ribs facing out so that the sealing surface is against the trough/tank wall when adaptor is put through inlet hole.
- On the outside, place the Poly (hard) Washer on the Adaptor with the ribs facing the trough/tank wall. Thread on Adaptor Nut and tighten firmly. Do not over tighten.
- Screw the Cord Nut onto the Fast˙Flo Brass arm.
- Thread the Cord through the Fast˙Flo Float. Tie the Cord off to achieve the correct water level.
(Cord and Nuts only supplied with long arm version)
- TOP ENTRY TROUGH/TANK (See visual guide in image gallery)
- Place the rubber washer on the adaptor with ribs facing out so that the sealing surface is against the trough/tank wall when adaptor is put through inlet hole.
- On the outside, place the Poly (hard) Washer on the Adaptor with the ribs facing
the trough/tank wall. Thread on Adaptor Nut and tighten firmly. Do not over tighten. - Screw the Fast˙Flo Float on to the Brass Arm, bend brass arm at ezi bend.
FASTFLO ASSEMBLY: (See image gallery for full sleeve valve assembly instructions preview)
WALL THICKNESS GUIDE
| LONG TAIL ADAPTOR | HMAL15 | HMAL20 | HMAL25 | HMAL32 | HMAL40 | HMAL50 |
| TANK WALL | 14mm | 22mm | 19mm | 24mm | 45mm | 39mm |
Hansen Long Tail Adaptors Maximum Wall Thickness for Tanks when screwed into a Hansen Female Bend

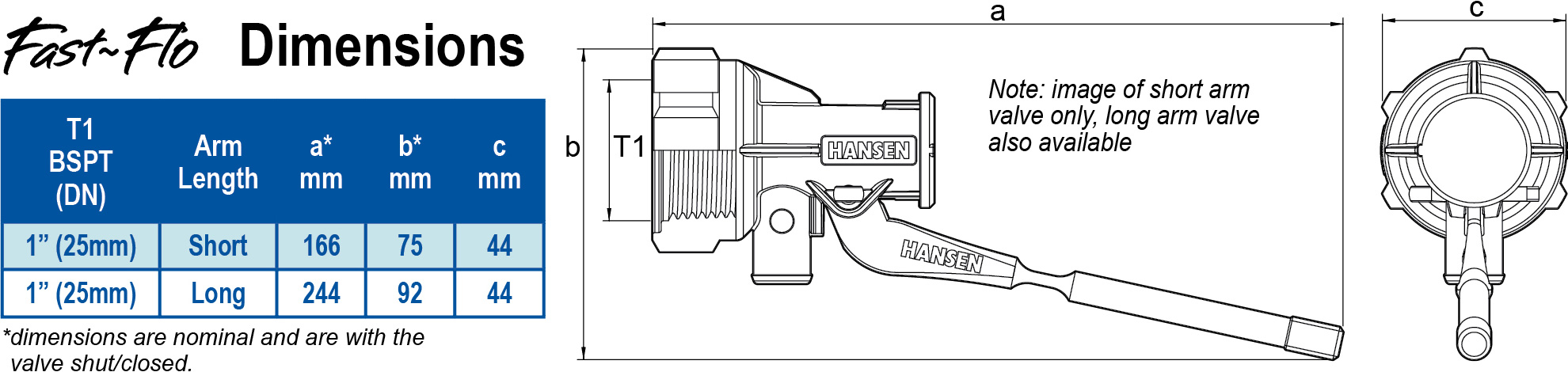

FASTFLO DIMENSIONS *Dimensions are nominal and are with the valve shut or closed.
(See image gallery for sizing guide of the body and short valve)
| T1 BSPT (DN) | ARM LENGTH | A | B | C |
| 1″ (25mm) | SHORT | 166mm | 75mm | 44mm |
| 1″ (25mm) | LONG | 166mm | 75mm | 44mm |
This part is used with the following products (Available as seperate purchase)
- HFFSV15L Fastflo Long Brass Arm with 15mm Long Tail Adaptor
HFFSV20L Fastflo Long Brass Arm with 20mm Long Tail Adaptor
HFFSV25L Fastflo Long Brass Arm with 25mm Long Tail Adaptor
HFFSV2520S Fastflo Long Brass Arm with 20mm & 25mm Standard Adaptors
HFFSV15LS Fastflo Short Brass Arm with 15mm Long Tail Adaptor
HFFSV20LS Fastflo Short Brass Arm with 20mm Long Tail Adaptor
HFFSV25LS Fastflo Short Brass Arm with 25mm Long Tail Adaptor
OTHER FASTFLO PARTS AND MATERIALS (Available as seperate purchase)
- The Fastflo Trough/Tank Valve is manufactured from Potable Water approved materials.
- FAST FLO SLEEVE VALVE BODY CAP (HFFCAP): Polypropylene
- SLEEVE VALVE PLUNGER (HFFPLUNGER): Acetal
- SLEEVE VALVE PLUNGER SEAL (HFFSEAL): Polyurethane Elastomer
- ARM (HFFARM, HFFARMS, HFFRARMS): Brass
- SPLIT PIN (HSFPIN20): Stainless Steel
- CORD NUT (HCORD): Glass Fibre Reinforced Nylon
- CORD (HCORD): Polyester
- ADAPTORS – BSPT (HMAL AND HMA 15-20-25-32-40-50)
- ADAPTOR: Glass Fibre Reinforced Nylon
- ADAPTOR O-RING: EPDM (Ethylene Propylene)
- FLOAT (HFLOAT 115-140)
- FLOAT: High Density Polyethylene
- THREAD INSERT: Glass Fibre Reinforced Nylon
HANSEN FASTFLO VALVES BROCHURE AND CHEAT SHEETS
- For HANSEN Fastflo Brochure and Cheat Sheet Guide, refer to Hansen Australia Website.
HANSEN FASTFLO VALVES VIDEO GUIDES & COMMERCIALS
- For HANSEN Fastflo Valves Handy Tips and Commercial Videos, refer to Hansen Australia Website.
FREQUENTLY ASKED QUESTIONS
- QUESTION: I have a compact float valve in a header tank. The flow is too low into the tank and won’t keep up with our requirements. I can’t fit a larger valve into this tank, if I replace it with a Hansen Fast-Flo valve will the flow be any better?
- ANSWER: Yes, the Fast-Flo valve has the highest flow of any valve in its class/size. At 500 kPa (73psi) it will deliver 56 l/min.
- QUESTION: I have a header tank in my house that is very noisy while filling, will the Hansen Fast-Flo valve be any quieter?
- ANSWER: The noise while the tank is filling is caused by the high velocity of the water from the valve outlet into the tank. The Fast-Flo valve outlet doubles as a spigot so you can attach a length of hose to allow the flow to be placed onto the bottom of the tank eliminating this noise.
- QUESTION: I have found the rubber seats in the compact trough valves I am using don’t last very long, does the Hansen Fast-Flo valve use the same rubber seat?
- ANSWER: No, the seat we use in Hansen Float Valves are urethane which is a very durable and hard material. The seal is also reversible if a foreign body should damage it.
- QUESTION: The pressure at my header tank is quite high and the compact float valves I have used either don’t last very long or they don’t shut off properly and I find the overflow running. Will the Hansen Fast-Flo valve work with high pressure.
- ANSWER: Yes, the Fast-Flo Valve has the arm pivot point positioned to allow closing at pressures up to 12 bar (174psi) with a 115mm float attached.
- QUESTION: What size tank inlet do I need to fit the Hansen Fast-Flo Valve?
- ANSWER: All Hansen float valves carry a 25mm (1”) female thread on the valve inlet. This gives you a couple of benefits. The valve will fit inlets from 15mm to 50mm when using our range of adaptors. The additional material used at the inlet to form the female thread strengthens the valve at an area that has been identified as a weak point in other brands of valves.
- QUESTION: Will the Hansen Fast-Flo valve work in my calf shed bowl troughs?
- ANSWER: Yes, the Fast-Flo was designed as a compact valve for use in small bowls, compact troughs, feeders & header tanks or any situation where the valve space is confined.
