Hansen 25mm (1″) Large Washer LDPE, White for Female Tank Fittings / HWLW25P
This is a large, accessory washer designed to suit the female tank fitting (HTFFTW & HTFFWS).
FEATURES AND BENEFITS
- This is designed for use in tanks, troughs and a wide variety of marine applications.
- Manufactured from UV stabilised high quality glass fibre reinforced nylon, giving a weather, termite, fungi and bacterial resistance.
- An extensive range of fittings in sizes 15mm to 100mm (1/2″” to 4″”).
- Precision heavy duty tapered threads give a strong reliable seal.
- Material is strong enough to minimise potential cross threading.
- Fittings provide flexibility and versatility for new and existing installations, saving on time and money.
- All materials are fully resistant to salt water, making them ideally suited to marine applications.
SPECIFICATIONS
- PRODUCT CODE: HWLW25P
- CODE MEANING: Hansen Female Tank Fitting Poly Washer White (HWLWP)
- PRESSURE AND FLOW RATES
- FITTING SIZES: 15mm to 50mm
- MAXIMUM PRESSURE @ 20º DEGREE CELCIUS/68º FAHRENHEIT: 16 Bar (1600 kPa, 235 PSI)

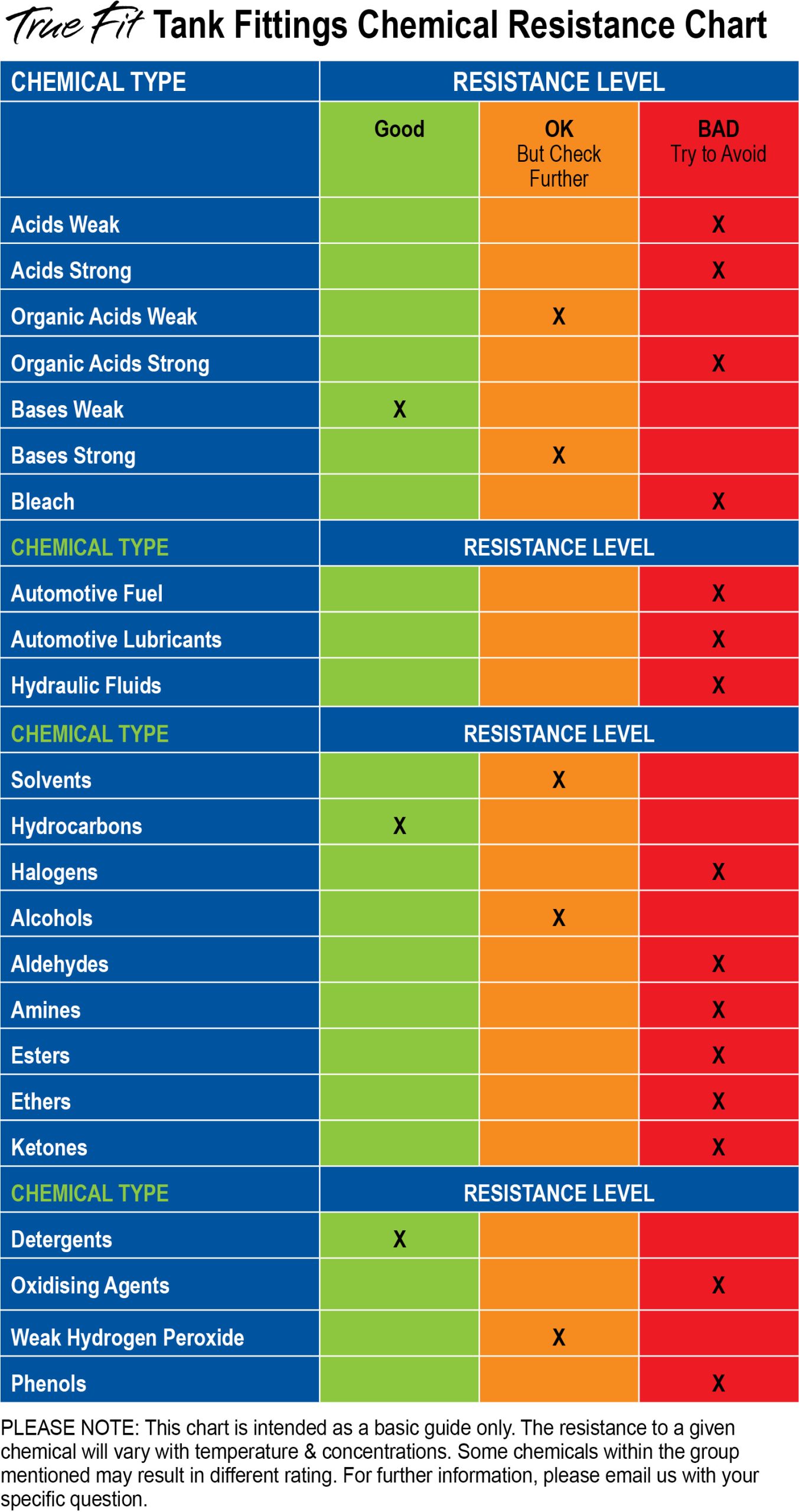

- CHEMICAL RESISTANCE
- Please refer to the attached images for specifications and chemical resistance details.
- DIMENSIONS (See image gallery or below chart for sizing guide)
- METRIC: 25mm
- IMPERIAL: 1″
- SIZE A: 3.0mm (0.12″)
- SIZE B: 73.2mm (2.88″)
- SIZE C: 33.2mm (1.31″)

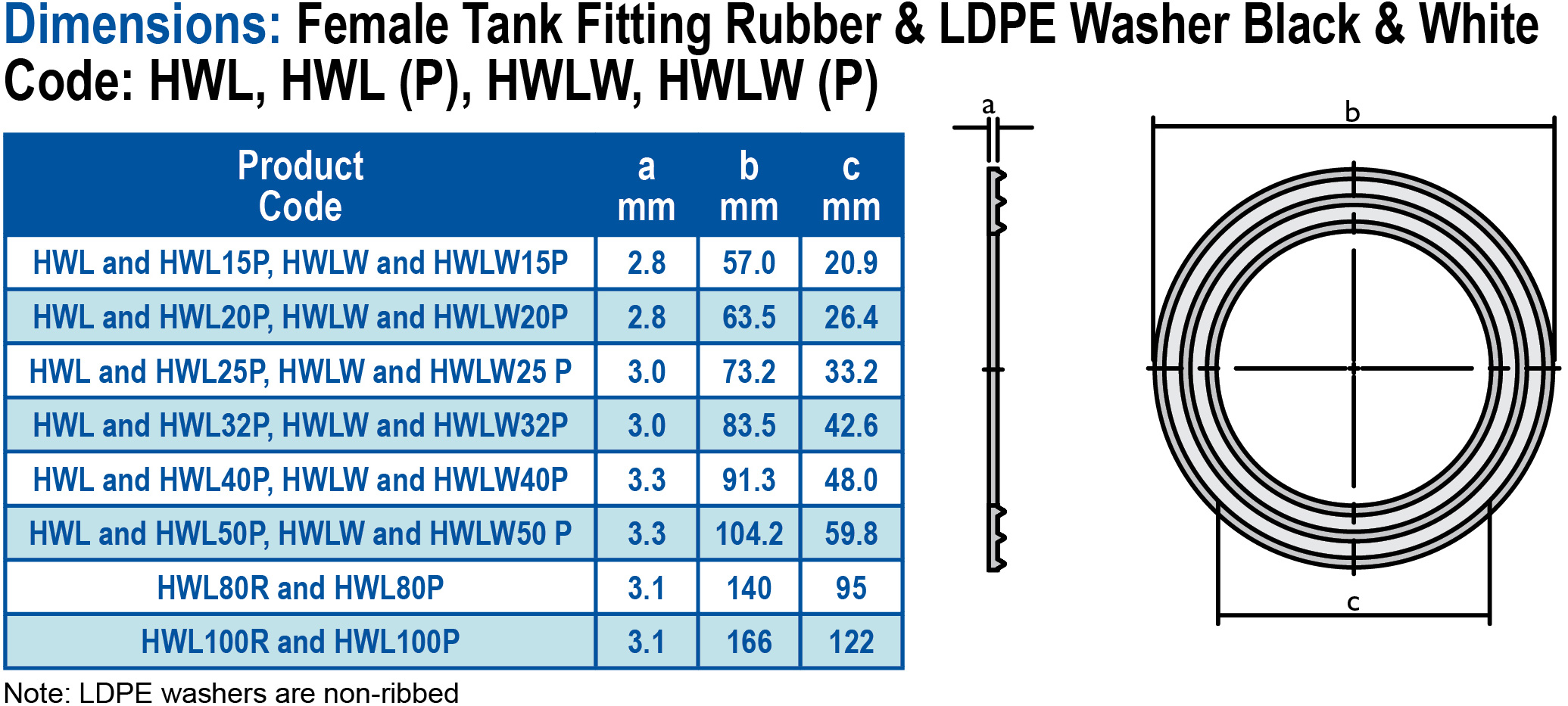

FEMALE TANK FITTING RUBBER & LDPE WASHER BLACK AND WHITE (CODE: HWL, HWL (P), HWLW, HWLW (P))
| PRODUCT CODE | SIZE A | SIZE B | SIZE C |
| HWL and HWL15P, HWLW and HWLW15P | 2.8mm | 57.0mm | 20.9mm |
| HWL and HWL20P, HWLW and HWLW20P | 2.8mm | 63.5mm | 26.4mm |
| HWL and HWL25P, HWLW and HWLW25P | 3.0mm | 73.2mm | 33.2mm |
| HWL and HWL32P, HWLW and HWLW32P | 3.0mm | 83.5mm | 42.6mm |
| HWL and HWL40P, HWLW and HWLW40P | 3.3mm | 91.3mm | 48.0mm |
| HWL and HWL50P, HWLW and HWLW50P | 3.3mm | 104.2mm | 59.8mm |
| HWL80R AND HWL80P | 3.1mm | 140mm | 95mm |
| HWL100R AND HWL100P | 3.1mm | 166mm | 122mm |
NOTE: LDPE washers are non-ribbed.

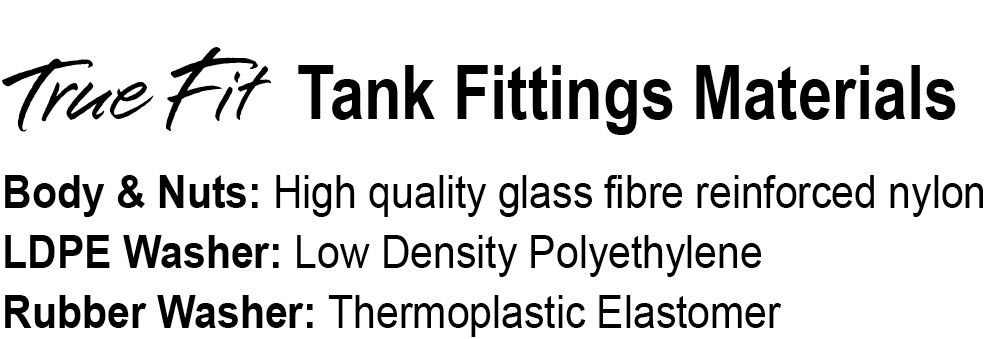

- MATERIALS
- BODY AND NUTS: High Quality Glass Fibre Reinforced Nylon
- LDPE WASHER: Low Density Polyethylene
- RUBBER WASHER: Thermoplastic Elastomer
- This washer is a WRAS Approved Product, see certificate here.
See the following compatible Female Tank Fittings (Available as seperate purchase)
- HTFFTW25 / 25mm Female Tank Fitting, White.
- HTFFTW25S / 25mm Short Female Tank Fitting, White.
Other Available Washer for Female Tank Fittings (Available as seperate purchase)
- HWLW15P / 15mm (1/2″) Washer for Female Tank Fitting, White.
- HWLW20P / 20mm (3/4″) Washer for Female Tank Fitting, White.
- HWLW32P / 32mm (1 1/4″) Washer for Female Tank Fitting, White.
- HWLW40P / 40mm (1 1/2″) Washer for Female Tank Fitting, White.
- HWLW50P / 50mm (2″) Washer for Female Tank Fitting, White.
TRUE FIT TANK FITTINGS INSTALLATION (See visual guide in image gallery)
- Prior to installation, refer to tank manufacturer’s recommendations before drilling outlet in tank wall.
- All pipe work must be adequately supported.
- Use a thread sealant on all threaded connections. Loctite 5331 is recommended.
- If you are using chemicals or have any special requirements that you wish to use your Tank Fittings in, check the Tank Fitting Chemical Resistance attached in the image gallery.
- For Minimum Recommended Hole Sizes, kindly check the whole chart in the image gallery.
- Check the sealing surface to ensure it is free debris and/or scratches which could cause leakage.
- To obtain proper washer compression for fitting installation, ensure that the face of the washers are fully contacts to the tank wall.
- Tighten the nut to ensure a water tight seal.
- HANSEN True Fit Tank Fitting can be used in conjunction with metal fittings.
STEP-BY-STEP INSTALLATION PROCESS (See visual guide in image gallery)
- 1.) Remove the Back Nut and the Low Density Poly Washer (the firmer of the 2 washers) from the Tank Fitting Body. Slide the Tank Fitting Body through the hole in the tank. The Rubber Washer must be between the Fitting Body Flange and the tank wall (ensure the ribs on the Rubber Washer are sealing against the tank wall).
2.) On the inside of the tank wall, slide the Low Density Poly Washer back onto the Tank Fitting Body and then wind on the Back Nut.
3.) Tighten the Back Nut so that the face of both washers make full contact with the tank wall to obtain a water tight seal. Ensure that you comply with the tank manufacturers specifications.
4.) When adding additional fittings, it is recommended that either a thread sealing tape be used on all threaded connections. Loctite is recommended as a sealant.
TANK FITTING RECOMMENDED HOLE SAW SIZE (See visual guide in image gallery)
- 15mm = 22mm or 7/8″ Hole Saw
20mm = 27mm or 1 1/16″ Hole Saw
25mm = 34mm or 1 3/8″ Hole Saw
32mm = 42mm or 1 5/8″ Hole Saw
40mm = 48mm or 1 7/8″ Hole Saw
50mm = 60mm or 2 3/8″ Hole Saw
80mm = 95mm or 3 3/4″ Hole Saw
100mm = 121mm or 4 3/4″ Hole Saw
TANK FITTING MINIMUM RECOMMENDED HOLE SAW SIZE (See visual guide in image gallery)
- Hole Size for 15mm = 22mm
Hole Size for 20mm = 27mm
Hole Size for 25mm = 34mm
Hole Size for 32mm = 42mm
Hole Size for 40mm = 48mm
Hole Size for 50mm = 60mm
Hole Size for 80mm = 95mm
Hole Size for 100mm = 121mm
FITTINGS BROCHURE AND CHEAT SHEETS
- For TRUE FIT Tank Fittings Brochure, see here.
- For TRUE FIT Tank Fittings Cheat Sheet Guide, see here.
- For IBC Tank Fittings Cheat Sheet, see here.
FREQUENTLY ASKED QUESTIONS
- Q: Can I use my Hansen fittings with my swimming pool/spa pool set up?
- A: No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by the Hansen Warranty.
- Q: Can I use these fittings with metal fittings?
- A:Yes. Please see installation instruction above.
- Q: Does this fitting carry the Hansen Warranty?
- A: Yes, all Hansen manufactured products carries Hansen Warranty.
- Q: How tight should I tighten my fittings?
- A: Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns and no more! Please see installation instruction above.
- Q: What temperature can I use Hansen fittings at?
- A: Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). It is not recommended to use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by the Hansen Warranty.
- Q: What type of thread sealant should I use?
- A: Use a thread sealant on all threaded connections. It is recommended to use Loctite 5331.
