Hansen 115mm Threaded Float HiViz / HFLOAT115HI
This is a valve accessory that fits Fastflo or Superflo and other valves with Brass Arm or Cord.
SPECIFICATIONS
- PRODUCT CODE: HFLOAT115HI
- CODE MEANING: HANSEN FLOAT
- MATERIAL: High Density Polyethylene
- Superflo Valve is AS/NZS 4020 Approved Product, see certificate at Hansen Australia Website.
- Fastflo Valve is AS/NZS 4020:2018 and WRAS Approved Product, see certificate at Hansen Australia Website.
OTHER AVAILABLE COLORS OF THREADED FLOATS (Available as seperate purchase)
- HFLOAT115B 115mm Threaded Float Blue
- HFLOAT115P 115mm Threaded Float Pink
FASTFLO INSTALLATION GUIDE (See visual guide in image gallery)
- TROUGH/TANK INSTALLATION
- Flush pipe lines into water tank or troughs before installing Fastflo Valve into new system.
- Isolate the water going to the trough or tank to replace valve in an existing system.
- Thread O-Ring end of correct size Long Tail Adaptor into Fastflo Valve Body and tigthen firmly enough that the O-Ring creates a seal against the Fastflo Valve Body face. Do not over tighten.
- FASTFLO SIDE ENTRY
- SIDE ENTRY TROUGH/TANK (See visual guide in image gallery)
- Place the rubber washer on the long tail adaptor with ribs facing out so that the sealing surface is against the trough/tank wall when adaptor is put through inlet hole.
- On the outside, place the Poly (hard) Washer on the Adaptor with the ribs facing the trough/tank wall. Thread on Adaptor Nut and tighten firmly. Do not over tighten.
- Screw the Cord Nut onto the Fast˙Flo Brass arm.
- Thread the Cord through the Fast˙Flo Float. Tie the Cord off to achieve the correct water level.
(Cord and Nuts only supplied with long arm version)
- TOP ENTRY TROUGH/TANK (See visual guide in image gallery)
- Place the rubber washer on the adaptor with ribs facing out so that the sealing surface is against the trough/tank wall when adaptor is put through inlet hole.
- On the outside, place the Poly (hard) Washer on the Adaptor with the ribs facing
the trough/tank wall. Thread on Adaptor Nut and tighten firmly. Do not over tighten. - Screw the Fast˙Flo Float on to the Brass Arm, bend brass arm at ezi bend.
WALL THICKNESS GUIDE
| LONG TAIL ADAPTOR | HMAL15 | HMAL20 | HMAL25 | HMAL32 | HMAL40 | HMAL50 |
| TANK WALL | 14mm | 22mm | 19mm | 24mm | 45mm | 39mm |
Hansen Long Tail Adaptors Maximum Wall Thickness for Tanks when screwed into a Hansen Female Bend

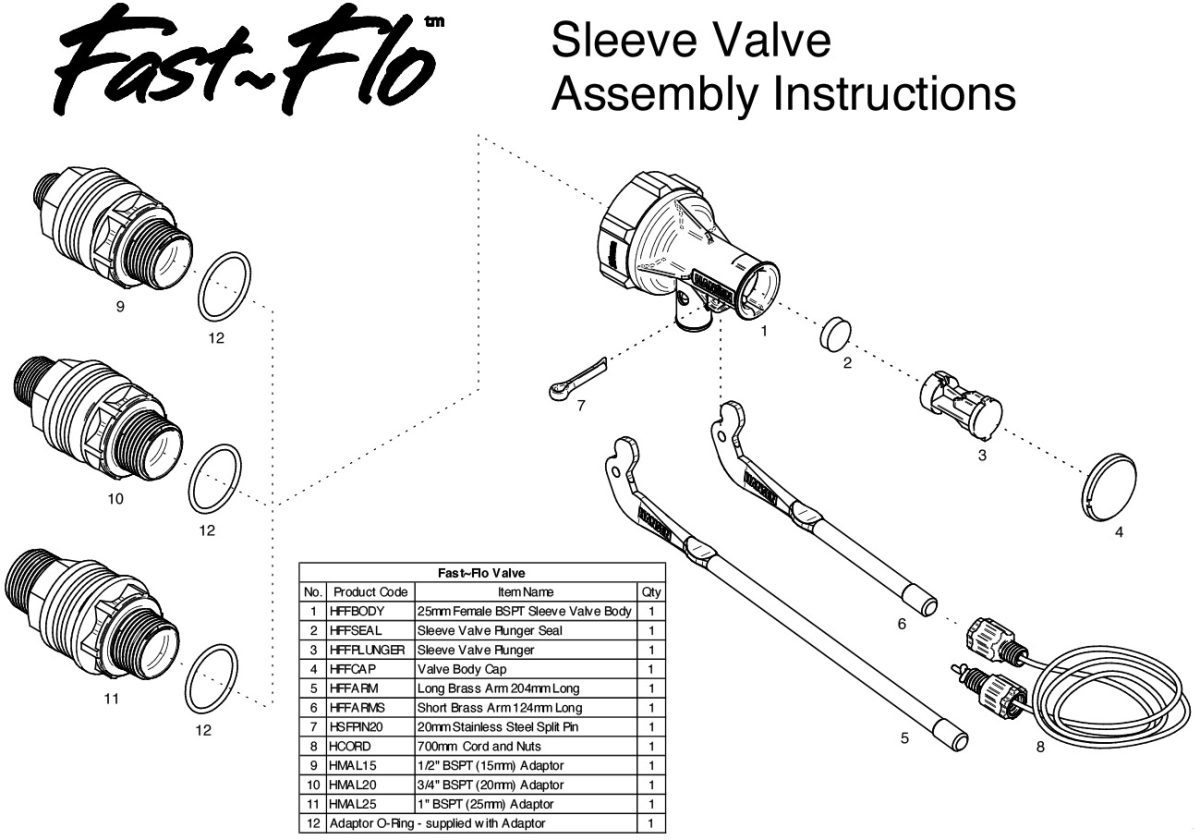

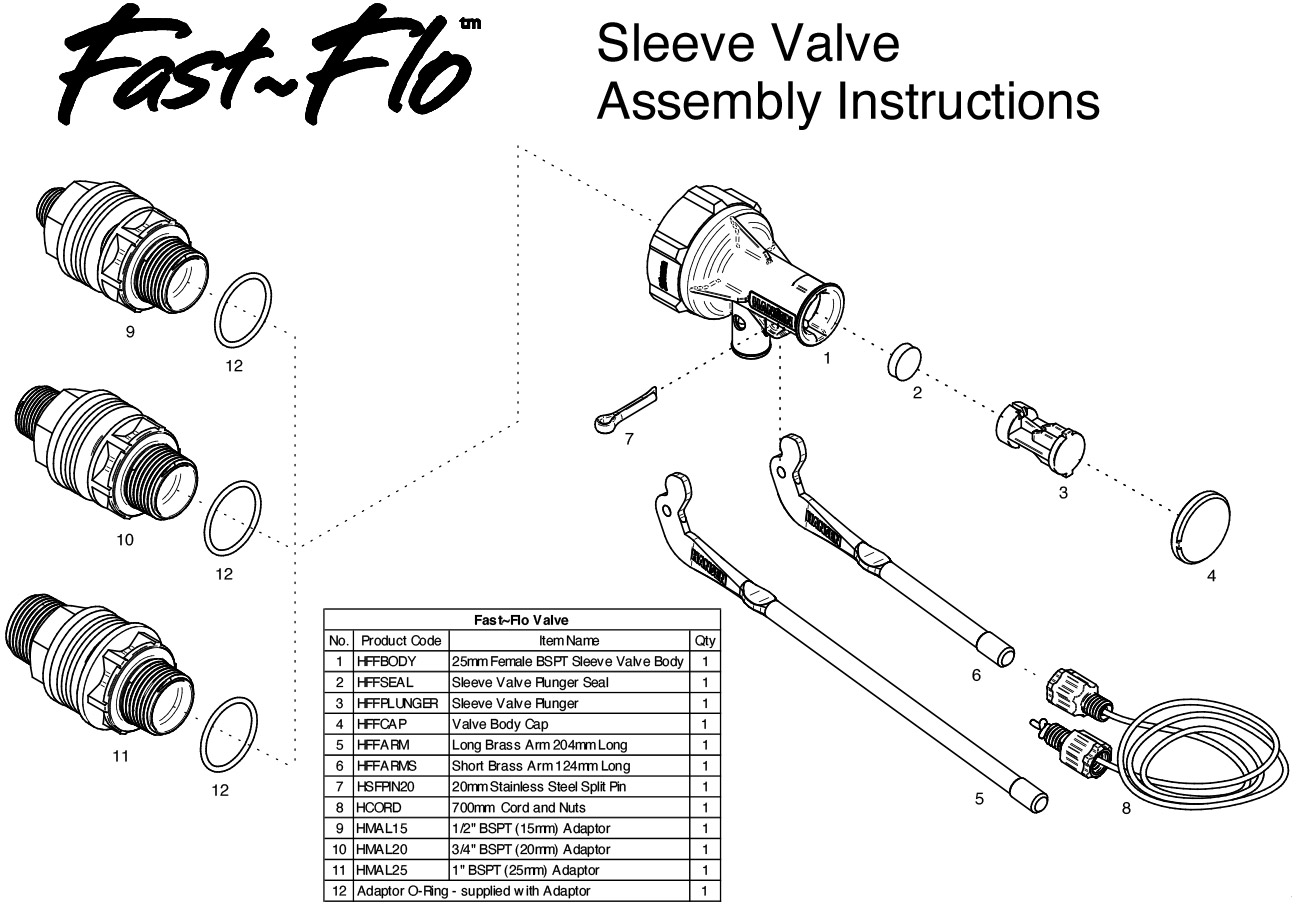

ASSEMBLY GUIDE: See image gallery for diaphragm valve assembly instructions.
HANSEN FASTFLO AND MAXFLO VALVES BROCHURE AND CHEAT SHEETS
- For HANSEN Fastflo Brochure and Cheat Sheet Guide, refer to Hansen Australia Website.
HANSEN FASTFLO AND MAXFLO VALVES VIDEO GUIDES & COMMERCIALS
- For HANSEN Fastflo Valves Handy Tips and Commercial Videos, refer to Hansen Australia Website.
FASTFLO PARTS AND MATERIALS (Also, available as seperate purchase)
- The Fastflo Trough/Tank Valve is manufactured from Potable Water approved materials.
- FASTFLO VALVE BODY (HFFBODY): Acetal
- SLEEVE VALVE PLUNGER (HFFPLUNGER): Acetal
- VALVE BODY CAP (HFFCAP): Polypropylene
- SLEEVE VALVE PLUNGER SEAL (HFFSEAL): Polyurethane Elastomer
- ARM (HFFARM, HFFARMS, HFFARMS): Brass
- SPLIT PIN (HSFPIN20): Stainless Steel
- CORD NUT (HCORD): Glass Fibre Reinforced Nylon
- CORD (HCORD): Polyester
- ADAPTORS – BSPT (HMAL AND HMA 15-20-25-32-40-50)
- ADAPTOR: Glass Fibre Reinforced Nylon
- ADAPTOR O-RING: EPDM (Ethylene Propylene)
- FLOAT (HFLOAT 115-140)
- FLOAT: High Density Polyethylene
- THREAD INSERT: Glass Fibre Reinforced Nylon
This float is suitable with the following Fastflo and Superflo Adaptors (Available as seperate purchase)
- HFFSV15LS Fastflo Short Brass Arm with 15mm Long Tail Adaptor
- HFFSV20LS Fastflo Short Brass Arm with 20mm Long Tail Adaptor
- HFFSV25LS Fastflo Short Brass Arm with 25mm Long Tail Adaptor
- HFFSV15L Fastflo Long Brass Arm with 15mm Long Tail Adaptor
- HFFSV20L Fastflo Long Brass Arm with 20mm Long Tail Adaptor
- HFFSV25L Fastflo Long Brass Arm with 25mm Long Tail Adaptor
- HSFPV2520 Superflo 25/20
- HSFPV2520L Superflo 25/20 Long
- HSFPV2015L Superflo 20/15 Long
- HSFPV2520S Superflo 25/20 Short Arm
- HSFPV2520LS Superflo 25/20 Long/Short Arm
- HSFPV2015LS Superflo 20/15 Long/Short Arm
- HSFPV2520B Superflo Brass 25/20
- HSFPV2520BL Superflo Brass 25/20 Long
- HSFPV2015BL Superflo Brass 20/15 Long
- HSFPV2520BS Superflo Brass 25/20 Short Arm
- HSFPV2015BLS Superflo Brass 20/15 Long/Short Arm
FREQUENTLY ASKED QUESTIONS
- QUESTION: At certain times of the year I need to run portable troughs in my paddocks, is it possible to run these off my existing Super-Flo valve?
- ANSWER: Yes, the Super-Flo trough Valve incorporates a 25mm (1”) thread on the valve outlet which you can utilise the spare adaptors that come with the valve to enable you to attach any number of poly pipe fittings to the Super-Flo trough Valve. This off take can be used for any number of farm applications.
- QUESTION: At present I get valve bounce in my troughs, will the Super-Flo valve stop this?
- ANSWER: Yes, valve bounce is created from high flows at high pressures, because our Hansen Super-Flo valve delivers higher flows than other valves it will effectively reduce line pressure which in return will reduce the incidences of this problem by also reducing water hammer.
- QUESTION: I have a compact float valve in a header tank. The flow is too low into the tank and won’t keep up with our requirements. I can’t fit a larger valve into this tank, if I replace it with a Hansen Fast-Flo valve will the flow be any better?
- ANSWER: Yes, the Fast-Flo valve has the highest flow of any valve in its class/size. At 500 kPa (73psi) it will deliver 56 l/min
- QUESTION: I have a header tank in my house that is very noisy while filling, will the Hansen Fast-Flo valve be any quieter?
- ANSWER: The noise while the tank is filling is caused by the high velocity of the water from the valve outlet into the tank. The Fast-Flo valve outlet doubles as a spigot so you can attach a length of hose to allow the flow to be placed onto the bottom of the tank eliminating this noise.
- QUESTION: I have found the rubber seats in the compact trough valves I am using don’t last very long, does the Hansen Fast-Flo valve use the same rubber seat?
- ANSWER: No, the seat we use in Hansen Float Valves are urethane which is a very durable and hard material. The seal is also reversible if a foreign body should damage it.
- QUESTION: I have problems with having to forever clean my valves as my water supply can get dirty at times, how will the Hansen Super-Flo valve handle these conditions?
- ANSWER: We have designed the Hansen Super-Flo valve to work in either clean or dirty water situations.
- QUESTION: My troughs have both 20mm & 25mm threaded inlets, does your Hansen Super-Flo Valve come in both sizes?
- ANSWER: Yes, the Hansen Super-Flo Valve comes with the required components to install in 20mm or 25mm threaded inlets. This of course means you only need to buy one valve for all sized inlets.
- QUESTION: The pressure at my header tank is quite high and the compact float valves I have used either don’t last very long or they don’t shut off properly and I find the overflow running. Will the Hansen Fast-Flo valve work with high pressure.
- ANSWER: Yes, the Fast-Flo Valve has the arm pivot point positioned to allow closing at pressures up to 12 bar (174psi) with a 115mm float attached.
- QUESTION: The valves I have a present have a tendency to jam open or closed costing me time and either a bog around my trough or no available water for my stock, will your valves stop this problem?
- ANSWER: Yes, the Hansen Super-Flo valve has a new patent pending “Slipper Fit Piston” design seal assembly to minimise this problem.
- QUESTION: What pressure can I run my Hansen Super-Flo Valve at?
- ANSWER: The Hansen Sueper-Flo Valve will operate from 0.2 bar to 12 bar.
- QUESTION: What size tank inlet do I need to fit the Hansen Fast-Flo Valve?
- ANSWER: All Hansen float valves carry a 25mm (1”) female thread on the valve inlet. This gives you a couple of benefits. The valve will fit inlets from 15mm to 50mm when using our range of adaptors. The additional material used at the inlet to form the female thread strengthens the valve at an area that has been identified as a weak point in other brands of valves.
- QUESTION: Will the Hansen Fast-Flo valve work in my calf shed bowl troughs?
- ANSWER: Yes, the Fast-Flo was designed as a compact valve for use in small bowls, compact troughs, feeders & header tanks or any situation where the valve space is confined.
- QUESTION: Will the higher flow cost me more to run my pump?
- ANSWER: No, because the Hansen Super-Flo valve is more efficient than what you are used to. The reduced operating pressure required will equate to higher flows at lower pressures at your pump which in turn will reduce pumping time and cost.
