BLA Seat Suspension System with Swivel & Slide – Fixed Height 220mm

Description

BLA Seat Suspension System with Swivel & Slide- Fixed Height 220mm

BLA Seat Suspension Systems – Suspension Bases

BLA seat bases are strong, rigid and durable with easy access to functions, making it possible for recreational owners of smaller boats to have a comfortable, pain-free ride in
rough waters. Apart from making boating safer, more comfortable and enjoyable they also add value to the boat and enhance the look.

BLA seat mounting products are made of 6061-T6 and 5052-H32 marine grade aluminium.

Alloys used for salt-water sensitive applications where good corrosion resistance is needed and electro powder-coating ensure a high-quality UV-resistant base. This is suitable for use in a wide variety of conditions, environments, and climates – from cold to hot, dry to humid.

Features:

• Quick-adjuster for correct weight (182170 only)
• Easy and quick to install

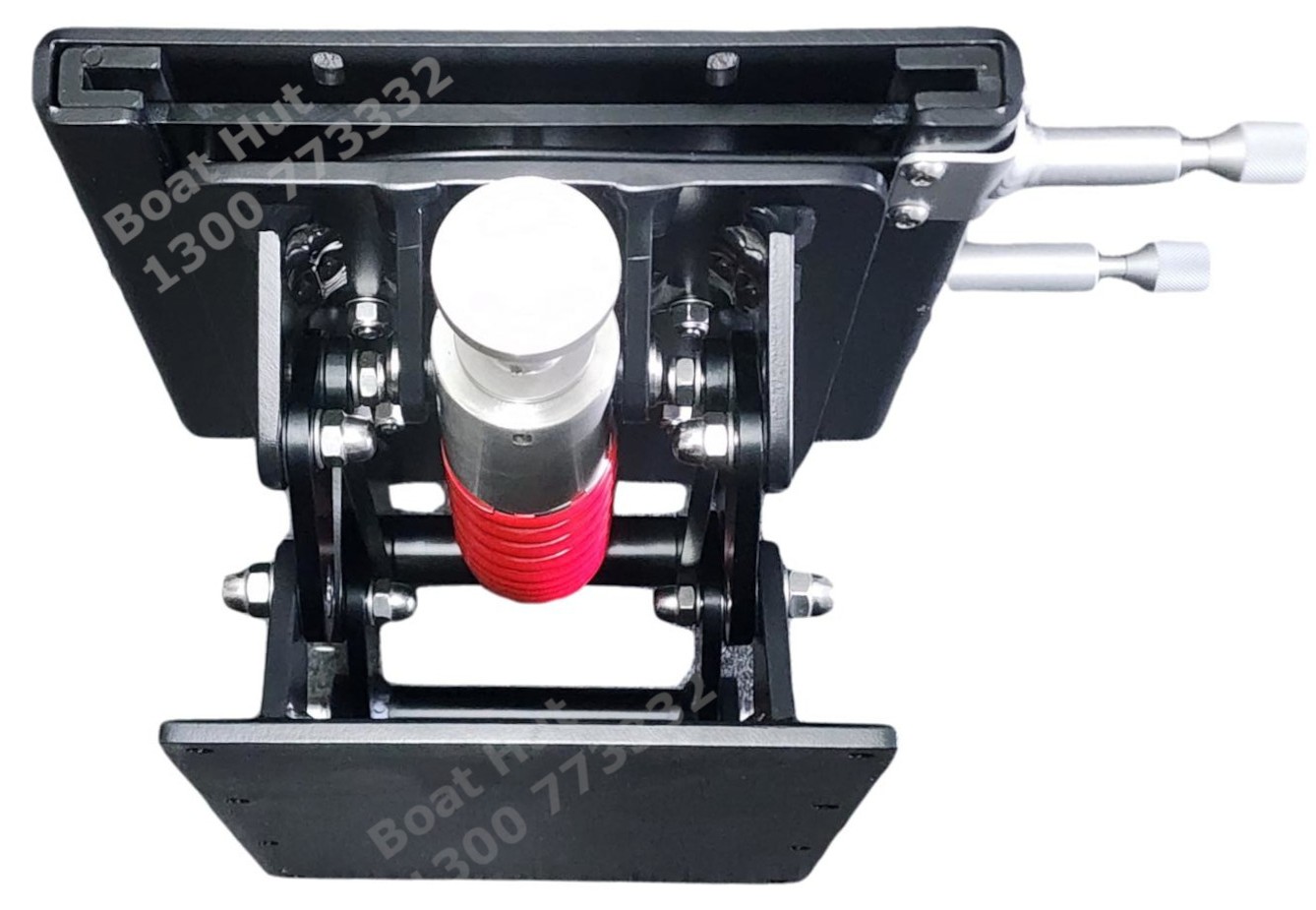

• Easy-reach adjustment wheel for setting weight resistance in a few seconds
• Intergrated Swivel & Slide
• All settings are reached while sitting in the seat
• Handles can be positioned on either side of the unit, decided at assembly
• Meets ABYC H-31 standards for type AO
• Standard & Slide mount hole pattern

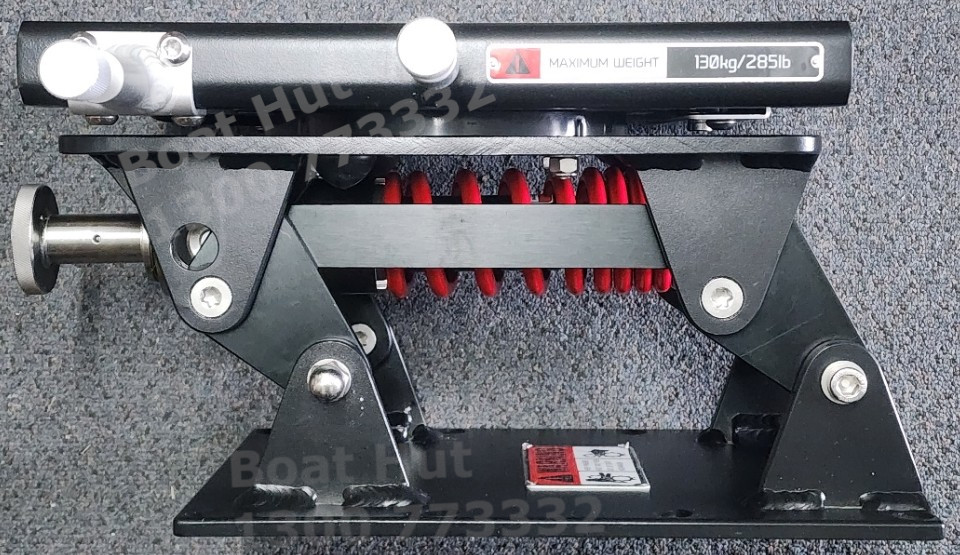

The seat 60-130kg adjustment for weight

• 3 year warranty

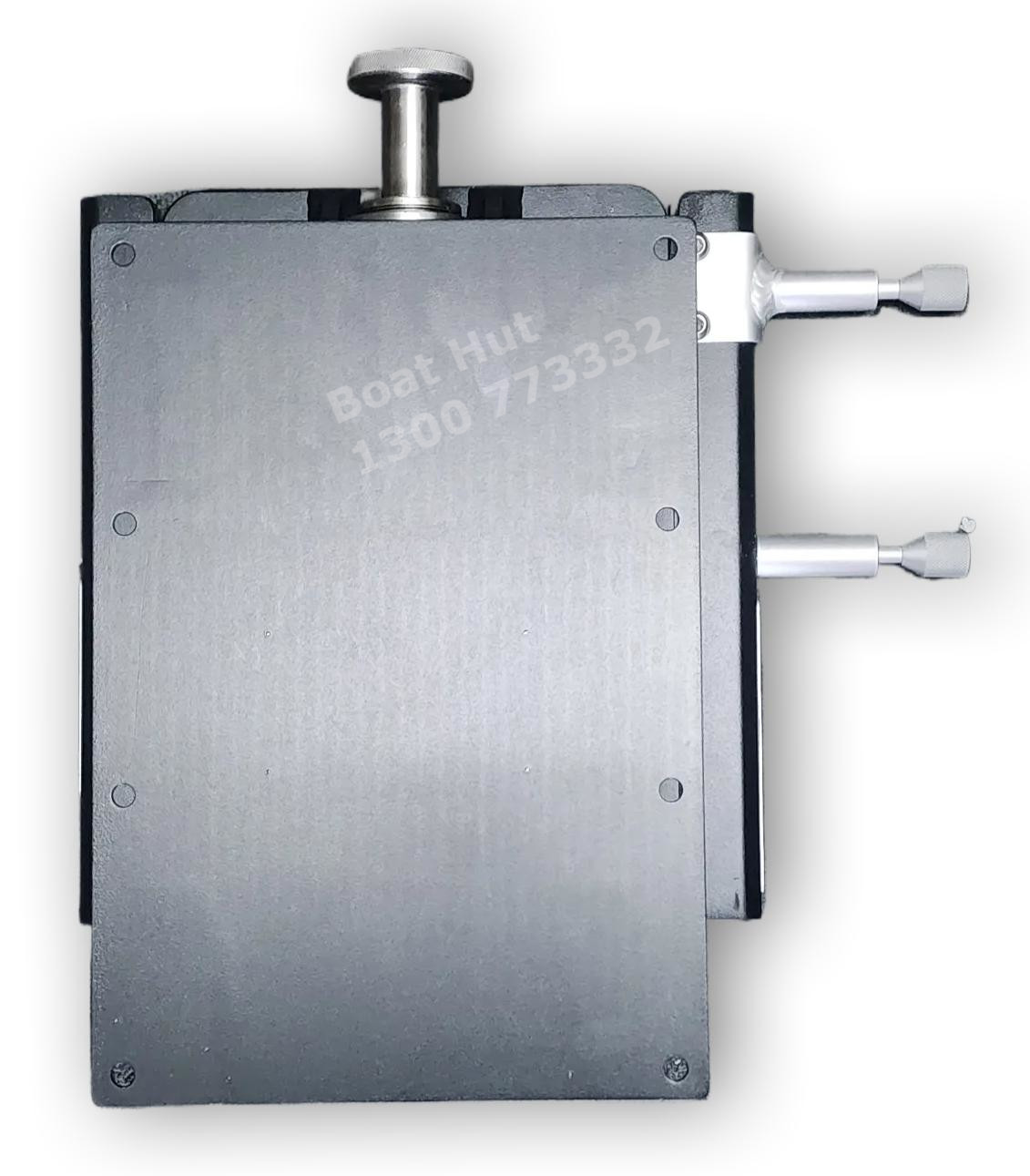

Seat Mount 330mm x 315mm

Deck Mount 330mm x 230mm

This product is manufactured by the Scandinanvian Seat Suspension Systems.

Materials:
Aluminium 5052H32 / 6061T6, 6-8mm thickness
Stainless steel AISI/SUS 316/316L (Passivated)
PolyOxiMethylene
PA6.6 30GF
Powdercoat: AkzoNobel Interpon D2525
Hard Anodizing +30um

Functions:

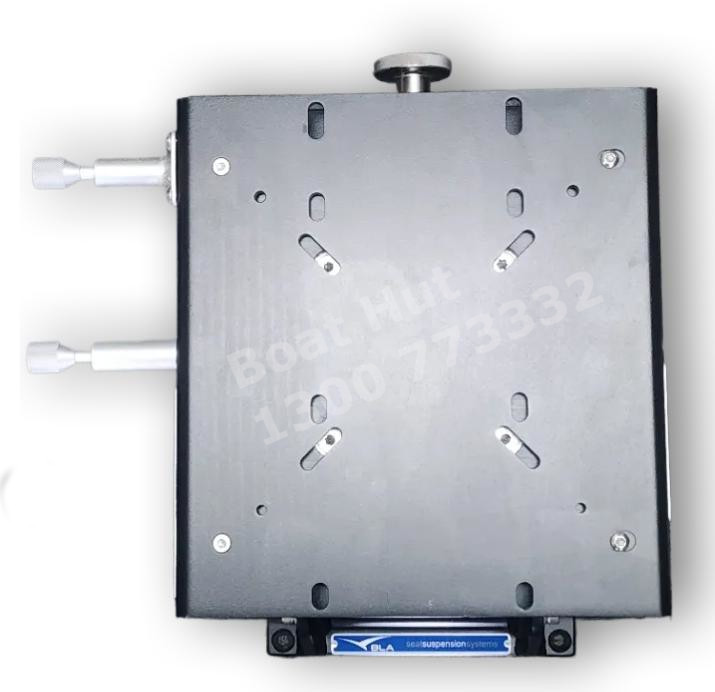

Swivel & Slide built in
– Slide is essential, to secure good foot-support for all size seat occupants
– Swivel is a practical, and an easier-to-socialise feature

Handles can be positioned on either side of the seat 60-130kg adjustment for weight. No extra tools needed Height adjustment on +40% of the models

Universal hole pattern for seat-mount: 12 x 5 x 5″
