Description

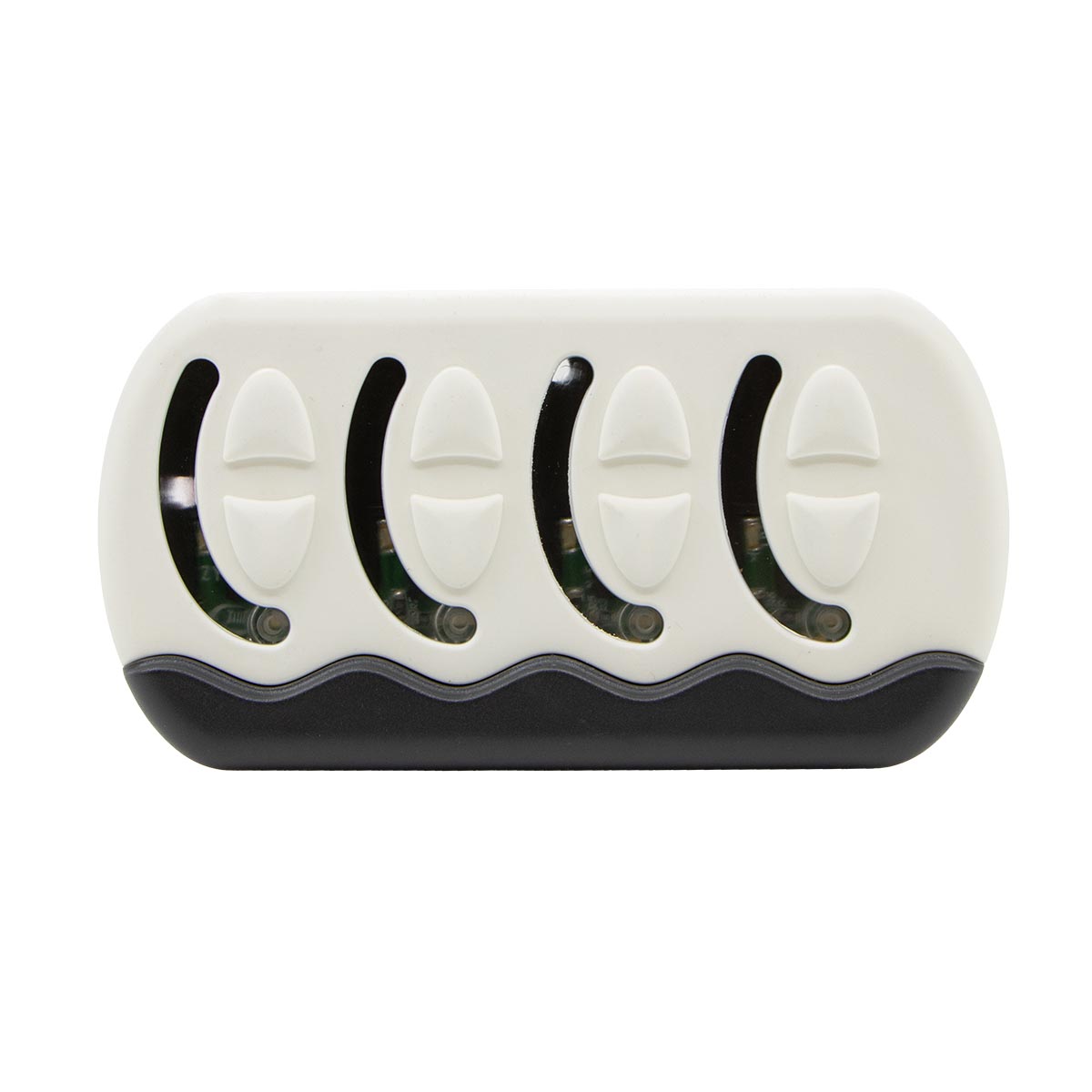

BEP Contour Generation 2 Splash Proof Switch Panels – White – Gang 4 – Without fuses CG2-4W-W 12 or 24 volt
Suitable for 12 or 24 Volt systems.
Switches rated to 16 amp.
Overall width 63 mm.
Cut out width 42 mm.
Gang: 4
Fuses: No
Overall Length: 119mm
Cut Out Length: 84mm
Intrusion 25 mm.
Mount screws 3 mm roundhead.
- Replaceable “clip-on” contour wave.
- Red systems on LEDs.
- Mounting screws are covered by switch cover.
- Moulded gasket on rear of tray seals against mounting surface.
- Labels are LED backlit for easy night time viewing.
- Flexible overshot cover allows for easy switch operation.
- Ribbed seal provides water tight seal with switch cover.
- Unique label design allows it to be read either vertical or horizontally mounted. Supplied with both blue and grey clip on contour wave.
- Label included: SET-G-1.
FAQs
| Item | Content |
|---|---|
| Q1 | Can I use this switch panel in both 12 Volt and 24 Volt systems without any modifications? |
| A1 | Yes. This panel is designed for use with both 12V and 24V DC systems. Ensure your boat’s electrical system voltage matches the panel rating before installation. |
| Q2 | How splash-proof is this switch panel? Can it handle water exposure on my boat? |
| A2 | The panel features a splash-proof design with a rubber mounting gasket and cover seal to protect switches. Avoid direct water jets or submersion. |
| Q3 | Are the switches easy to operate with wet hands, and will I see the labels at night? |
| A3 | Yes — the switch cover has a flexible rubber membrane allowing operation when wet. A clear window provides backlighting for labels and red LED indicators show system status. |
| Q4 | Do I need special tools or skills to install the panel? |
| A4 | Basic tools like a screwdriver are required. Because it involves electrical connections and fuse holders, have someone familiar with marine electrical systems perform or check the installation for safety. |
| Q5 | What if I want more switches or different colours? |
| A5 | The panel comes in 2-, 4-, or 6-gang versions with grey or white facias. Joiners are available to connect multiple panels. |
| SKU | Facia Colour | Gang | Fuses | Overall Length (mm) | Cut Out Length (mm) |
|---|---|---|---|---|---|
| 113756 | Black | 2 | No | 71 | 36 |
| 113757 | White | 2 | No | 71 | 36 |
| 113761 | Black | 2 | Yes | 71 | 36 |
| 113762 | White | 2 | Yes | 71 | 36 |
| 113766 | Black | 4 | No | 119 | 84 |
| 113767 | White | 4 | No | 119 | 84 |
| 113771 | Black | 4 | Yes | 119 | 84 |
| 113772 | White | 4 | Yes | 119 | 84 |
| 113776 | Black | 6 | No | 167 | 132 |
| 113777 | White | 6 | No | 167 | 132 |
| 113781 | Black | 6 | Yes | 167 | 132 |
| 113782 | White | 6 | Yes | 167 | 132 |
Gang: 4 Fuses: No Overall Length: 119mm Cut Out Length: 84mm
