Description

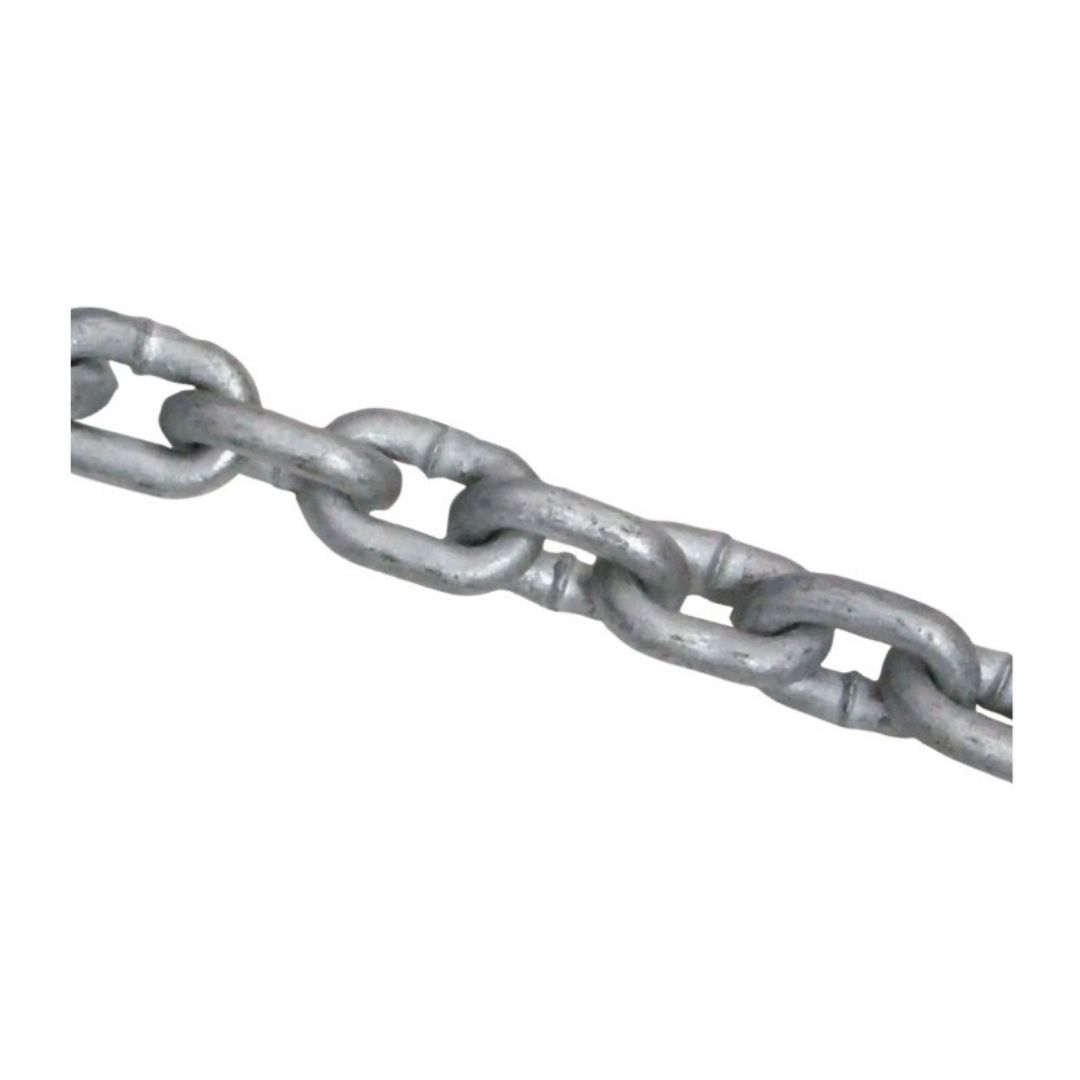

Anchor Chains, Calibrated Short Link, Galvanised (50kg Drum Weight)
- Commonly used for anchor warps used on winches. Specifically designed for anchoring applications.
- Suitable for many other marine and non-lifting industrial applications.
- Made to same dimensions as proof tested Grade ‘L’ chain.
- For heavy-duty use and are high tensile, hot dipped galvanised.
- Each link is calibrated to ensure proper fit for most metric windlasses
- Made in China.

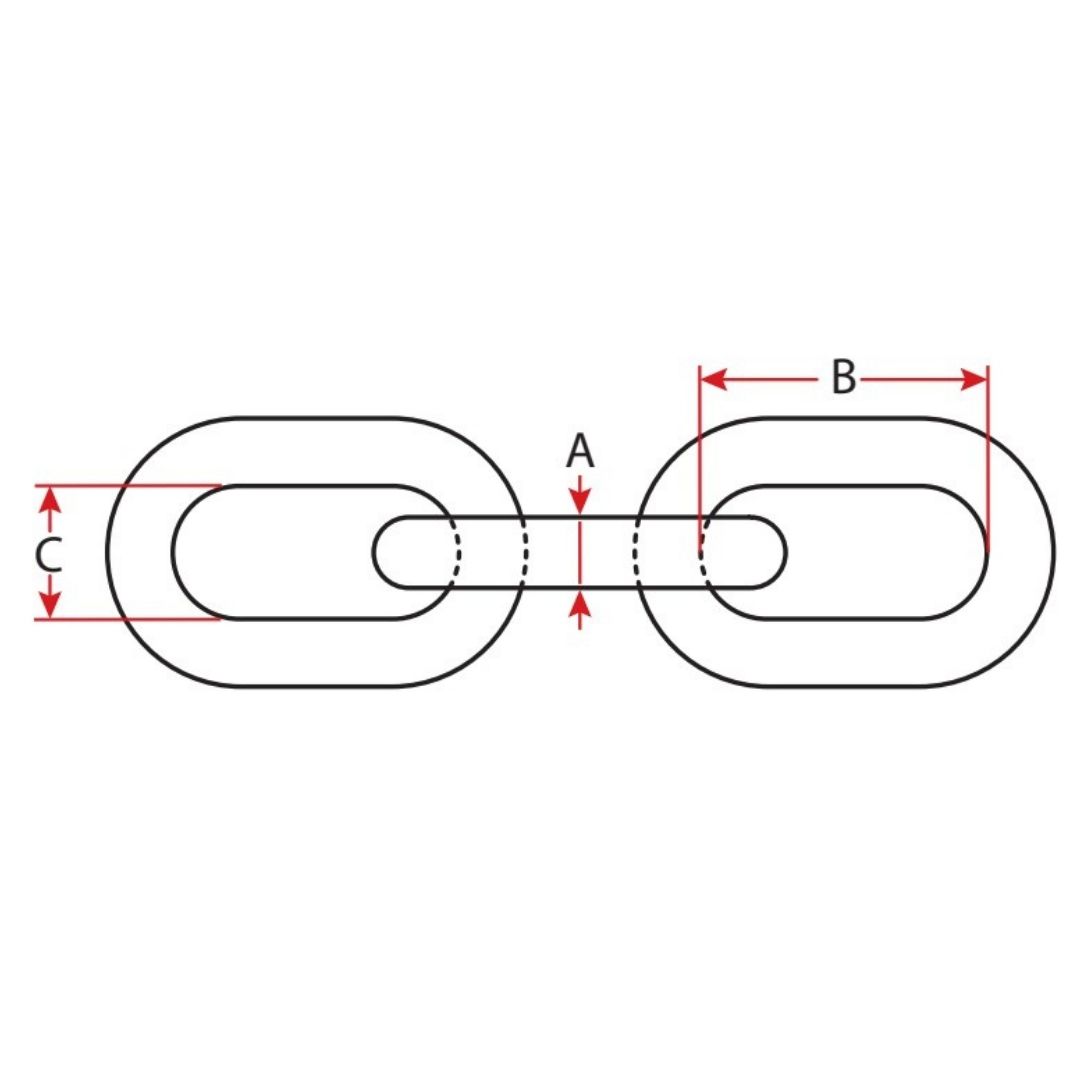

See the complete specifications in the table below (See image gallery for sizing guide)
| PRODUCT CODE | SIZE (A) | SIZE (B) | SIZE (C) | APPROX LENGTH | WEIGHT (kg per meter) | BREAKING LOAD | DRUM WEIGHT |
| SAW-265306 | 6mm | 20mm | 9mm | 54m | 0.8 | 400kg | 50kg |
| SAW-265308 | 8mm | 27mm | 11mm | 33.5m | 1.5 | 640kg | 50kg |
| SAW-265310 | 10mm | 32mm | 13mm | 21.5m | 2.3 | 1000kg | 50kg |
