Description
Atlantic Manual Trailer Winch – Compact 500kg Gear Ratio 3:1 No Cable MW213NC
This 550kg capacity winch is ideal for applications such as light boats, jet skis and general winching. Fixed handle.
Features:
- Dacromet coating for corrosion resistance
- Heavy duty 4mm winch body
- 3:1 gear ratio with heat treated shaft, gears and bushes
- Common mount hole configuration fits most popular posts
- Winch range tested by NATA accredited laboratory
- Incline Pull (Boat Trailer)
This is a no cable supplied version. It will accept:
- 33.5 Meters of 4mm rope
- 8 Metres of webbing
- 33.5 Metres of 4mm cable
Unit Weight 4kg

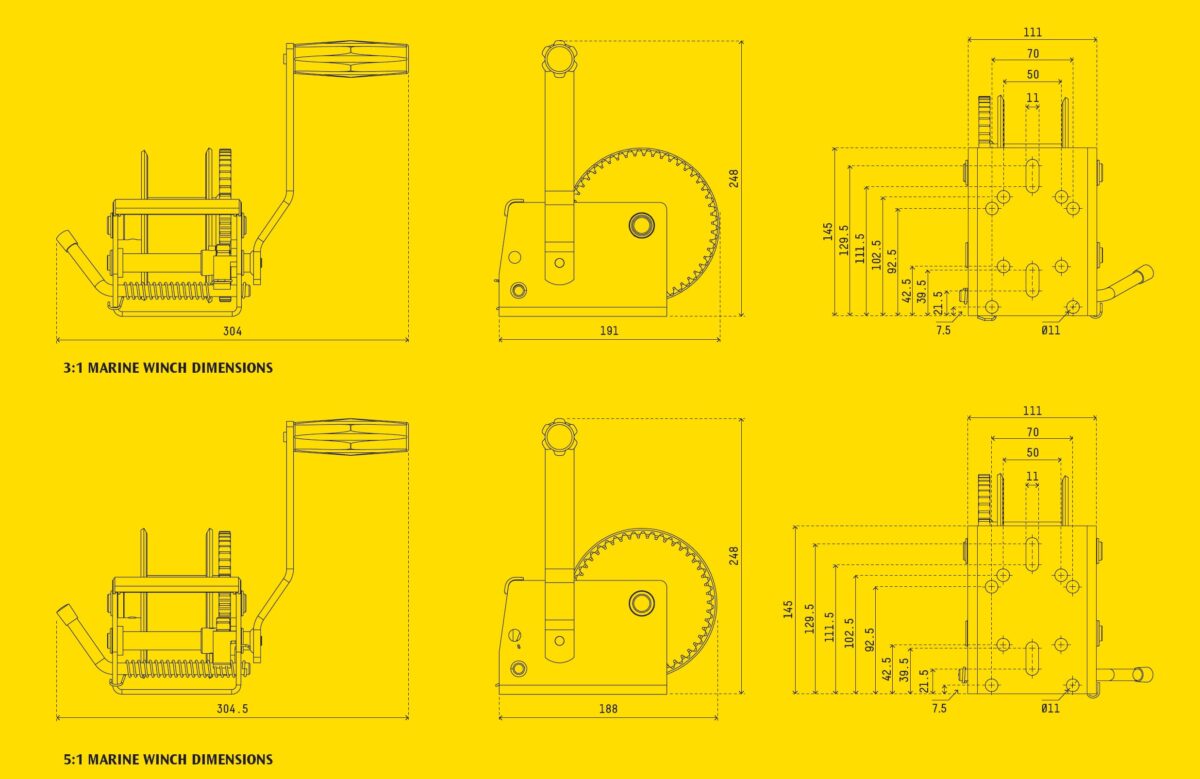

Total Dimensions (W X H X D) 304mm x 248mm x 191mm see diagram

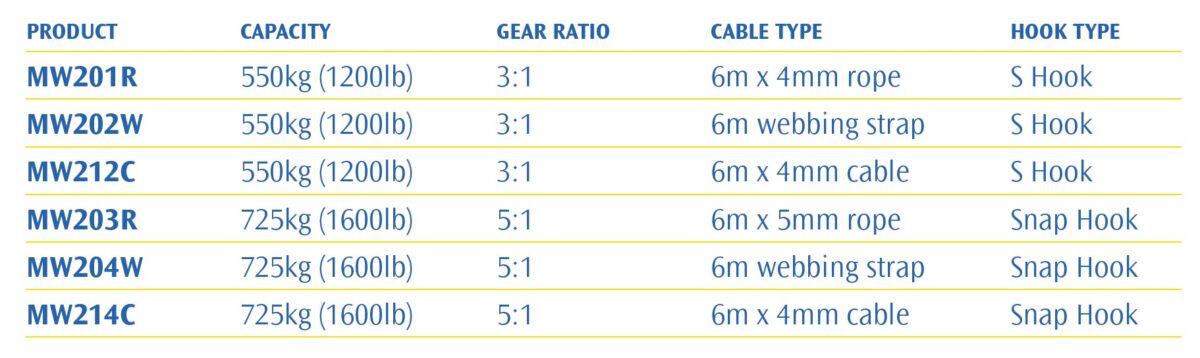

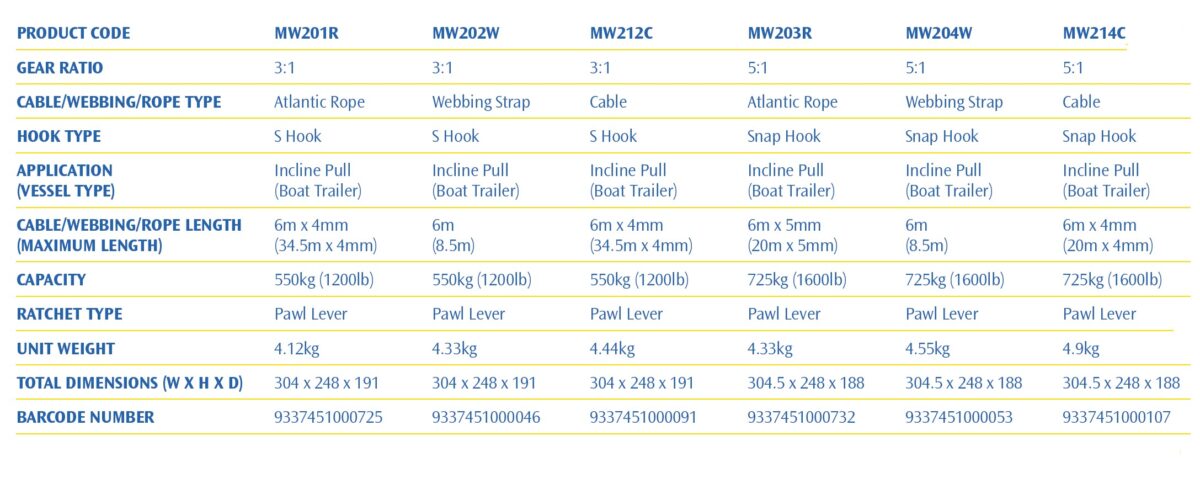

| PRODUCT | CAPACITY | GEAR RATIO | CABLE TYPE | HOOK TYPE |
|---|---|---|---|---|
| MW201R | 550kg (1200lb) | 3:1 | 6m x 4mm rope | S Hook |
| MW202W | 550kg (1200lb) | 3:1 | 6m webbing strap | S Hook |
| MW212C | 550kg (1200lb) | 3:1 | 6m x 4mm cable | S Hook |
| MW203R | 725kg (1600lb) | 5:1 | 6m x 5mm rope | Snap Hook |
| MW204W | 725kg (1600lb) | 5:1 | 6m webbing strap | Snap Hook |
| MW214C | 725kg (1600lb) | 5:1 | 6m x 4mm cable | Snap Hook |
Atlantic Single Speed Winches Brochure Â
Gear Ratio: 3:1 Cable Supplied: None
