Description

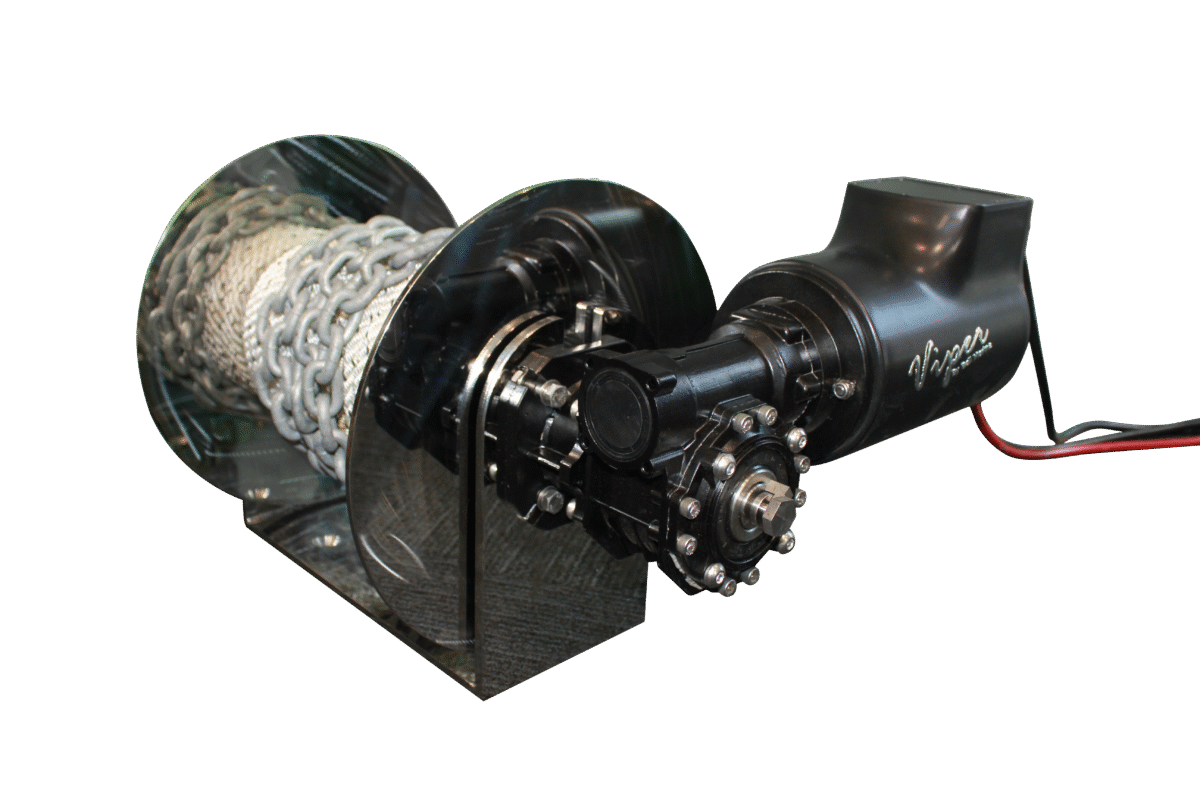

Viper Pro Series II 1500 Electric Anchor Winch Bundle Including 100 Metres 8mm Rope Kit 30003-8
The VIPER Pro Series II 1500 Watt anchor winch is the most powerful in our range and is designed for larger vessel installations of 8 metres plus. The 1500 has a huge rope capacity of up to 100 metres of 8 mm double braid rope, spliced to 10 metres of 8 mm short link galvanised anchor chain making anchor in deep water a breeze and the 1500 is powerful enough to haul up a 37 lb plus anchor all day. The Viper 1500 is our fastest and most powerful drum winch in our range with an amazing fall rate of 55 metres per minute! All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again! Please note: 1 metre of 3 BandS Cable is already attached to the motor with cable joiners at the ends for ease of installation (1500 Watt winch has a 3 cable setup, see our wiring diagram). With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a one piece 32 mm solid stainless steel shaft and 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. Constructed from 8 mm plate 316 marine grade stainless steel (hand polished to a mirror finish) and comes standard with a 5 YEAR Viper performance warranty. If you take your boating seriously and have an application that requires reliability and unsurpassed performance, then you can’t go past the Viper Pro Series II 1500! Take the Viper Challenge today!
- 30003-S Viper Pro Series II 1500 Watt Anchor Winch
- 30026 100 metres of 8 mm 3 strand premium rope spliced to 10 metres of 8 mm chain
- 30019 Large Viper Pro Series Anchor Swivel
- 30002 Large Viper Deluxe Anchor Roller
- 30024 400 amp reversing solenoid
- 90021 LED illuminated marine rocker switch
- 90046 Viper laser etched LED illuminated switch cover
- 30025 135 amp flush mount circuit breaker with rubber seal
- 30051 Single LED switch stainless steel face plate
- 30052 Combo LED switch and circuit breaker stainless steel face plate
Other configurations are avaialble. Packaging Details:
- Drum & Housing:Â 53 x 38 x 39 cm, 21 kg
- Winch Motor:Â 50 x 23 x 27 cm, 13 kg
- Rope and Chain Kit:Â 32 x 32 x 34 cm, 20 kg
Product Specs:
- Maximum Load Capacity:Â 360 kg
- Weight:Â 28 kg
Warning: Ensure correct wiring and installation according to the provided wiring diagram to avoid damage or malfunction. Professional installation is recommended for optimal performance and safety.
Boat Hut Insight
When choosing an anchor winch for larger vessels, consider not just the power and rope capacity, but also the ease of maintenance and availability of replacement parts. The Viper Pro Series II 1500’s robust stainless steel construction and easily accessible components mean less downtime and more time on the water. Plus, with a fall rate of 55 metres per minute, you might just beat your mates back to the marina – just don’t forget to celebrate your new winch with a cold one! Tip: Always match your winch’s rope and chain capacity to your vessel’s size and typical anchoring conditions to ensure smooth operation and longevity of the system. Additional Insight: Consider the noise level during operation—while power is key, a quieter winch means a more pleasant experience on board, especially during early morning or late night anchoring. The Viper Pro Series II 1500 balances power with smooth, relatively quiet operation, so you won’t wake the whole crew or nearby boats.
