Description

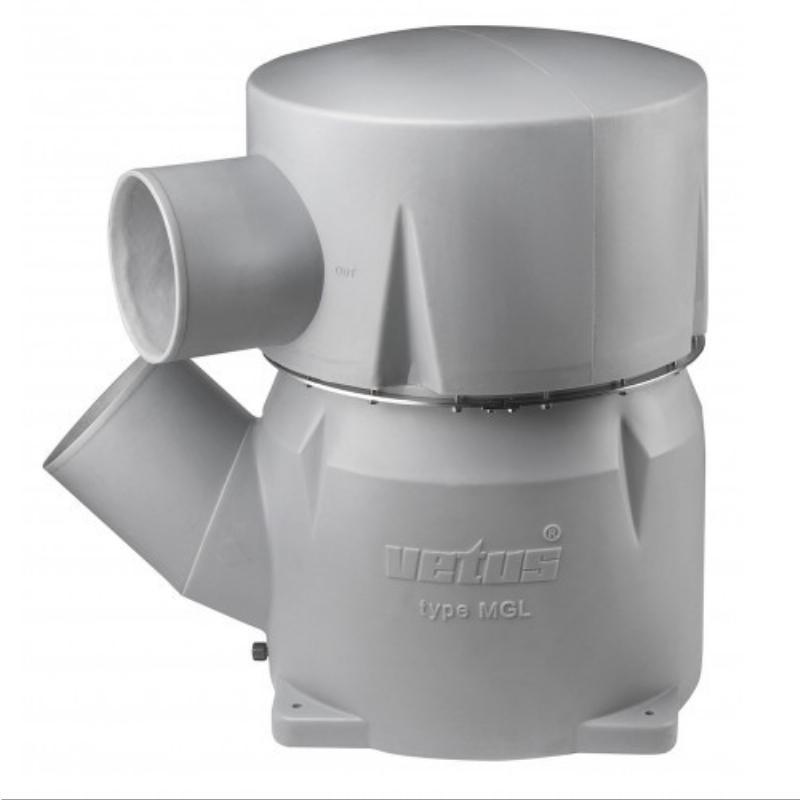

VETUS Waterlock for Larger Boats – Type MGL in 130 Litres / MGL6458A
- Excellent Sound Reduction
- Minimal Back Pressure
- Drain Valve for Winter Storage
- Suitable for Ø 90, 102, 127, 152, 209 or 250 mm Internal Hose Diameters
- Capacities of 23, 75 or 130 Litres
- Comes with Stainless Steel (AISI 316) Clamp Bands
- PART NUMBER: VTS-MF090
- INLET / OUTLET DIAMETER : 90mm
- DIAMETER (A): 210mm
- LENGTH (B): 728mm
- CAPACITY: 13L
- MGL8458A
- MGL84510A
This waterlock is specifically designed for larger boat use. It offers excellent sound reduction and minimal back pressure.
This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360º and the inlet connection is at an angle of 45º upward.
Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.
SPECIFICATIONS
OTHER AVAILABLE EXHAUST SYSTEMS IN TYPE MF :
(See complete specifications in the table below.)

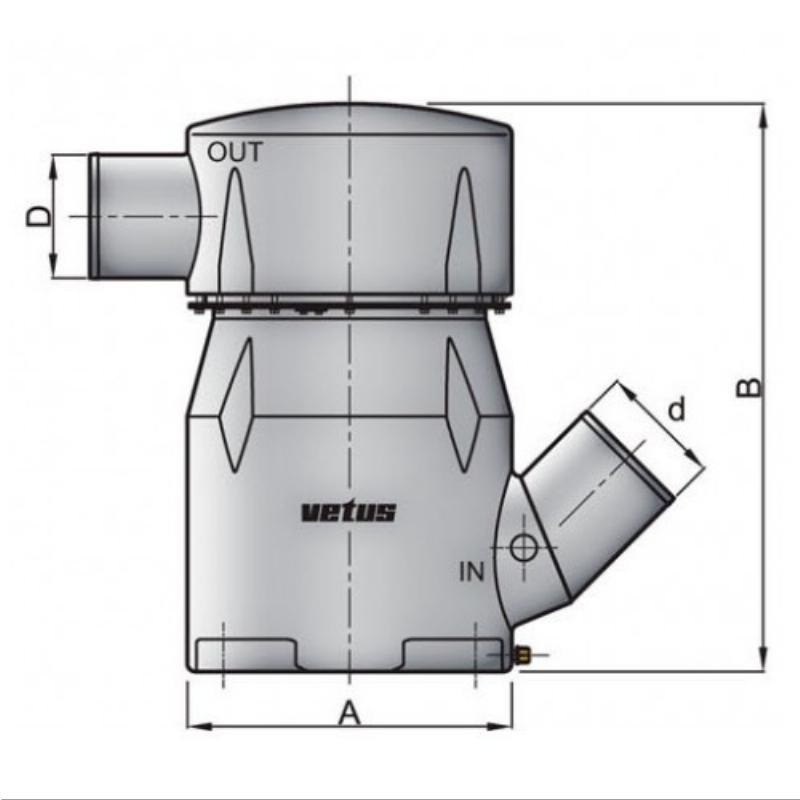

| TYPE | CAPACITY | Ø d | Ø D | Ø (A) | LENGTH (B) |
| MGL6458A | 130 Liters | 152mm | 203mm | 500mm | 750mm |
| MGL8458A | 130 Liters | 203mm | 203mm | 500mm | 750mm |
| MGL84510A | 130 Liters | 203mm | 250mm | 500mm | 750mm |
OVERALL PRODUCT SIZE (L/W/H): 708mm x 445mm x 718mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Plastic muffler MGL 152mm 45 deg inlet, 203 mm out 718x445x708
