Description

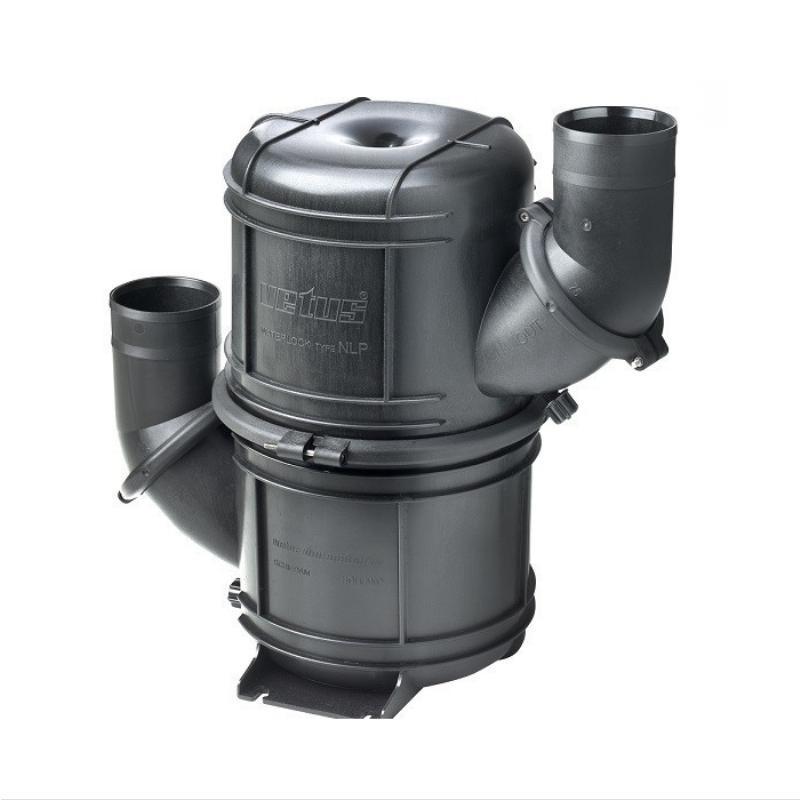

VETUS Heavy Duty Waterlocks – Type NLPHD in 10 Litres / NLP50SHD
- Suitable for Ø 40, 45, 50, 60, 65, 75 and 90 mm internal hose diameters.
- Special composite blend (NAVIDURIN) is capable of handling temperatures up to 260 °C.
- 360º Rotating bodies and hose connections (infinite connection possibilities).
- Comes with mounting brackets for bulkhead and floor mounts.
- Superior noise reduction.
- Minimal backpressure in the exhaust system.
- Provided with drain plugs for winter storage.
This product is a heavy duty waterlocks specifically made for commercial boats for heavy duty use.
Made of the special blended composite NAVIDURIN – which is temperature resistant up to 260 °C – these Heavy Duty waterlocks outperform standard GRP materials by 170%!
The same applies for the thermal resistance to deformation under pressure.
For the outperforming characteristics of the composite NAVIDURIN, VETUS received LLoyds approval.
There are two types of HD waterlocks; the NLPHD (4,5 – 10 L) and the HPW (55 L).
The NLP waterlock design is already known for its extraordinary noise reduction features, versatile installation options and extremely low back pressure.
A more cost effective and technically superior exhaust component, even compared with GRP or stainless steel waterlocks.
The HPW series is perfect for applications where the system is put to the test such as commercial or coastguard vessels.
(See complete specifications on the table below.)

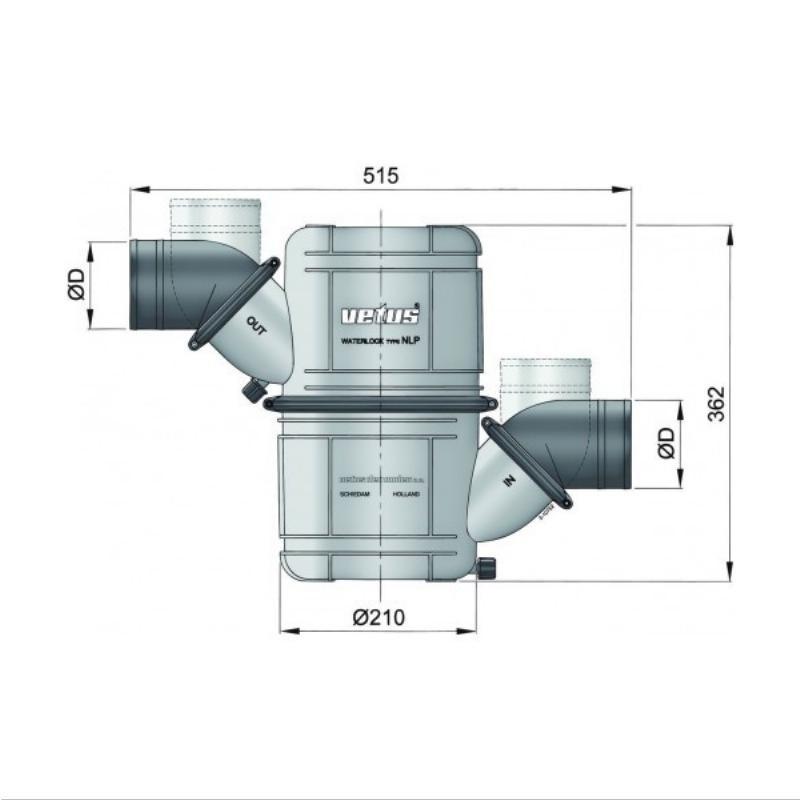

| PART NUMBER | HOSE DIAMETER | COLOUR | CAPACITY | OVERALL WIDTH – A | LENGTH – B | EXTERNAL DIAMETER |
| NLP40HD | 40mm | BLACK | 4.5 Litres | 385mm | 254mm | 165mm |
| NLP45HD | 45mm | BLACK | 4.5 Litres | 385mm | 254mm | 165mm |
| NLP50HD | 50mm | BLACK | 4.5 Litres | 385mm | 254mm | 165mm |
| NLP50SHD | 50mm | BLACK | 10 Litres | 515mm | 362mm | 210mm |
| NLP60HD | 60mm | BLACK | 10 Litres | 515mm | 362mm | 210mm |
| NLP65HD | 65mm | BLACK | 10 Litres | 515mm | 362mm | 210mm |
| NLP75HD | 75mm | BLACK | 10 Litres | 515mm | 362mm | 210mm |
| NLP90HD | 90mm | BLACK | 10 Litres | 515mm | 362mm | 210mm |
OVERALL PRODUCT SIZE (L/W/H): 442mm x 269mm x 420mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Waterlock heavy duty Super 420x269x442
