Description

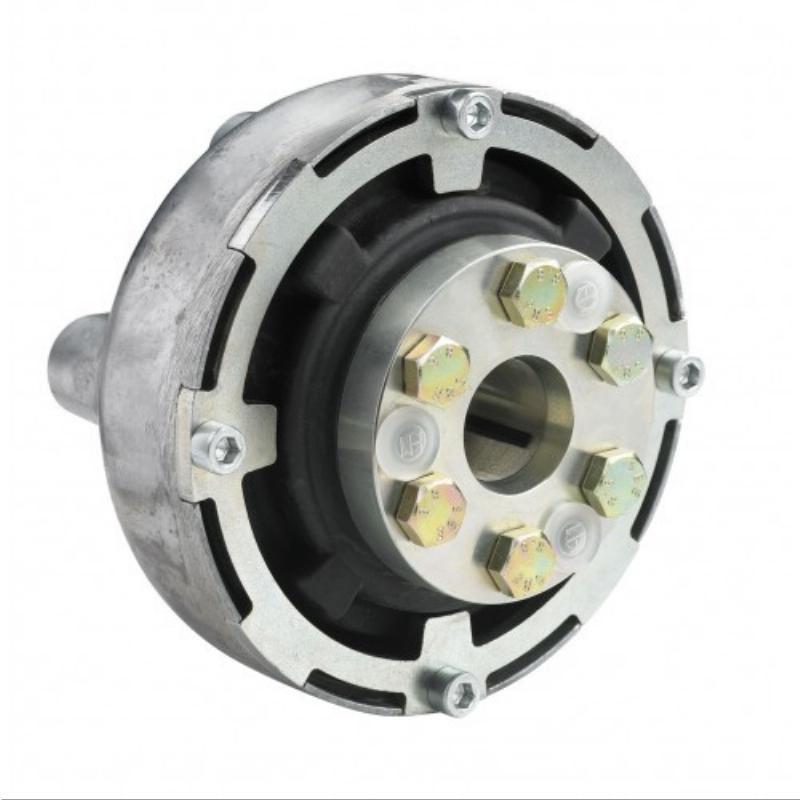

VETUS Flexible Couplings – Uniflex – Type 16 / UNIFL1630
- With cylindrical bore
- Clamping hub for shafts with a diameter of 20, 25 and 30 (type 13), and 30, 35 or 40 mm for type 16
- 4” Connection (type 13) and/or 5” (type 16) for Hurth, Velvet, Technodrive, ZF, PRM and other makes
- Not suitable for V-Drives
The Uniflex permit a misalignment of 2º.
Uniflex couplings will centre the shaft on the gearbox by means of a conical clamping hub and are an ideal flexible coupling between a propeller shaft with a self-aligning bearing and an engine on flexible supports.
The couplings are axially and radially secured against shearing off.
When the propeller shaft is connected to the engine at an angle of 2º, the maximum admissible number of revolutions is 1.500 r.p.m. on the shaft.
FEATURES
See complete specifications of all UNIFLEX in the table below.

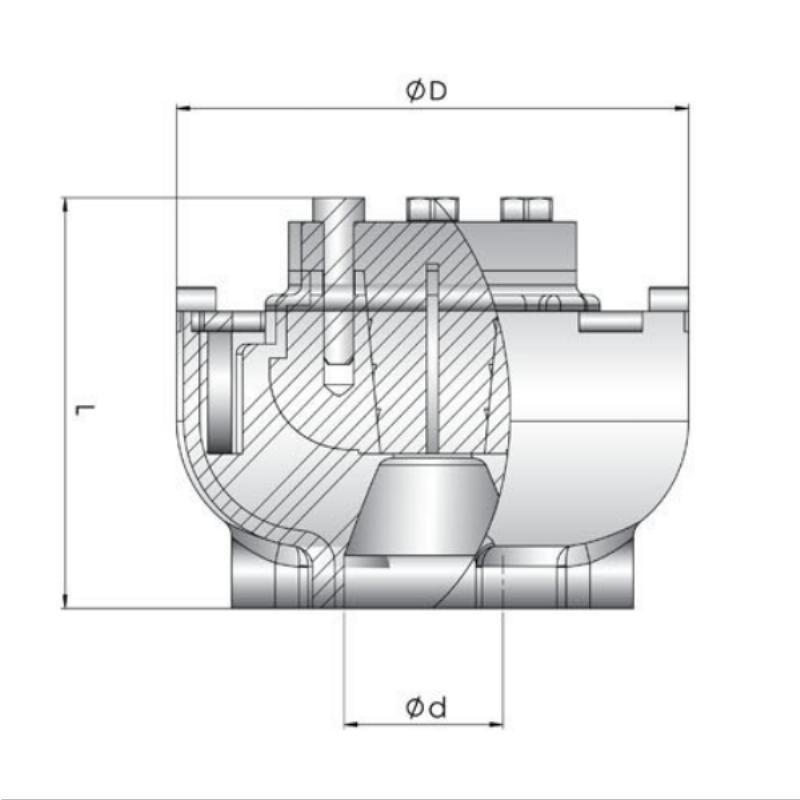

PRODUCT TYPE | DIN 6270 B = pleasure craft. kW/100 r.p.m. on shaft (HP) | DIN 6270 A = commercial craft. kW/100 r.p.m. on shaft (HP) | Ø D | LENGTH | Ø d | WEIGHT |
UNIFL1320 | 2.6 (3.6) | 1.8 (2.5) | 130mm | 98mm | 20mm | 2.4mm |
UNIFL1325 | 2.6 (3.6) | 1.8 (2.5) | 130mm | 98mm | 20mm | 2.4mm |
UNIFL1330 | 2.6 (3.6) | 1.8 (2.5) | 130mm | 98mm | 20mm | 2.4mm |
UNIFL1630 | 5.2 (7.1) | 3.6 (5) | 199mm | 131mm | 30mm | 6.9mm |
UNIFL1635 | 5.2 (7.1) | 3.6 (5) | 199mm | 131mm | 35mm | 6.9mm |
UNIFL1640 | 5.2 (7.1) | 3.6 (5) | 199mm | 131mm | 40mm | 6.9mm |
OVERALL PRODUCT SIZE (L/W/H): 229mm x 229mm x 164mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Type Uniflex 16 D=30mm 164x229x229
