Description
VETUS Flexible Couplings – Combiflex with 25mm Shaft / COMFL1225
The Combiflex coupling has been designed to ensure optimum damping of torsional vibrations, created by cycle irregularities especially at low engine revolutions.
It is secured against shearing off, both axially and radially, thus ensuring safe transmission under all circumstances.
Provides excellent alignment of the propeller shaft.
Aligning the engine and propeller shaft can be a rather time consuming affair, however the Combiflex will remain perfectly centred onto the gearbox flange, even if the shaft has a misalignment of 2º.
The parallel clamping hub ensures easy installation and probably even more importantly, easy dismantling of the shaft assembly.
Available for shafts of Ø 25 or 30 mm. Comes with a 4” flange to fit most common gearbox models.

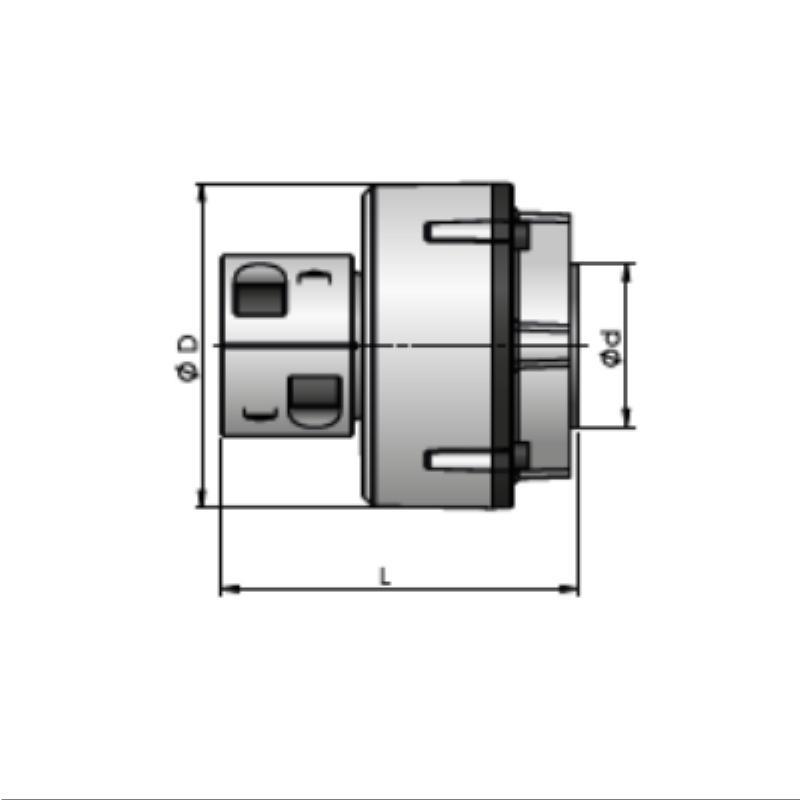

SPECIFICATIONS
-
-
- SHAFT DIAMETER: 25mm
- DIAMETER: 126mm
- LENGTH: 137mm
- WEIGHT: 3.5kg
- DIN 6270B = pleasure craft kW (HP)/100 shaft RPM: 5.2 (7.1)
- DIN 6270A = commercial craft kW (HP)/100 shaft RPM: 3.6 (5)
-
Other Available Type of Flexible Couplings – Combiflex:
-
-
- COMFL1330 Flexible Couplings – Combiflex w/ 30mm Shaft
- COMFL1225 Flexible Couplings – Combiflex w/ 25mm Shaft
- COMFL1230 Flexible Couplings – Combiflex w/ 30mm Shaft
-
OVERALL PRODUCT SIZE (L/W/H): 154mm x 154mm x 164mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Flexible Coupling 25mm 164x154x154
