Description

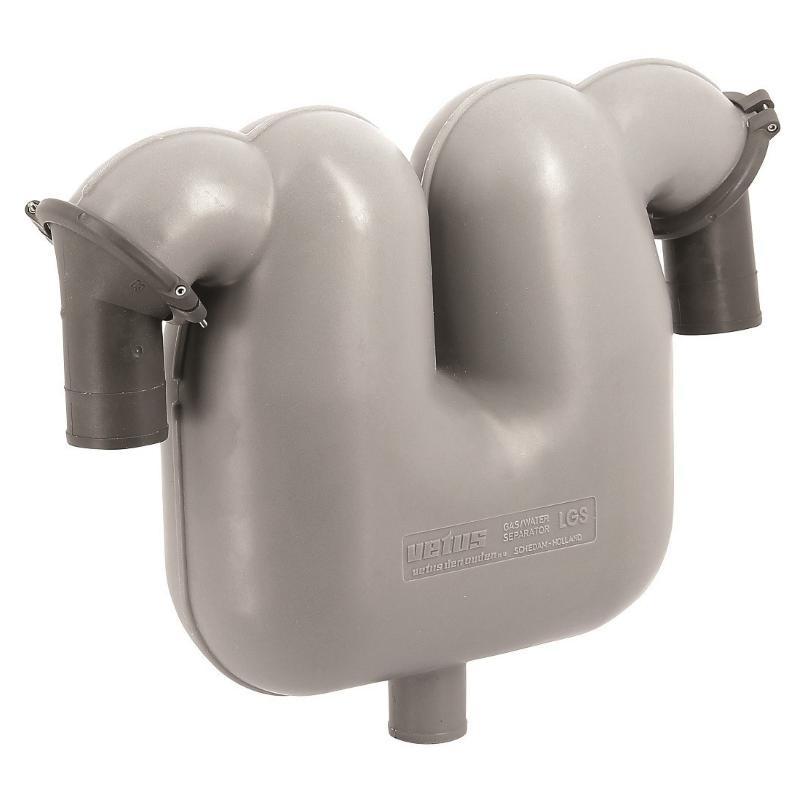

VETUS Exhaust Gas Separator / LGS4038
- Cooling water drain of 38 mm or 50 mm.
- Comes with stainless steel (AISI 316) mounting bracket with synthetic straps.
- EXHAUST HOSE DIAMETER (D): 40mm
- DRAIN DIAMETER: 38mm
- WIDTH (A): 405mm
- DEPTH: 134mm
- HEIGHT (B): 370mm
- CAPACITY: 7 Litres
This is for marine engines and generator sets.
The VETUS gas / water separator has a double function. It separates the injected raw cooling water from the exhaust gases and also functions as a gooseneck.
Particularly important for generator sets, the separator reduces the exhaust noise and drains the cooling water below the waterline, thus preventing the characteristic splashing sound.
360º Rotating hose connections for 40, 45 or 50, 60, 75 or 90 mm internal hose diameters.
FEATURES
SPECIFICATIONS
(See complete specifications on the table below.)

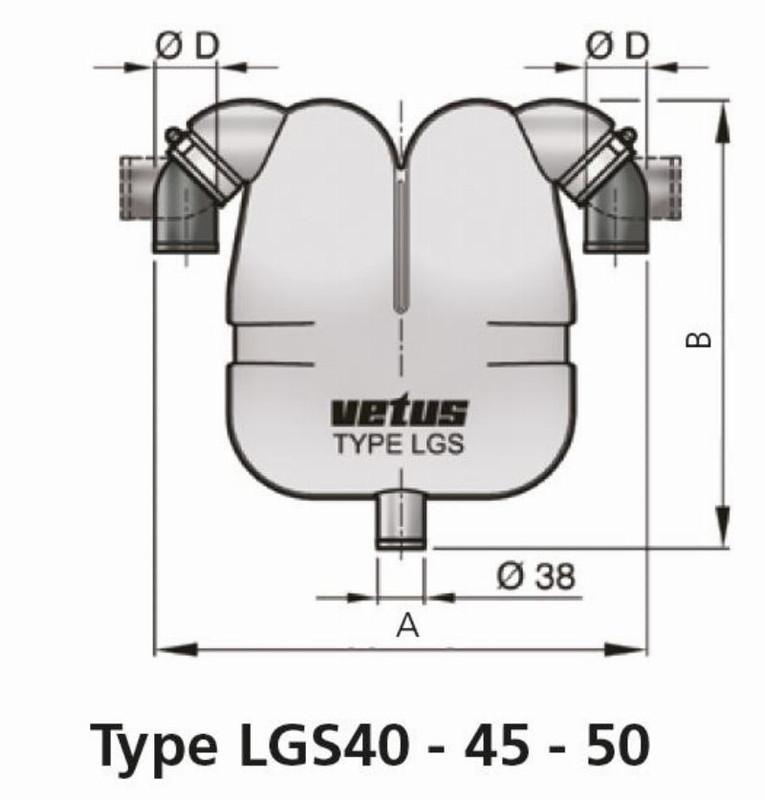

| PART NUMBER | EXHAUST HOSE DIAMETER (D) | DRAIN DIAMETER | WIDTH (A) | DEPTH | HEIGHT (B) | CAPACITY (L) |
| LGS4038 | 40mm | 38mm | 405mm | 134mm | 370mm | 7 |
| LGS4538 | 45mm | 38mm | 405mm | 134mm | 370mm | 7 |
| LGS5038 | 50mm | 38mm | 405mm | 134mm | 370mm | 7 |

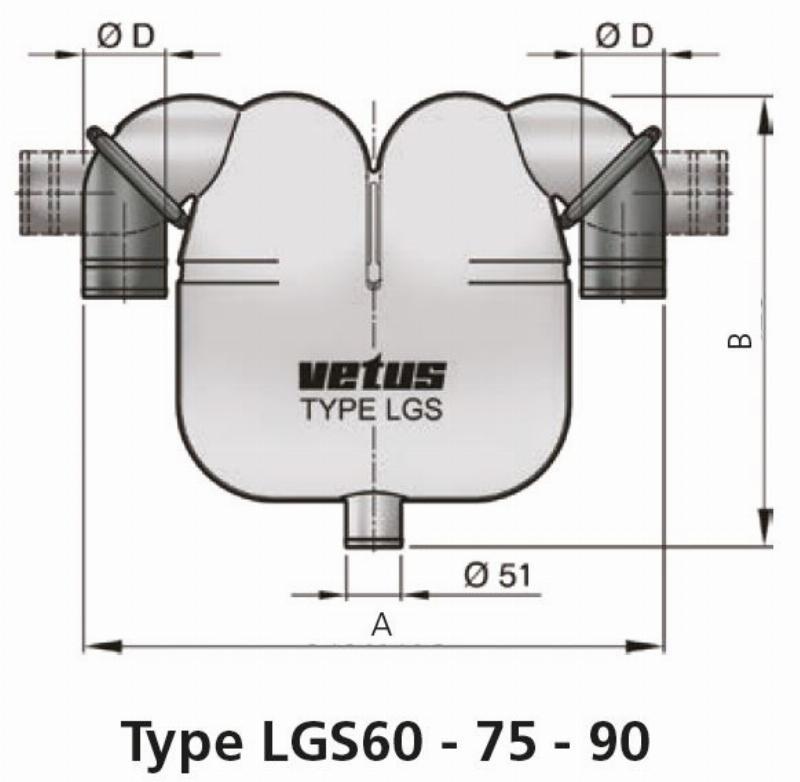

| LGS6050 | 60mm | 51mm | 540mm | 170mm | 420mm | 12 |
| LGS7550 | 75mm | 51mm | 540mm | 170mm | 420mm | 12 |
| LGS9075 | 90mm | 51mm | 559mm | 170mm | 537mm | 20 |
OVERALL PRODUCT SIZE (L/W/H): 428mm x 409mm x 155mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Exhaust gas separator with 40mm conns. & 38 mm drain 155x409x428
