Description

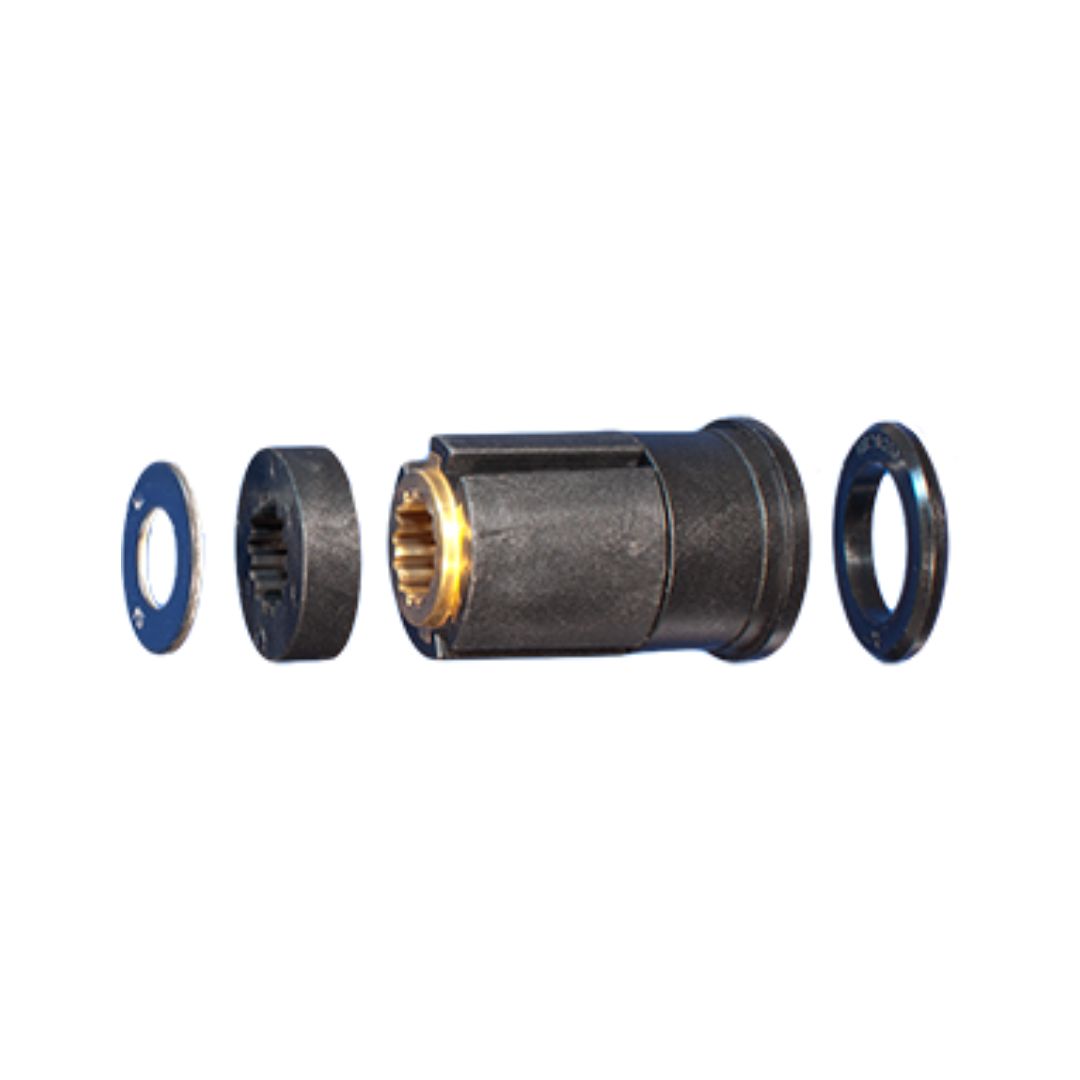

TURNING POINT Masterguard Propeller Hub – 12 Kit, Johnson/Evinrude, Honda, Parsun, Yamaha, 25-75HP with a 3.5″ Gearcase
These Turning Point’s Masterguard 12 Series Installation Propeller Hub Kits are suitable for 25-75HP with a 3.5″ Gearcase.
The hub system enables the end-user to economically carry a spare or different diameter/pitch propeller to suit the days skiing, fishing or cruising activities.
10 SERIES INSTALLATION KITS
- Premium corrosion resistant brass splines.
- Eliminate hub system vibration & chatter.
- Reduce gear shock & engine/drive damage.
- Reduce prop replacement cost by up to 50%.
HUB KIT SPECIFICATIONS
| ENGINE BRAND | SPLINES | SUITS MODEL | KIT | PART NUMBER | SUIT ENGINES | NOTES |
| JOHNSON AND EVINRUDE | 13 SPLINE SHAFT | 2 cylinder: 40HP, 48HP / 50HP (’75-’05) / 55HP (’76-’79) / 60HP, 65HP (’80-’85) 3 cylinder (with small gearcase): 75HP (’75-’85), Sprint and Formula E (’86-’92) | 12 | 203012 | 25-75HP with a 3.5″ Gearcase | — |
| HONDA | 13 SPLINE SHAFT | BF 4 stroke: 35, 40, 45, 50, 60HP, (not P60) | 12 | 203012 | 25-75HP with a 3.5″ Gearcase | — |
| PARSUN | 13 SPLINE SHAFT | T30, T35, T36, T40HP | 12 | 203012 | 25-75HP with a 3.5″ Gearcase | — |
| YAMAHA | 13 SPLINE SHAFT | 2 stroke: 40 to 55HP / 4 stroke: FT25 High Thrust, 30 to 60HP | 12 | 203012 | 25-75HP with a 3.5″ Gearcase | Only Suits H1 Model # (1210), (1011), (1012) & (1013) |
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER HUB KIT & PROPELLER
To find the correct Installation Kit: locate the HP, gearcase size, and prop shaft spline count of the outboard or sterndrive.
- STEP 1: Find the installation kit suitable to your engine drive shaft type listed in the table above. If the type is not listed, kindly check other turning point hub kits.
- STEP 2: Find and purchase the chosen propeller suitable to the installation kit (see listed propellers below). (NOTE: Propellers must be purchased seperately.)
The following are the suitable propellers to this installation kit:
- Turning Point Hustler Aluminium 3 Blade Propeller H1 Models for 25-75HP
- 202220 H1-1011, 10.875 Dia. x 11 Pitch
- 202224 H1-1012, 10.75 Dia. x 12 Pitch
- 202228 H1-1013, 10.5 Dia. x 13 Pitch
- 202232 H1-1014, 10.375 Dia. x 14 Pitch
- 202236 H1-1015, 10.125 Dia. x 15 Pitch
- Turning Point Mach3 Stainless Steel 3 Blade Propeller E1 Models for 25-75HP
- 202513 E1-1012, 10.75 Dia. x 12 Pitch
- 202515 E1-1013, 10.5 Dia. x 13 Pitch
- 202517 E1-1014, 10.375 Dia. x 14 Pitch
ABOUT TP’S MASTERGUARD HUBS
- The hubs are engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use.
- It is also designed as a innovative one-piece glass with reinforced high-tech, shock absorbing, polymer cushion that increases flexibility and eliminates failures commonly seen in multi-part hub “sleeve and spline” designs, and pressed-in rubber hub systems.
- The high-flow through barrel exhaust system maximises exhaust flow increasing horsepower and top end speed.
- When buying a replacement propeller housing, boaters can save in costing as Turning Point offers an inventory reducing installation kits and prop housings system made to be in full line of propeller applications.
- With clear and easy to understand directions to make installation easy and convenient.
- The splines are made of premium corrosion resistant brass material.
- The hubs are suitable to upgrade and replace Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
