Description

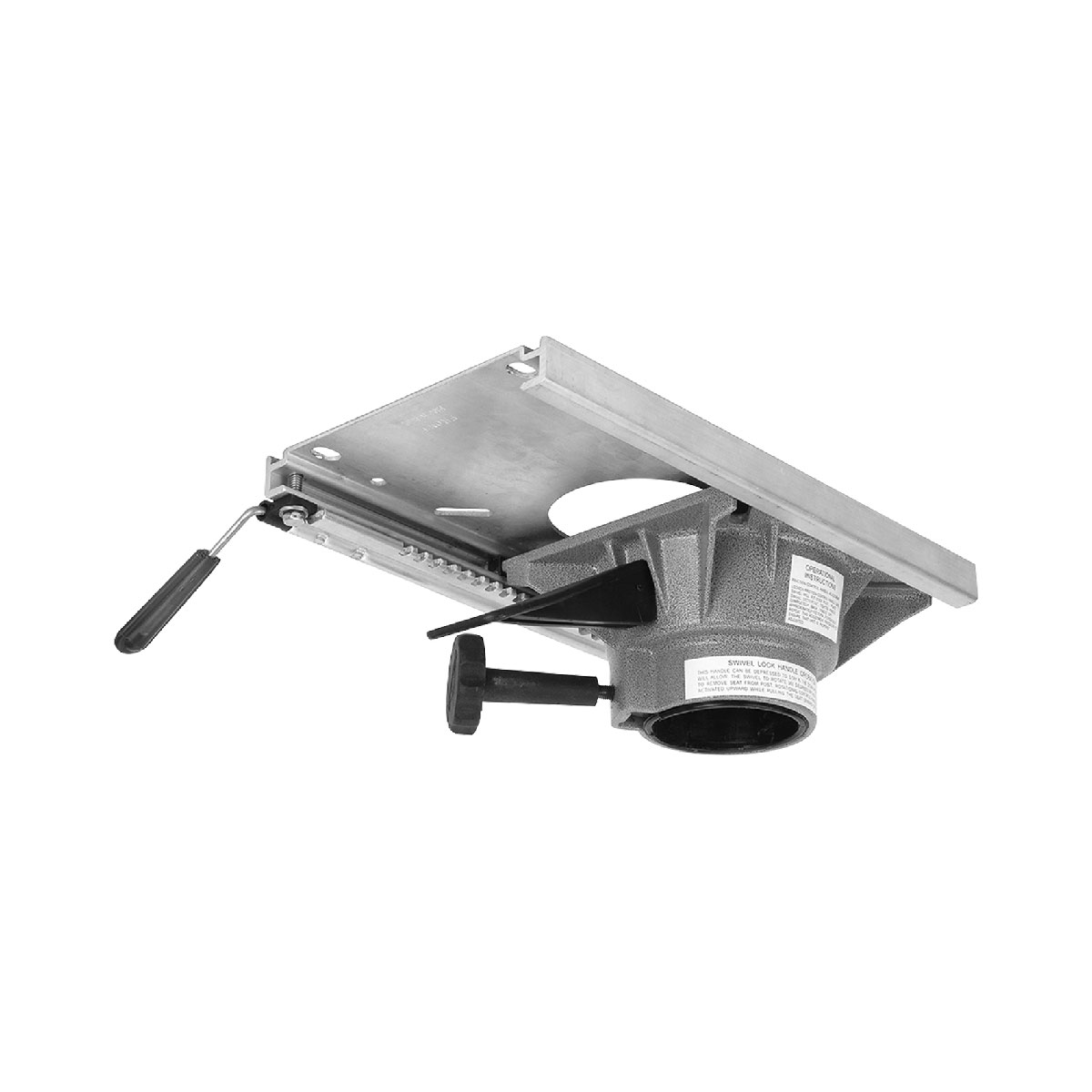

Springfield Chair Slide Pedestal Mount – 73mm Post Diameter – Locking 1100521-L1
Two sizes available to suit pedestal poles with an outside diameter of either 60 or 73mm.
Consists of a powder coated cast alloy swivel pedestal top with Delrin slides extruded alloy slide track and front lever operated slide adjustment locking mechanism.
Seat mount plate is pre drilled to accept most popular seat mount hole patterns but can also be drilled to suit non standard seat mount hole patterns.
High strength aluminium slide and swivel, rotates 360 degrees large 184mm X 330mm seat mounting platform fore and aft travel 135mm on self-lubricating pads with centrally located locking handle.
Dimensions
Width 192mm
Depth 340mm
Height 95mm
Mount holes 8mm r h
Accepts Standard & Slide Mount Hole Pattern.
Certified to ABYC H-31 AP & AD standard
Springfield offer a 5 year manufacuring warranty on seat mounting equipment.
Width: 192mm Depth: 340mm Height: 95mm Mount Holes: 8mm r/h
