Description

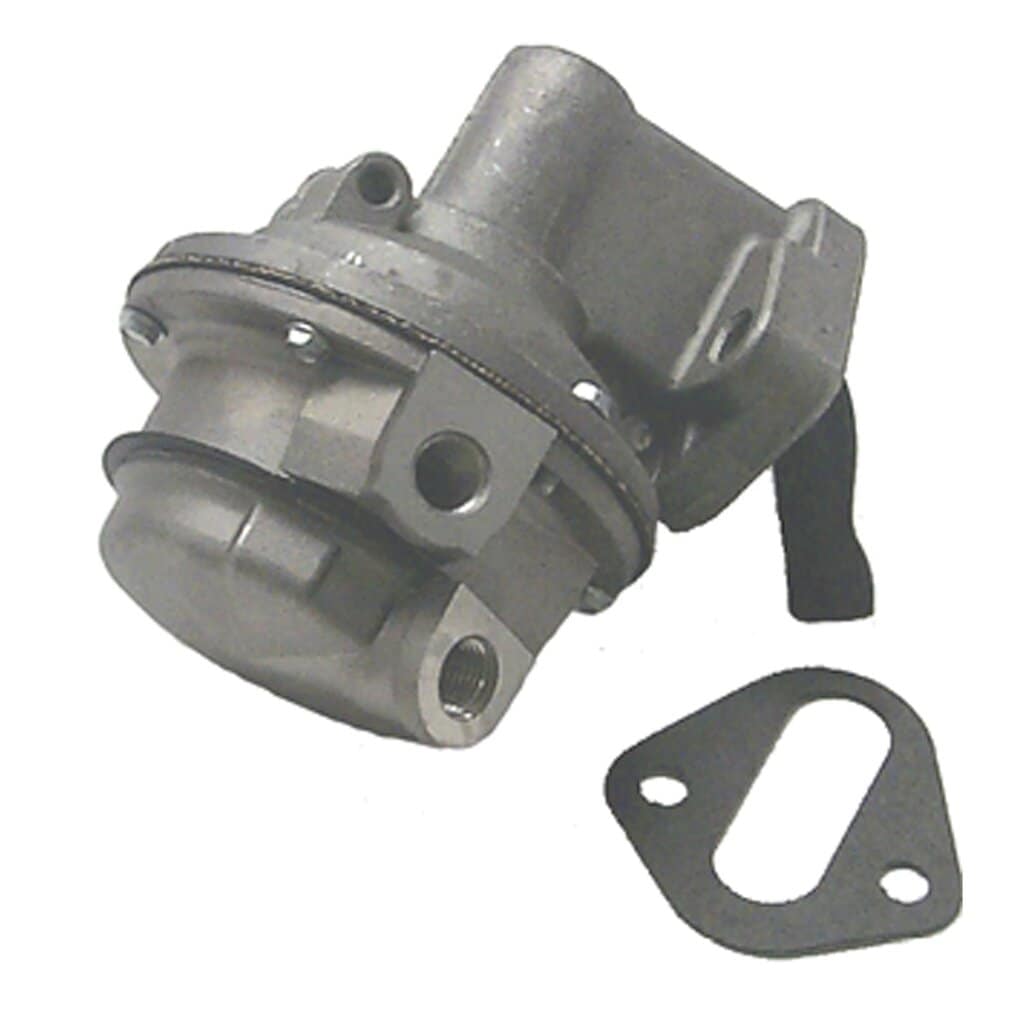

SIERRA Fuel Pump for Mercruiser replaces 97401, 861678A1, 8M0058164, 97401A2, 97401A8 / 18-7283
- PRODUCT CODE: S18-7283
- This pump is interchangeable with or replaces
- MALLORY / 9-35423
- MERCURY MARINE / 97401, 861678A1, 8M0058164, 97401A2, 97401A8
- MOTOROLA / 8M0058164
- OMC / 509404
- This pump is suitable with GM (V-8) 305, 350, 228 / 230 / 260 / 898.
- NOTES: Uses gasket 18-0889.
- FLANGE ID: M60600.
FUEL PUMP APPLICATION
| MODEL | CID/#CYL | YEAR RANGE | BEGINNING SERIAL # | ENDING SERIAL # |
| 200 GM | — | — | 6218462 | & Up |
| 200/5.0L GM | — | — | B525982 | & Up |
| 228 MCM & MIE | 305/V-8 | 1979-1982 | 5170009 | 6218461 |
| 228 | 305/V-8 | 1982-1984 | 6218462 | 6899268 |
| 230 MIE | 305/V-8 | 1981-1987 | 5907058 | B788151 |
| 230/5.0L-GM (IB) | — | — | B522506 | & Up |
| 230 GM | — | — | 6218462 | & Up |
| 230/5.0L-LX GM | — | — | B525982 | & Up |
| 230 | 305/V-8 | 1985-1987 | 6899269 | B773739 |
| 5.0L | 305/V-8 | 1988-1995 | B774445 | F600999 |
| 5.0L MIE | 305/V-8 | 1988 | B788152 | C396832 |
| 5.0LX | 305/V-8 | 1988-1995 | B773740 | F600999 |
| 898 | 305/V-8 | 1977-1982 | 4762210 | 6218461 |
| 898 | 305/V-8 | 1983-1984 | 6218462 | 6899057 |
| 260 | 350/V-8 | 1978-1982 | 4908850 | 6218461 |
| 260 | 350/V-8 | 1983-1987 | 6218461 | & Up |
| 260 MIE | 350/V-8 | 1981-1987 | 5907058 | B788151 |
| 260/5.7 GM | — | — | B525982 | & Up |
| 260 GM Inboard | — | — | 5907058 | & Up |
| 260/5.7L GM (IB) | — | — | 5907058 | & Up |
| 5.7L-GM | — | — | F025000 | & Up |
| 300MR/TRS GM | 350/V-8 | 1985-1986 | 6668677 | B430367 |
| 350 MAG ALPHA EFI (GEN +) | 350/V-8 | 1996 | F800300 | K001508 |
| 350 MAG BRAVO MPI | 350/V-8 | 1995-1996 | F415189 | K001500 |
| 350 MAG MPI SKI | 350/V-8 | 1995-1996 | F350583 | F799999 |
| 350 MAG SKI | 350/V-8 | 1991-1997 | D505450 | K999999 |
| (MAG-TOURNEY SKI) | — | — | D505450 | & Up |
| 5.7L | 350/V-8 | 1988-1997 | B773305 | K999999 |
| 5.7L EFI | 350/V-8 | 1995-1996 | F225560 | K001505 |
| 5.7L MIE | 350/V-8 | 1988-1997 | B788152 | K999999 |
| 5.7L SKI | 350/V-8 | 1985-1997 | A338553 | K999999 |
| 5.7LX | 350/V-8 | 1996-1997 | F601000 | K999999 |
| 5.7LX BRAVO EFI (GEN +) | 350/V-8 | 1996 | F800300 | K001508 |
| 5.7LX EFI | 350/V-8 | 1996 | F752400 | K001505 |
| 5.7 GM (SKI) | — | — | B514627 | & Up |
| 5.7L BRAVO (GM)350 | — | — | B525982 | & Up |
Weight 0.8 KG, Length 14 cm, Height 14 cm, Width 15 cm
