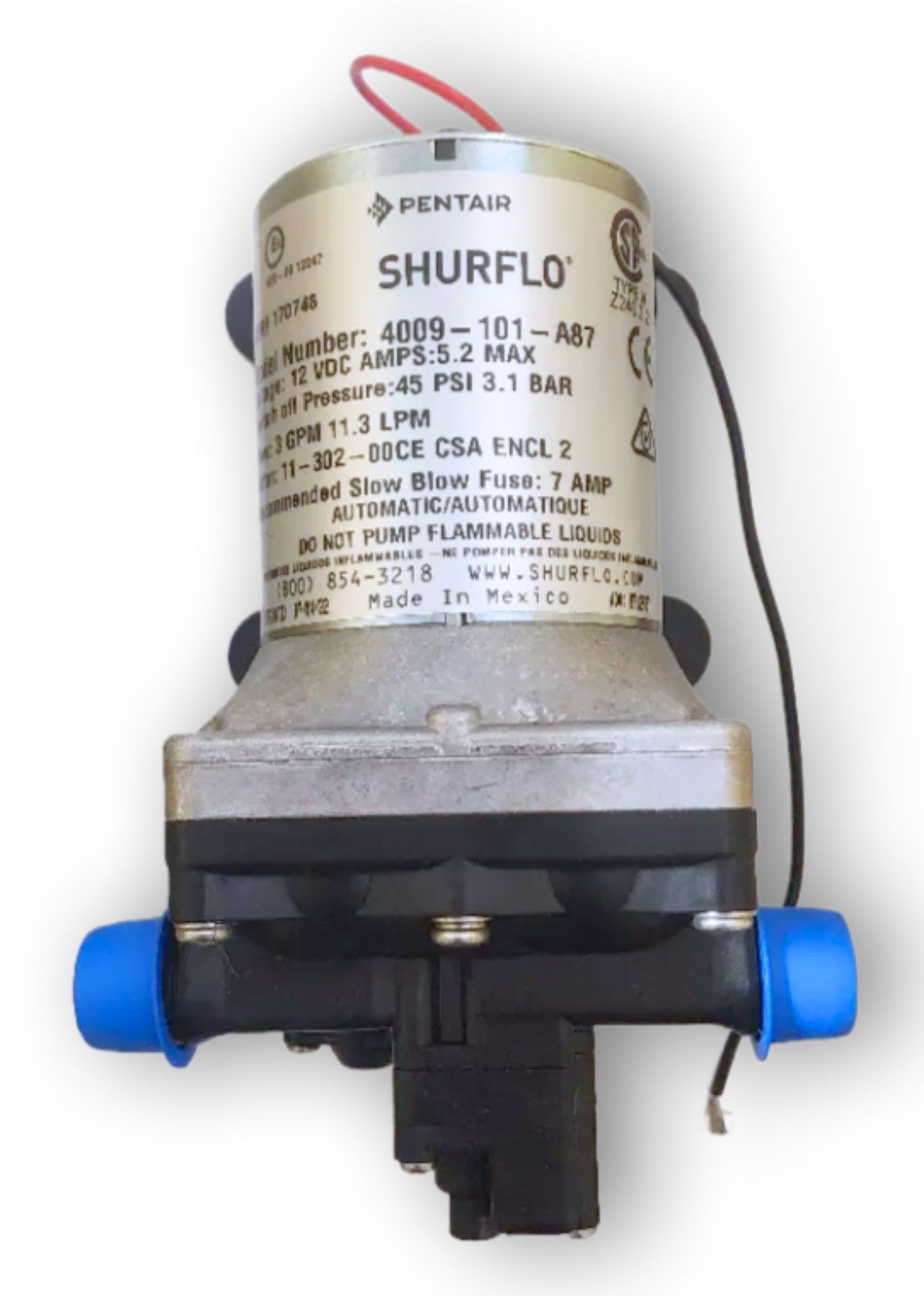

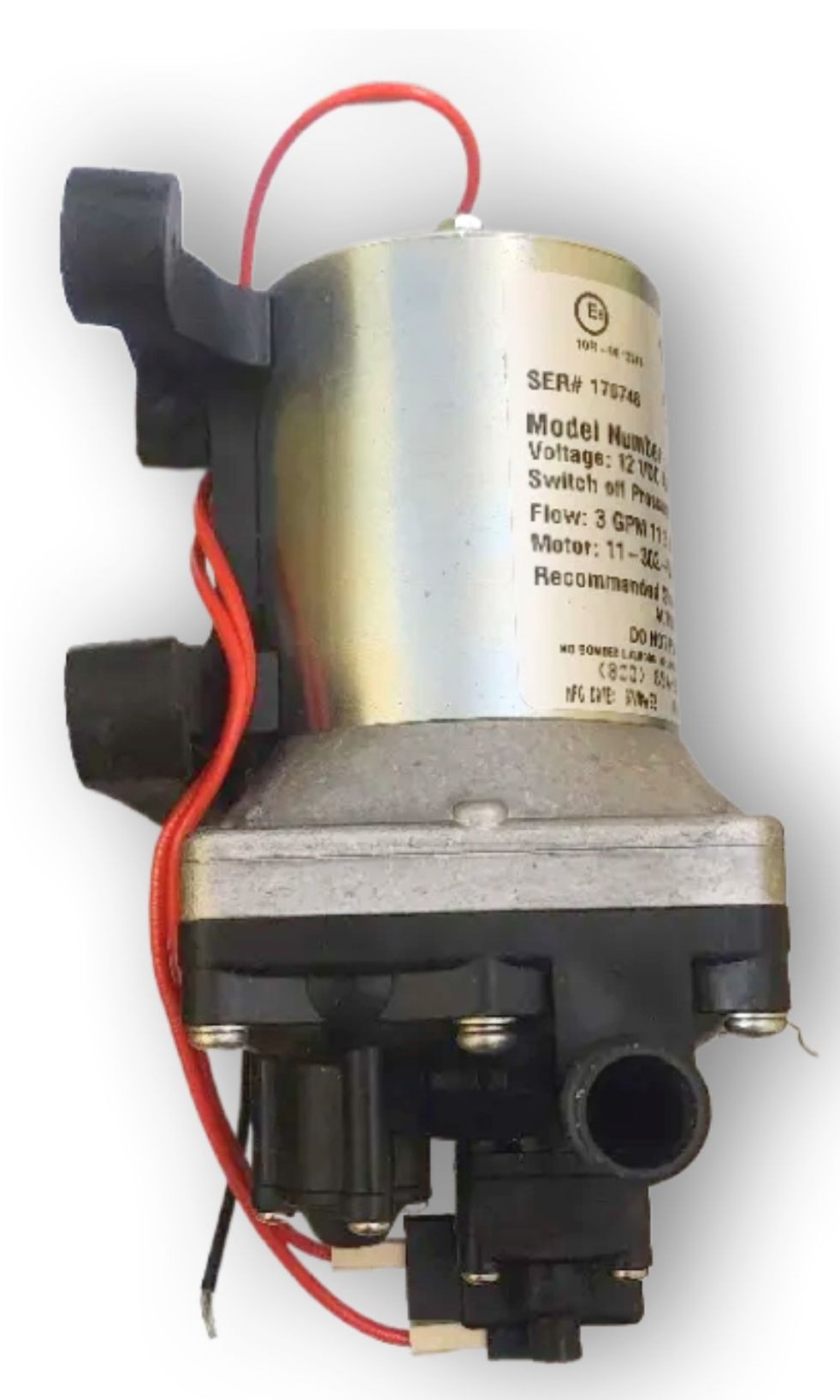

Shurflo Pump Fresh Water Shurflo RV 12v 11.3l/m 45psi – Pump Only 4009-101-A87
This listing is for the pump only it does not come with any other fixtures/fittings. We can order them for you if your require.
ITEM DESCRIPTION:
SHURflo’s New 4009 series fresh water pump design was created with unique one-piece diaphragm and internal by-pass, assuring long life and top performance in all RV plumbing systems. Designed as the next legendary pump to exceed the expectations of our customers, the 4009 series pump is constructed for high flow demand, low noise and no rapid cycling. SHURflo’s quality reputation has been built on the reliability and dependability of every pump Shurflo build. The 4009 series fresh water automatic demand pump is super quite, thermally protected and can run
dry without damage
dry without damage
• Designed for multi-fixture RV installation.
• Suitable for general fresh water transfer.
• Provides quiet automatic demand fresh water supply on, intermittent duty cycle.

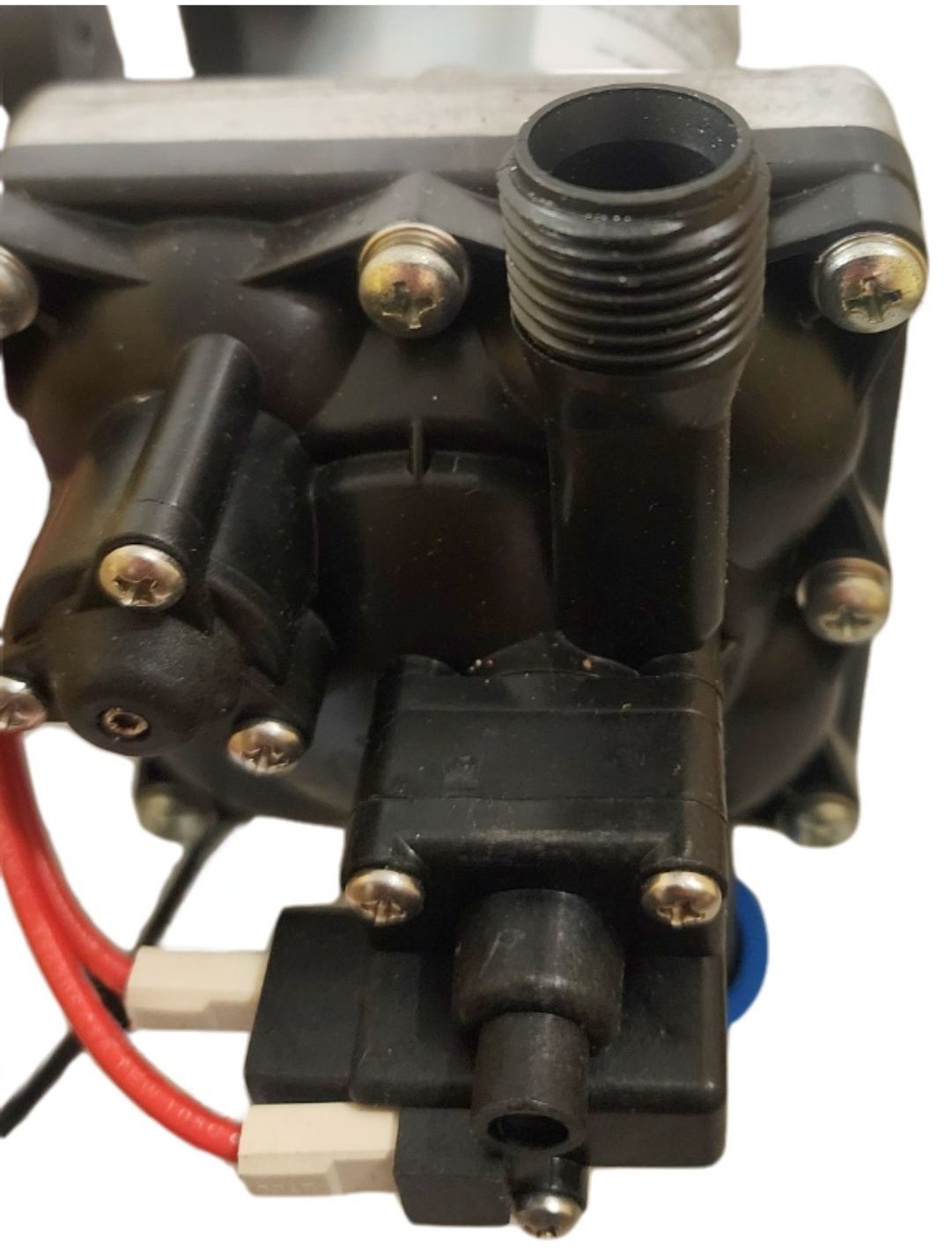

• Ports 1/2 inch NPSM.
• Filter should be mounted remotely from pump. If connecting directly to inlet port, care must be taken not to over-tighten and crack the threaded port.
• RCM Certified to Australian Standards.
• Suitable for general fresh water transfer.
• Provides quiet automatic demand fresh water supply on, intermittent duty cycle.
• Ports 1/2 inch NPSM.
• Filter should be mounted remotely from pump. If connecting directly to inlet port, care must be taken not to over-tighten and crack the threaded port.
• RCM Certified to Australian Standards.
PUMP:
Type: 4 Chamber Diaphragm pump
Ports: 1/2”-14 NPSM-Male.
Liquid: 54 °C [130 °F] Max
Dry-Prime: 1.82 M [6 feet]
Inlet PSI: 2.1 Bar [30 PSI] Max
Run Dry: Yes
Type: 4 Chamber Diaphragm pump
Ports: 1/2”-14 NPSM-Male.
Liquid: 54 °C [130 °F] Max
Dry-Prime: 1.82 M [6 feet]
Inlet PSI: 2.1 Bar [30 PSI] Max
Run Dry: Yes
ELECTRICAL:
Motor: 12VDC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Leads: 16 AWG, 25 cm [10”] Red +, 33 cm [13”] Black –
Fuse: 7 Amp Recommended
Control: Shut-Off 3.1 Bar [45 PSI]
Restart 2.06 Bar [30 PSI]
Max By-Pass 3.4 Bar [50 PSI)
Motor: 12VDC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Leads: 16 AWG, 25 cm [10”] Red +, 33 cm [13”] Black –
Fuse: 7 Amp Recommended
Control: Shut-Off 3.1 Bar [45 PSI]
Restart 2.06 Bar [30 PSI]
Max By-Pass 3.4 Bar [50 PSI)
MATERIALS:
Housing: Polypro
Valves: EPDM
Diaphragm: Santoprene
Hardware: Stainless and Zinc Plated Steel
Housing: Polypro
Valves: EPDM
Diaphragm: Santoprene
Hardware: Stainless and Zinc Plated Steel

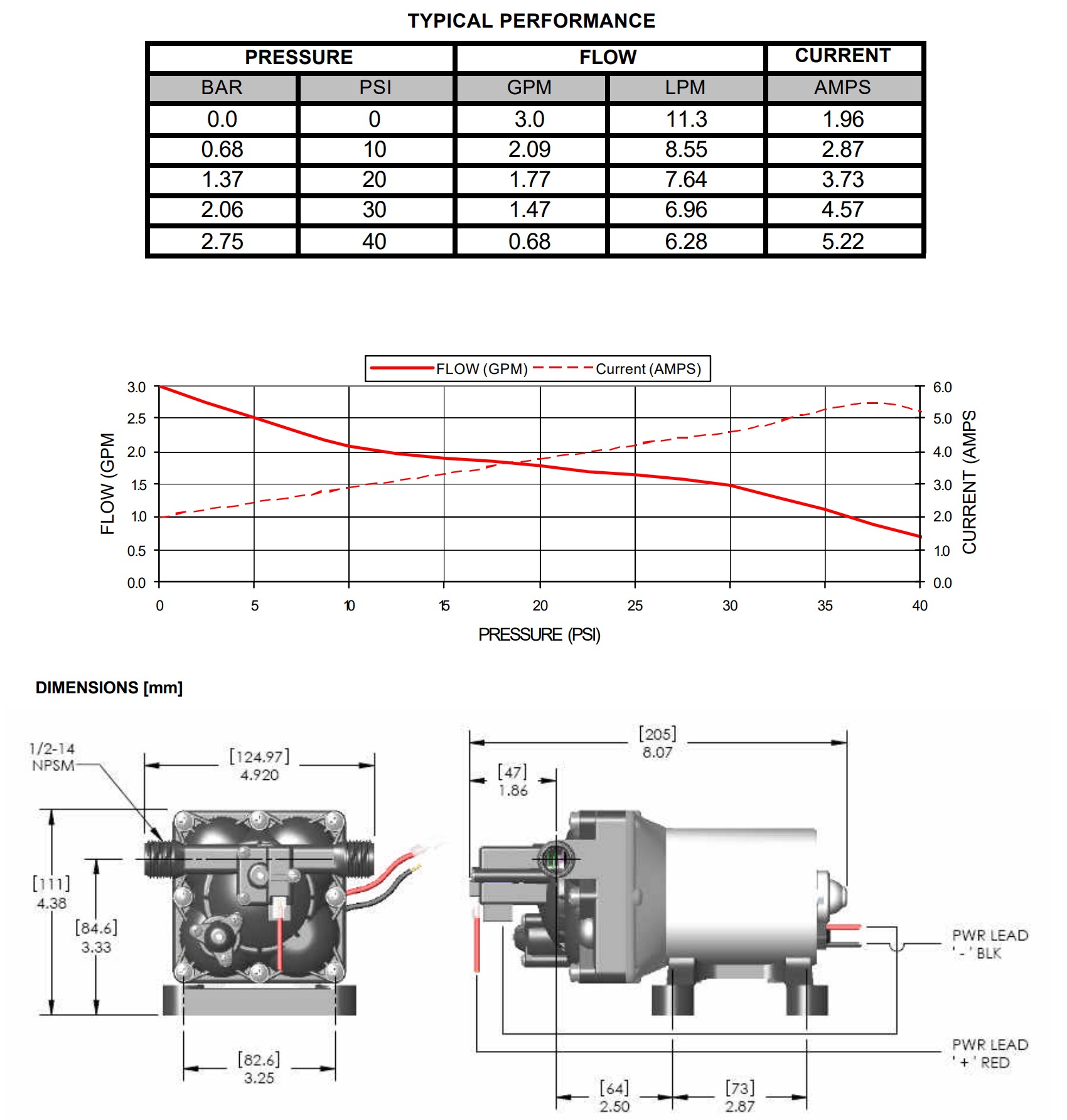

| SPECIFICATIONS |
| Part No. | SAW-239500 |
| Length | 205mm |
| Width | 125mm |
| Height | 111mm |
| Volts | 12V |
| Amp | 5.3A |
| Flow Rate | 3.0 GPM (11.3 LPM) |
| Shut-Off Pressure | 45 PSI |
| Port Size Inlet / Outlet | 1/2 inch NPSM |
| Note | Caravan and RV use ONLY, Not rated for marine use. Pump must be installed in a dry, dust free location. Do not use Teflon thread tape or sealing compound on pump threads. |
Check out our listing for the matching Water Pump Filter Shurflo In-Line Strainer 1/2″ Male Inlet X 1/2″ NPSM Outlet, EPDM O-Ring 255-313 .
