Description

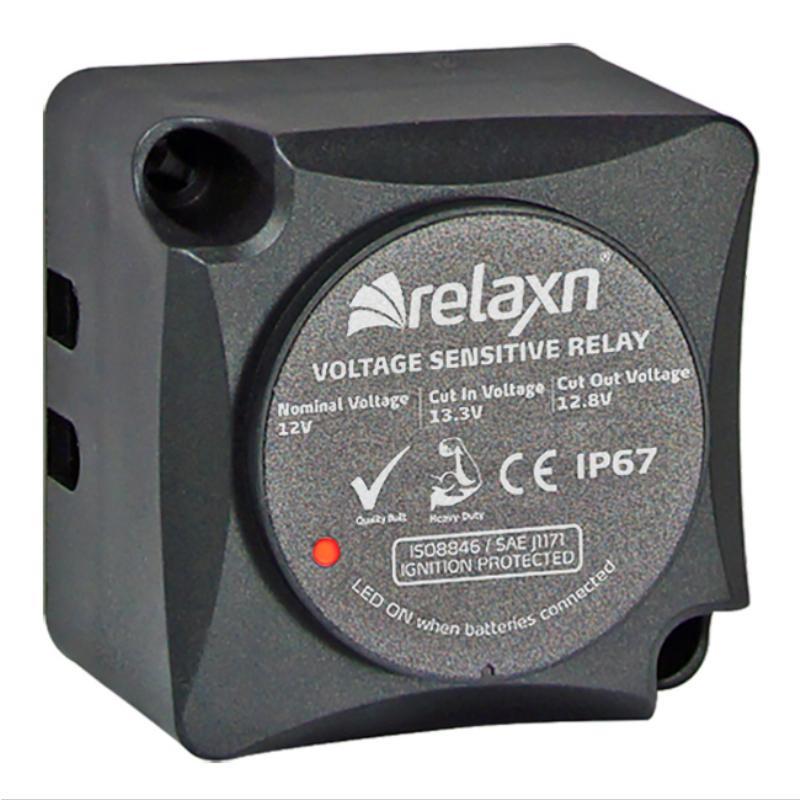

RELAXN Voltage Sensitive Relay – 125 Amp @ 12V / SAW-53083
This is a voltage sensitive relay ideal for dual battery systems or to switch high current appliances.
HIGHLIGHTS
- Suits ATV, boats, RV’s, caravans and trucks.
- VSR allows 2 batteries to be charged at the same time, once start battery reaches cut-in voltage.
- No voltage drops compared to battery isolator diodes (0.6V).
- Robust glass fibre reinforced nylon enclosure.
- M6 stud size.
- Built-in LED indication (ON when VSR engages).
- Surface or panel mount options provide flexibility when installing.
- Load rating @12V:
- 125A maximum continuous.
- 140A intermittent.
- Power consumption:
- 0mA (storage).
- 10mA (standby).
- 330mA (engage).
- Ignition protection.
- Mounting hardware included.
- CE certified.
SPECIFICATIONS
- VOLTS 12V
- MAXIMUM CONTINUOUS LOAD (AMP) 250mm
- RATED PROTECTION IP67
- LENGTH 68mm
- WIDTH 68mm
- DEPTH 58mm
- CUT-IN 13.3V
- CUT-OUT 12.8V
