Description
RELAXN 500 Folding T-Top with Black Canvas, Powder Coated/Anodised, White Tube / SAW-293413
- Gloss powder coat finish.
- 2″ (51mm) diameter premium high tensile aluminium tubing.
- 4 stand offs included (max 190mm).
- Universal design fits consoles up to 128cm wide.
- Prefabricated, pre-welded construction.
- Assembles and installs without welding.
- INCLUDED: Marine Grade 316 Stainless Steel fasteners, black acrylic canvas with lashing
- When not in use, this folds forward.
- The seven (7) solid plates in the canopy provide mounting points for lights, antenna, radar, outriggers and much more.
SPECIFICATIONS
- PRODUCT CODE: SAW-293413
- LENGTH: 2083mm
- WIDTH: 1550mm
- HEIGHT: 2195mm
- GRAB RAIL HEIGHT: Min 1674mm – Max 2018mm
- SUPPORT LEGS WIDTH: Min 488mm – Max 1280mm
- TUBE FINISH: WHITE
- CANVAS COLOUR: BLACK
- TYPE: FOLDING T-TOP
- COMPATIBLE ROCKET LAUNCHER: SAW-293405 or SAW-293404 (Sold seperately)
FEATURES OF ACRYLIC CANVAS TOP
- Heavy-duty, solution dyed yarn filtering up to 90% of the suns heat and light.
- Water repellent.
- UV stabilised.
- Easy to clean.
- Lashing included.
NOTE Add strength and rigidity with the use of V Brace Stabiliser.

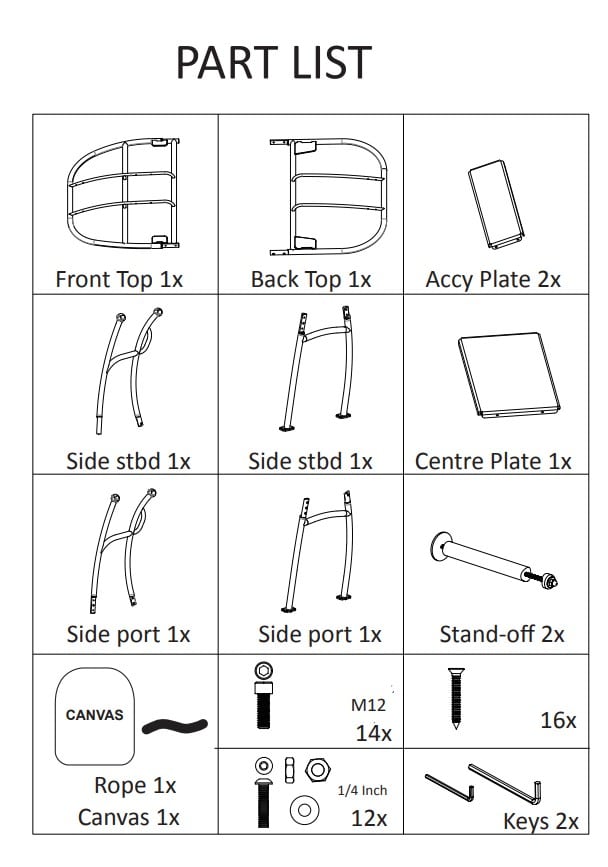

For further technical information, refer to image gallery for full drawing. 2195x1550x2083mm
