Description

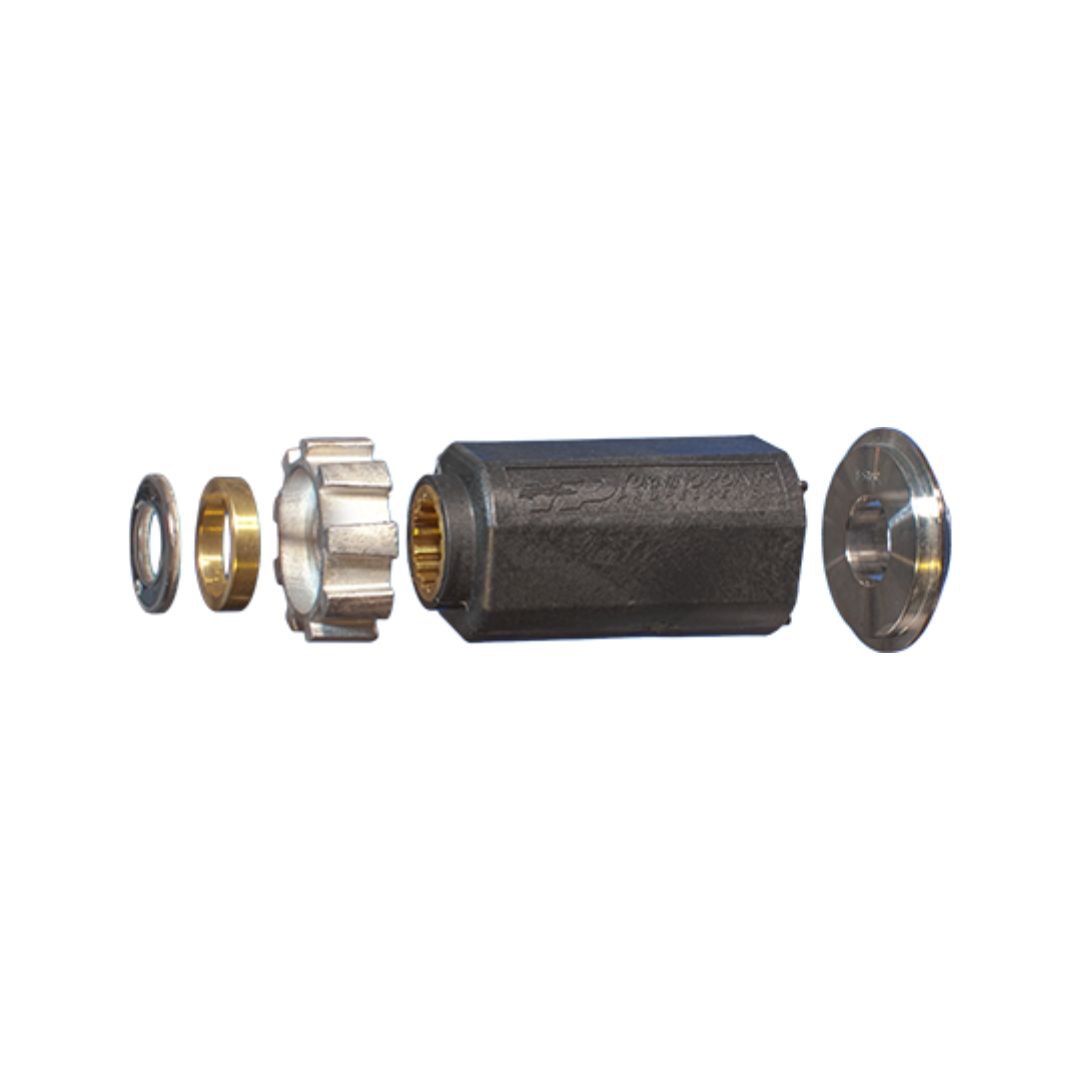

TURNING POINT Masterguard Propeller Hub – 507 Kit, Honda/Nissan/Tohatsu/Suzuki, 40-150+HP with a 4.25″ Gearcase and 90-300+HP with a 4.75″ Gearcase
These Turning Point’s Masterguard 507 Series Installation Propeller Hub Kits are suitable for 40-150HP Engines with a 4.25″ Gearcase and 90-300+HP Engines with a 4.75″ Gearcase.
The hub system enables the end-user to economically carry a spare or different diameter/pitch propeller to suit the days skiing, fishing or cruising activities.
500 & 700 SERIES INSTALLATION KITS FEATURES
- Premium corrosion resistant brass splines.
- Eliminate hub system vibration & chatter.
- Reduce gear shock & engine/drive damage.
- Reduce prop replacement cost by up to 50%.
- Compatible with and upgrades competitors’ hub & prop systems.
- Interchangeable with Mercury Flo-Torq II, Michigan Wheel XHS, Solas Rubex hub kit systems.
NOTE: These are not applicable with Turning Point’s 10, 20 and 200 Hub Kit series.
HUB KIT SPECIFICATIONS
| ENGINE BRAND | SPLINE SHAFT | HORSEPOWER | SUITS ENGINES | KIT | PART NUMBER |
| HONDA | 15 | P60 / 75, 90 (‘99+) / 100, 115, 130 HP (not 115D) | 40-150HP with 4.25″ Gearcase | 507 | 203507 |
| NISSAN AND TOHATSU | 15 | BFT (‘14+): W60, 60, 75, 90HP | 40-150HP with 4.25″ Gearcase | 507 | 203507 |
| HONDA | 15 | NOTE: Use 707 Super Duty Kit for 200+hp Engines. BF115D, BF135, BF150, BF200 (’02-’12), BF225 (’02-’12) | 90-300+HP with 4.75″ Gearcase | 507 | 203507 |
| SUZUKI | 15 | NOTE: Use 707 Super Duty Kit for 200+hp Engines. BF115D, BF135, BF150, BF200 (’02-’12), BF225 (’02-’12) | 90-300+HP with 4.75″ Gearcase | 507 | 203507 |
TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER HUB KIT & PROPELLER
To find the correct Installation Kit: locate the HP, gearcase size, and prop shaft spline count of the outboard or sterndrive.
- STEP 1: Find the installation kit suitable to your outboard engine drive shaft type listed in the table above. If the type is not listed, kindly check other Turning Point’s hub kits.
- STEP 2: Find and purchase the chosen propeller suitable to the installation kit (see listed propellers below) (NOTE: Propellers must be purchased seperately.)
The following are the suitable propellers to this installation kit:
- Turning Point Aluminium 3 Blade Hustler Propeller LE Models for (90-300+HP)
- 202413 LE-1515 / 15.25 Dia. x 15 Pitch
- 202417 LE-1417 / 14.25 Dia. x 17 Pitch
- 202421 LE-1419 / 14.25 Dia. x 19 Pitch
- 202425 LE-1421 / 14.25 Dia. x 21 Pitch
- 202429 LE-1423 / 14.25 Dia. x 23 Pitch
- Turning Point Aluminium 3 Blade Hustler Propeller LE1/LE2 Models for (40-150HP)
- 202335 LE1/LE2-1411 / 14 Dia. x 11 Pitch
- 202337 LE1/LE2-1413 / 14 Dia. x 13 Pitch
- 202321 LE1/LE2-1315 / 13.75 Dia. x 15 Pitch
- 202322 LE1/LE2-1317 / 13.25 Dia. x 17 Pitch
- 202329 LE1/LE2-1319 / 13.25 Dia. x 19 Pitch
- 202333 LE1/LE2-1321 / 13.25 Dia. x 21 Pitch
- Turning Point Aluminium 4 Blade Hustler Propeller LE Models for (90-300+HP)
- 202426 LE-1515-4 / 15 Dia x 15 Pitch
- 202427 LE-1515-4L / 15 Dia x 15 Pitch
- 202430 LE-1417-4 / 14.5 Dia x 17 Pitch
- 202431 LE-1417-4 / 14.5 Dia x 17 Pitch
- 202432 LE-1419-4 / 14 Dia x 19 Pitch
- 202433 LE-1419-4L / 14 Dia x 19 Pitch
- 202434 LE-1421-4 / 14 Dia x 21 Pitch
- 202435 LE-1421-4L / 14 Dia x 21 Pitch
- Turning Point Aluminium 4 Blade Hustler Propeller LE1/LE2 Models for (40-150HP)
- 202339 LE1/LE2-1413-4 / 14 Dia. x 13 Pitch
- 202340 LE1/LE2-1315-4 / 13.5 Dia. x 15 Pitch
- 202342 LE1/LE2-1317-4 / 13.25 Dia. x 17 Pitch
- 202344 LE1/LE2-1319-4 / 13 Dia. x 19 Pitch
- 202346 LE1/LE2-1321-4 / 13 Dia. x 21 Pitch
- Turning Point Mach3 EXPRESS 3 Blade Stainless Steel Propeller EX Models for (90-300+HP)
- 202813 EX-1417 / 14.25 Dia. x 17 Pitch
- 202815 EX-1419 / 14.25 Dia. x 19 Pitch
- Turning Point Mach3 EXPRESS 3 Blade Stainless Steel Propeller EX1/EX2 Models for (40-150HP)
- 202715 EX1/EX2-1315 / 13.75 Dia. x 15 Pitch
- 202717 EX1/EX2-1317 / 13.25 Dia. x 17 Pitch
- 202719 EX1/EX2-1319 / 13.25 Dia. x 19 Pitch
- Turning Point Mach4 Express 4 Blade Stainless Steel Propeller EX Models (90-300+HP)
- 202850 EX-1515-4 / 15 Dia. x 15 Pitch
- 202852 EX-1417-4 / 14.5 Dia. x 17 Pitch
- Turning Point Mach4 EXPRESS 4 Blade Stainless Steel Propeller EX1/EX2 Models for (40-150HP)
- 202768 EX1/EX2-1317-4 / 13.25 Dia. x 17 Pitch
- 202770 EX1/EX2-1319-4 / 13 Dia. x 19 Pitch
- 202780 EX1/EX2-1319-4L / 13 Dia. x 19 Pitch
- 202781 EX1/EX2-1321-4 / 13 Dia. x 21 Pitch
- 202782 EX1/EX2-1321-4L / 13 Dia. x 21 Pitch
- Turning Point Mach3 Express 3 Blade Stainless Steel Propeller OS Series, Large Diameter (90-300+HP)
- 202900 OS-1617 / 15.6 Dia. x 17 Pitch
- 202902 OS-1619 / 15.6 Dia. x 19 Pitch
ABOUT TP’S MASTERGUARD HUBS
- The hubs are engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use.
- It is also designed as a innovative one-piece glass with reinforced high-tech, shock absorbing, polymer cushion that increases flexibility and eliminates failures commonly seen in multi-part hub “sleeve and spline” designs, and pressed-in rubber hub systems.
- The high-flow through barrel exhaust system maximises exhaust flow increasing horsepower and top end speed.
- When buying a replacement propeller housing, boaters can save in costing as Turning Point offers an inventory reducing installation kits and prop housings system made to be in full line of propeller applications. The 500 & 700 Series Installation Kits (for 4.25 & 4.75″ gearcases) interchanges with other manufacturers’ propellers.
- With clear and easy to understand directions to make installation easy and convenient.
- The splines are made of premium corrosion resistant brass material.
- The hubs are suitable to upgrade and replace Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems.
