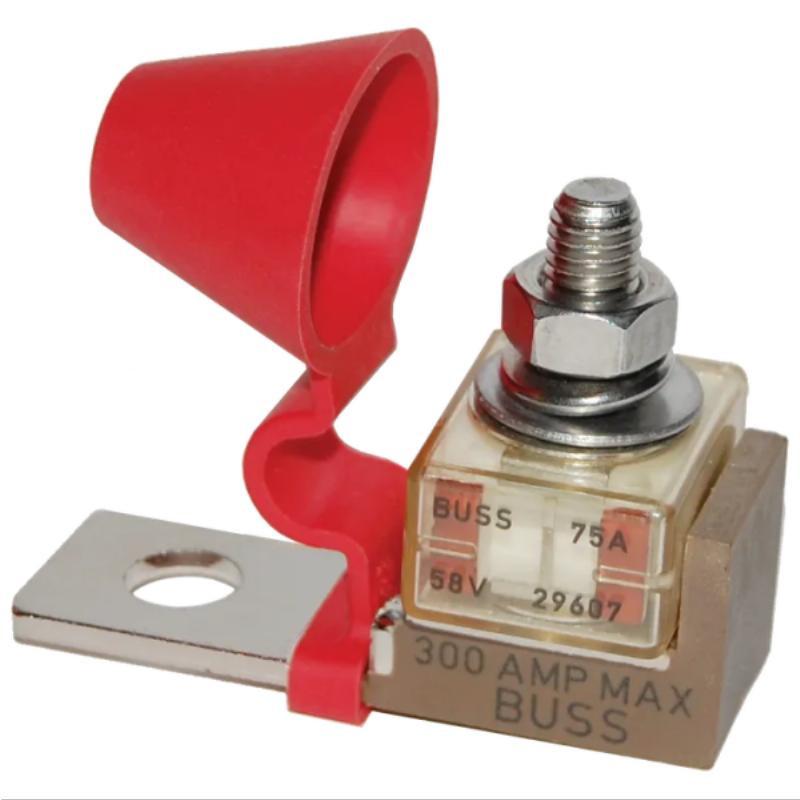

MRBF Terminal Fuse Block for Single Fuse

BLUE SEA – MRBF Terminal Fuse Block for Single Fuse / BS-5191

Original price was: $53.90.Current price is: $46.45. inc GST

SKU: BS-5191

BLUE SEA – MRBF Terminal Fuse Block for Single Fuse / BS-5191

In stock

ENQUIRY!
Add to wishlist
Compare
SKU: BS-5191 Category:

UPC: 632085051914

Condition:  New

In stock

NOTE - Please call us to check availability & leadtimes prior to ordering as not all Blue Seas items are carried in stock.

Description

Description

BLUE SEA – MRBF Terminal Fuse Block for Single Fuse / BS-5191

HIGHLIGHTS

  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection.
  • Provides high current protection in tight space constraints.
  • Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse.
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals.
  • Insulating cap prevents accidental shorts.
  • Accepts 5∕16″ ring terminals.
  • Mounts on 3/8” terminal studs.
  • Fuse sold separately.

SPECIFICATIONS

  • PART NUMBER: BS-5191
  • IGNITION PROTECTED: NO
  • MAXIMUM AMPERAGE: 300A
  • MAXIMUM VOLTAGE: 58V DC
  • TERMINAL STUD: M8 (5/16″)
  • MAXIMUM TORQUE:75 in-lb (8.47 Nm)
  • WEIGHT 0.07 kg (0.16 lb)

OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 67mm x 146mm x 44mm
