Description

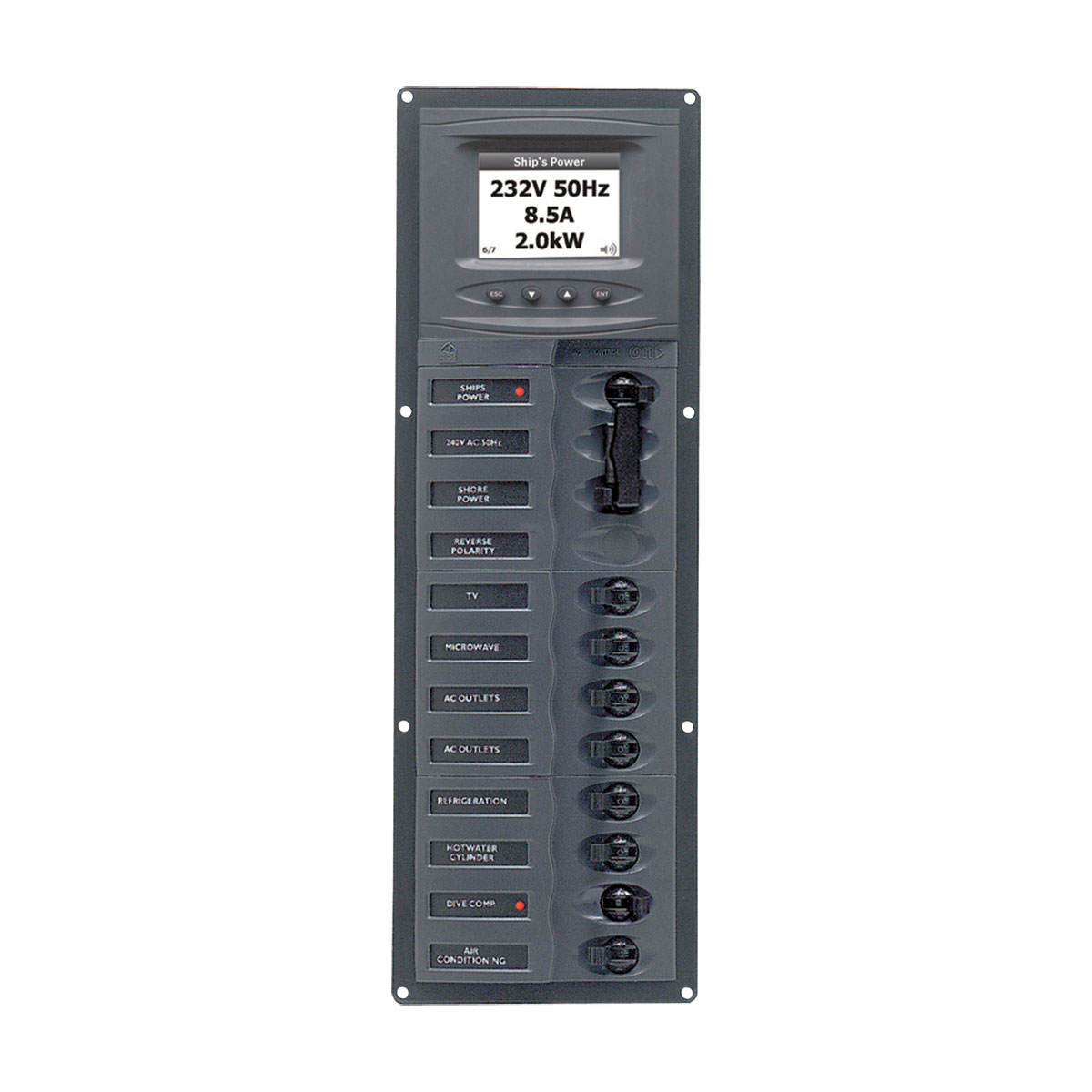

BEP ‘Contour AC’ Circuit Breaker Control Panel 8 + main Circuits 127x385mm With Digital meter
Contour style circuit breaker control panels with two double pole mains circuit breakers and change over control slide. Ship/shore transfer switch features a slide gate that will only allow either shore power or ship power to be operational at any one time (113219 and 113221 excluded). For standard twin input systems such as one shore power and one genset input use 113218 or like. Supplied with either analogue or digital metering: analogue meters for either AC volts or amps; digital meters switchable to show AC volts, amps and frequency. For digital meter specifications refer page 205.
Features:
• Analogue volt meters, 2.5% of full scale accuracy
• AC digital meters, high resolution 12mm high figures in LCD display, low power dissipation, 200 mV sensitivity, 1% accuracy
• Durable black powder coated marine grade aluminium base panel
• Stylish curved plastic facias covering all circuit breakers
• Marine quality, magnetic, hydraulic, UL listed, trip free breakers
• Backlit labels (set five supplied),
• Suitable sized negative busbar supplied,
• Red LED identification for circuits ‘on’
• Green LED back lighting for meters and labels
• Two double pole mains circuit breakers with change over control slide for ship or shore power input (113219 and 113221 excluded)
• Rated to 250v AC (110 volt option available)
• Digital metered panels supplied with AC volt transducer module and 2 x current transformers
• Reverse polarity indicator
| SKU | Circuits | Overall Size W x H |
Cut Out Size W x H |
Intrusion mm |
Meter | Label Sheet |
System Circuit Breakers Single Pole |
Mains Circuit Breakers Double Pole |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 amp |
10 amp |
15 amp |
20 amp |
25 amp |
20 amp |
25 amp |
30 amp |
50 amp |
|||||||
| mm | |||||||||||||||
| 113218 | 2 + mains | 127 x 115 | 107 x 95 | 65 | None | 5 | – | – | – | – | – | 2 | – | – | – |
| 113219 | 2 + mains | 127 x 115 | 107 x 95 | 65 | None | 5 | – | 2 | – | – | – | 1 | – | – | – |
| 113220 | 4 + mains | 239 x 115 | 219 x 95 | 65 | None | 5 | – | 2 | 2 | – | – | 2 | – | – | – |
| 113221 | 6 + mains | 127 x 200 | 107 x 180 | 65 | None | 5 | 1 | 2 | 3 | 1 | – | 1 | – | – | – |
| 113222 | 8 + mains | 239 x 200 | 219 x 180 | 65 | Digital | 5 | 1 | 3 | 3 | 1 | – | – | 1 | 1 | – |
| 113224 | 8 + mains | 239 x 200 | 219 x 180 | 65 | Analogue | 5 | 1 | 3 | 3 | 1 | – | – | 1 | 1 | – |
| 113226 | 8 + mains | 127 x 385 | 107 x 365 | 65 | Digital | 5 | 1 | 3 | 3 | 1 | – | – | 1 | 1 | – |
| 113230 | 12 + mains | 351 x 200 | 331 x 180 | 65 | Digital | 5 | 1 | 4 | 5 | 1 | 1 | – | – | 1 | – |
| 113234 | 16 + mains | 351 x 200 | 331 x 180 | 65 | Digital | 5 | 1 | 5 | 7 | 2 | 1 | – | – | 1 | 1 |
On 24 volt vessels, the drop resistors below will be required to supply 12 volt to the LED circuit.113461 Drop resistor BEP 8 way suits 113220 & 113221
113462 Drop resistor BEP 12 way suits 113224 & 113226
113463 Drop resistor BEP 16 way suits 113230
113366 PCB Assembly 4 way AC
113367 PCB Assembly 8 way AC
113368 PCB Assembly 12 way AC
Circuits: 8 + Mains Overall Size WxH: 127mm x 385mm Cut Out Size WxH: 107mm x 365mm Intrusion mm: 65mm Meter: Digital Label Sheet: 5
