Hydrive Admiral Hydraulic Outboard Kit 1 – OBKIT1

$1,535.00 inc GST

or 4 payments of $383.75 with Wizit learn more

Hydrive Admiral Hydraulic Steering Kit 1 – OBKIT1 suit outboards up to 300HP

Pay by  Add to cart.

In stock

Select delivery location

UPC:

Condition:  New

In stock

Due to size - item will be sent via regular post.

Plesae contact us to confirm stock.

Description

Description

Hydrive Admiral Hydraulic Steering Outboard Kit 1 – OBKIT1

The Hydrive hydraulic steering system is manufactured in Australia using high-quality materials, ensuring durability and longevity. HyDrive Engineering Pty Ltd began manufacturing hydraulic boat steering equipment in South Australia from 1966 and since that time, has been one of the world leaders in boat steering technology.

The Admiral Series features the 7 piston 401 helm pump with 3/4″ morse taper, 2 litres of Hydrive hydraulic tubing fluid, 15 metres of hydraulic tubing, bleeder kit, drill template, necessary fittings and detailed instructions. Suits average boats up to 7m.

  • Model: OBKIT1

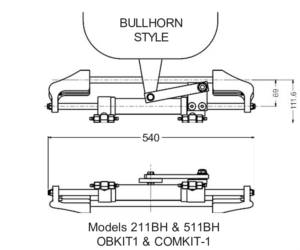

  • Ram Style: Bullhorn
  • Length: 540mm
  • For Outboards: up to 300HP or Dual outboards counter-rotating up to 600HP total

Admiral_commander-installation-manual

Admiral-brochure-new-outboards-sterndrives

Data-Sheet-OBKIT1

401 Help Specifications:

  • Helm Capacity: 28cc/rev
  • In-built lock valve
  • Maximum Working Pressure: 1000psi
  • Absolute Working Pressure: 1500psi
  • Weight: 5kg
  • Lock to Lock turns: 5.5

211BH Cylinder Specifications:

  • Cylinder Capacity: 154cc
  • Stroke: 203mm
  • Weight: 5kg

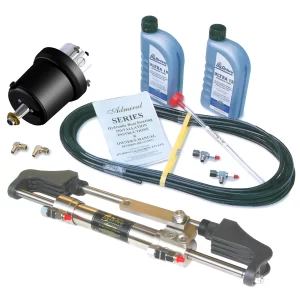

Kit Includes:

  • 1 x 401N8 Helm
  • 1 x 211BH Cylinder
  • 2 x 1 Litre ULTRA-15 Fluid
  • 15 metres (50 foot) x 3/8″ OD Nylon Hydraulic Tubing
  • 1 x Bleeder Kit
  • Fittings Kit
  • Installation Manual



SIMPLE INSTALLATION TO ANY OUTBOARD**
See steering circuits for multiple outboards and catamaran installation options.

**For some model Honda and other 4-strokes the
211BH-Honda version is required to avoid interference
on motor cowling.
