Description
Hansen Turbo Twist Washdown Nozzle / HWDNTT
This is a non-pack version. For pack version, refer to HWDNTTPACK Turbo Twist Washdown Nozzle Pack (Available as seperate purchase).
Get the job done fast! Hansen takes Washdown to the next level with the introduction of the Hansen Turbo-Twist and Turbo-Sweep. With speed and overall performance in mind, the Nozzles work effectively to dislodge and move dung, dirt and residue from concrete Washdown surfaces with ease and brilliance. Built with versatility in mind, the Hansen Turbo-Twist and Turbo-Sweep have been optimised to operate with 25mm to 50mm hose pipe.
SPECIFICATIONS
- PRODUCT CODE: HWDNTT
- CODE MEANING: HANSEN WASHDOWN NOZZLE TURBO TWIST
- SPARE PARTS: (Available as seperate purchase)
- HWDHT4040 40mm x 40mm (1 1/2″ x 1 1/2″) Washdown Hose Tail
- HWDHT4032 40mm x 32mm (1 1/2″ x 1 1/4″) Washdown Hose Tail
- HWDSHT5040 50mm x 40mm (2″ x 1 1/2″) Washdown Swivel Hose Tail
- HWDSHT5032 50mm x 32mm (2″ x 1 1/4″) Washdown Swivel Hose Tail
- HWDSM5040 50mm x 40mm (2″ x 1 1/2″) Washdown Swivel Male BSPT
- HWDSM5032 50mm x 32mm (2″ x 1 1/4″) Washdown Swivel Male BSPT
- HWDNTTSK Turbo Twist Service Kit

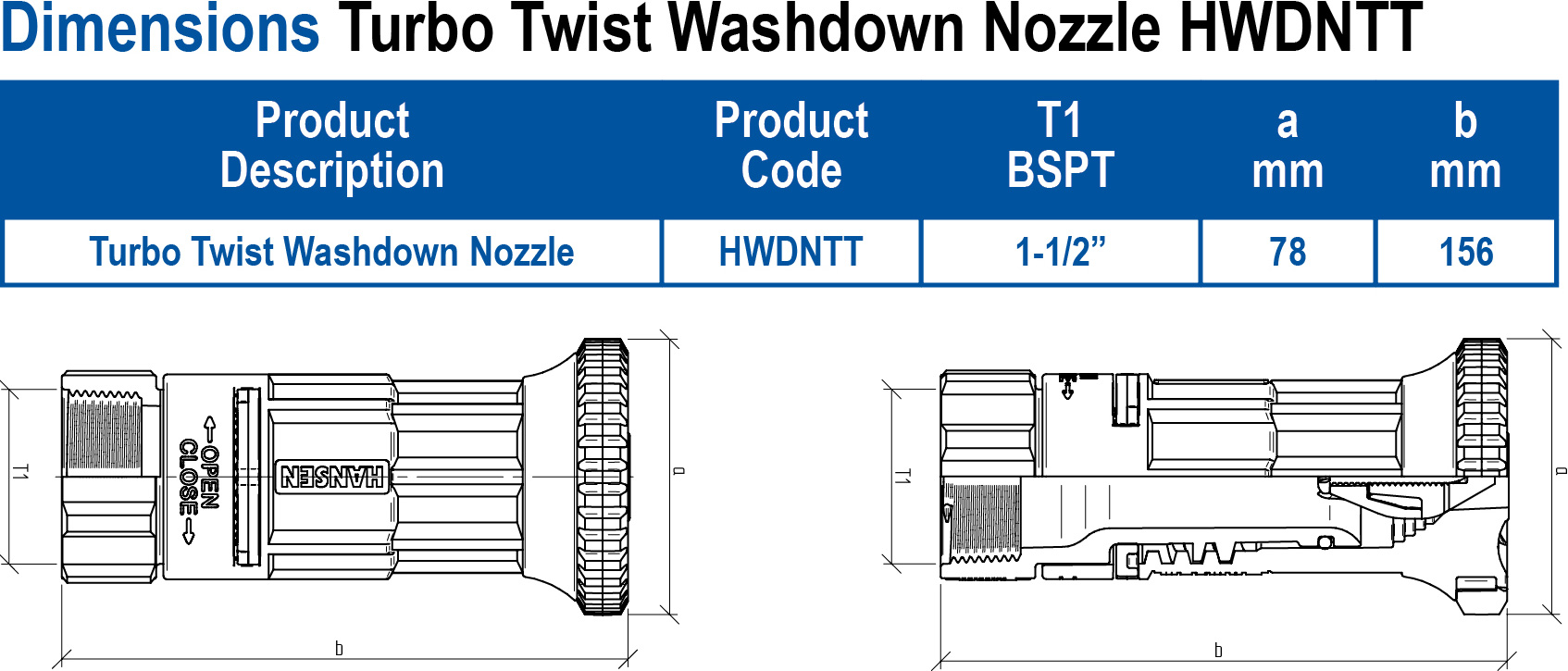

DIMENSIONS (Refer to image gallery for sizing guide)
- T1 BSPT: 1 1/2″
- SIZE a: 78mm
- SIZE b: 156mm
PRESSURE AND FLOW RATES
- MAXIMUM PRESSURE @ 20ºC/68F: 8 Bar (800 kPa, 116psi)
CHEMICAL RESISTANCE CHART OF TURBO TWIST AND TURBO SWEEP WASHDOWN NOZZLE
- Please refer to the attached images for full chart of chemical resistance.
ABOUT HANSEN WASHDOWN NOZZLES
- Hansen Products has been designing and manufacturing pipe fittings and valves for over 60 years and
now boasts an extensive and impressive range with a reputation for quality, reliability and ease of use. - The winning formula that has been applied to the product range since the 1950s, has ensured a loyal
customer following through the generations. Hansen Products have now decided to release their new
range of Washdown Nozzles and accessories. - Get the job done fast! Hansen takes Washdown to the next level with the introduction of the Hansen
Turbo Twist and Turbo Sweep. With speed and overall performance in mind, the Nozzles work effectively
to dislodge and move dung, dirt and residue from concrete Washdown surfaces with ease and brilliance. - Built with versatility in mind, the Hansen Turbo Twist and Turbo Sweep have been optimised to operate with 25mm to 50mm hose pipe.
- With over 60 years experience in manufacturing, Hansen Products knows the importance that pipe
fittings play in the performance and control of fluid delivery, flow and pressure within a pipe system. - This has seen Hansen Products build a reputation for providing high performance, easy to use,
innovative, simple products that provide our customers with “Best Installed Value”. All Hansen products
carries the Hansen Warranty.
FEATURES AND BENEFITS
- Handles hard knocks, absorbs shock and gives maximum resistance when dropped on hard surfaces.
- Hard wearing, industrial strength materials for a long life.
- Easy turn action and built in clever reverse click allows for control of flow and prevents turning on if dropped.
- Turbo charged power delivers maximum cleaning with concentrated flow.
- The Turbo Twist and Turbo Sweep are ideal for yard washing, high pressure washing, vehicles, meat works, factories and marine.
- Easy grip body provides excellent grip when working with wet hands.
- Large 40mm (1 1/2″) inlet provides maximum flow potential for fast and effective washdowns.
ABOUT HANSEN TURBO TWIST WASHDOWN NOZZLE FEATURES AND BENEFITS
- A better way to wash. Test results demonstrate you will save time with a higher and more
concentrated flow, delivering 20% more cleaning power in comparison to comparable products. - Handles hard knocks, absorbs shock and gives maximum resistance when dropped on hard
surfaces. - Hard wearing, industrial strength materials for a long life.
- Easy turn action and built in clever reverse click allows for control of flow and prevents turning
on if dropped. - Turbo charged jet power delivers maximum cleaning power with concentrated flow.
- The Turbo˙Twist is ideal for yard washing, high pressure washing, truck wash, meat works,
factories and marine. - Easy grip body provides excellent grip when working with wet hands.
- Large 40mm inlet provides maximum flow potential for fast and effective washdowns.
ADD THESE CONNECTION OPTIONS
Available separately are a range of versatile connection accessories for 25mm to 50mm washdown hose and male or female threaded end connections.
- ULTIMATE SWIVEL No more annoying hose twists. Add a Hansen Ultimate Swivel.
- BASIC STYLE Add Hansen male hose adaptors for easy connection.
- NO MORE CUT HANDS No more broken or rusty clamps. Add a Hansen Easy Clamp.

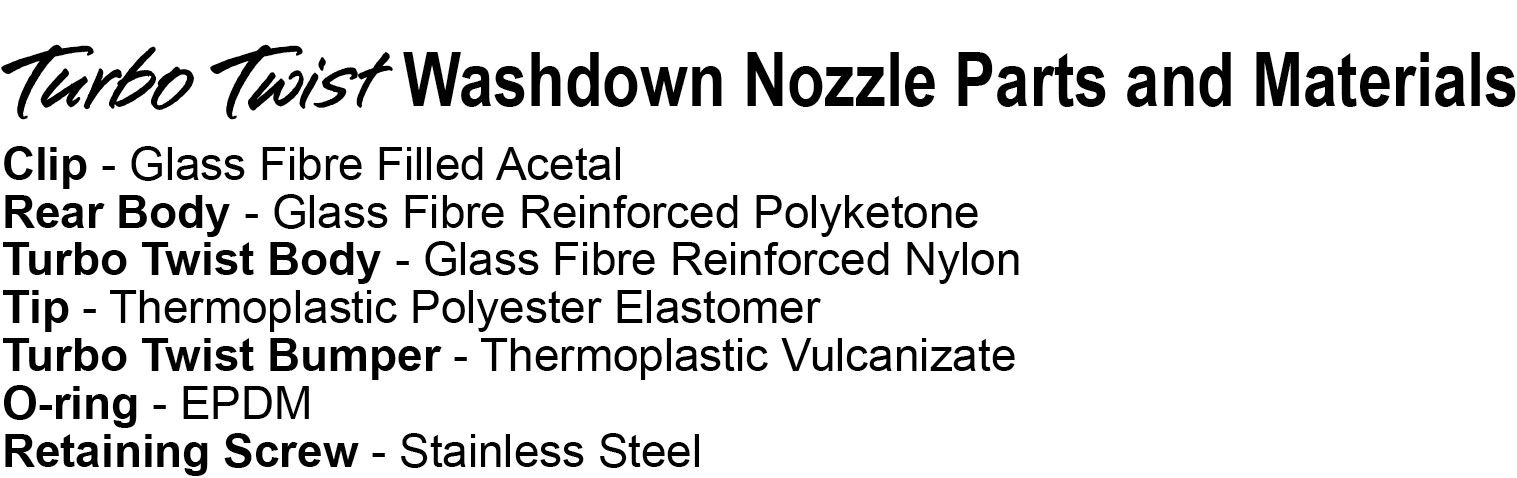

TURBO TWIST WASHDOWN NOZZLE PARTS AND MATERIALS
- CLIP Glass Fibre Filled Acetal
- REAR BODY Glass Fibre Reinforced Polyketone
- TURBO TWIST BODY Glass Fibre Reinforced Nylon
- TIP Thermoplastic Polyester Elastomer
- TURBO TWIST BUMPER Thermoplastic Vulcanizate
- O-RING EPDM
- RETAINING SCREWS Stainless Steel
HANSEN TURBO TWIST WASHDOWN NOZZLE BROCHURE AND CHEAT SHEETS
- Refer to Hansen Australia Website.
HANSEN TURBO TWIST WASHDOWN NOZZLE HANDY TIPS AND COMMERCIAL VIDEOS
- Refer to Hansen Australia Website.
FREQUENTLY ASKED QUESTIONS FOR TURBO TWIST AND TURBO SWEEP WASHDOWN NOZZLE
- QUESTION: How many sizes does the Turbo Twist come in?
- ANSWER: The Turbo Twist is available in a range of versatile connection styles for 25mm to 50mm washdown hose and male or female threaded end connections for custom applications.
- QUESTION: What is the pressure rating?
- ANSWER: The Hansen Turbo Twist & Turbo Sweep are pressure rated to 8 Bar (800 kPa. 116 psi) @ 20 degrees Celsius.
- QUESTION: What temperature can the water be when using the Hansen Turbo Twist or Turbo Sweep?
- ANSWER:The Hansen Turbo Twist & Turbo Sweep are rated to 600 Celsius.
- QUESTION: Are there replacement parts for the Hansen Turbo Twist & Turbo Sweep?
- ANSWER: Yes, there is a range of replacement parts available.
- QUESTION: Is the Turbo Twist & Turbo Sweep adjustable?
- ANSWER: Yes, they have a wide range of action and are quickly adjustable between open to fully closed.
- QUESTION: How much water do they use?
- ANSWER: This is determined in part by your existing washdown system. The best way to move dirt etc is a combination of flow and velocity, which Hansen have taken into account when designing the Turbo Twist & Turbo Sweep.
- QUESTION: What applications can I use a Turbo Twist or Turbo Sweep?
- ANSWER: Ideal for yard wash, or any other applications that require a combination of flow, pressure and velocity such as washing vehicles, meatworks cleanup, vineyard equipment washing, marine applications and so forth.
- QUESTION: I have a 32mm (1 1/4″) hose, will it fit?
- ANSWER: Yes, a 32mm and 40mm adaptor are available for the Turbo Twist & Turbo Sweep.
- QUESTION: Will the Turbo Twist wash a wide strip?
- ANSWER: No but our Turbo Sweep has been designed to wash a 900mm wide strip, and includes an economy mode, normal mode and wide mode all in the one nozzle.
- QUESTION: What hose clamp can I use on the Turbo Twist & Turbo Sweep?
- ANSWER: Hansen have developed a new clamping system which eliminates the traditional stainless steel clamp method. The new Easy Clamp will not cut your hands or wrist, although any hose clamp can be used.
- QUESTION: I’m sick of having to un-twist my hose every day after washing down – how can you solve this?
- ANSWER: Hansen have developed a thoroughly modern connection, the Ultimate Swivel that allows you to complete your washdown without the washdown hose twisting as you make your way around the yard.
