Hansen Mini Fastflo Float

Hansen Mini Fastflo Float HMFFFLOAT

$6.79 inc GST

SKU: HMFFFLOAT

Mini Fastflo Float HMFFFLOAT

In stock

ENQUIRY!
Add to wishlist
Compare
SKU: HMFFFLOAT Category:

UPC: 9414940031504

Condition:  New

In stock

Description

Description

Hansen Mini Fastflo Float / HMFFFLOAT

This is a spare or replacement float only for Hansen Mini Fastflo Valves use.

SPECIFICATIONS

  • PRODUCT CODE: HMFFFLOAT
  • CODE DESCRIPTION: HANSEN MINI FASTFLO FLOAT
  • SUITS THE FOLLOWING MINI FASTFLO ADAPTORS (Available as seperate purchase)
    • HMFFSV15LS Mini Fastflo Valve with 15mm Long Tail Adaptor
    • HMFFSV20LS Mini Fastflo Valve with 20mm Long Tail Adaptor
    • HMFFSV25LS Mini Fastflo Valve with 25mm Long Tail Adaptor

MINI FASTFLO INSTALLATION GUIDE (See visual guide in image gallery)

    TROUGH/TANK INSTALLATION

    • Flush pipe lines into water tank or troughs before installing Mini Fast˙
      Flo Valve into new
      system.

    • Isolate the water going to the bowl, trough or tank to replace valve in an existing system.
    • Thread O-Ring end of correct size Long Tail Adaptor into Mini Fast˙Flo Valve Body and
      tighten firmly enough that the O-Ring creates a seal against the Mini Fast˙Flo Valve Body face. Do not over tighten.
    MINI FASTFLO TOP ENTRY BASIN/TROUGH/TANK

    • TOP ENTRY TROUGH/TANK (See visual guide in image gallery)
      • Place the rubber washer on the long tail adaptor with ribs facing out so that the sealing
        surface is against the bowl/trough/tank wall when adaptor is put through inlet hole.

      • On the outside, place the Poly (hard) Washer on the Long Tail Adaptor with the ribs facing the
        bowl/trough wall. Thread on Adaptor Nut and tighten firmly. Do not over tighten.

      • Screw the Mini Fast˙Flo Float onto the Arm and use the Ezy Clamp to move the float to
        desired position for a water level that suits your requirements.

    WALL THICKNESS GUIDE

      LONG TAIL ADAPTOR

      		 HMAL15

      		 HMAL20

      		 HMAL25

      		 HMAL32

      		 HMAL40

      		 HMAL50
      TANK WALL

      		 14mm

      		 22mm

      		 19mm

      		 24mm

      		 45mm

      		 39mm

      Hansen Long Tail Adaptors Maximum Wall Thickness for Tanks when screwed into a Hansen Female Bend.

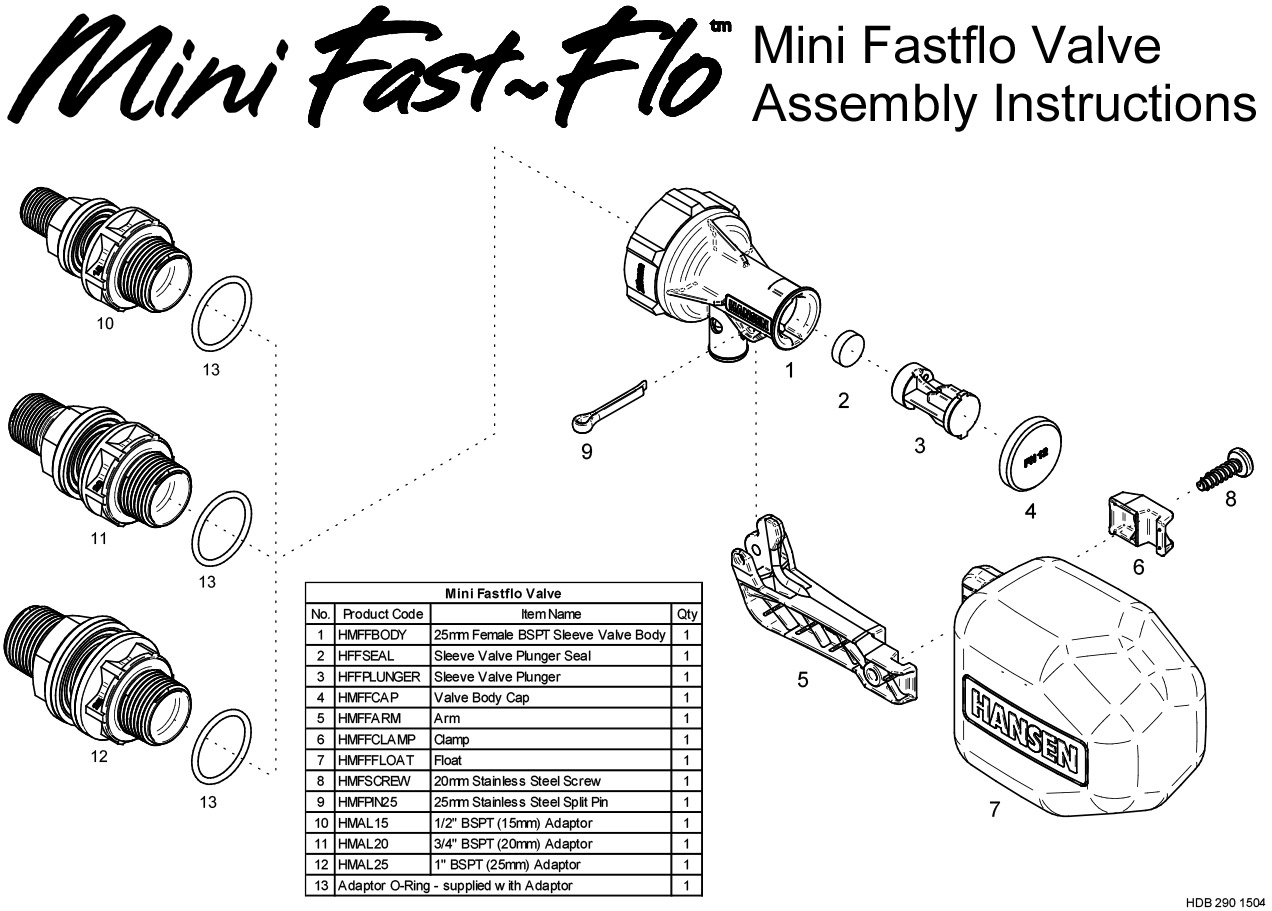

MINI FASTFLO ASSEMBLY GUIDE: (See full mini fastflo valve assembly chart in image gallery)

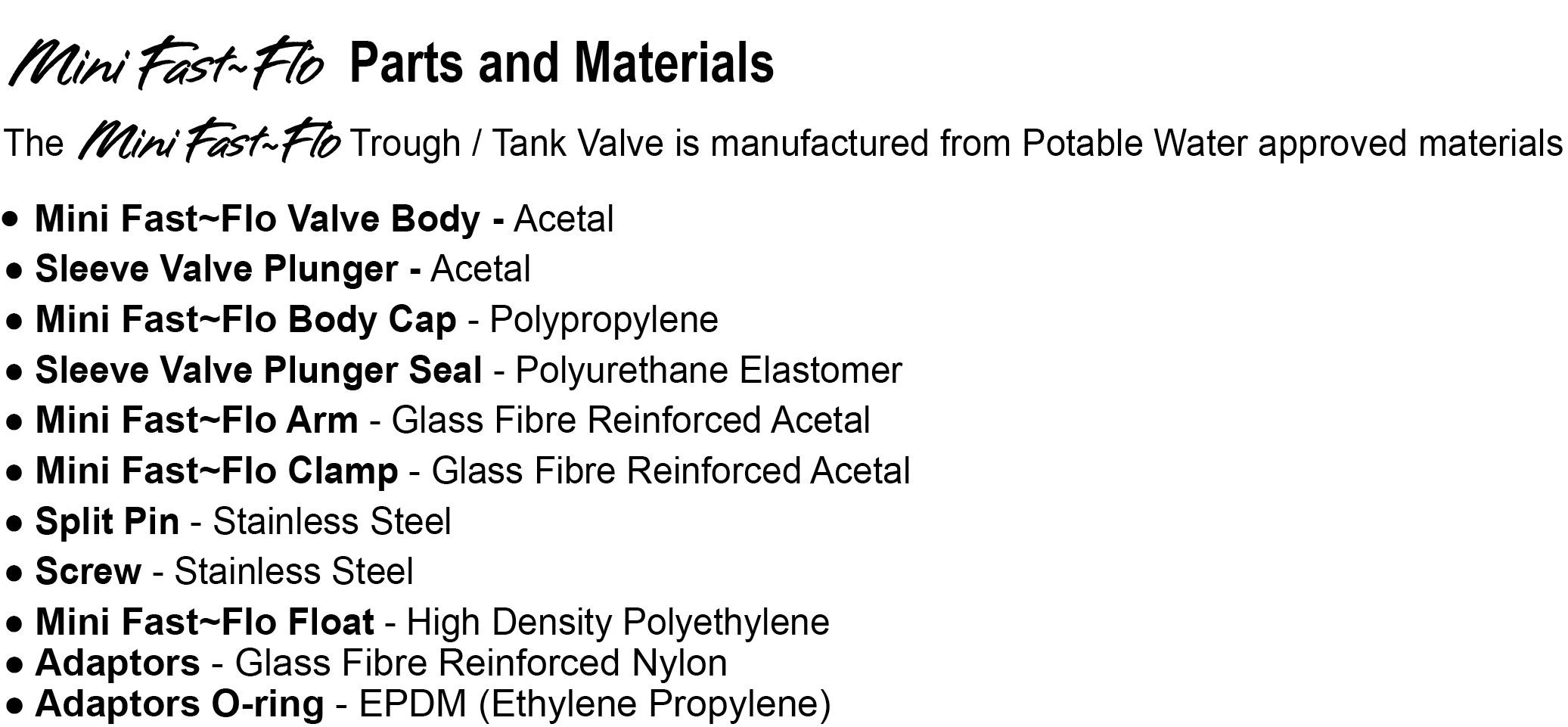

MINI FASTFLO PARTS AND MATERIALS

The Mini Fastflo Trough/Tank Valve is manufactured from Potable Water Approved Materials.

  • MINI FASTFLO VALVE BODY: Acetal
  • SLEEVE VALVE PLUNGER: Acetal
  • MINI FASTFLO BODY CAP: Polypropylene
  • SLEEVE VALVE PLUNGER SEAL: Polyurethane Elastomer
  • MINI FASTFLO ARM: Glass Fibre Reinforced Acetal
  • MINI FASTFLO CLAMP: Glass Fibre Reinforced Acetal
  • SPLIT PIN: Stainless Steel
  • SCREW: Stainless Steel
  • MINI FASTFLO FLOAT: High Density Polyethylene
  • ADAPTORS: Glass Fibre Reinforced Nylon
  • ADAPTORS O-RING: EPDM (Ethylene Propylene)

FREQUENTLY ASKED QUESTIONS

  • QUESTION: I have a header tank in my house that is very noisy while filling, will the Hansen Mini Fast-Flo valve be any quieter?
      ANSWER: The noise while the tank is filling is caused by the high velocity of the water from the valve outlet into the tank. The valve outlet doubles as a spigot so it can be attached as a length of hose to allow the flow to be placed onto the bottom of the tank eliminating this noise.
  • QUESTION: I have found the rubber seats in the compact trough valves I am using don’t last very long, does the Hansen Mini Fast-Flo valve use the same rubber seat?
      ANSWER: No, the seat we use in Hansen Float Valves are urethane which is a very durable and hard material. The seal is also reversible if a foreign body should damage it.
  • QUESTION: The pressure at my compact trough is quite high and the compact float valves I have used either don’t last very long or they don’t shut off properly. Will the Hansen Mini Fast-Flo Valve work with high pressure?

      ANSWER: Yes, both the Mino Fast-Flo and Fast-Flo Valve has the arm pivot point positioned to allow closing at pressures up to 12 bar (174psi). And for Fast-Flo Valve with a 115mm float attached.
  • QUESTION: What size tank inlet do I need to fit the Hansen Mini Fast-Flo Valve?

      ANSWER: All Hansen float valves carry a 25mm (1”) female thread on the valve inlet. This gives you a couple of benefits. The valve will fit inlets from 15mm to 50mm when using our range of adaptors. The additional material used at the inlet to form the female thread strengthens the valve at an area that has been identified as a weak point in other brands of valves.
  • QUESTION: Will the Hansen Mini Fast-Flo valve work in my calf shed bowl troughs?
      ANSWER: Yes, the Mini Fast-Flo was designed as a compact valve for use in small bowls, compact troughs, feeders & header tanks or any situation where the valve space is confined.
Trough Valves/Mini Fastflo FFVALVESP
