Description
Hansen 50mm Ball Valve Female BLUE HBV50
Features & Benefits
- Versatile full-flow ball valve, lightweight and strong
- Frost-friendly — stands up in cold climates well beyond competing valves
- Resistant to rust and corrosion, including salt water applications
- Individually hand-tested with air before leaving the Hansen factory
- Manufactured from non-corrosive, UV-stabilised materials
- Approved for potable (drinkable) water
- Available in BSP, NPT, and ACME thread configurations
- Removable handles for security and varied applications
- Positive “click” smooth open/close action
- High pressure rating: 16 Bar / 235 psi at 20°C
- International colour-coded handles: Female BLUE for general applications, lilac for grey water applications
- Operates across a wide range of pressures and temperatures

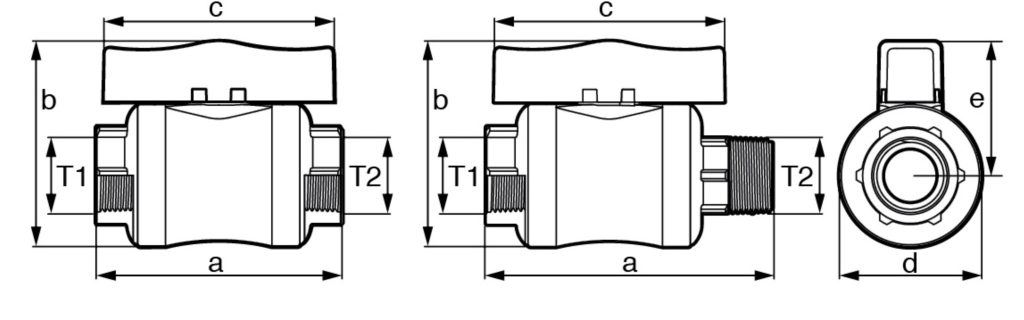

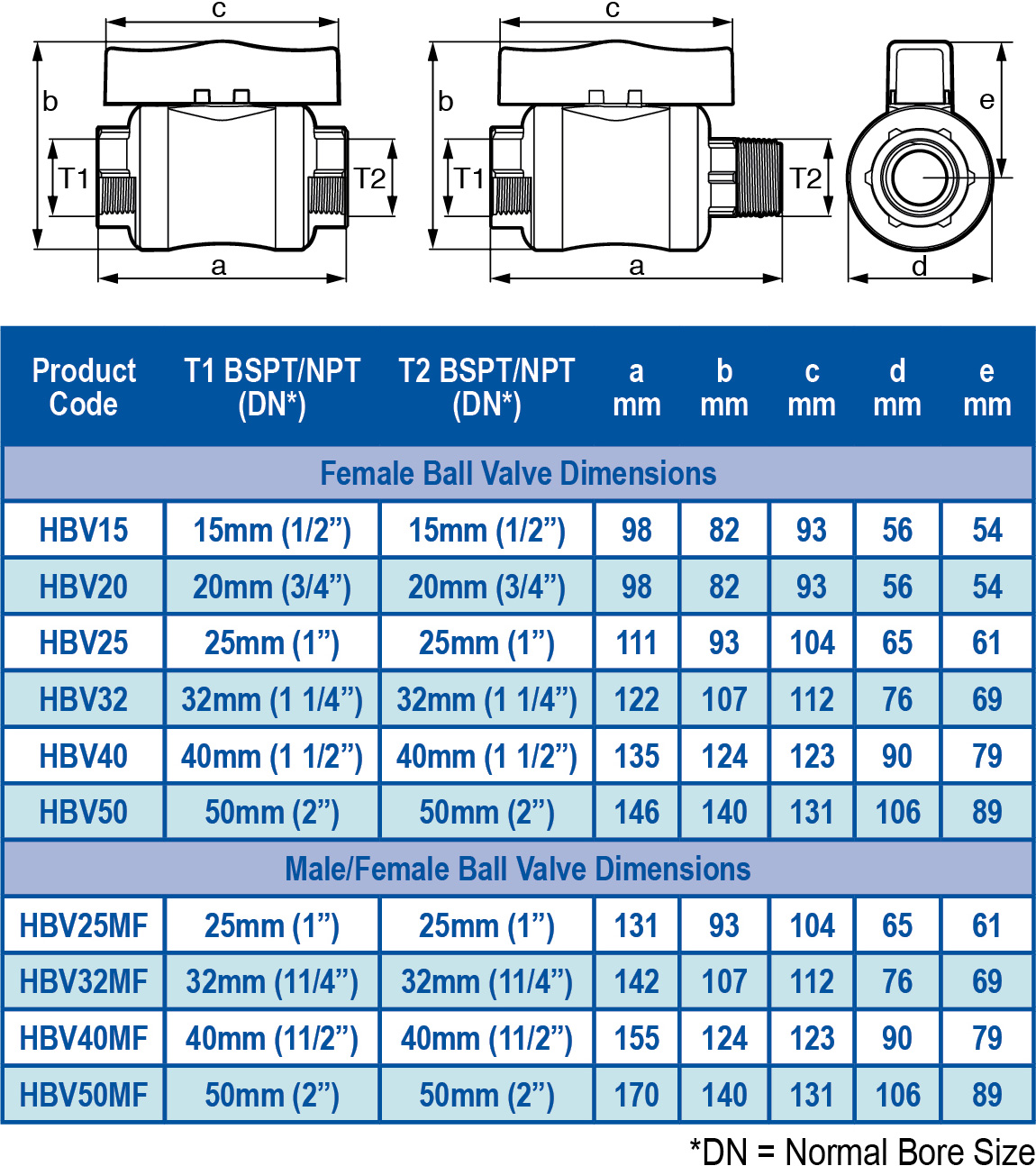

Female Ball Valve Dimensions
| Product Code | T1 BSPT/NPT (DN*) | T2 BSPT/NPT (DN*) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|---|---|
| HBV15 | 15mm (1/2”) | 15mm (1/2”) | 98 | 82 | 93 | 56 | 54 |
| HBV20 | 20mm (3/4”) | 20mm (3/4”) | 98 | 82 | 93 | 56 | 54 |
| HBV25 | 25mm (1”) | 25mm (1”) | 111 | 93 | 104 | 65 | 61 |
| HBV32 | 32mm (1 1/4”) | 32mm (1 1/4”) | 122 | 107 | 112 | 76 | 69 |
| HBV40 | 40mm (1 1/2”) | 40mm (1 1/2”) | 135 | 124 | 123 | 90 | 79 |
| HBV50 | 50mm (2”) | 50mm (2”) | 146 | 140 | 131 | 106 | 89 |
*DN = Normal Bore Size

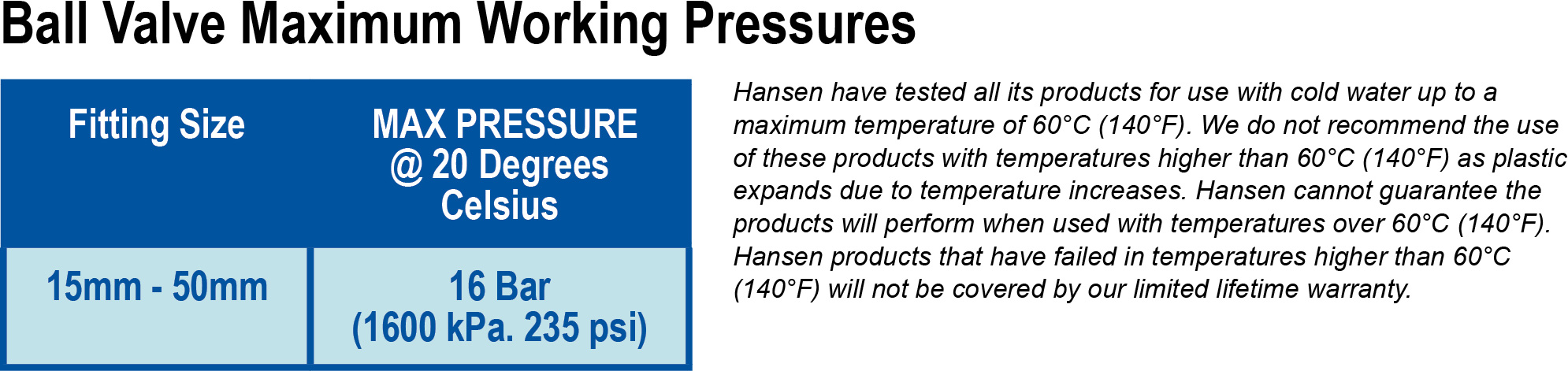

Ball Valve Maximum Working Pressures
| Fitting Size | Max Pressure @ 20°C |
|---|---|
| 15 mm | 16 Bar (1600 kPa, 235 psi) |
| 50 mm | 16 Bar (1600 kPa, 235 psi) |
Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). We do not recommend the use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by our limited lifetime warranty.
Spare Parts
– 50mm Ball Valve Handle BLUE
– 50mm Ball Valve Handle GREEN
– 50mm Ball Valve Handle LILAC
