Description
Hansen 25mm (1″) Rain Relief Sloflo Valve Body / HRRSFBODY
This enables you to supplement your rainwater tank during dry weather spells.
Supplied with: Complete Valve Body, Weighted Float, 2.4 Metre Cord, 15mm & 20mm Long Tail Adaptors.
FEATURES AND BENEFITS
- Rain harvesting and only pump when you need to.
- Restricted flow to 2.0 l/min. Prevent dry tank syndrome.
- Maintains a minimum water level in rainwater tanks.
- Delivers consistent 2.0 l/min. Suitable for high/low pressures (0.2 Bar – 12 Bar).
- Max pressure at 20°C = 12 Bar / 174 PSI.
- Patent Pending “self-cleaning pilot” for use in clean/dirty water conditions.
- Soft open and close action, preventing valve bounce and water hammer.
- Strong, compact design.
- Manufactured from strong, non-corrosive, UV stabilised materials.
SPECIFICATIONS
- PRODUCT CODE: HRRSFBODY
- CODE MEANING: HANSEN RAIN RELIEF SLO-FLO
- SLOFLO RAIN RELIEF VALVE WORKING PRESSURE: Refer to image gallery for chart preview.

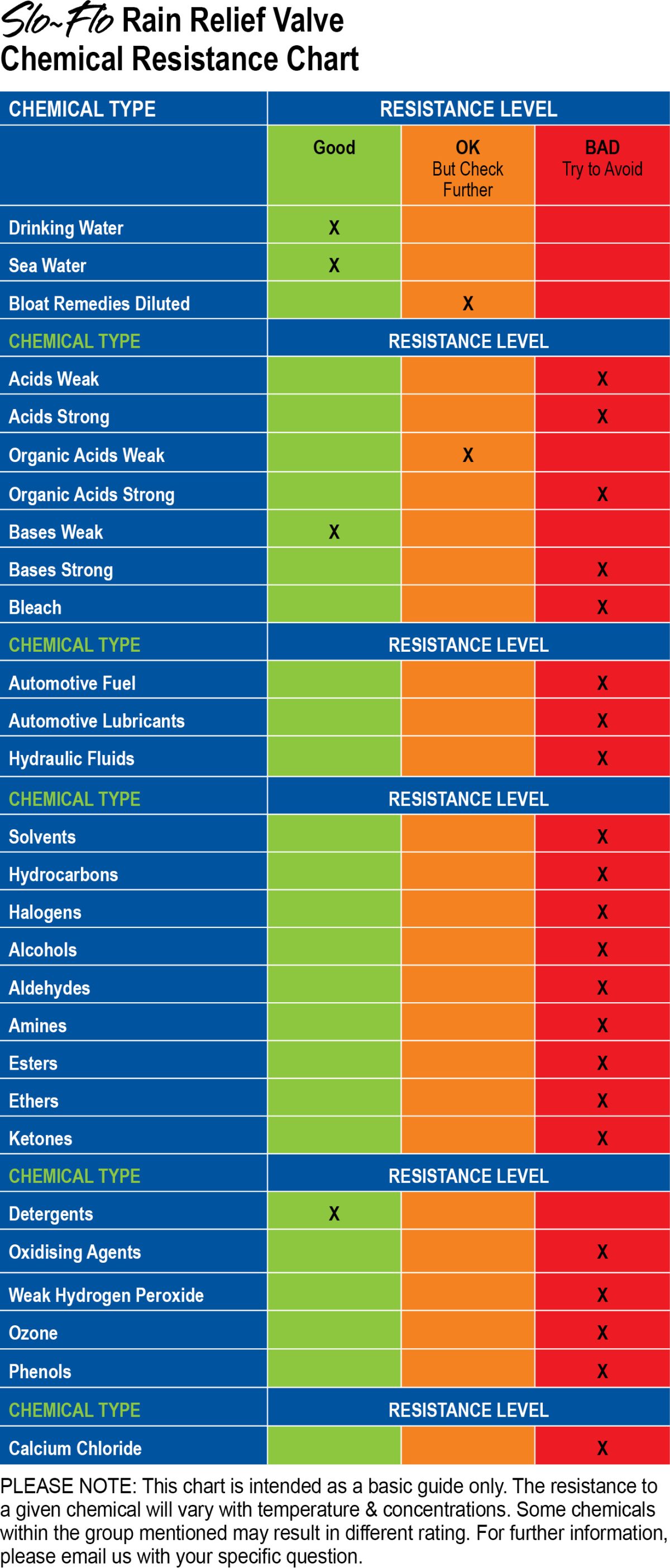

- RAPIDFLO AND SLOFLO RAIN RELIEF VALVE CHEMICAL RESISTANCE CHART: Refer to image gallery for chart preview.
- SLOFLO VALVE INSTALLATION INSTRUCTIONS: Kindly refer to image gallery for installation instructions.
- HANSEN Sloflo Valves are 4020:2018 certified. Kindly refer to Hansen Australia Website for certificates and watermark approval previews.
RAPIDFLO AND SLOFLO DIMENSIONS (See visual dimensions in image gallery)
| VALVE TYPE | T1 BSPT (DN) | T2 BSPT | SIZE a | SIZE b | SIZE c | SIZE d | SIZE e | SIZE f | SIZE g |
| SLO-FLO | 1″ (25mm) | 1/4″ (8mm) | 297mm | 99mm | 78mm | 158mm | 96mm | 64mm | 60mm |
| RAPID-FLO | 1″ (25mm) | 1 1/4″ (32mm) | 297mm | 105mm | 78mm | 158mm | 96mm | 64mm | 60mm |
SLOFLO RAIN RELIEF VALVE MATERIALS
- Diaphragm Valve Body Glass
- Diaphragm Nitrile Rubber
- Guide Bush Nylon
- Guide Tube Acetal
- Springs Stainless Steel
- Split Pin Stainless Steel
- Valve Body Cap Acetal
- Guide Pin Stainless Steel
- Valve Body Cap Nut Glass Fibre Reinforced Nylon
- Pilot Seal Nitrile Rubber
- Float Arm Glass Fibre Reinforced Nylon
- Housing Glass Fibre Reinforced Nylon
- Roller Acetal
- Plunger Housing Acetal
- Locking Plunger Acetal
- Pivot Tube Acetal
- Cord Polyester
- Float Polypropylene
- Weight Stainless Steel
- Weight Carrier Glass Fibre Reinforced Nylon
- Adaptor Glass Fibre Reinforced Nylon
- Adaptor O-Ring EDPM (Ethylene Propylene)
- Stroke Limiter Acetal
- Flow Restricter Acetal and Silicone
HANSEN SLOFLO RELIEF VALVE BROCHURE AND CHEAT SHEETS
- Kindly refer to Hansen Australia Website.
HANSEN HIFLO VALVE HANDY TIPS AND COMMERCIAL VIDEOS
- Kindly refer to Hansen Australia Website.
FREQUENTLY ASKED QUESTIONS
- QUESTION: My rain water supply can get very dirty at times. Can the Rain Relief Valve cope with dirty water?
- ANSWER: Yes, both the Slo-Flo and Rapid-Flo Rain Relief Valves are designed to handle dirty water.
- QUESTION: What is the difference between the Rain Relief Valve and the Leveller Valve?
- ANSWER: The Leveller Valve opens when a pre-defined minimum water level is reached and will fill your entire tank. The Rain Relief Valve will only supplement your tank with either 50mm or 100mm of water, depending on the float orientation.
- QUESTION: What is the difference between the Slo-Flo Rain Relief Valve and the Rapid-Flo Rain Relief Valve?
- ANSWER: The Rapid-Flo and Slo-Flo Rain Relief Valves are essentially the same valve. The key difference between them is that the Rapid-Flo valve is capable of functioning at full flow rate whereas the Slo-Flo valve is restricted to 2 l/min to conform to the Sydney Water Guidelines.
