Description

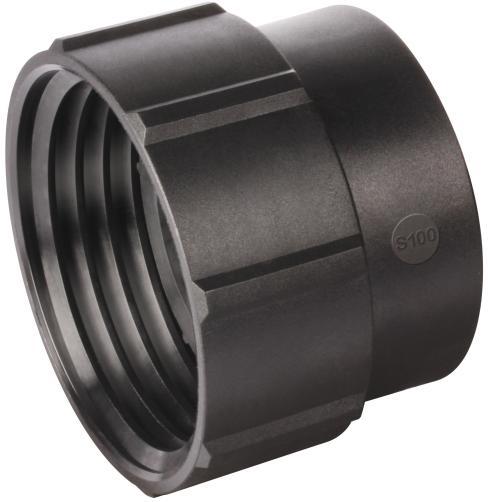

Hansen 100mm x 80mm IBC Female Buttress Adaptor / HIBCFBA10080
This is used to convert a Male ACME Thread on IBC Tank Outlet to a Female
BSPT Thread. This comes with a standard seal.
SPECIFICATIONS
- PRODUCT CODE: HIBCFBA10080
- CODE MEANING: HANSEN IBC FEMALE BUTTRESS ADAPTOR
- TYPE: ACME x BSPT
- For spare part or replacement seal, see HIBCS100 100mm IBC Adaptor Seal
- PRESSURE AND FLOW RATES
- MAXIMUM PRESSURE @ 20º DEGREE CELCIUS/68º FAHRENHEIT: 10 Bar (1000 kPa, 145 PSI)
- FITTING SIZES: 80mm to 100mm
- CHEMICAL RESISTANCE OF TRUE FIT TANK FITTINGS
- Please refer to “True Fit Threaded Fittings Chemical Resistance Chart” in image gallery for specifications and chemical resistance details.
- DIMENSIONS (For visual dimension chart, see image gallery)
- BUTTRESS: 100mm
- BSPT: 80mm
- Also available in different size, see HIBCFBA6050 60mm x 50mm IBC Female Buttress Adaptor
- For ACME Adaptors, see HIBCFAA6050 60mm x 50mm and HIBCFAA7550 75mm x 50mm
- BODY AND NUTS MATERIALS: High Quality Glass Fibre, Reinforced Nylon
- LDPE WASHER: Low Density Polyethylene
- RUBBER WASHER: Thermoplastic Elastomer
- True Fit Threaded Fittings are AWQC AS/NZS 4020:2018 and WRAS Approved Product, refer to Hansen Australia Website.
(Available as seperate purchase)
FEATURES AND BENEFITS
- Precision Heavy Duty threads give a strong reliable seal
- Manufactured from UV Stabilised High Quality Glass Fibre Reinforced Nylon giving a weather, termite, fungi and bacterial resistance
- Designed specifically for use on IBC Tanks/Containers
- Strong, light weight and compact
- Available in a variety of thread combinations
TRUE FIT TANK FITTINGS QUICK AND EASY INSTALLATION (See visual guide in image gallery)
- Prior to installation, refer to tank manufacturer’s recommendations before drilling outlet in tank wall.
- All pipe work must be adequately supported.
- Use a thread sealant on all threaded connections. Loctite 5331 is recommended.
- If you are using chemicals or have any special requirements that you wish to use your Tank Fittings in, check the Tank Fitting Chemical Resistance attached in the image gallery.
- For Minimum Recommended Hole Sizes, kindly check the whole chart in the image gallery.
- Check the sealing surface to ensure it is free from debris and/or scratches which could cause leakage.
- To obtain proper washer compression for fitting installation ensure the face of the washers fully contacts the tank wall.
- Tighten the nut to ensure a water tight seal.
- HANSEN True Fit Tank Fitting can be used in conjunction with metal fittings.
STEP-BY-STEP INSTALLATION PROCESS (See visual guide in the image gallery)
- 1.) Remove the Back Nut and the Low Density Poly Washer (the firmer of the 2 washers) from the Tank Fitting Body. Slide the Tank Fitting Body through the hole in the tank. The Rubber Washer must be between the Fitting Body Flange and the tank wall (ensure the ribs on the Rubber Washer are sealing against the tank wall).
2.) On the inside of the tank wall, slide the Low Density Poly Washer back onto the Tank Fitting Body and then wind on the Back Nut.
3.) Tighten the Back Nut so that the face of both washers make full contact with the tank wall to obtain a water tight seal. Ensure that you comply with the tank manufacturers specifications.
4.) When adding additional fittings, it is recommended that either a thread sealing tape be used on all threaded connections. Loctite is recommended as a sealant.
BROCHURE AND CHEAT SHEETS
- For HANSEN True Fit Tank Fittings Brochure and Cheat Sheet Guide, refer to Hansen Australia Website.
- For HANSEN IBC Tank Fitting Cheat Sheet Guide, refer to Hansen Australia Website.
HANSEN TRUE FIT TANK FITTINGS VIDEO GUIDES & COMMERCIALS
- For HANSEN True Fit Tank Fittings Handy Tips and Commercial Videos, refer to Hansen Australia Website.
TANK FITTING RECOMMENDED HOLE SAW SIZE (See visual sizing guide in the image gallery)
- 15mm = 22mm or 7/8″ Hole Saw
20mm = 27mm or 1 1/16″ Hole Saw
25mm = 34mm or 1 3/8″ Hole Saw
32mm = 42mm or 1 5/8″ Hole Saw
40mm = 48mm or 1 7/8″ Hole Saw
50mm = 60mm or 2 3/8″ Hole Saw
80mm = 95mm or 3 3/4″ Hole Saw
100mm = 121mm or 4 3/4″ Hole Saw
TANK FITTING MINIMUM RECOMMENDED HOLE SAW SIZE (See visual sizing guide in the image gallery)
- Hole Size for 15mm = 22mm
Hole Size for 20mm = 27mm
Hole Size for 25mm = 34mm
Hole Size for 32mm = 42mm
Hole Size for 40mm = 48mm
Hole Size for 50mm = 60mm
Hole Size for 80mm = 95mm
Hole Size for 100mm = 121mm
FREQUENTLY ASKED QUESTIONS
- QUESTION: Can I use my Hansen fittings with my swimming pool/spa pool set up?
- ANSWER: No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by the Hansen Warranty.
- QUESTION: Can I use these fittings with metal fittings?
- ANSWER: Yes, please see installation instruction above.
- QUESTION: Does this fitting carry the Hansen warranty?
- ANSWER: Yes, all Hansen manufactured products carry our Hansen Warranty.
- QUESTION: How tight should I tighten my fittings?
- ANSWER: Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns – no more! For further details, please see installation instructions above.
- QUESTION: What temperature can I use Hansen fittings at?
- ANSWER: Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). It is not recommended to use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by Hansen Warranty.
- QUESTION: What type of thread sealant should I use?
- ANSWER: Use a thread sealant on all threaded connections. It is recommended to use Loctite 5331.
